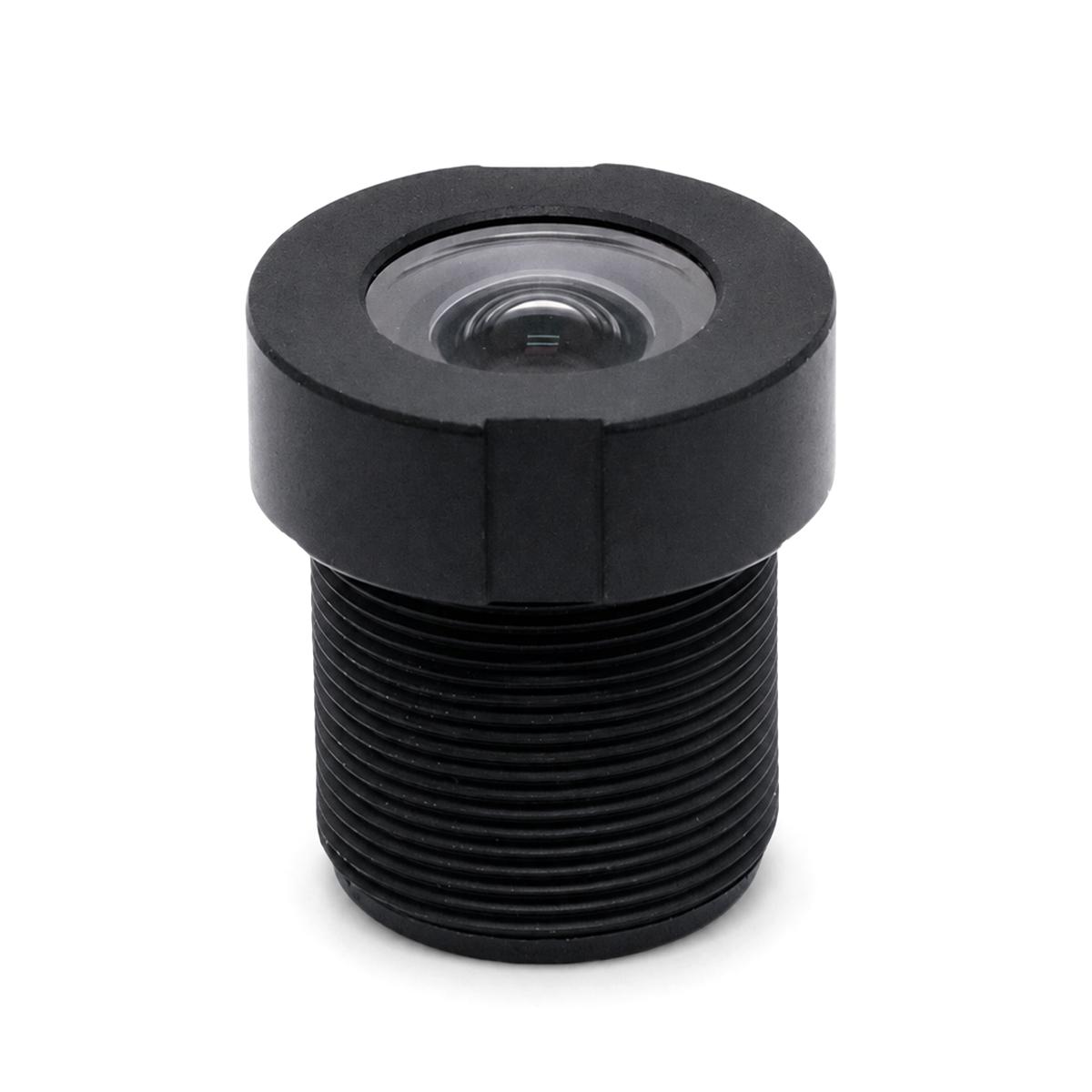

Star Projector Light Lens, 10mm Film Compatible 1:1.67 Projection Ratio Fixed Focus Condenser Lens(Black)

Product Description

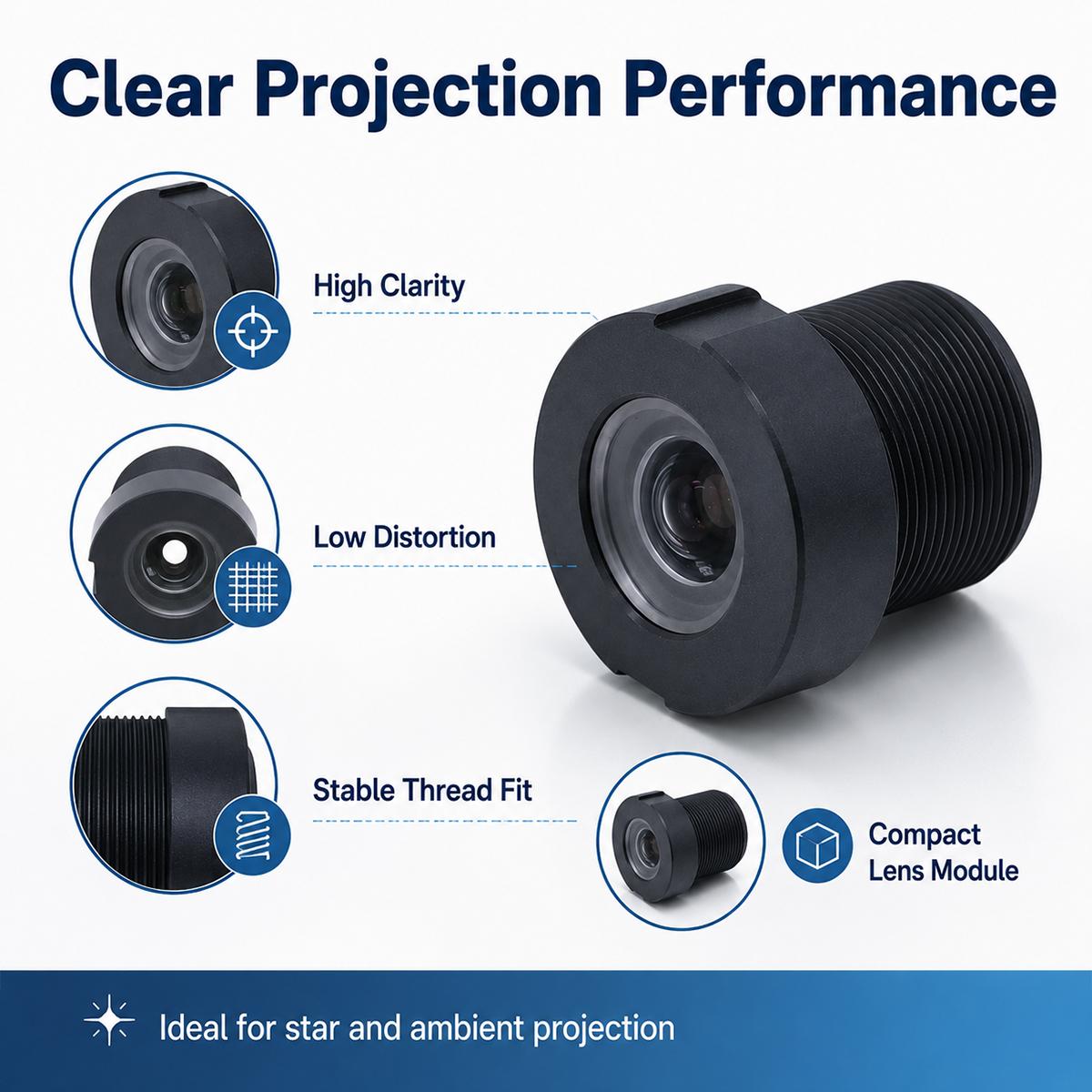

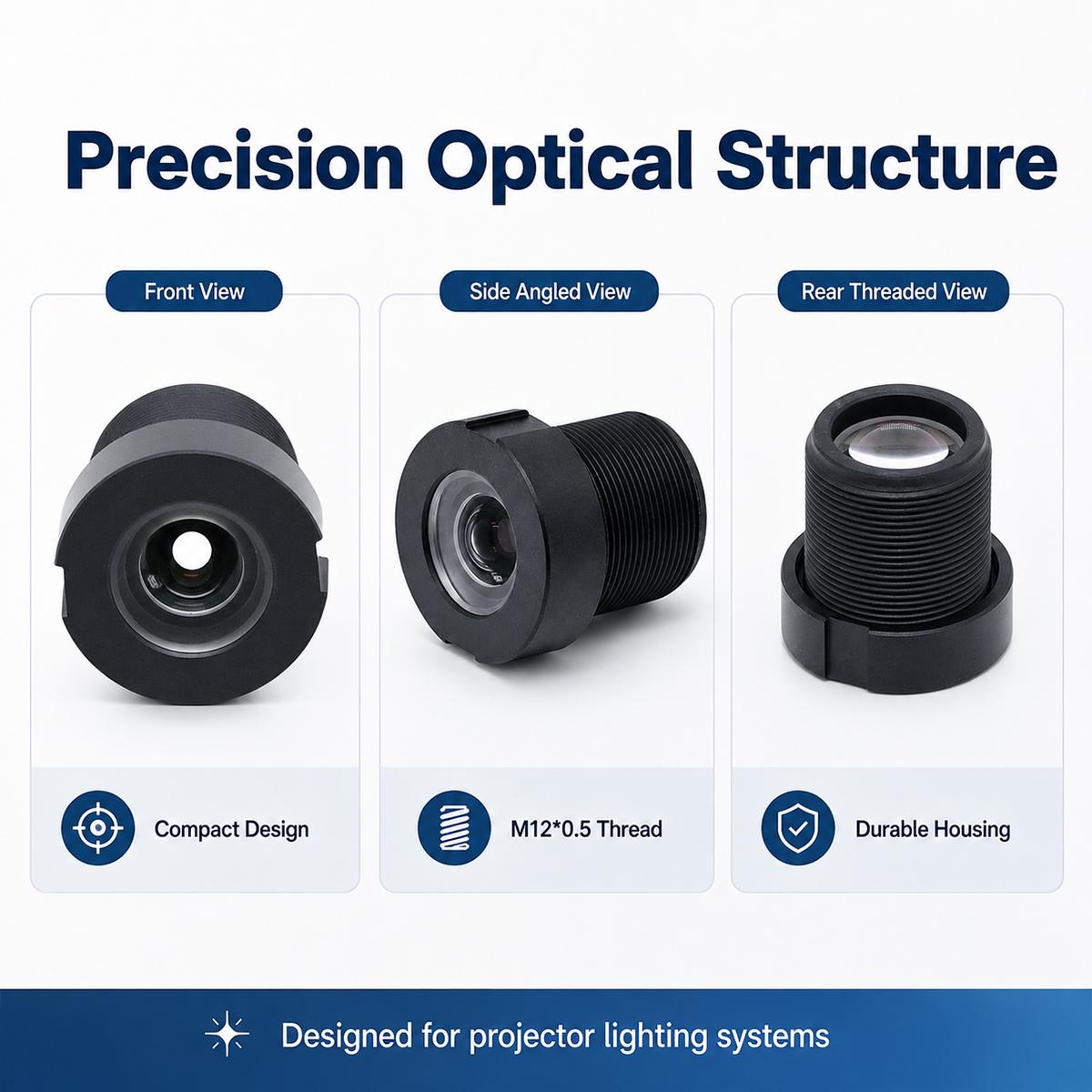

Features: 1. 10mm Film Compatible: Designed for projection systems using 10mm film, providing a suitable optical solution for star projector lights and similar projection devices. 2. 1:1.67 Projection Ratio: The 1:1.67 projection ratio helps achieve efficient image projection with a balanced projection distance and image size. 3. Low Distortion Optical Design: The lens is designed to provide clear projection with reduced image distortion, helping maintain the shape and details of projected patterns. 4. F2.6 Aperture: The F2.6 aperture provides stable light transmission for clear and bright projection effects. 5. Compact Fixed Focus Design: Measuring only 14mm in diameter and 18.22mm in length, the compact fixed focus lens is suitable for space-constrained projection devices. Specification: 1. Maximum Aperture: F2.6 2. Focal Length: 6mm 3. Lens Type: Fixed Focus Lens 4. Projection Ratio: 1:1.67 5. Waterproof Rating: Standard Structure, Not Waterproof 6. Image Format: Diameter 10mm 7. Lens Structure: 2G2P (Hybrid Glass-Plastic) 8. Minimum Focusing Distance: 0.2m 9. Wide Angle: 78.28 degrees 10. Viewing Angle: Diagonal 70.6 degrees / Horizontal 62.88 degrees / Vertical 38.4 degrees 11. Lens Dimensions: Diameter 14mm x Length 18.22mm

Specifications

SKU

EDA010164001A

Category

Mobile Parts › Digital Camera Parts › Others

Weight

0.014 kg
