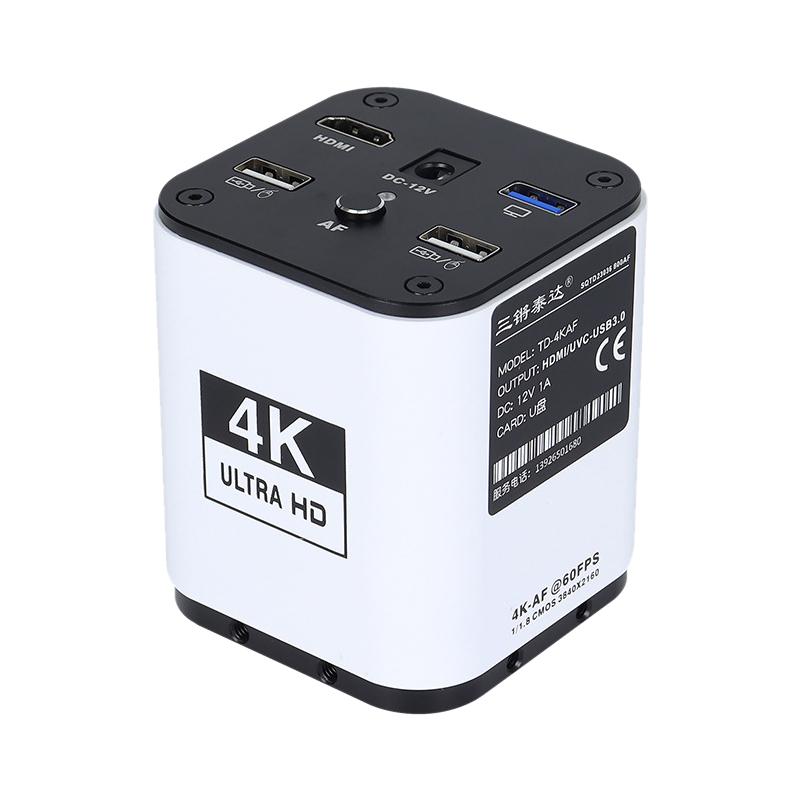

TAIDA TD-4KAF 60FPS CCD Edge Detection 4K Industry Microscope Camera, Plug:UK Plug

Product Description

1. 4K @60FPS Ultra HD High-Speed Imaging 2. Resolution: 3840 × 2160 3. 8 Megapixel output 4. Smooth real-time display without motion blur. 5. Ideal for high-speed inspection and precision measurement. 6. Equipped with 1/1.8 inch Sony CMOS sensor. 7. Pixel size: 2.0um × 2.0um 8. High sensitivity and low noise. 9. Excellent color reproduction and fine detail clarity. 10. HDMI for direct HD monitor connection. 11. USB 3.0 (UVC protocol) plug-and-play PC connection. 12. Supports monitor + computer simultaneous use. 13. Flexible integration into industrial systems. 14. High-Precision Edge Detection & Measurement System: Automatic edge detection capability. 15. Built-in 8 sets of grid lines / 8 selectable colors / 4 selectable line widths. Improves inspection accuracy and measurement efficiency. 16. One-Touch Auto Focus (AF) / Fast and accurate autofocus / Freeze function / Partial enlargement. Enhances operational efficiency. 17. HDR wide dynamic range, HDR imaging support, enhanced contrast in high dynamic environments, suitable for reflective or high-contrast materials. 18. Adjustable parameters include: Color / Color temperature / White balance / Exposure, adapts to different materials and lighting conditions. 19. Multi-Screen Comparison: Two-screen / Four-screen comparison. Ideal for quality inspection and side-by-side analysis 20. Integrated Industrial Functions: Image capture / Video recording / Measurement / Storage. supports PC-based analysis and documentation. 21. Standard C-Mount lens compatibility.

Specifications

SKU

EDA009093202

Category

Mobile Parts › Repair Tools › Microscope Magnifier Series

Weight

1.704 kg

Delivery

Standard delivery
