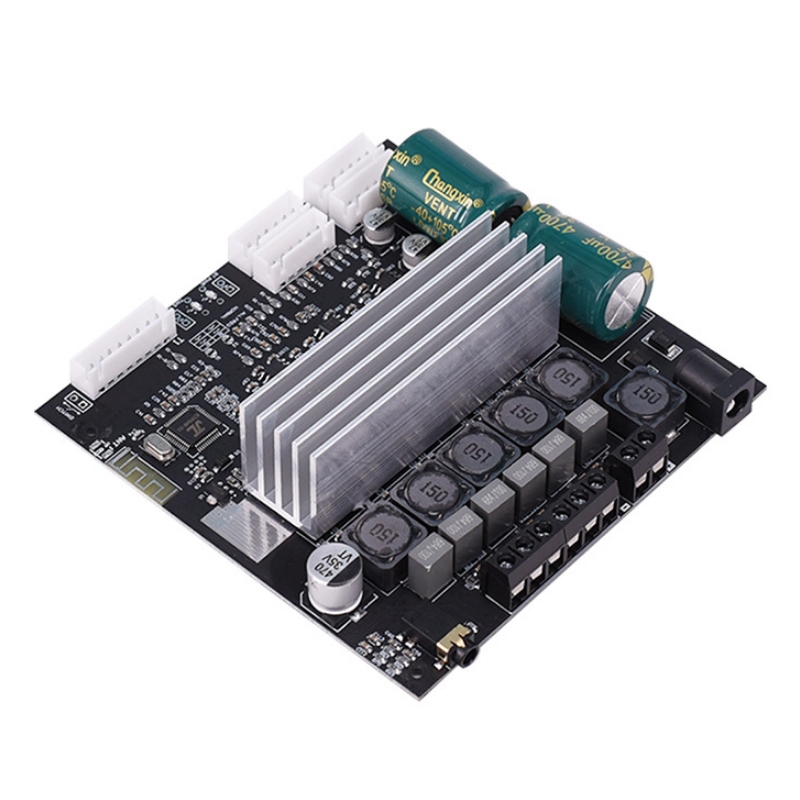

TWS Bluetooth Speaker 2.1 Stereo TPA3116D2 Amplifier Motherboard Module(Split)

Product Description

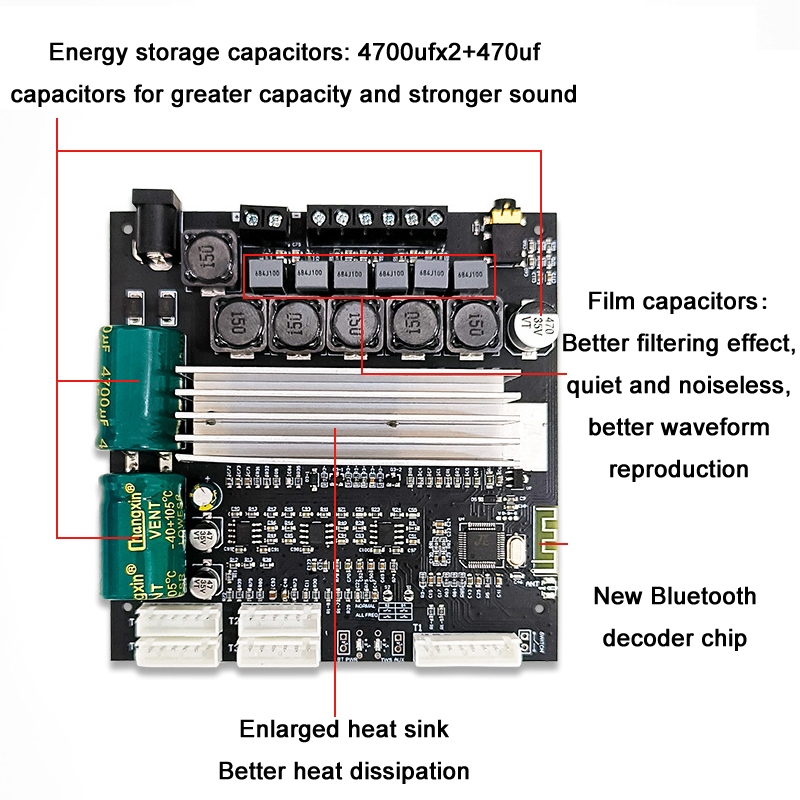

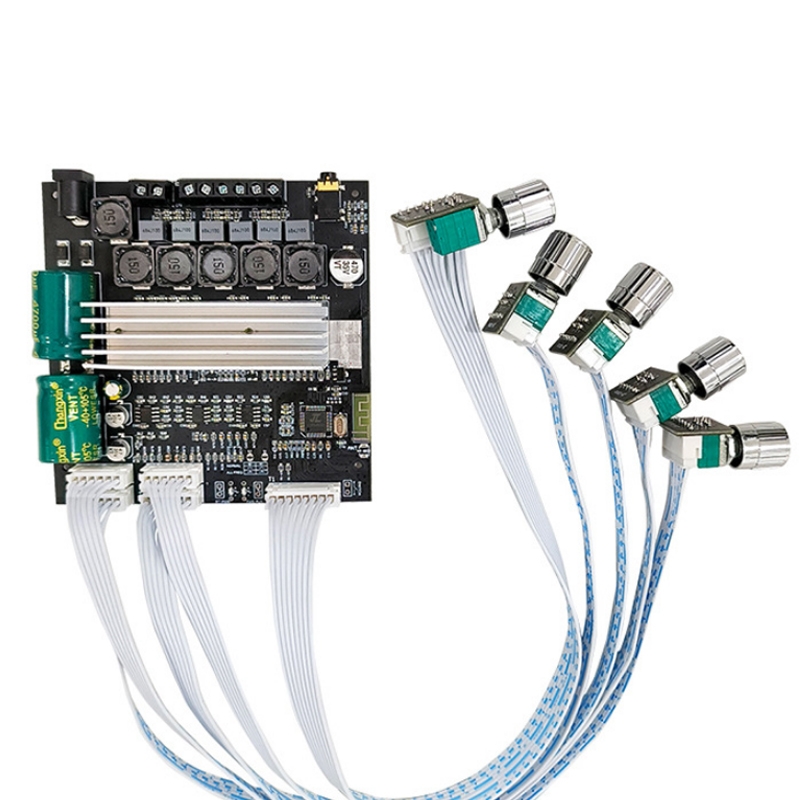

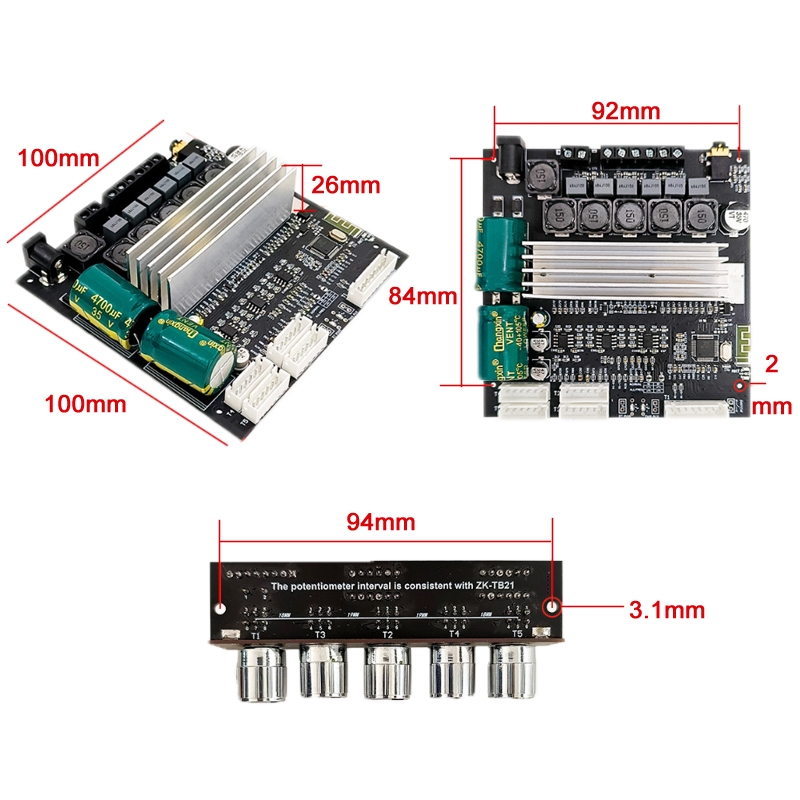

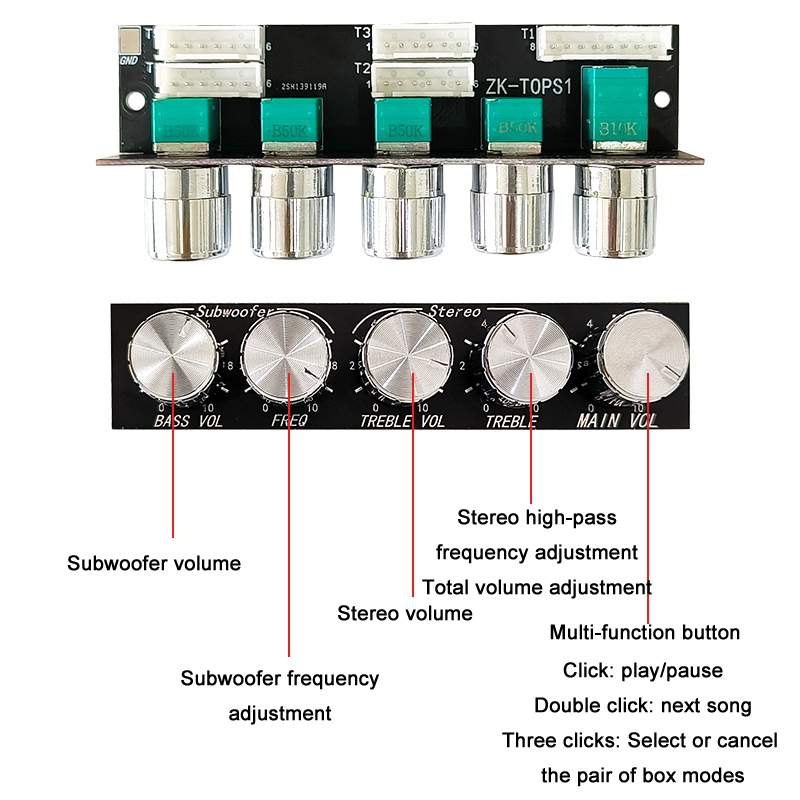

1. Energy storage capacitors: 4700ufx2+470uf capacitors with larger capacity and stronger sound 2. Film capacitor: better filtering effect, quiet and noiseless, better waveform reproduction 3. Larger heat sink for better heat dissipation 4. Power amplifier chip: TPA3116D2 5. Bluetooth version: 5.1 6. Bluetooth transmission distance: 10m 7. Audio input: Bluetooth + AUX 8. Audio output: 50W for left channel + 50W for right channel + 100W for subwoofer 9. Adaptable power supply: DC12-24V, 7A (not connectable to AC) 10. Speaker: left and right channel 20-50W, 4-8 ohms; subwoofer 20-100W, 4-8 ohms 11. External leads: 4 x 6P 35cm, 1 x 8P 35cm 12. Protection mechanism: over temperature, over current, short circuit, anti-static protection 13. Feature function: support Wuzhi Audio APP, modify Bluetooth name, password setting, beep volume adjustment, on/off beep, sleep aid song, firmware upgrade, etc. Pair box function, true wireless function allows two sets of speakers to be combined into a left and right channel pair box, with a stronger sense of spatial positioning 14. Dimensions: 100x100x25cm 15. Weight: 220g for integrated, 280g for separate

Specifications

SKU

TBD0603128001B

Category

Consumer Electronics › Amplifier

Weight

0.297 kg

Delivery

Standard delivery
