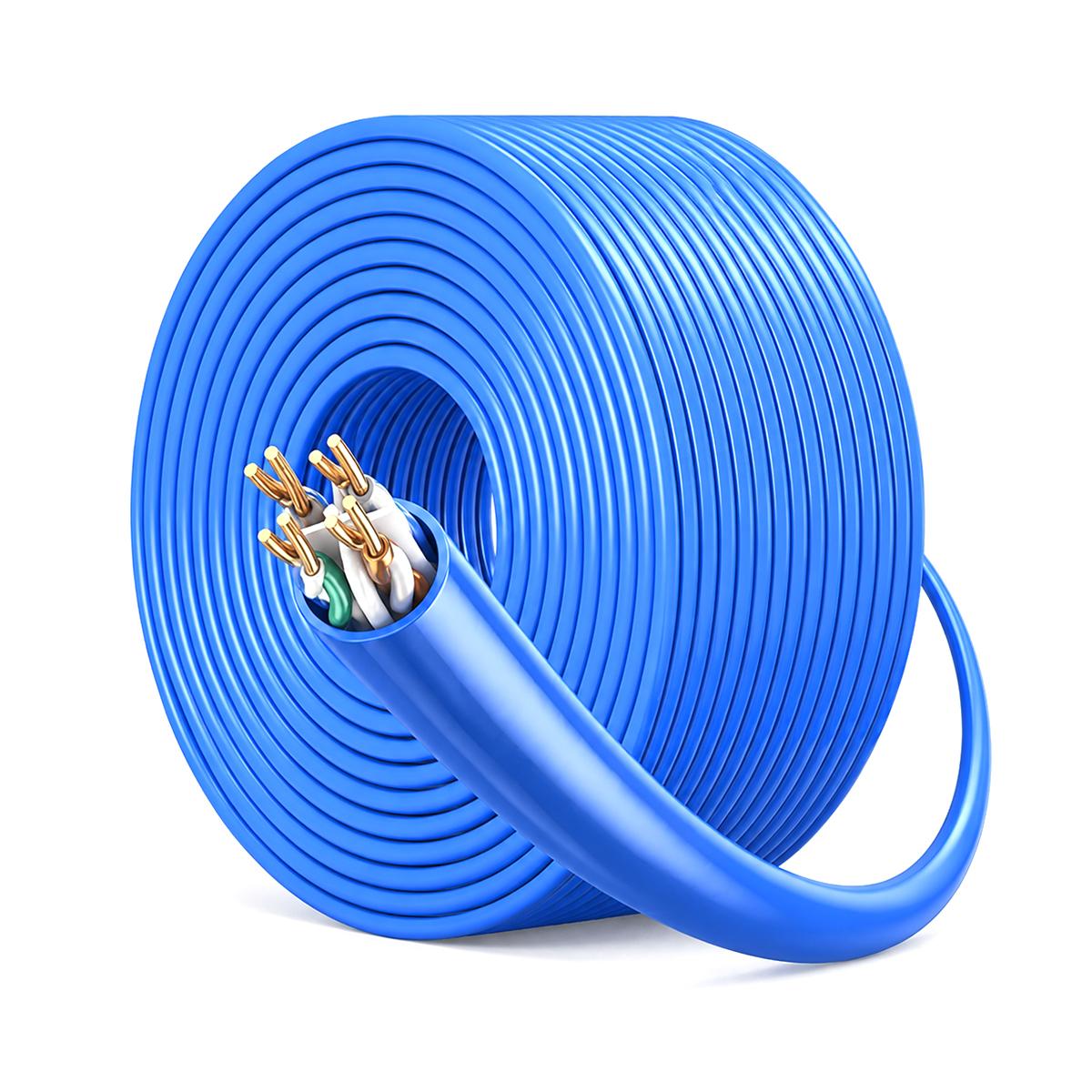

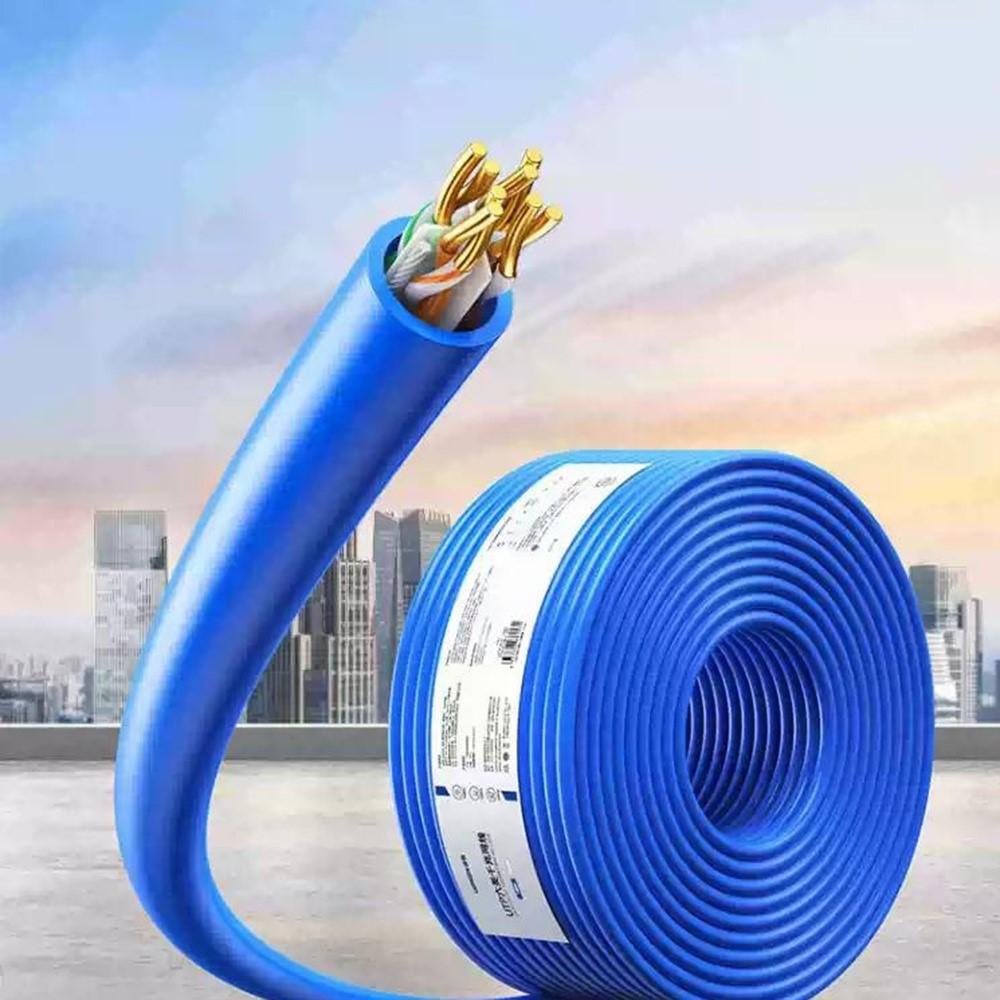

UGREEN NW109 11257 Pure Copper 1000Mbps Gigabit Network Cable Cat6 Ethernet Cable, Length: 100m

Product Description

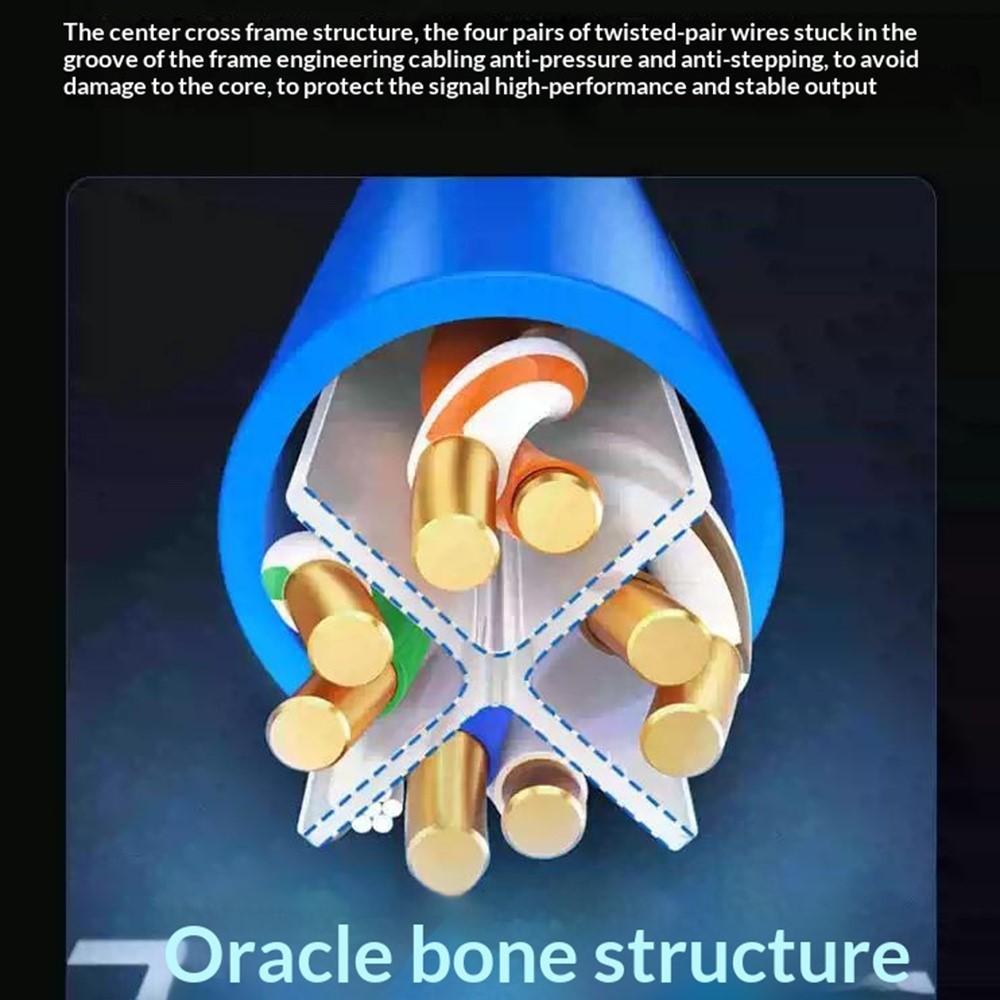

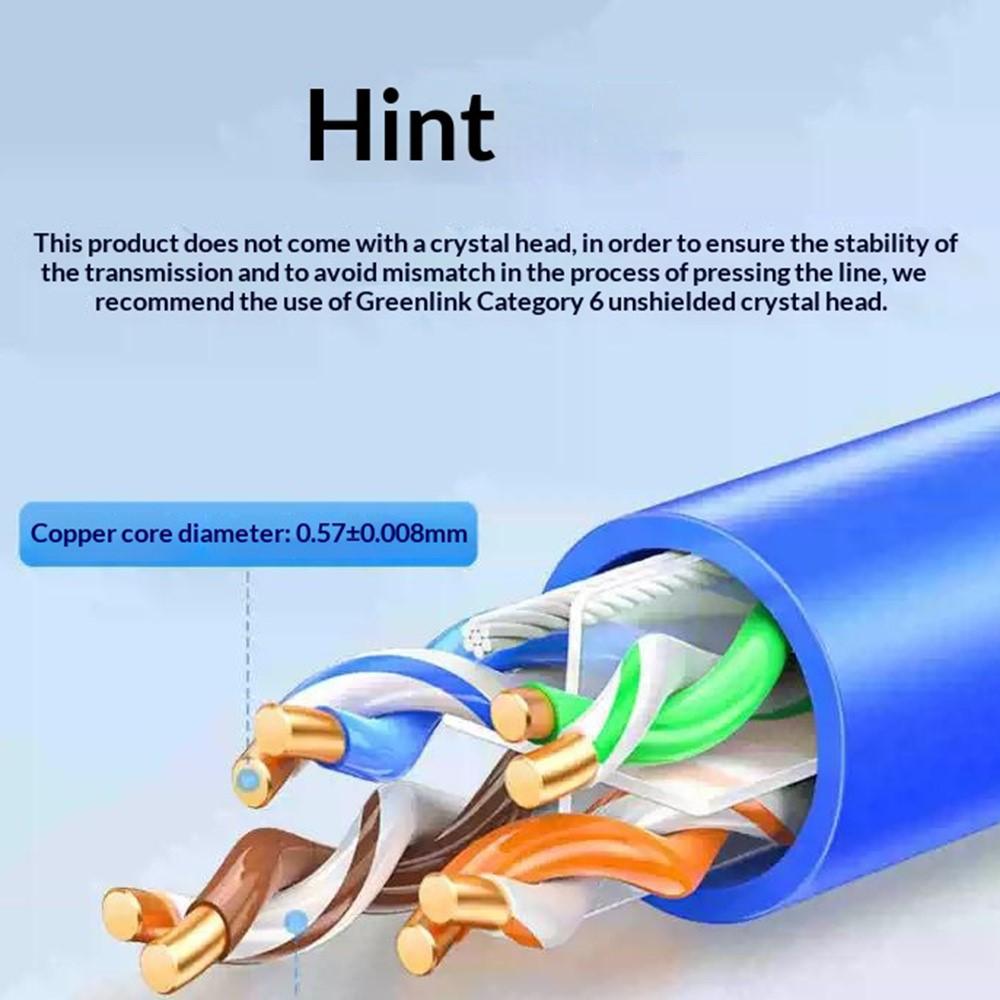

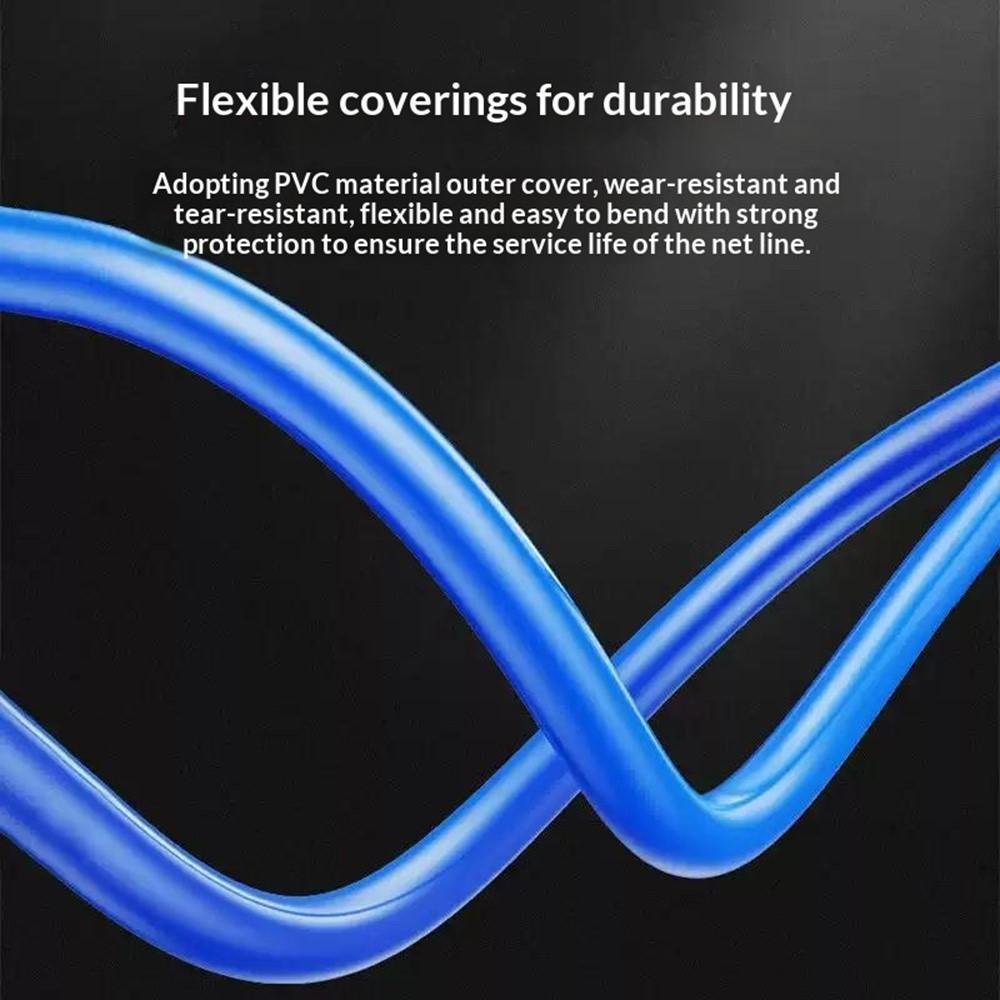

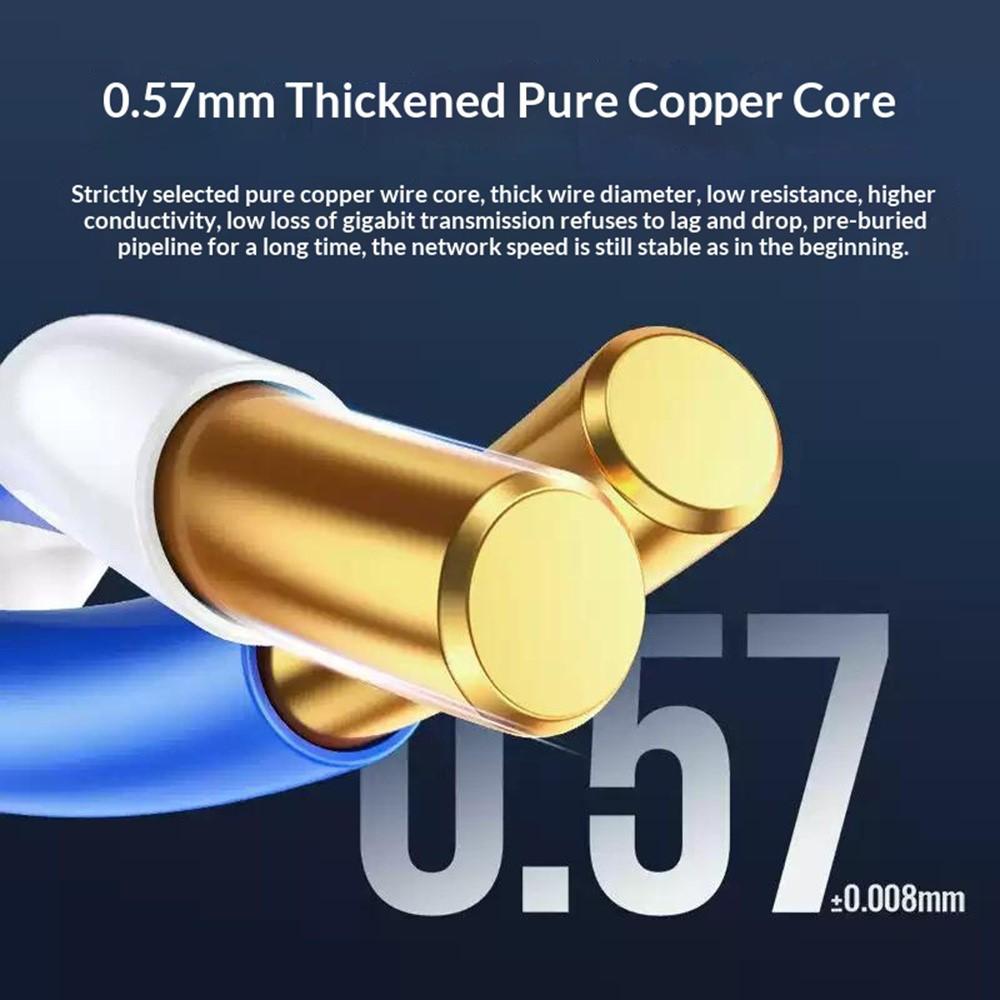

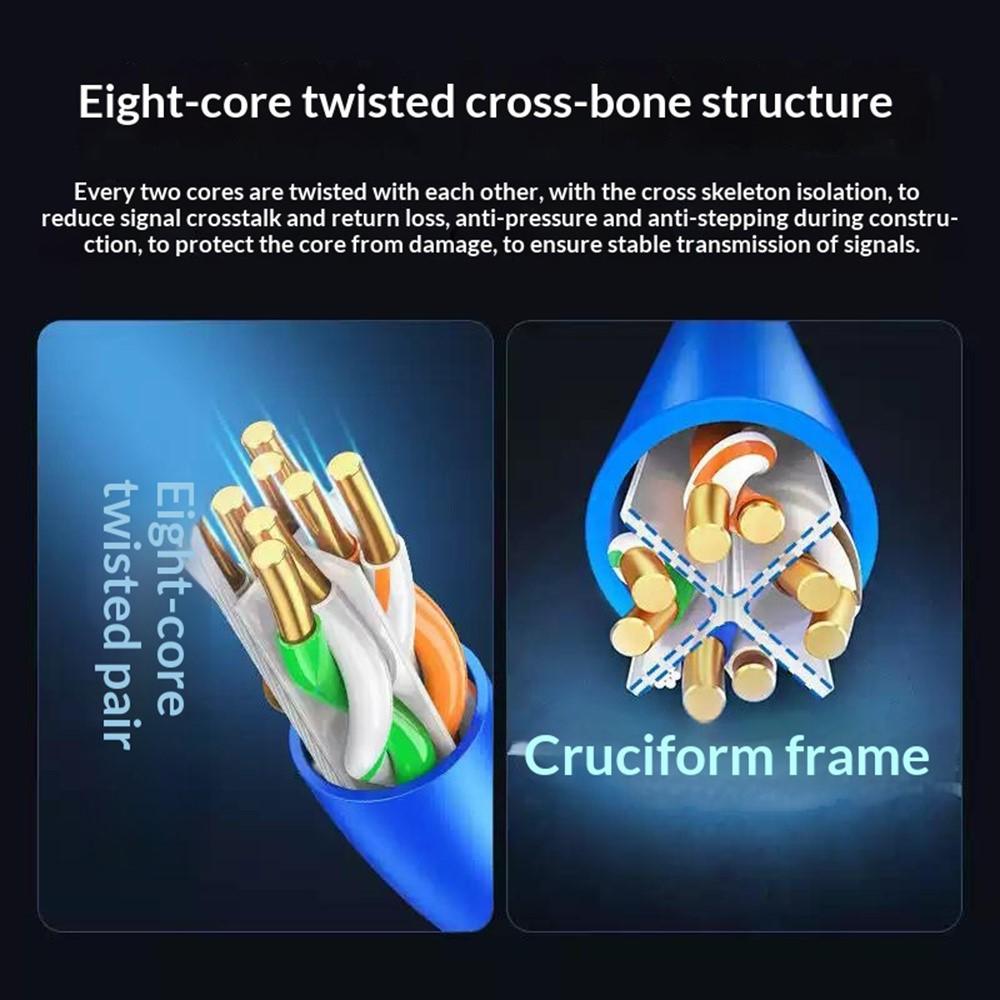

1. 23AWG Pure Copper Core: Features 0.57mm ±0.008mm thickened pure copper conductors with low impedance for superior conductivity and minimal signal loss. 2. Cross-Bone Isolation Structure: Built-in cruciform frame separator effectively reduces electromagnetic interference and crosstalk for stable, reliable transmission. 3. Durable PVC Jacket: Flexible PVC outer sheath provides excellent resistance to pulling, abrasion, aging, and bending, perfect for conduit installation. 4. Gigabit Transmission Speed: Supports up to 1000Mbps data transmission rate with T568A/B wiring standards for high-speed network connectivity. 5. Professional Grade Quality: Meets YD/T1019-2023 standards and passes Fluke instrument testing for guaranteed performance and reliability. Specifications: 1. Model: NW109 2. Category: Cat6 UTP 3. Wire Core: 23AWG Pure Copper 4. Conductor Diameter: 0.57mm ±0.008mm 5. Cable Diameter: 6.0±0.2mm 6. Cable Length: 100m 7. Transmission Rate: 1000Mbps 8. Wiring Standard: T568A/B 9. Structure: 8-core (4 pairs) twisted pair with cross-bone separator 10. Material: PVC outer jacket, pure copper conductor 11. Shielding: Unshielded (UTP)

Specifications

SKU

SYA0034298

Category

Computer & Networking › Networking Accessories › Lan Cable and Tools

Weight

4.51 kg

Delivery

Standard delivery
