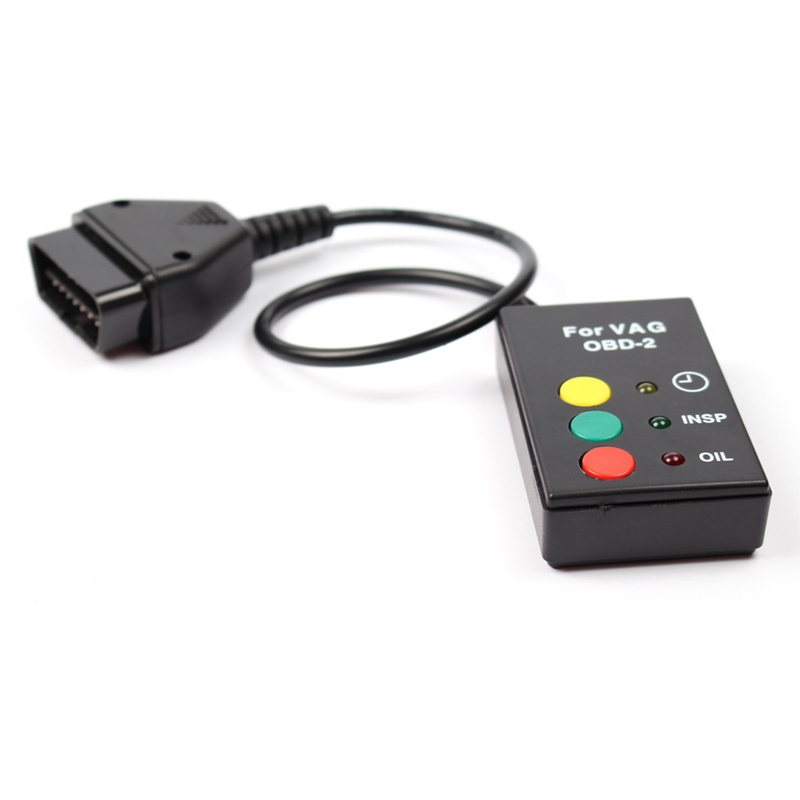

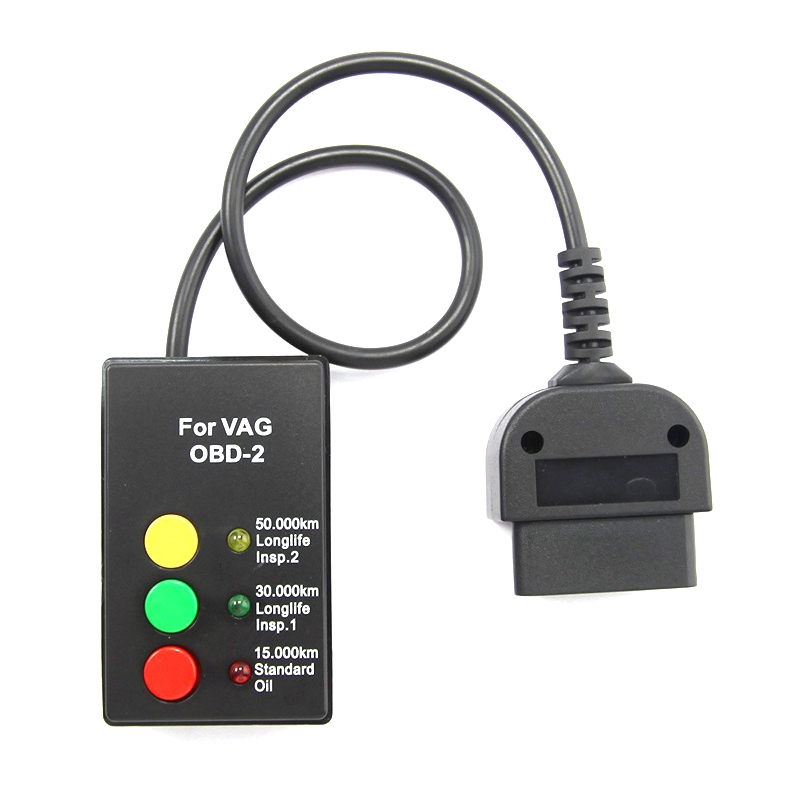

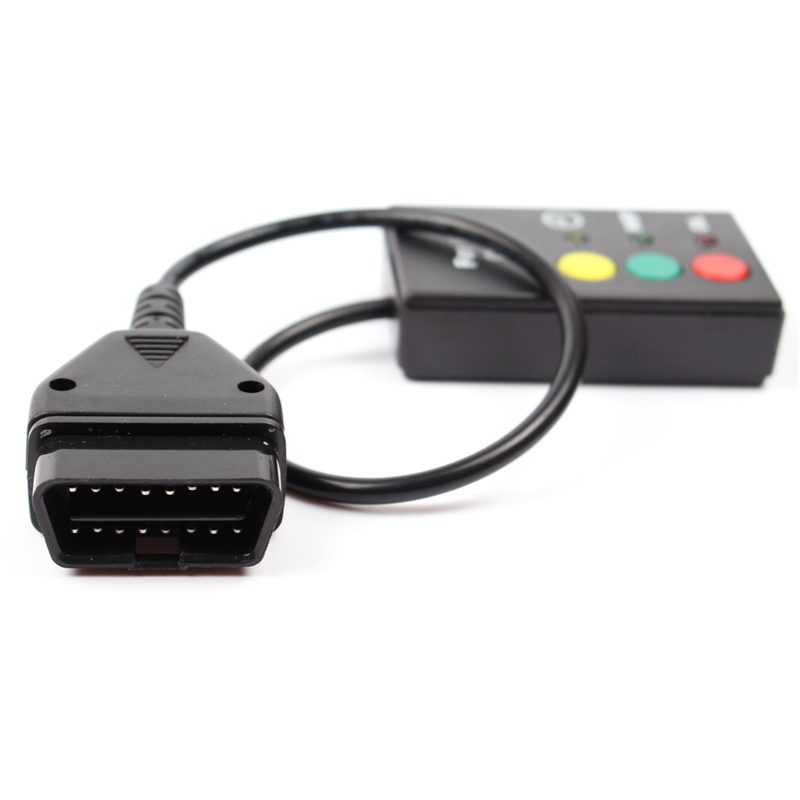

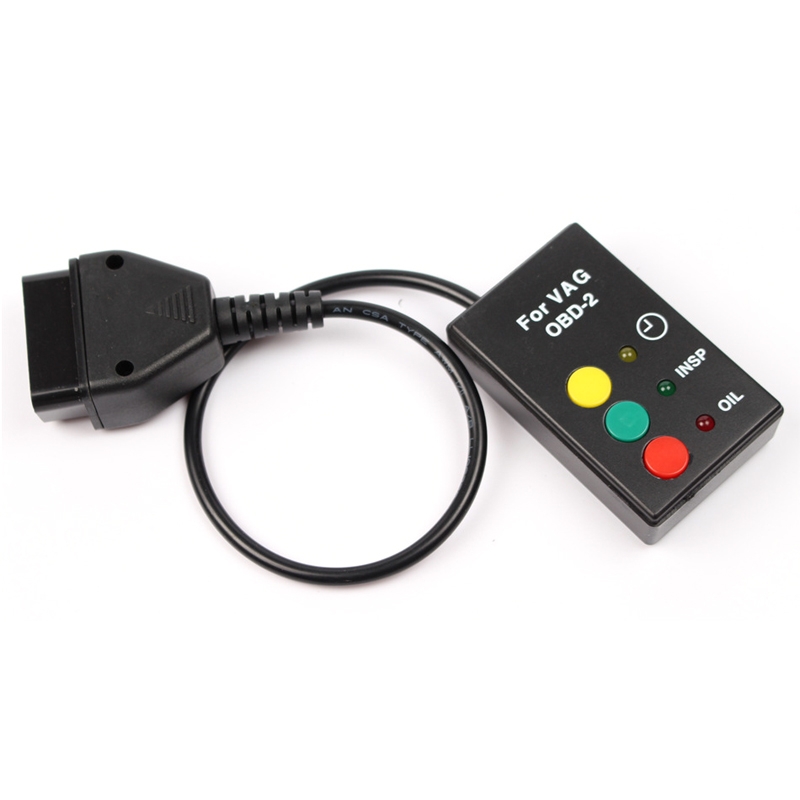

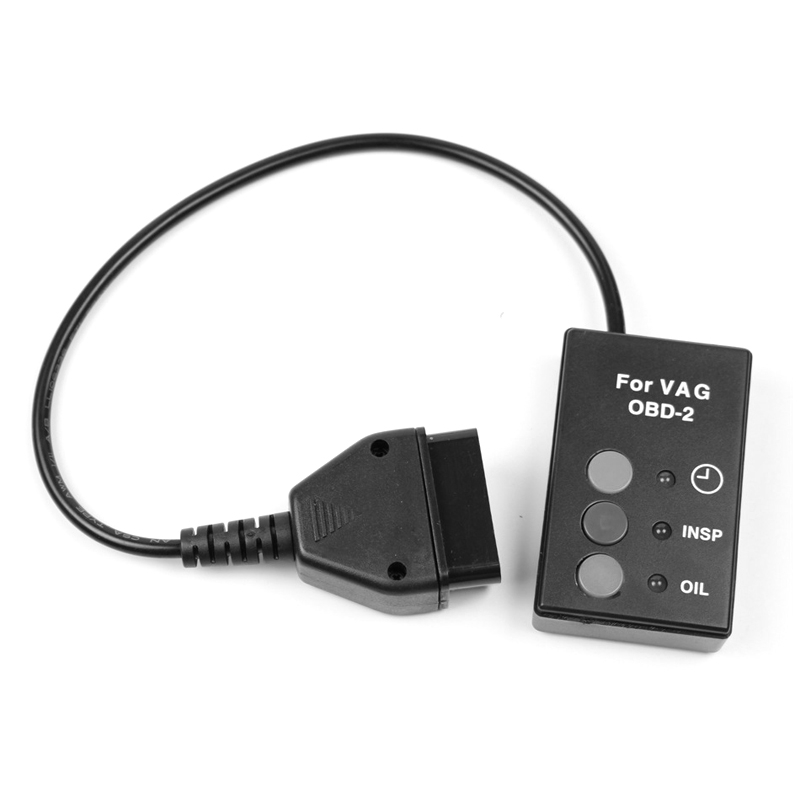

VAG SI RESET OBD2 Maintenance Lamp Returns For Volkswagen

Product Description

1. 3 lights: yellow is oil circuit; green is detection zeroing; red is maintenance zeroing 2. Function: re-check interval 3. Voltage: 8-12V 4. Operating temperature: -20 to 75 degrees Celsius 5. Applicable models: for Volkswagen / Audi / Ford Instructions: 1. Plug the car OBD2 socket into the device 2. All LEDs are blinking, than left on 3. Turn the ignition key to enable the electronic board, but do not turn on the motor 4. Press the button, the action to be performed in the short term 5. The LED of the selected operation will be on, the other LEDs will be off 6. The LED will perform the light chain, which means the reset is done

Specifications

SKU

TBD06022290

Category

In Car › Diagnostic Scan Tools › Code Readers & Scan Tools

Weight

0.204 kg
