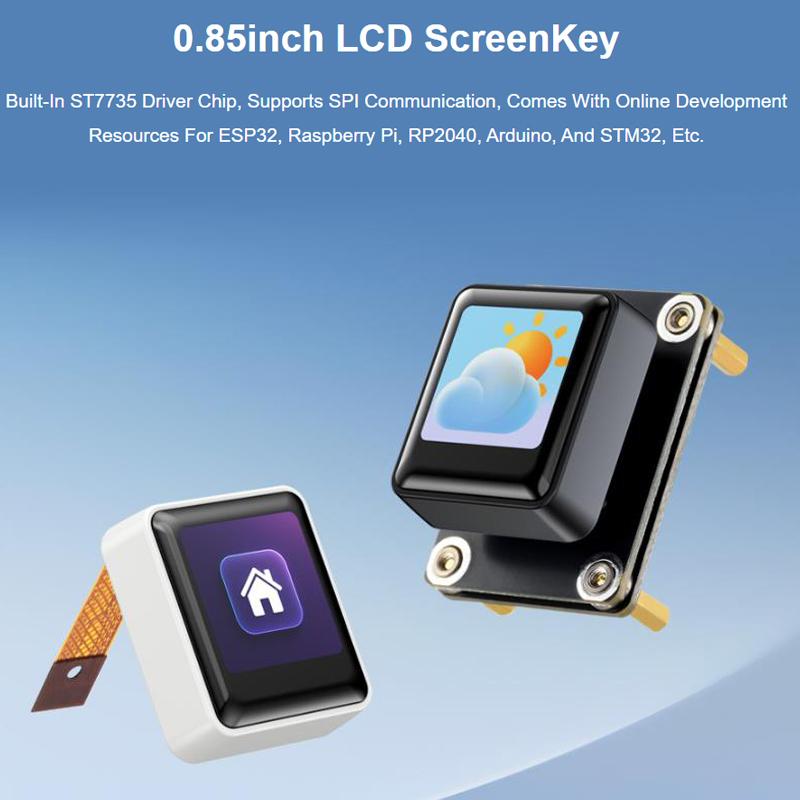

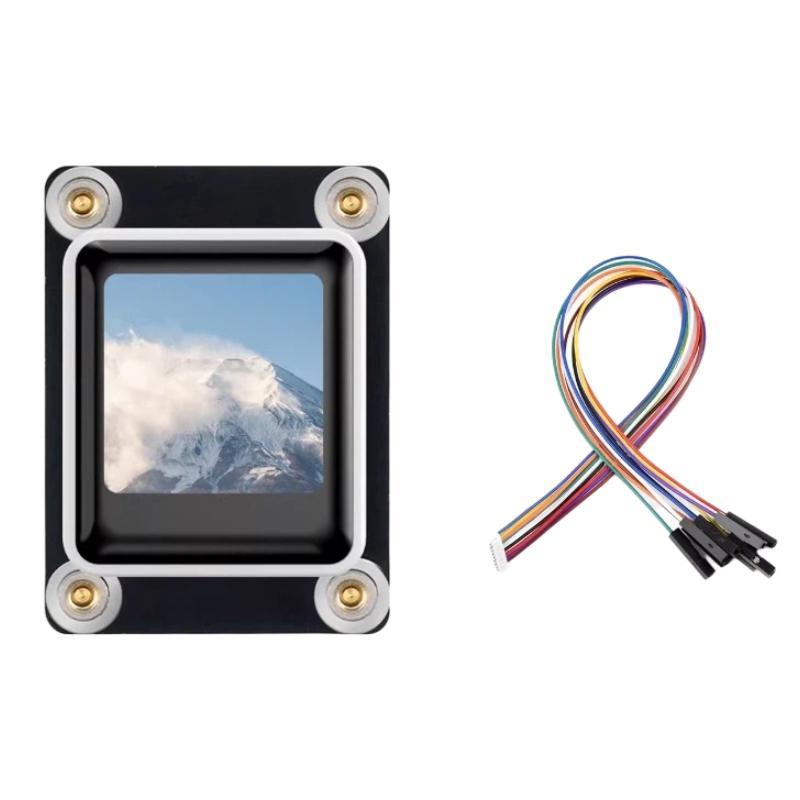

Waveshare 0.85 Inch Mechanical LCD ScreenKey, IPS Panel, 128 X 128 Resolution, 65K Color, SPI Communication Interface, Spec: Module White

Product Description

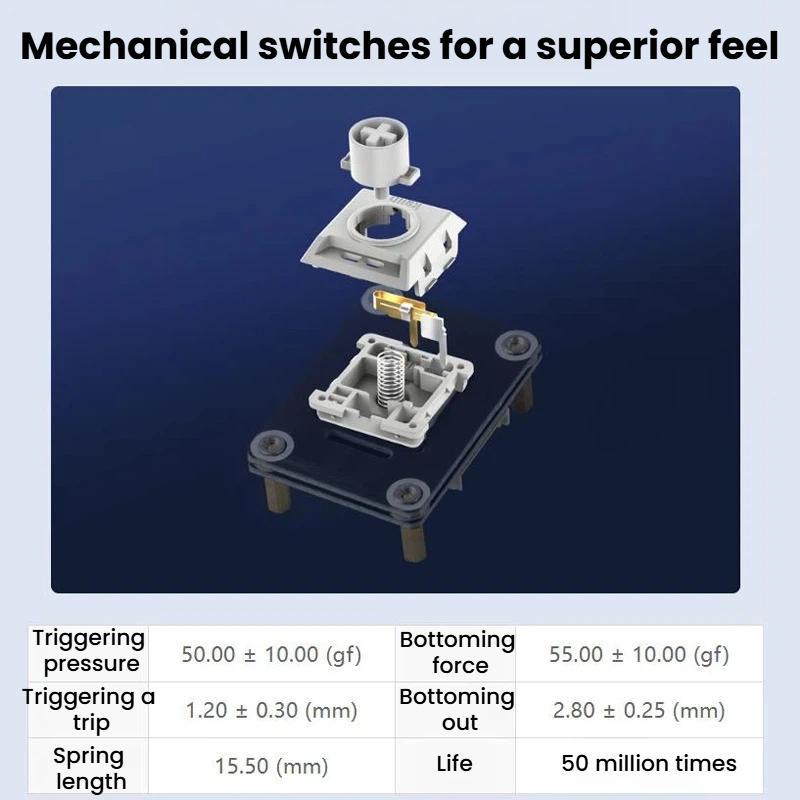

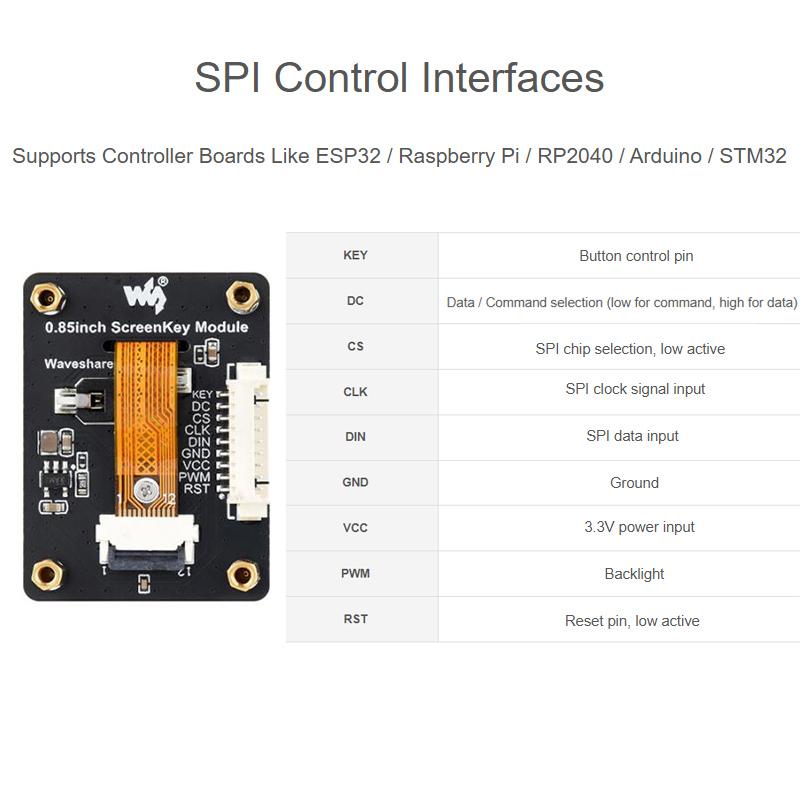

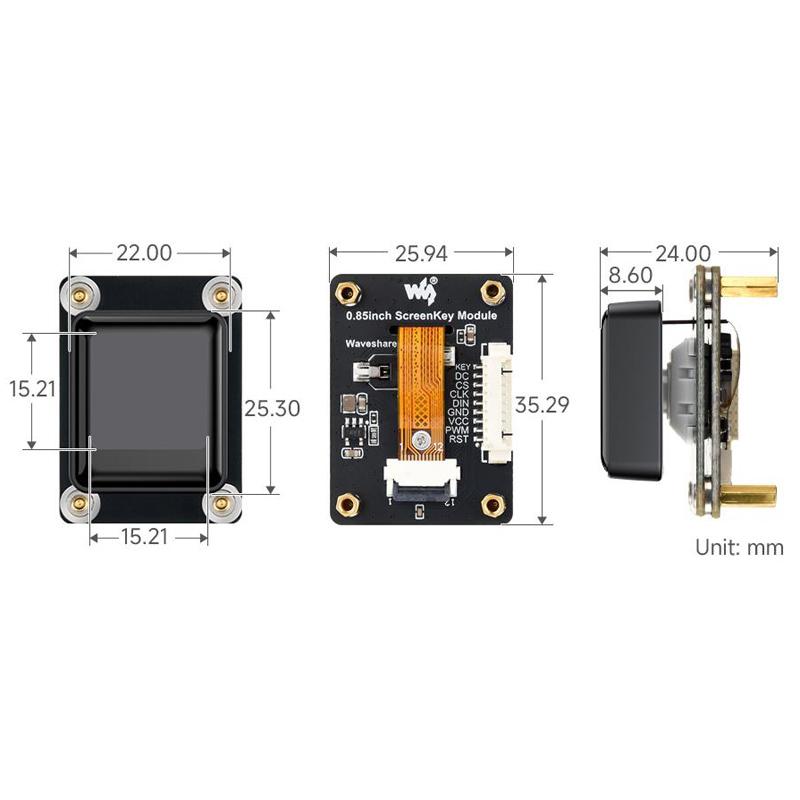

1. Built-in ST7735 driver chip 2. 0.85-inch IPS display with 128 x 128 resolution, 65K color, high-definition display image 3. SPI communication interface, simple interface, occupies few IO resources, convenient for embedded development 4. 2.5D tempered glass panel, good light transmission, scratch-resistant and durable; edge arc design, smooth hand feel 5. Mechanical key structure, pressing feels crisp, capable of coping with high-frequency usage 6. Supports development on platforms such as Raspberry Pi, Arduino, ESP32, RP2040, STM32, etc., and provides complete supporting materials and sample programs Parameters 1. Working voltage: 3.3V 2. Display color: 65K 3. Display panel: IPS 4. Communication interface: 4-wire SPI 5. Resolution: 128 x 128 pixels 6. Display size: 15.21 x 15.21mm 7. Pixel pitch: 118.8 x 118.8 micrometers 8. Control chip: ST7735

Specifications

SKU

TBD0606805703

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.034 kg
