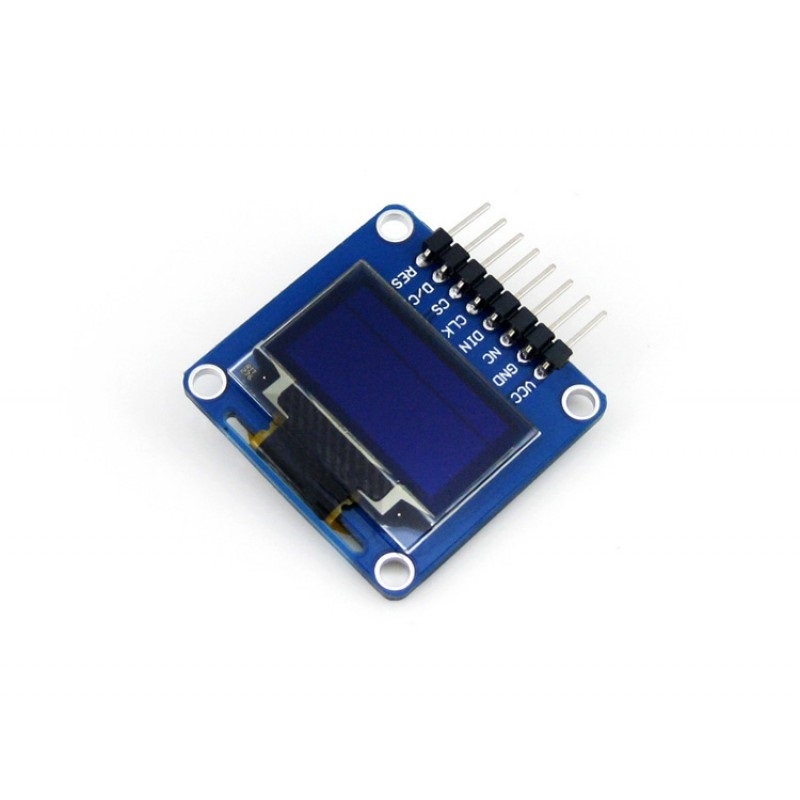

Waveshare 0.96 inch 128*64 OLED (A), SPI/I2C Interfaces, Angled Horizontal Pinheader

Product Description

1. Driver chip: SSD1306 2. Interface: 3-wire SPI, 4-wire SPI, I2C 3. Resolution: 128*64 4. Display size: 0.96 inch 5. Colors: 1/4 yellow section, 3/4 blue section 6. Visible angle: >160 degree 7. Operating temperature: -30~70 degree C 8. Storage temperature: -30~80 degree C 9. Operating voltage: 3.3V / 5V

Specifications

SKU

ZY15799231

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.02 kg

Delivery

Standard delivery
