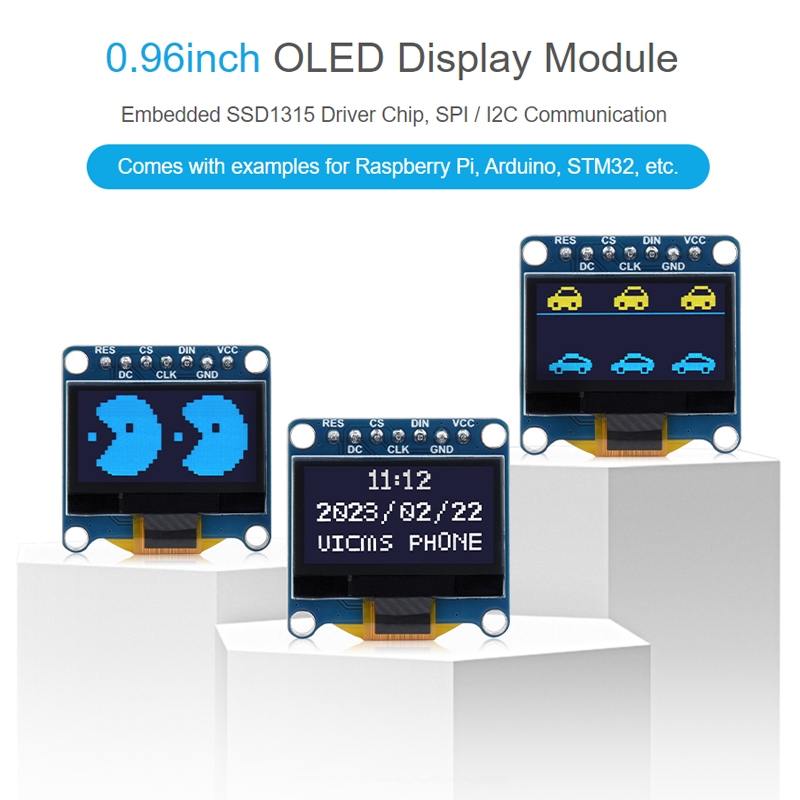

Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White)

Product Description

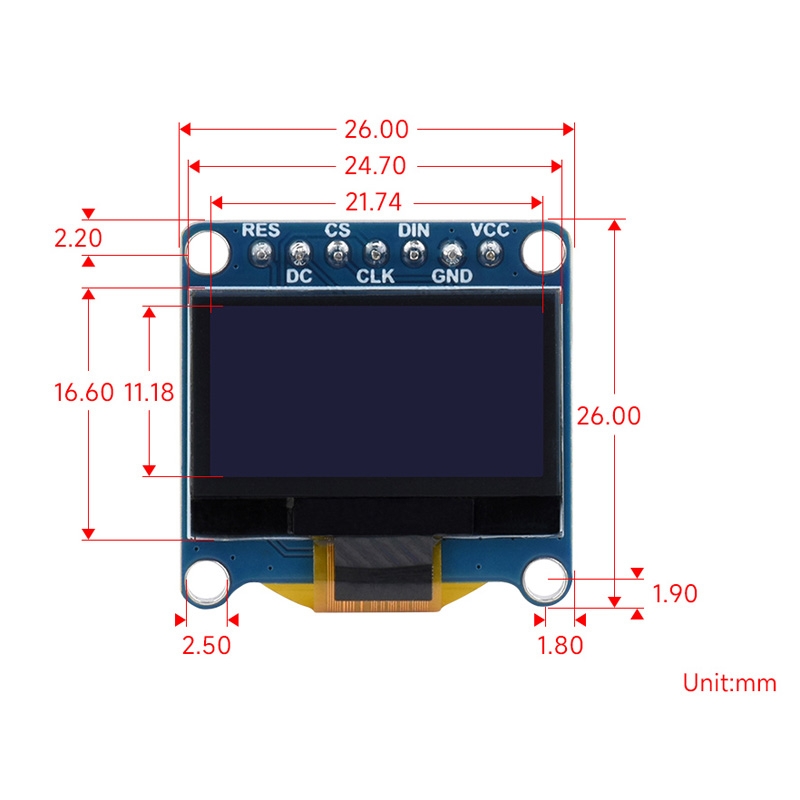

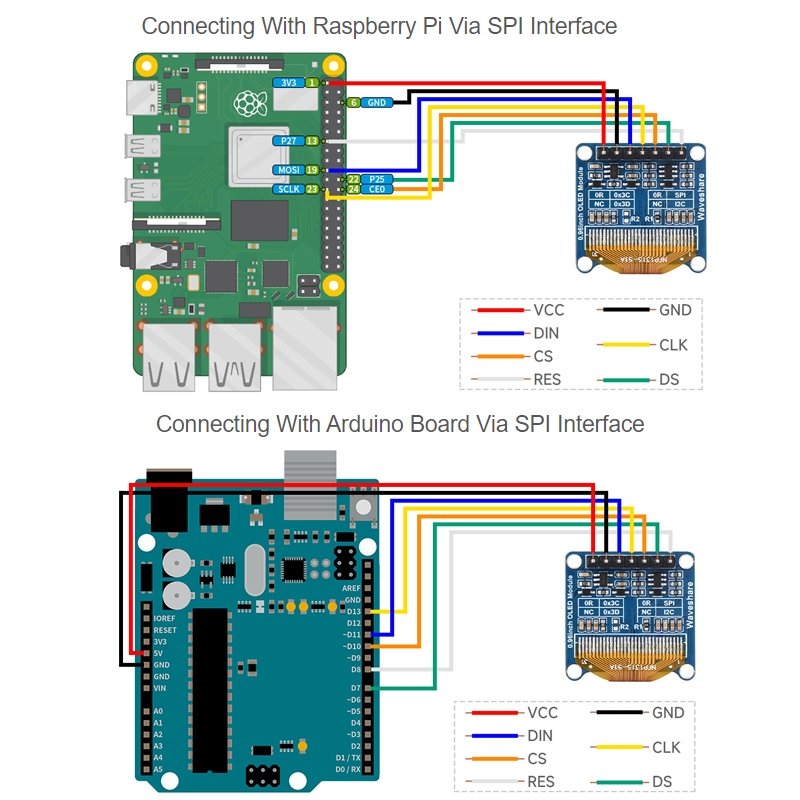

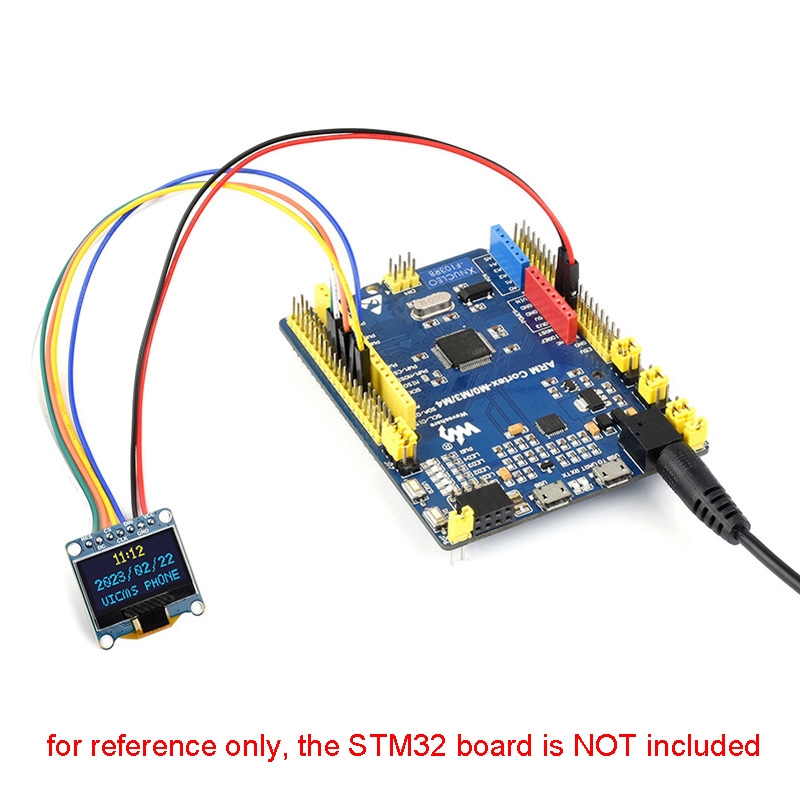

1. Narrow bezel, small size, and equipped with level conversion circuit 2. Four-wire SPI and I2C interface, good compatibility and fast transmission speed 3. Provide supporting information manual (Raspberry Pi/Arduino/STM32 sample program) 4. Working voltage: 3.3V / 5V 5. Resolution: 128×64 pixels 6. Pixel size: 0.15 × 0.15mm 7. Communication interface: 4-wire SPI/I2C 8. Display panel: OLED 9. Driver chip: SSD1315 10. Display size: 0.96 inches 11. Size: approx. 2.6 x 2.6cm

Specifications

SKU

TBD0414480301B

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.024 kg

Delivery

Standard delivery
