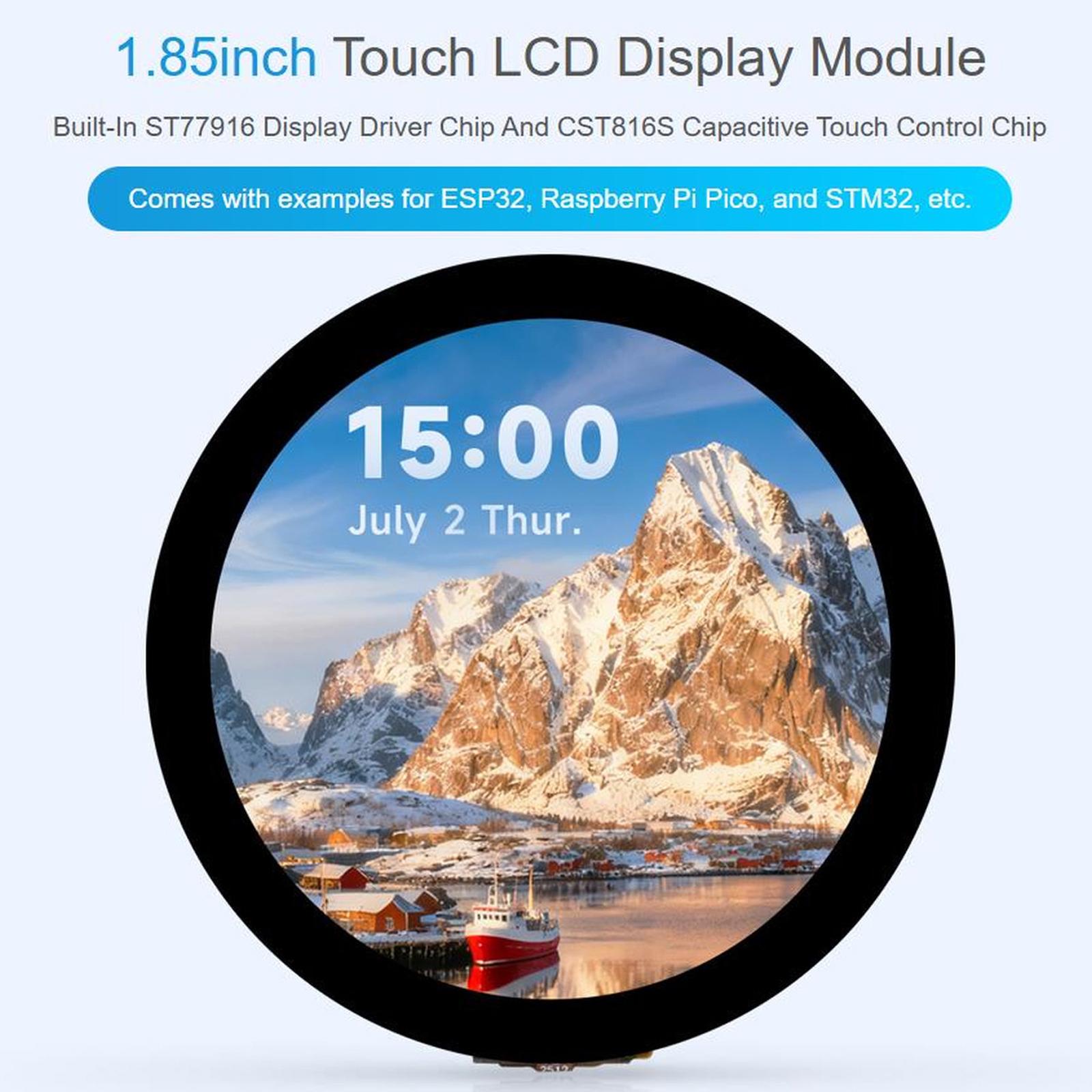

WAVESHARE 1.85 inch Touch LCD Display Module, 360 x 360 Resolution, 262K Color, QSPI And I2C Communication, Built-in ST77916 Display Driver Chip And CST816S Touch Control Chip

Product Description

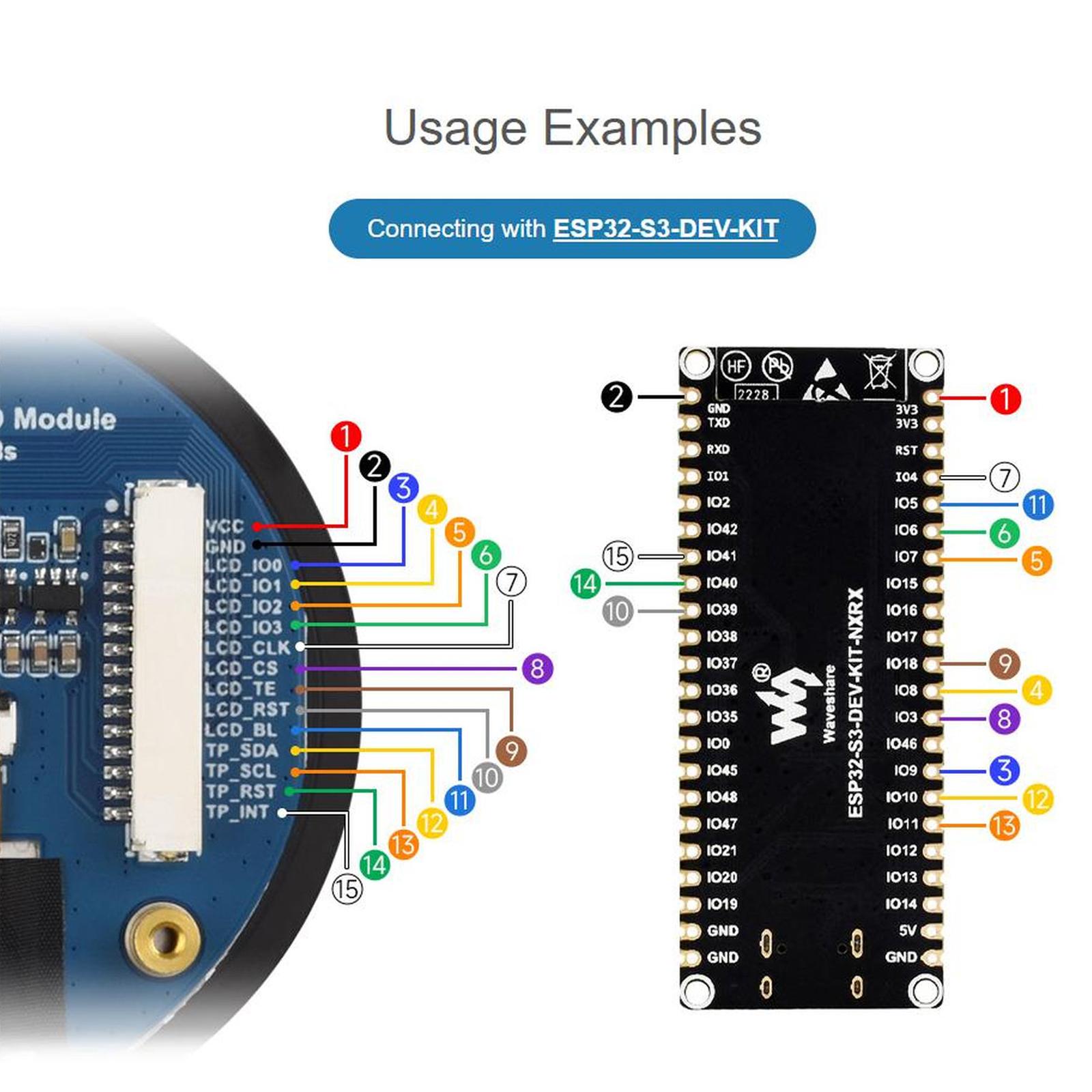

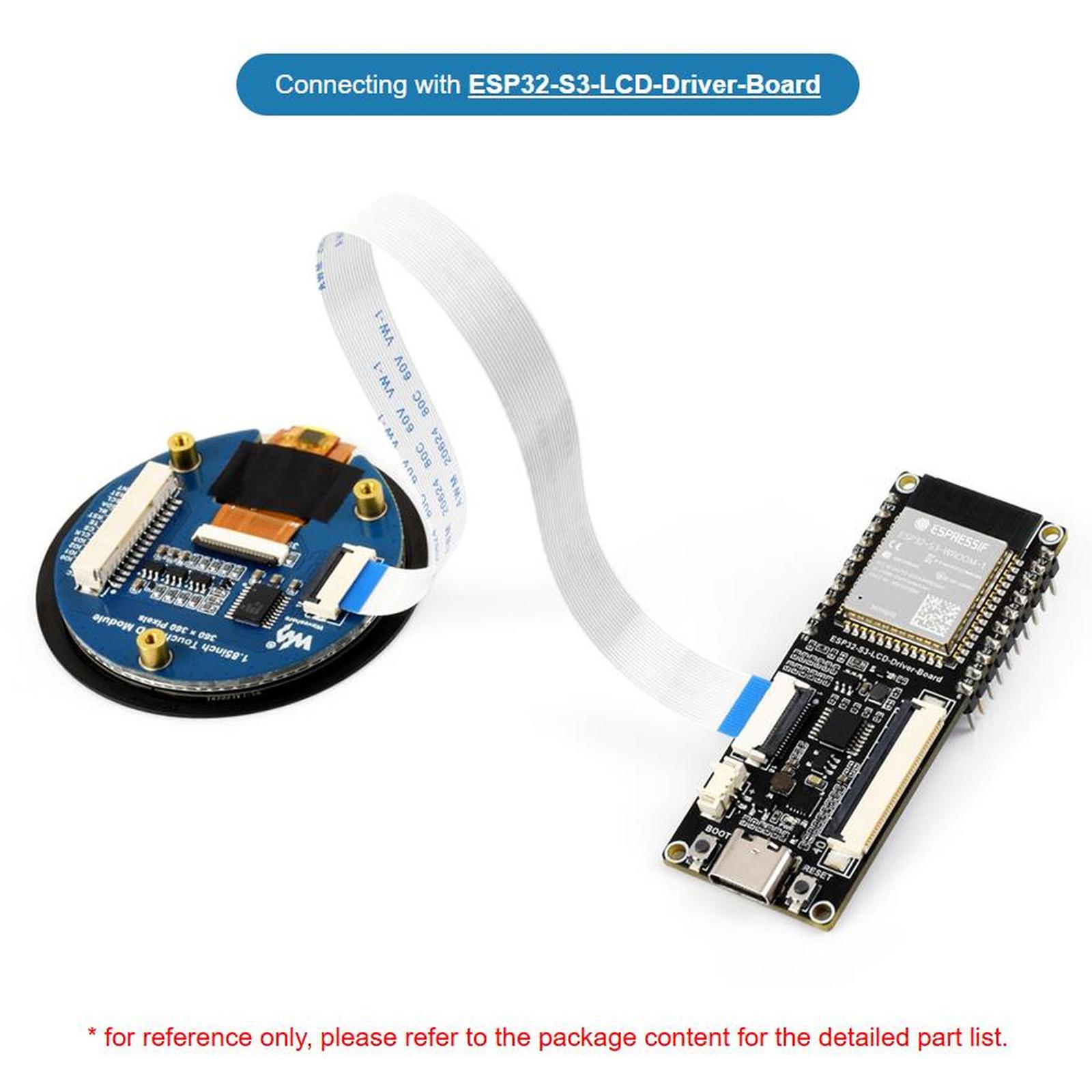

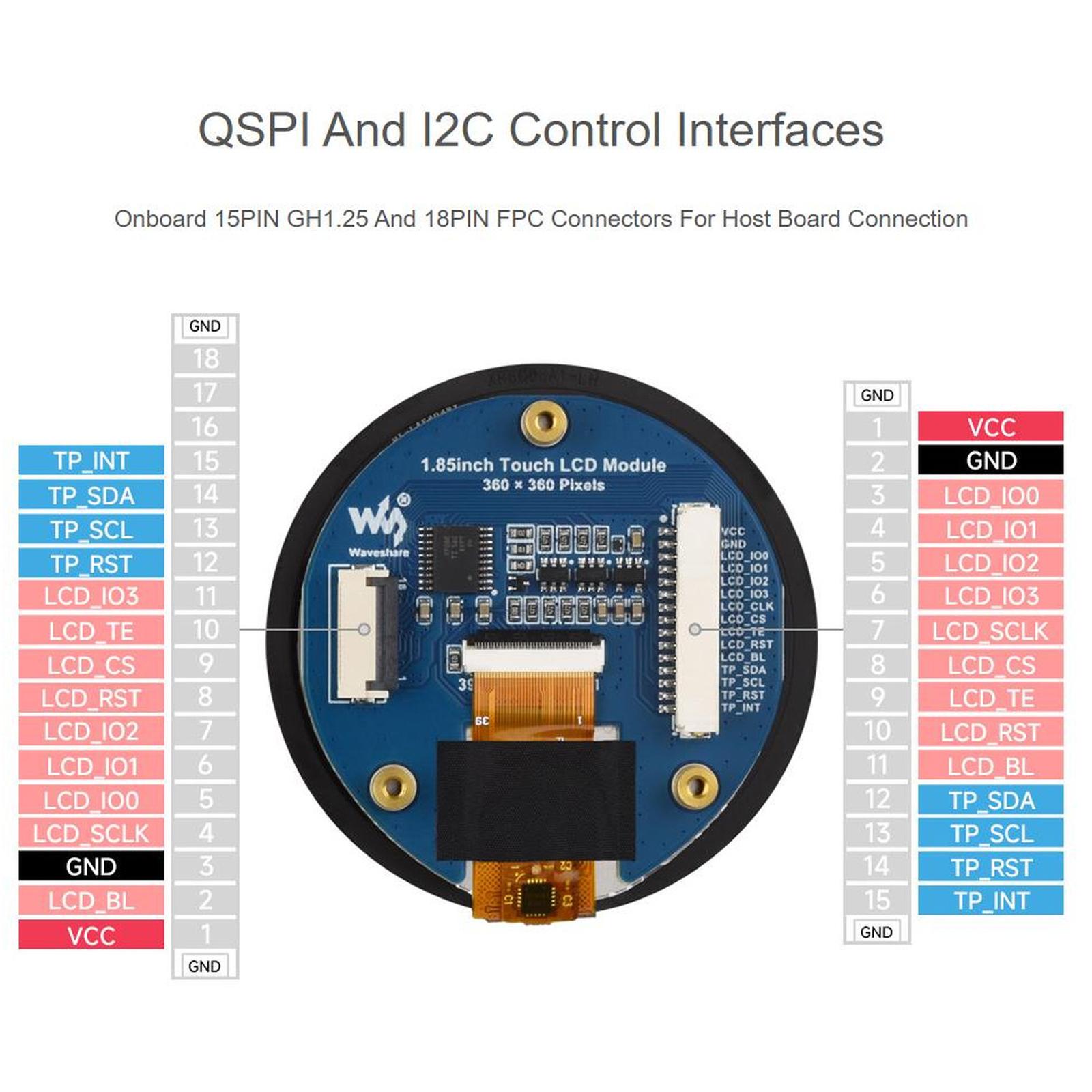

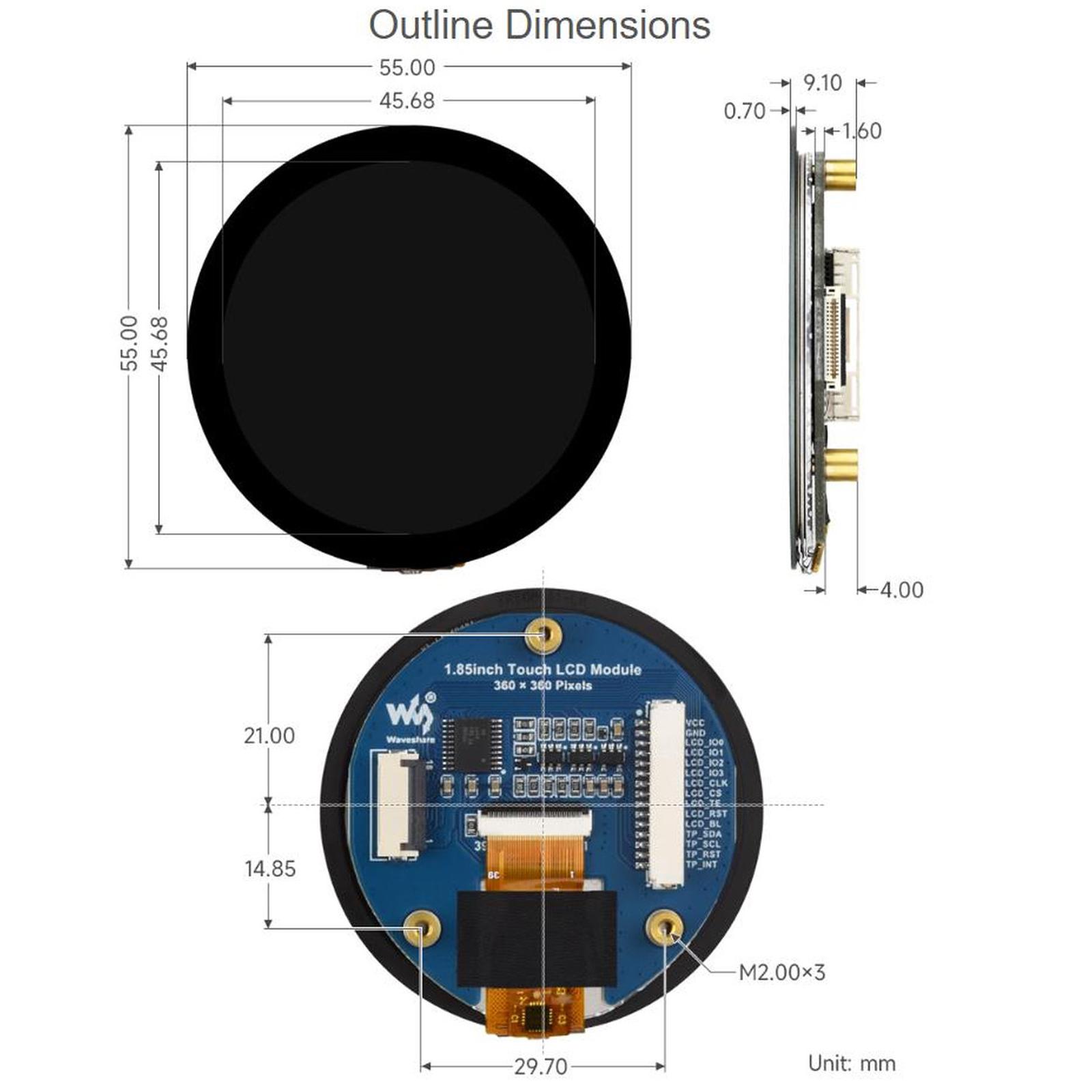

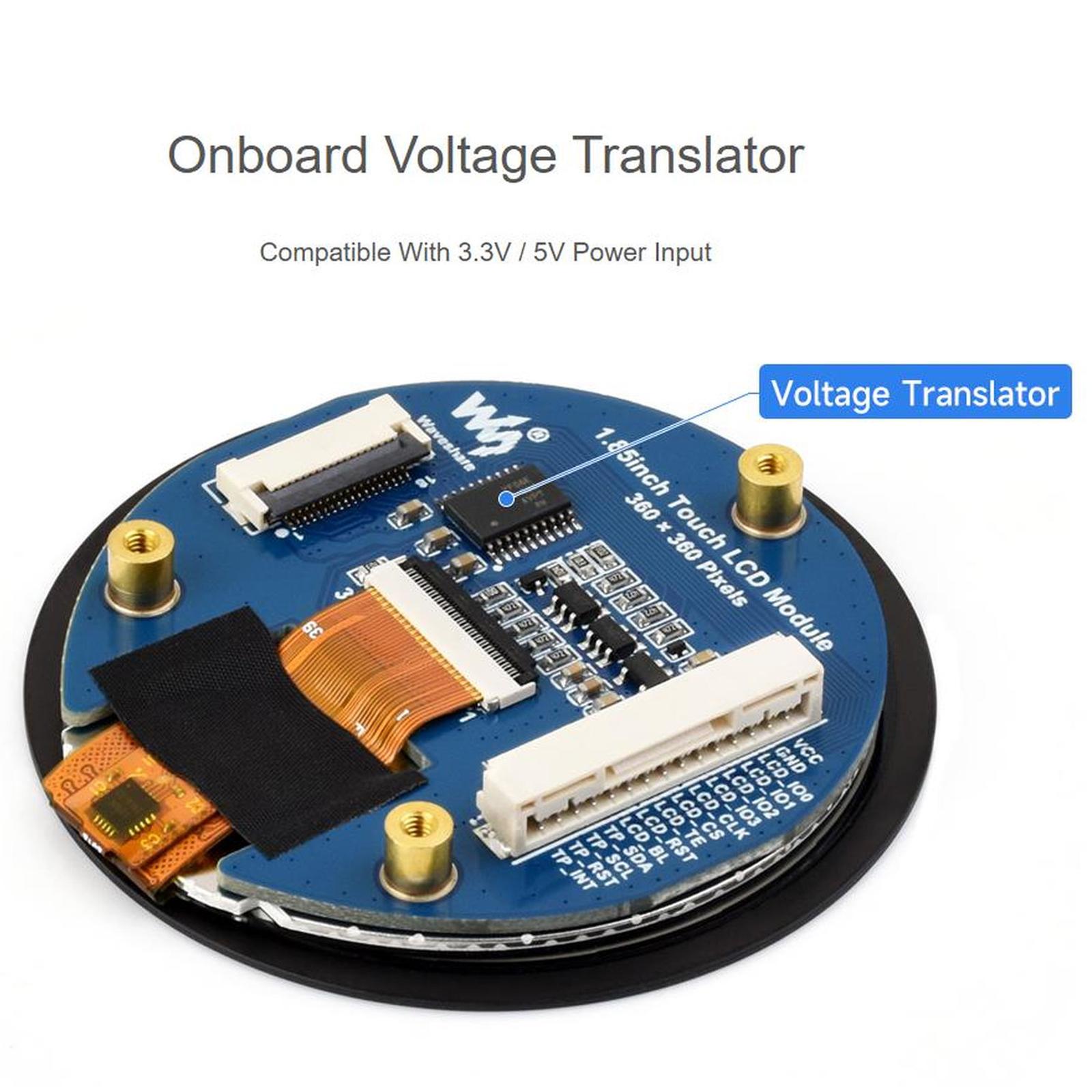

1. Operating voltage: 3.3V/5V 2. Resolution: 360 x 360 pixels 3. Brightness: 450 cd/square meters 4. Contrast ratio: 1200:1 5. Display driver IC: ST77916 6. Touch controller IC: CST816S 7. Display interface: QSPI 8. Touch interface: I2C 9. Display panel: IPS 10. Touch type: Capacitive 11. Display colors: 262K 12. Display size: Approx. 45.68 x 45.68 mm 13. Dimensions: Approx. 55 x 55 x 9.1 mm Features: 1. 360 x 360 resolution, 262K colors; capable of clearly displaying color images. 2. High-transmittance touchscreen with fast response and long service life. 3. Built-in ST77916 display driver and CST816S capacitive touch controller; communicates via QSPI and I2C interfaces respectively, minimizing pin usage; compatible with main control boards such as ESP32-S3, Raspberry Pi Pico, and STM32. 4. Includes example code and resources for ESP32, Pico, STM32, and more. 5. Onboard level-shifting chip; compatible with 3.3V/5V power inputs.

Specifications

SKU

TBD0607108601

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.054 kg

Delivery

Standard delivery
