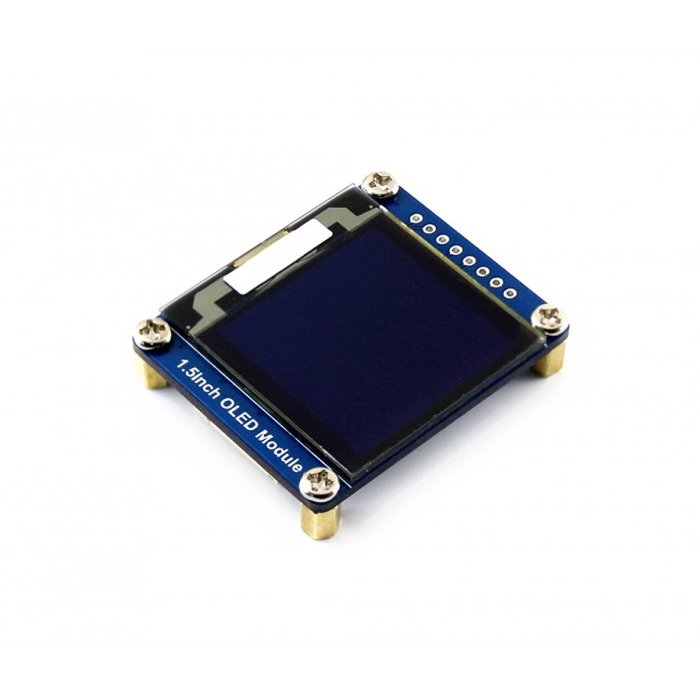

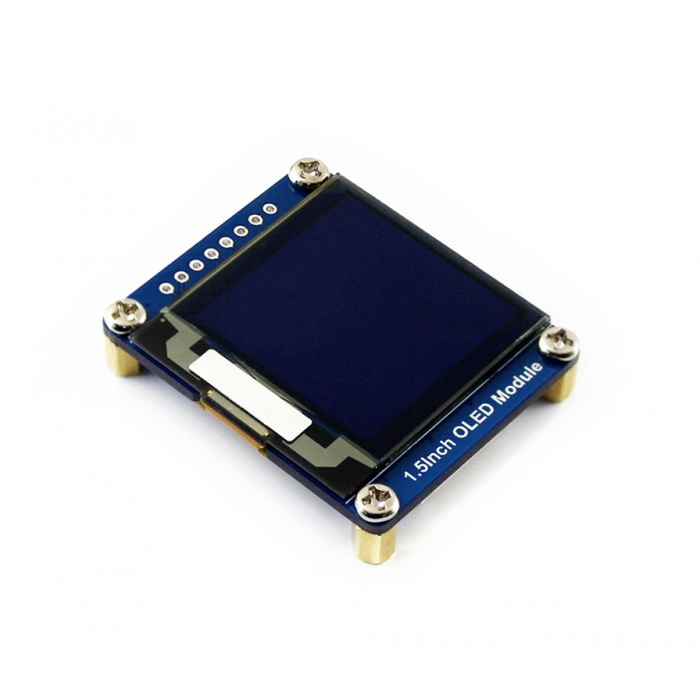

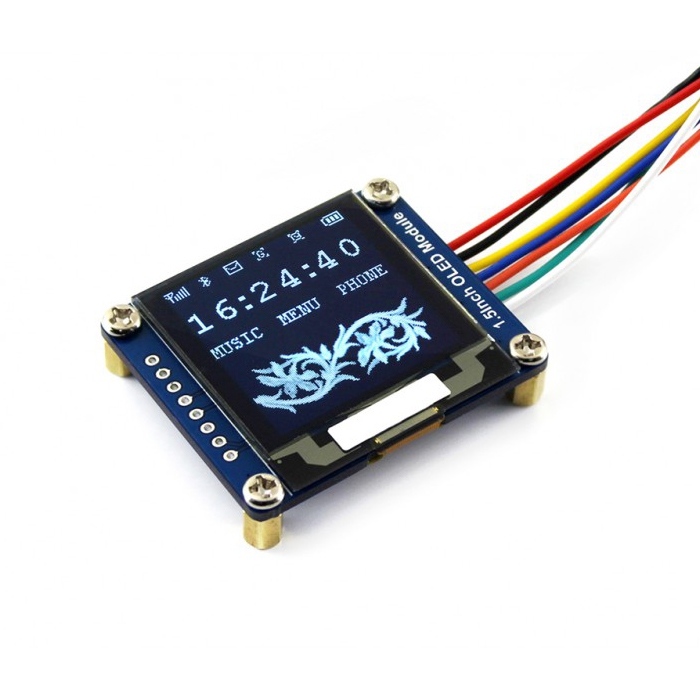

WAVESHARE 128x128 General 1.5inch OLED Display Module 16 Gray Scale with SPI/I2C Interface

Product Description

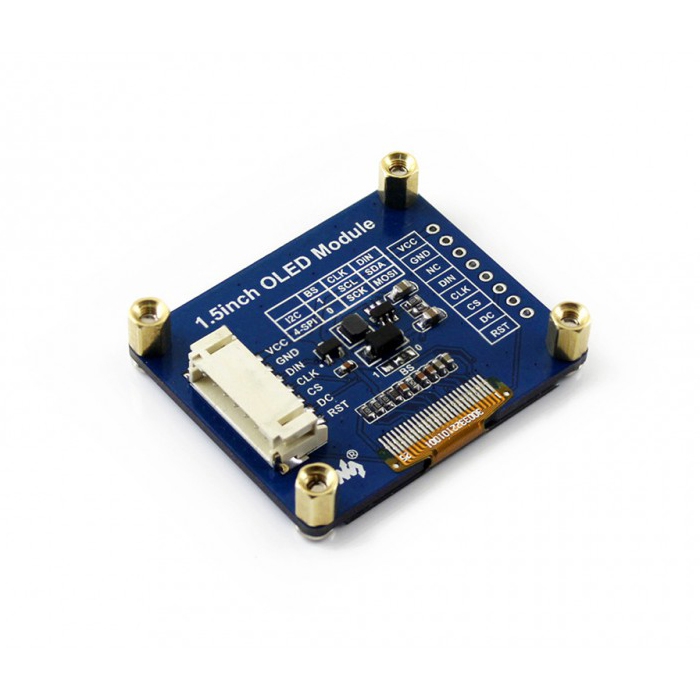

1. 128x128 high resolution 2. 16 gray scale, better display effect 3. Supports SPI or I2C interface, configured via onboard resistor 4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) 5. Driver: SSD1327 6. Interface: SPI / I2C 7. Display color: White 8. Gray scale: 16 9. Resolution: 128x128 (most other competitive products are typically 128x64) 10. Viewing angle: >160?° 11. Operating voltage: 3.3V / 5V 12. Dimension: 44.5 x 37 (mm)

Specifications

SKU

DIY1215

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.05 kg

Delivery

Standard delivery
