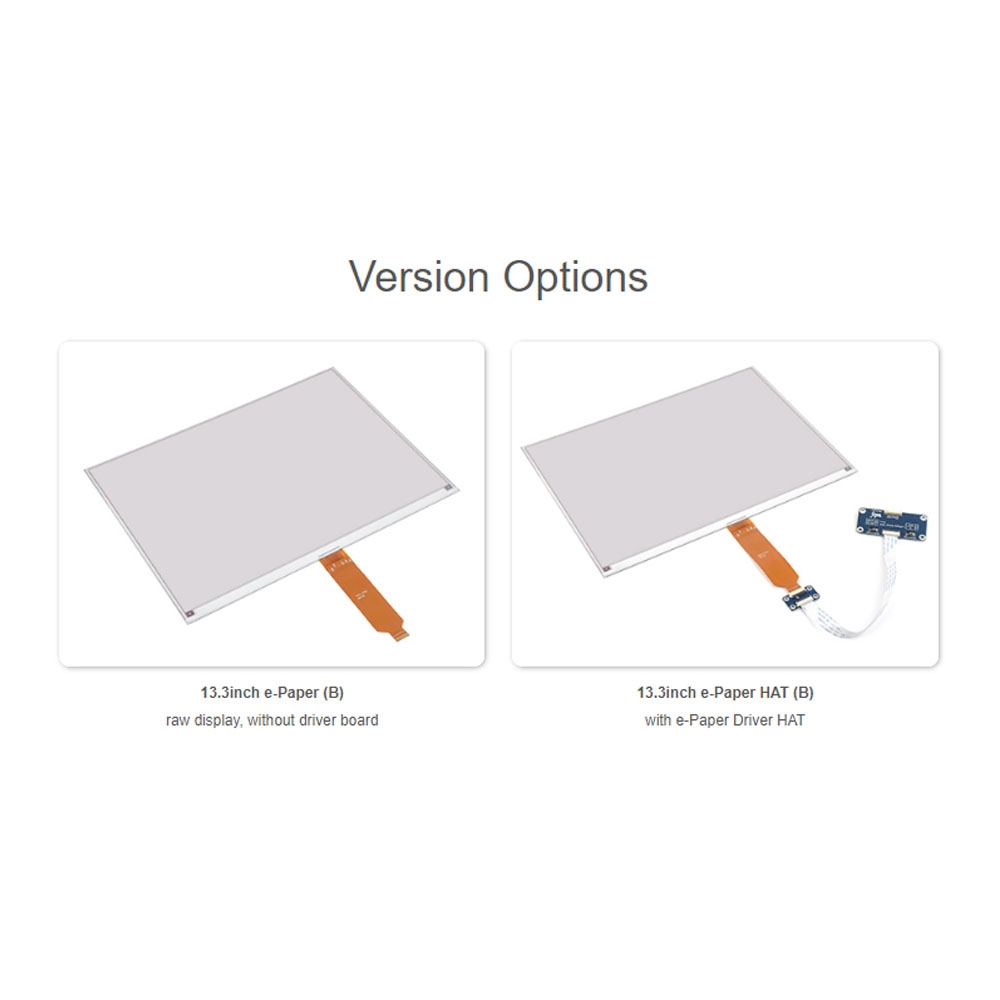

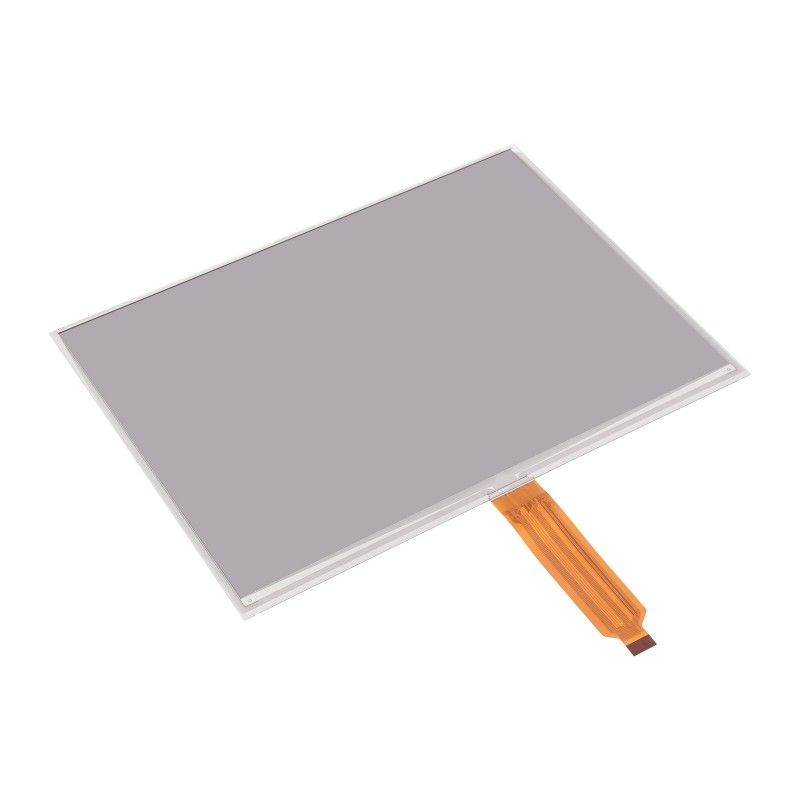

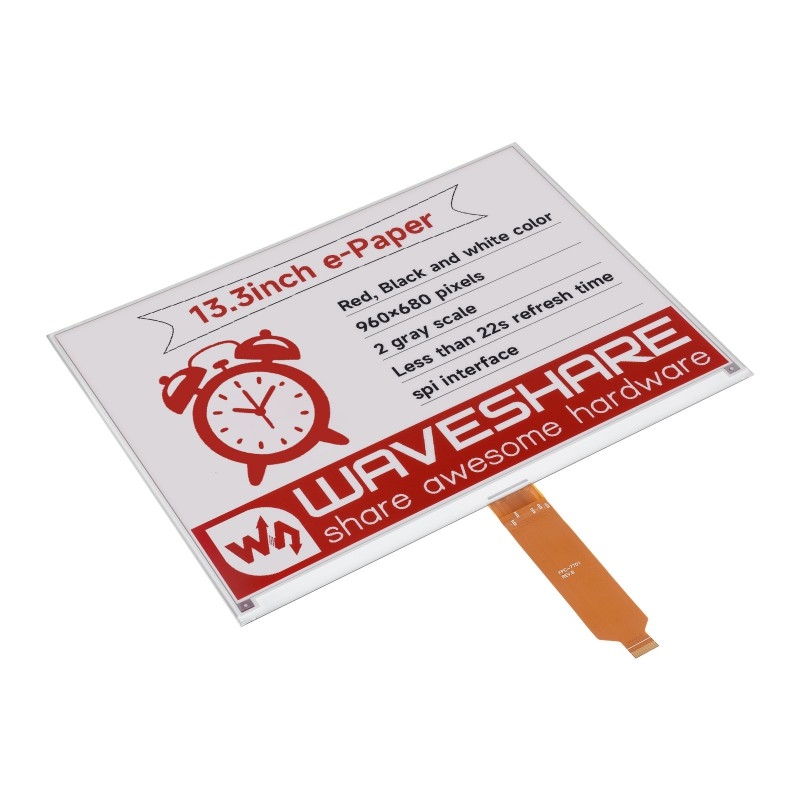

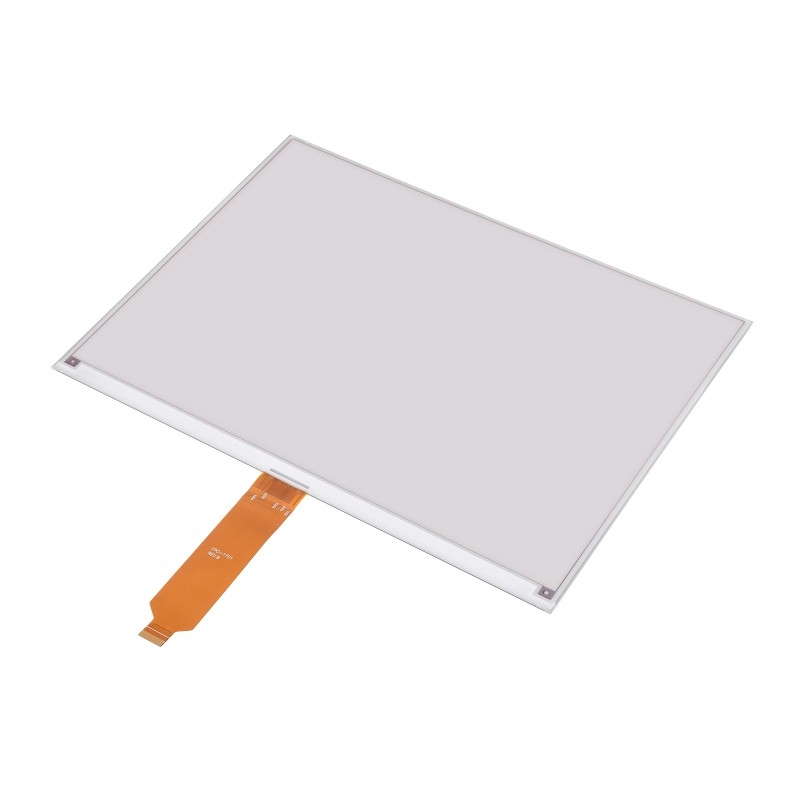

Waveshare 13.3inch 960×680 Pixels SPI Communication E-Ink Display, Spec: Nude Screen Version

Product Description

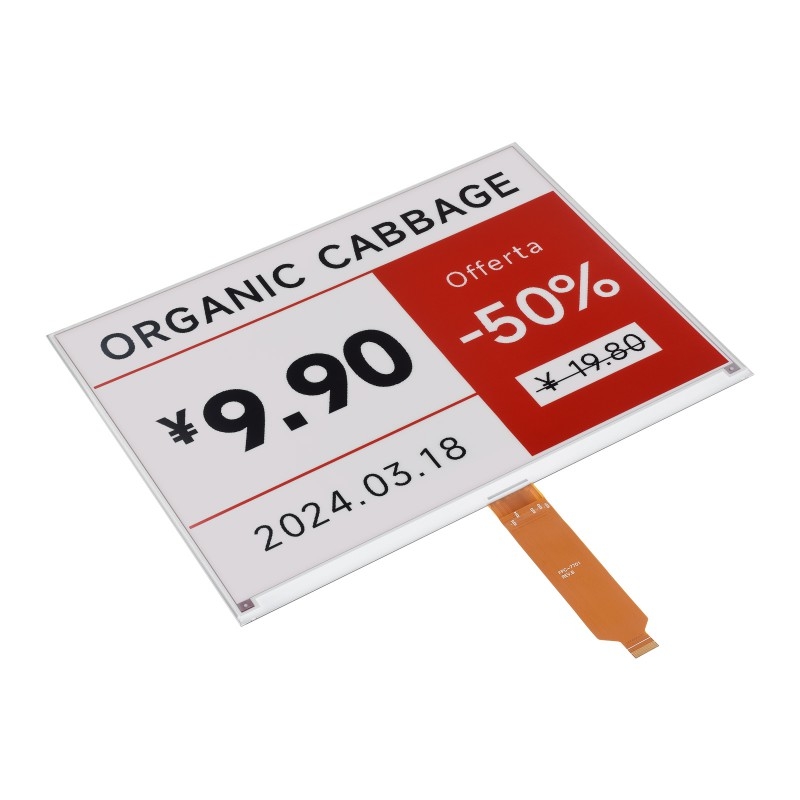

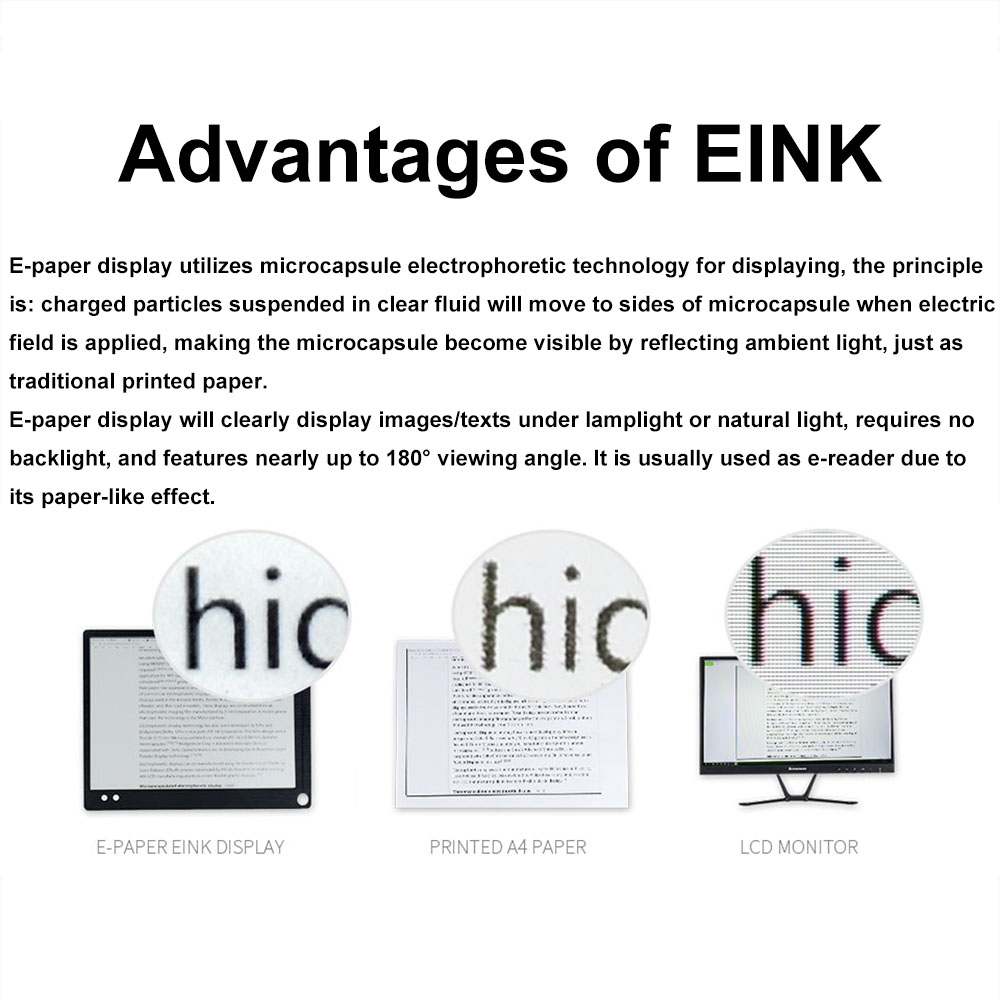

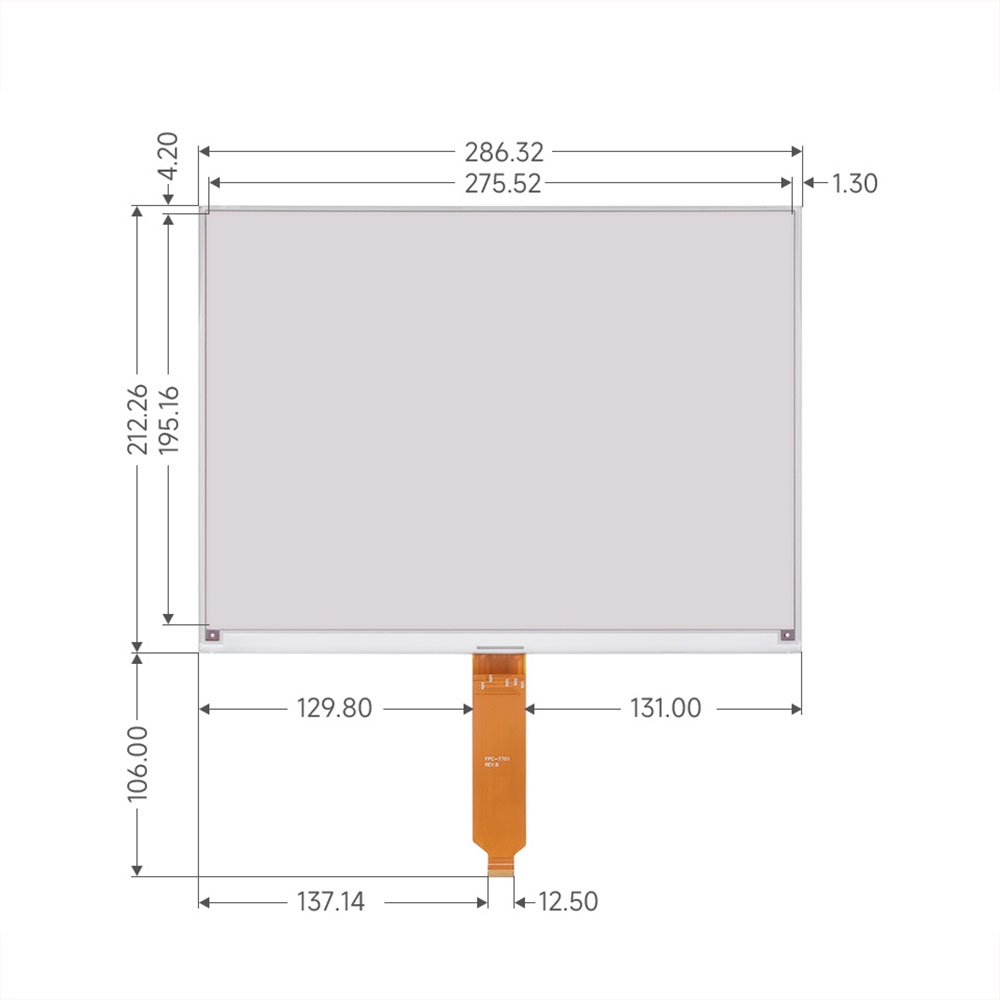

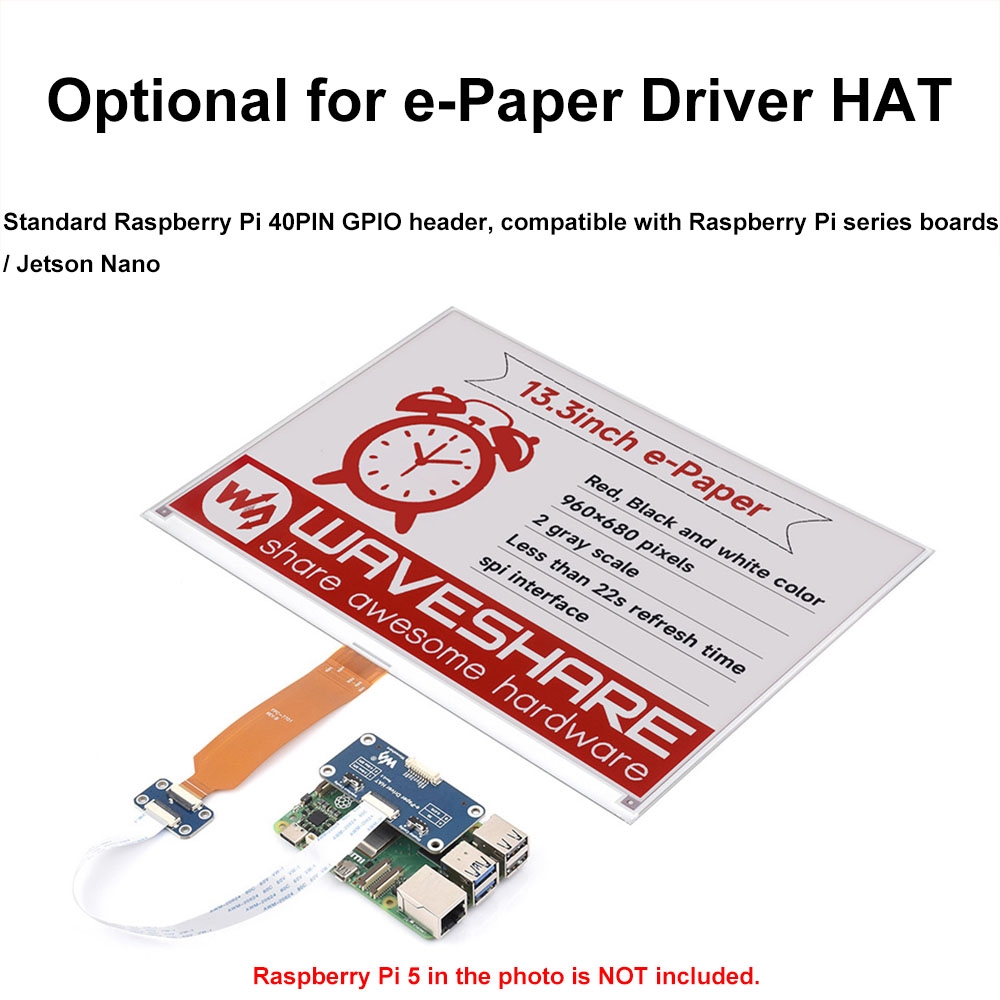

1. No backlight is required, and the display content of the last screen can be maintained for a long time when the power is off 2. The power consumption is very low, and basically only consumes power when refreshing 3. Provide a complete supporting data manual (driver board schematic, Raspberry Pi/Jetson Nano/RDKX3/Arduino/STM32 and other sample programs) 4. Bare screen version working voltage: 3.3V 5. Screen size: 286.32 x 212.26 x 1.20mm 6. Display size: 275.52 x 195.16mm 7. Dot pitch: 0.287 x 0.287mm 8. Resolution: 960 x 680 pixels 9. Display color: red, black, white 10. Grayscale level: 2 11. Local refresh: 2.9s 12. Global refresh: 22s 13. Refresh power consumption: 75mW 14. Sleep current: less than 0.01 microamperes (close to 0) 15. Viewing angle: greater than 170 degrees 16. Application areas: for display applications such as shelf labels and industrial instruments 17. Weight: 164 grams Packing list: -Display x 1

Specifications

SKU

TBD0605308301

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.204 kg

Delivery

Standard delivery
