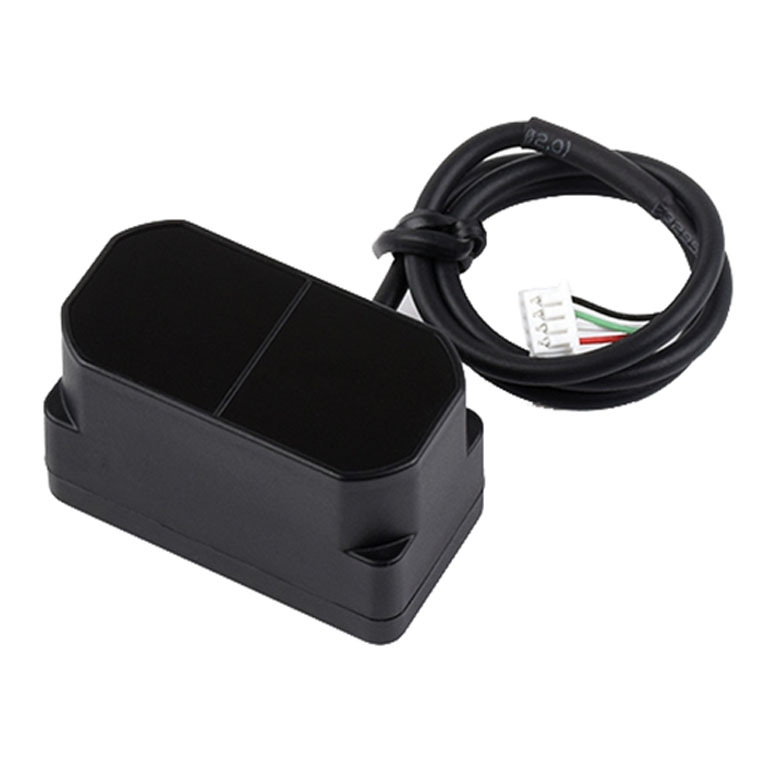

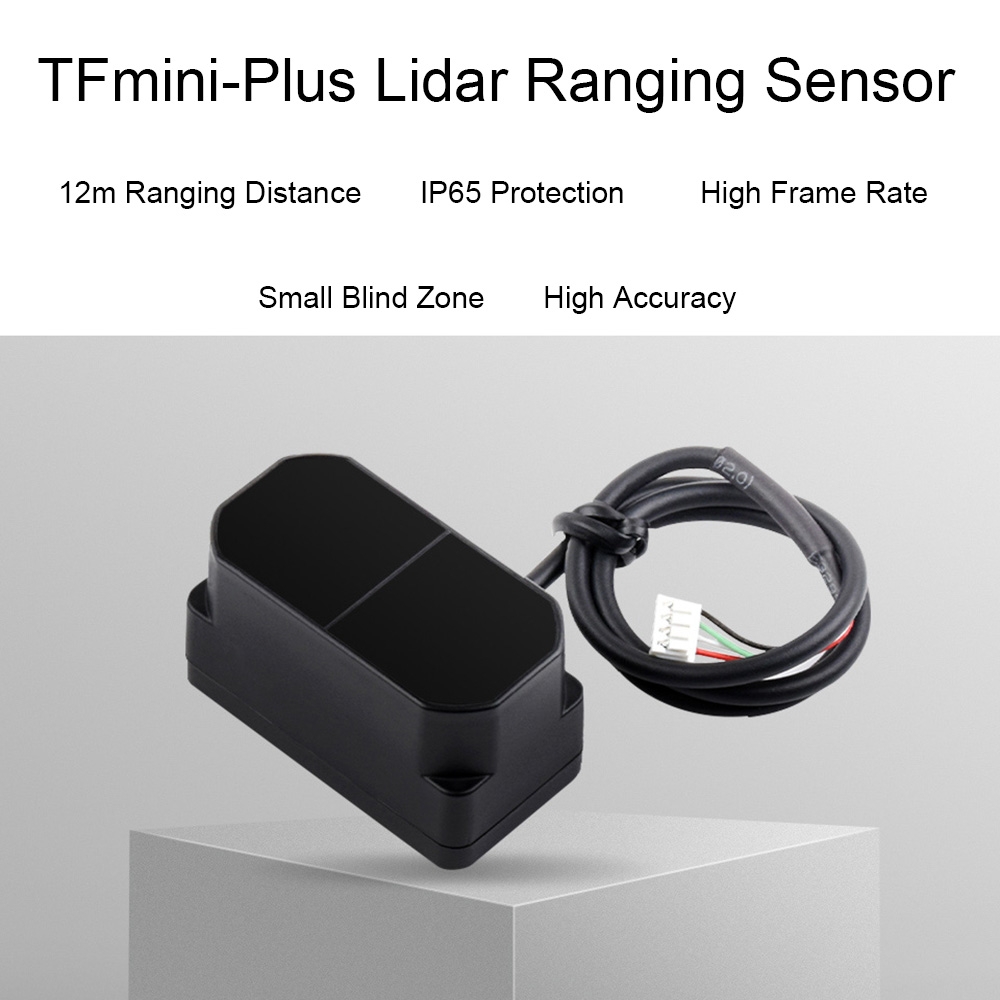

Waveshare 24895 TFmini Plus High Frame Rate High Accuracy Laser Ranging Sensor

Product Description

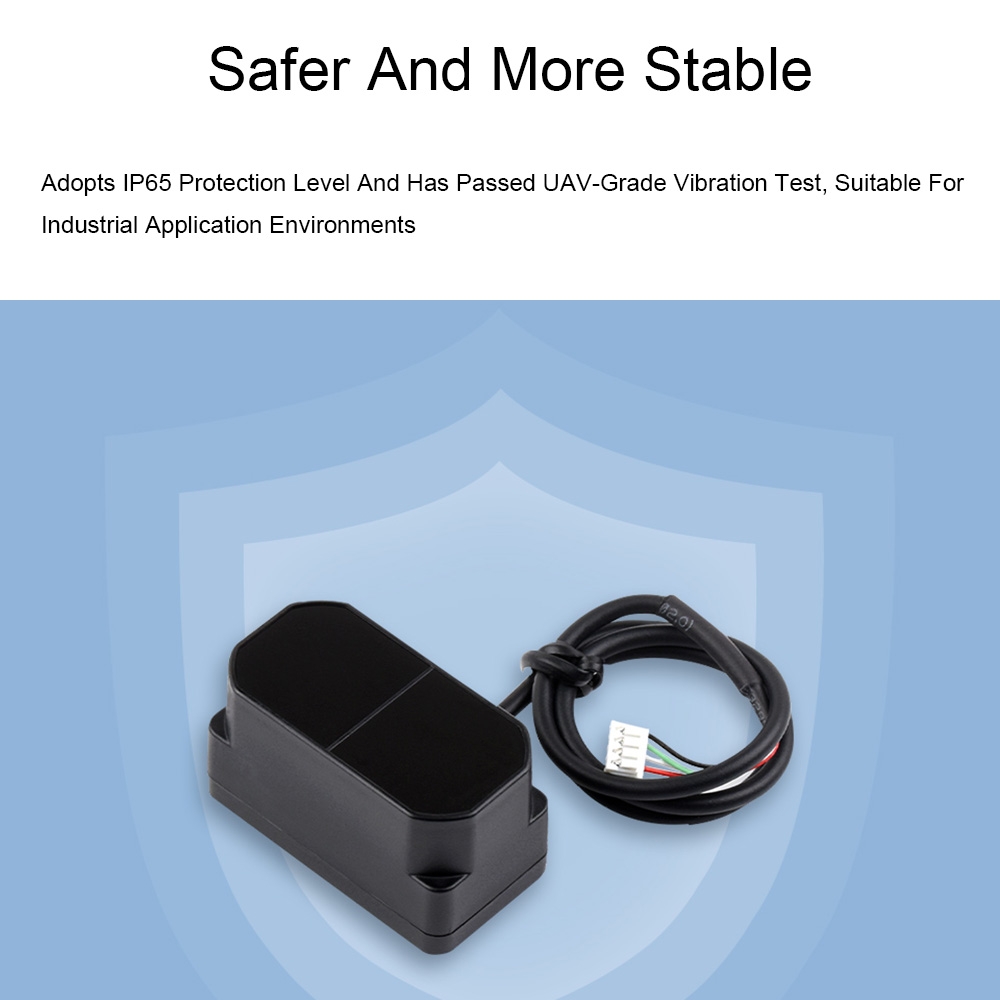

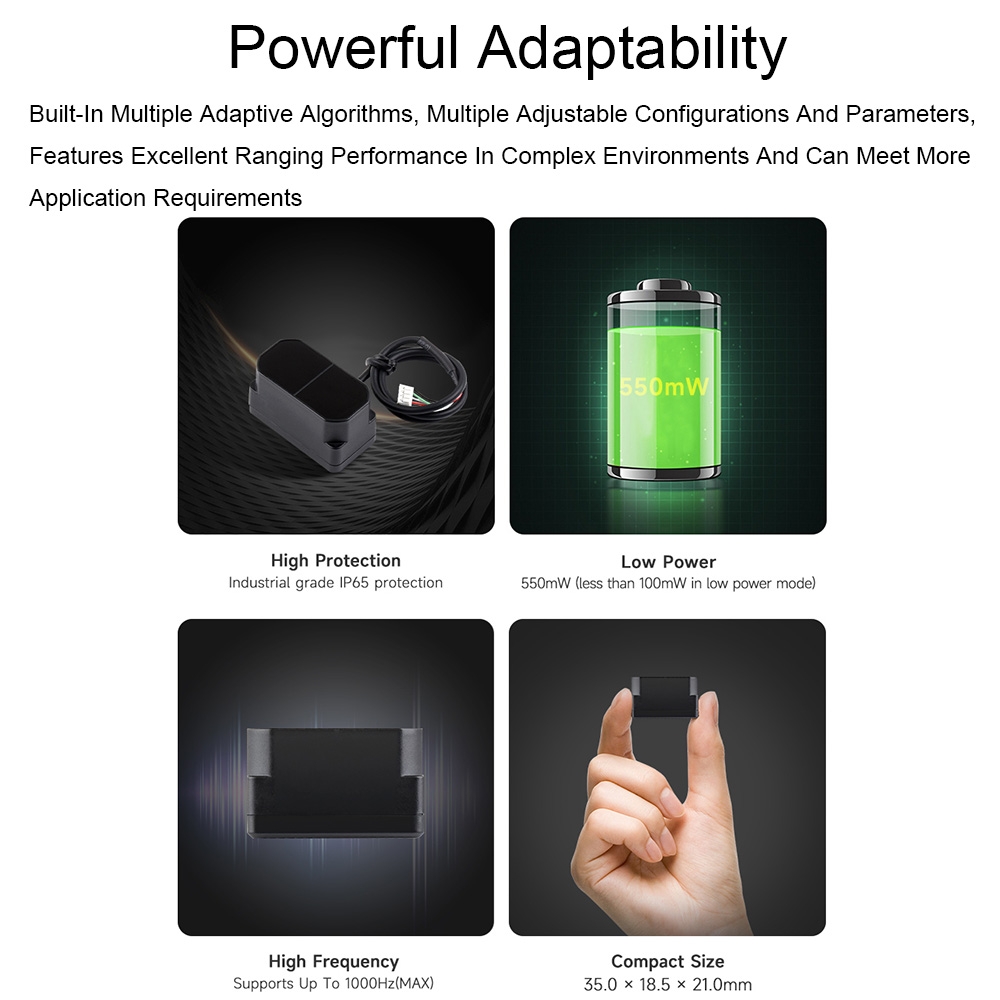

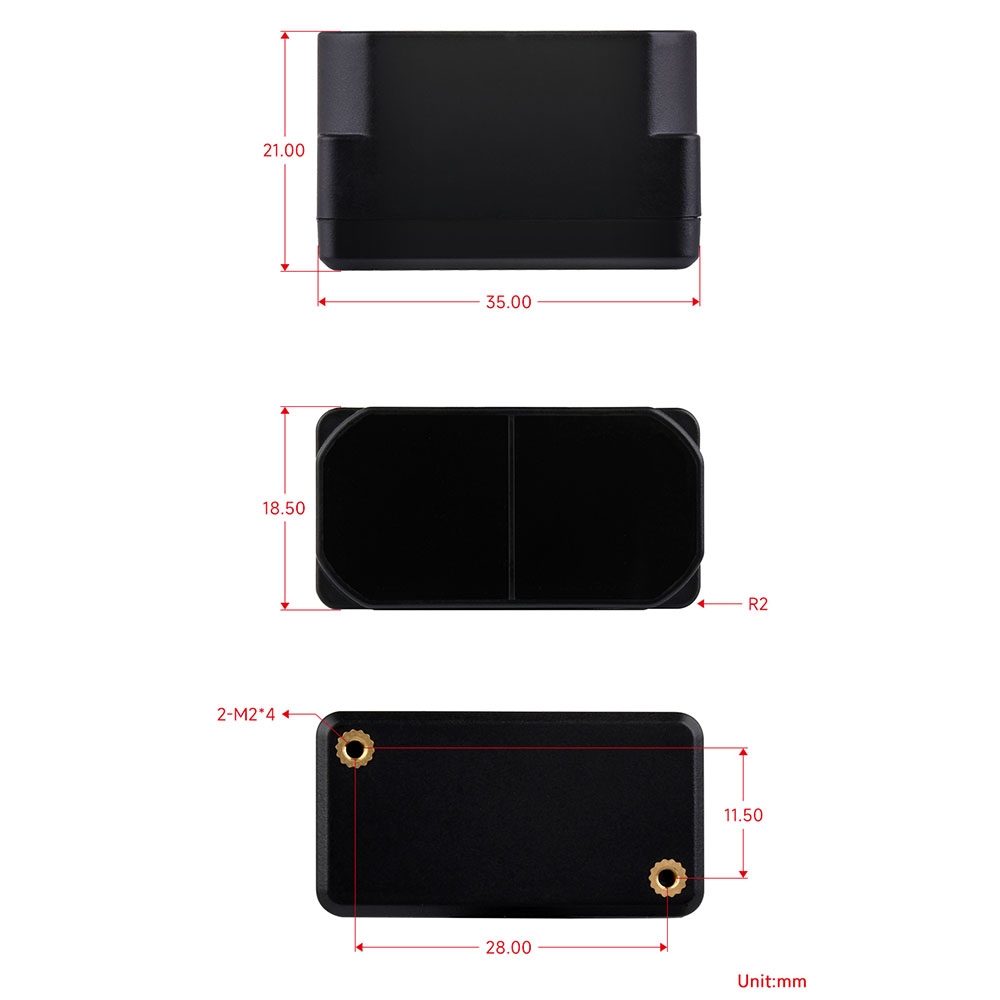

1. Ranging distance: 0.1-12.0m @90% reflectivity (indoor 0klux) 0.1-4.0m @10% reflectivity (indoor 0klux) 0.1-12.0m @90% reflectivity (outdoor 70klux) 0.1~4.0m @10% reflectivity (outdoor 70klux) 2. Accuracy: 5cm@(0.1-5m), 1%@(5-12m) 3. Frame rate: UART: 1-1000Hz (adjustable, default 100Hz); I2C: 1-100Hz (adjustable) 4. Repeatability: 1σ: less than 3cm (@100Hz UART); 1σ: less than 4cm (@100Hz I2C) 5. Distance resolution: 1cm 6. Ambient light tolerance: 70klux 7. Working temperature: minus 20-60 degrees Celsius 8. Protection level: IP65 9. Light source: LED 10. Center wavelength: 850nm 11. Eye safety: Exemption class (EN62471) 12. Field of view: 3.6 degrees 13. Power supply: 4.5-5.5V 14. Average current: 110mA 15. Power: 550mW (low power mode: 100mW) 16. Peak current: 140mA 17. Communication level: LVTTL (3.3V) 18. Communication interface: UART, I2C, I/O 19. Material: ABS/PC 20. Line length: 30 cm 21. Dimensions: 35 x 18.5 x 21mm 22. Weight: about 12 grams

Specifications

SKU

TBD05765312

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.029 kg

Delivery

Standard delivery
