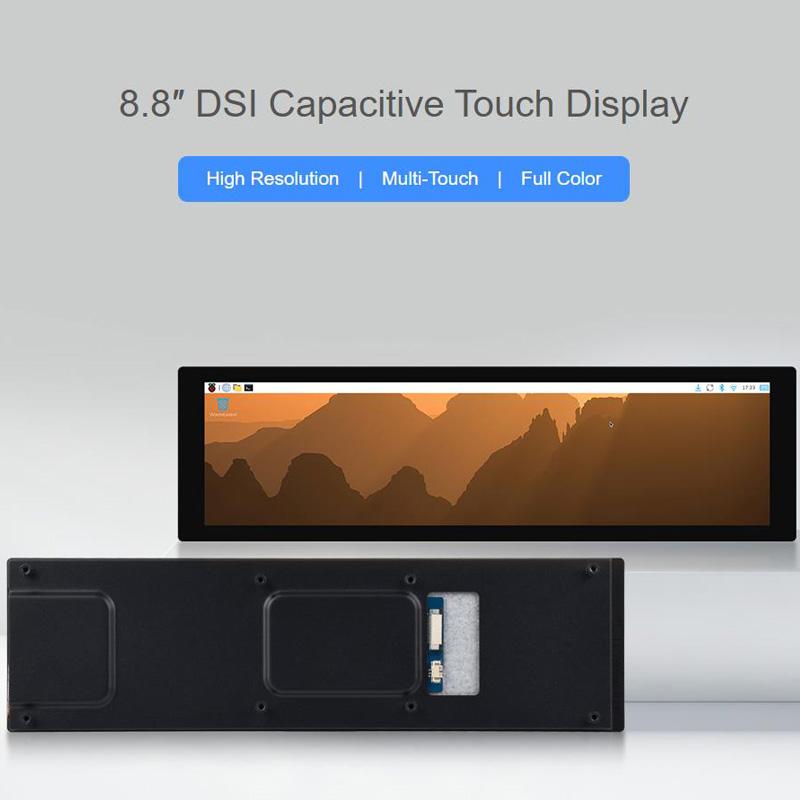

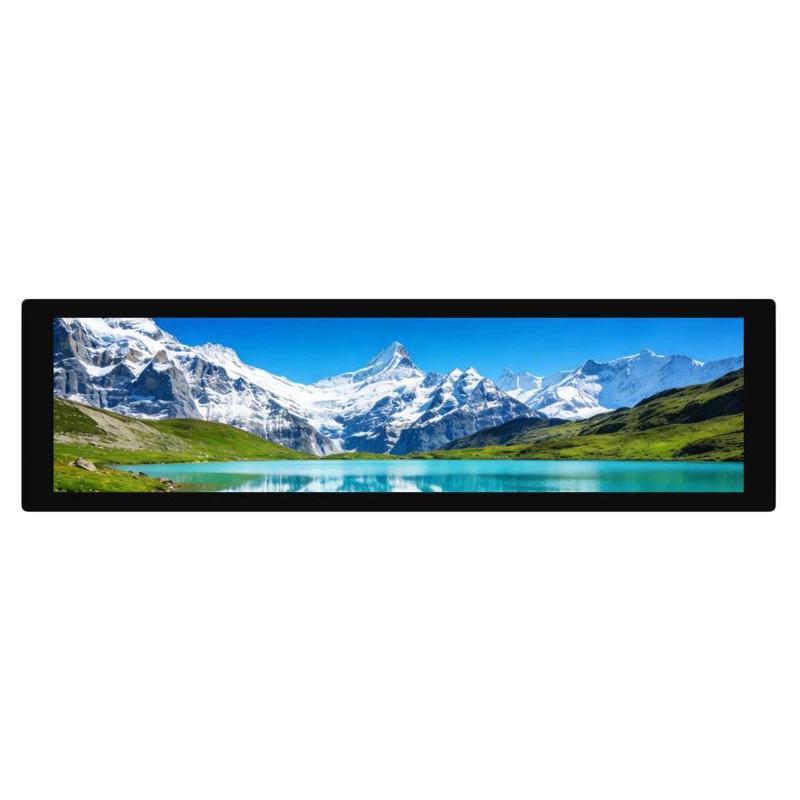

Waveshare 33641 8.8 Inch DSI Capacitive Touch Display, IPS Panel, 10-Point Touch, Supports Backlight Adjustment Via Software

Product Description

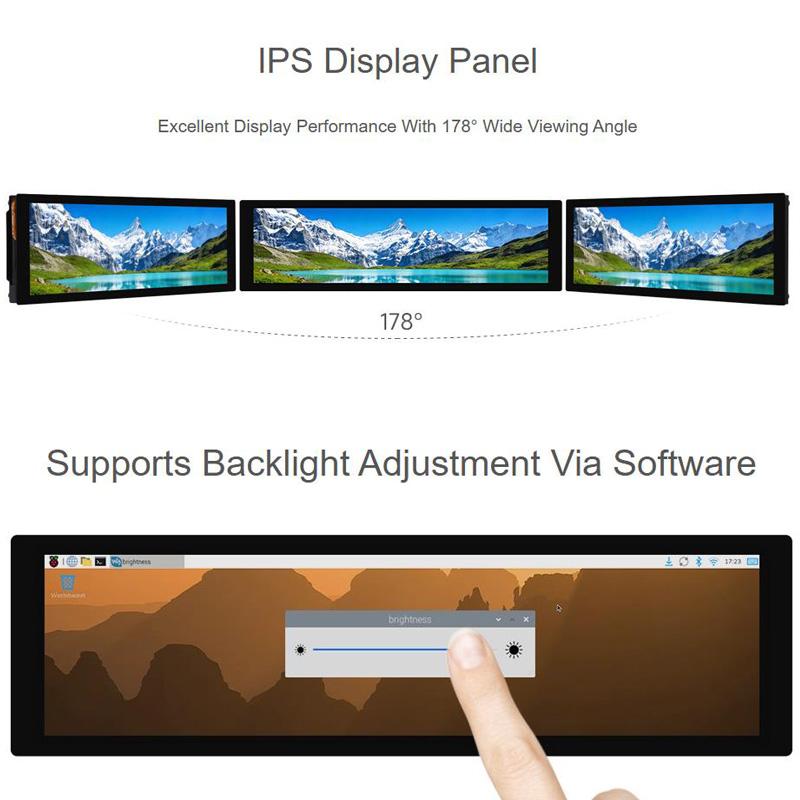

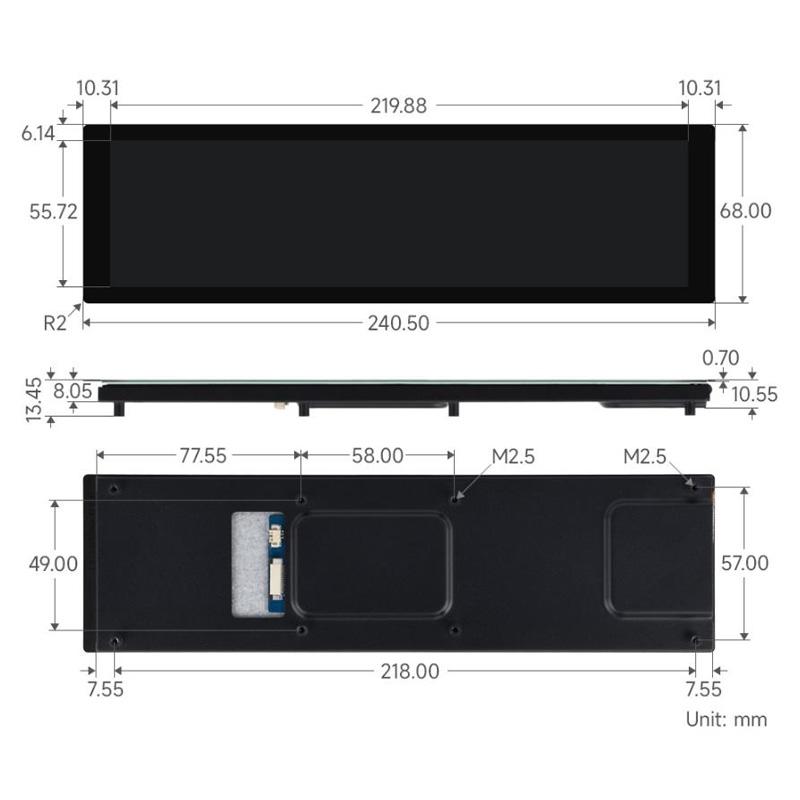

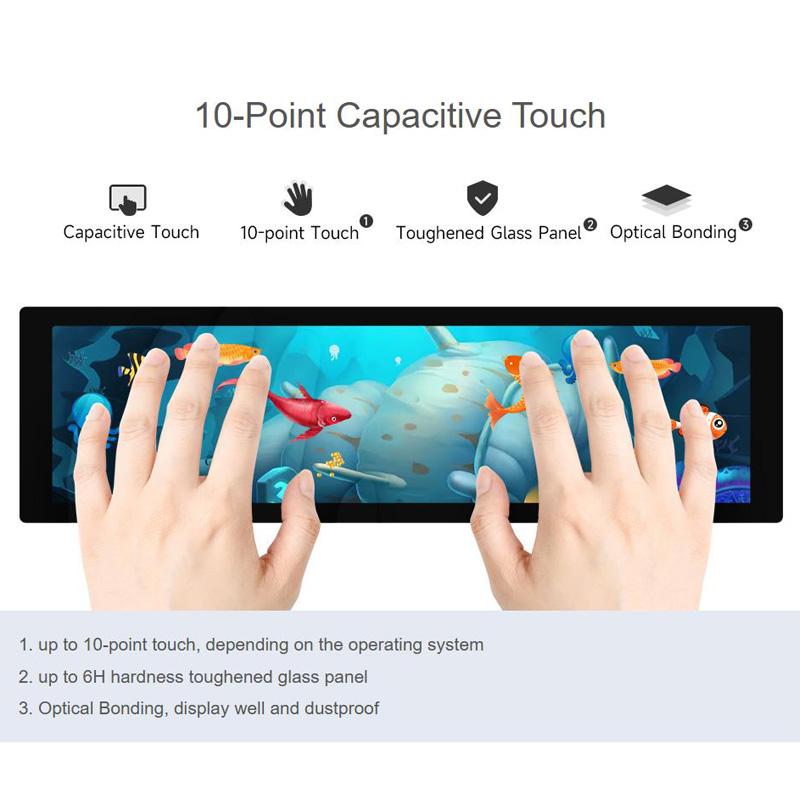

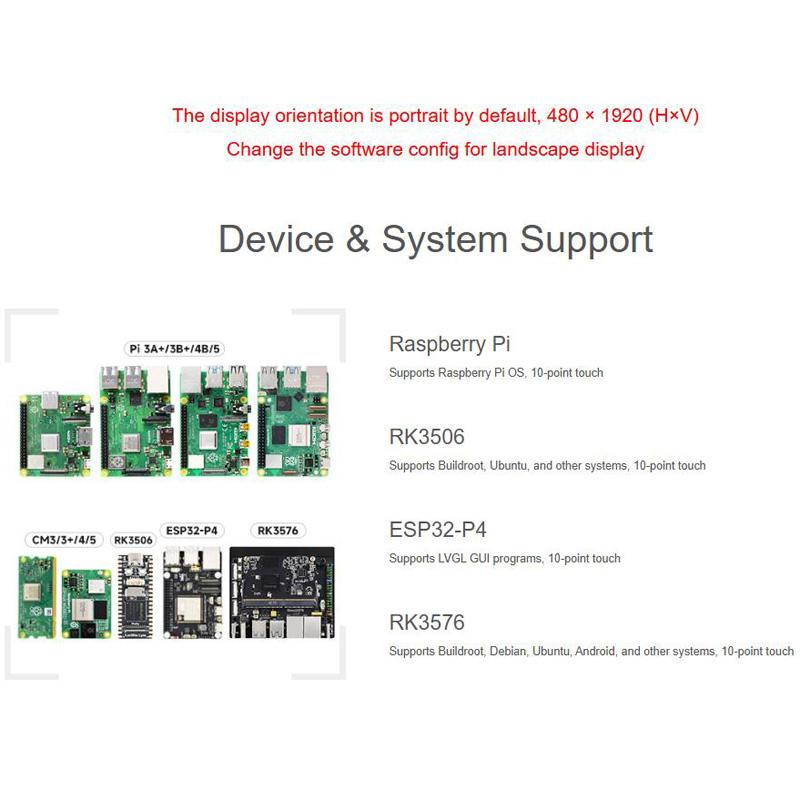

1. Supports up to 10-point touch; actual touch points depend on the software system 2. Tempered glass panel with 6H hardness 3. Backlight brightness adjustable via software 4. Full-laminated screen for high clarity and dust resistance 5. IPS display panel delivers excellent performance with a wide 178° viewing angle 6. This product defaults to portrait orientation with a resolution of 480 x 1920 (H x V). Landscape display can be enabled by modifying software settings 7. Size: about 24.5 x 6.8cm Package contents: - 8.8-DSI-TOUCH-A touchscreen x 1 - MIPI-DSI-Cable-12cm x 1 - MX1.25 2-pin to 2.54mm 3-pin adapter cable x 1 - FFC cable 22-pin 200mm (opposite direction) x 2 - MX1.25 2-pin to MX1.25 4-pin adapter about 150mm x 1 - Screw set x 1

Specifications

SKU

TBD0606697101

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.304 kg

Delivery

Standard delivery
