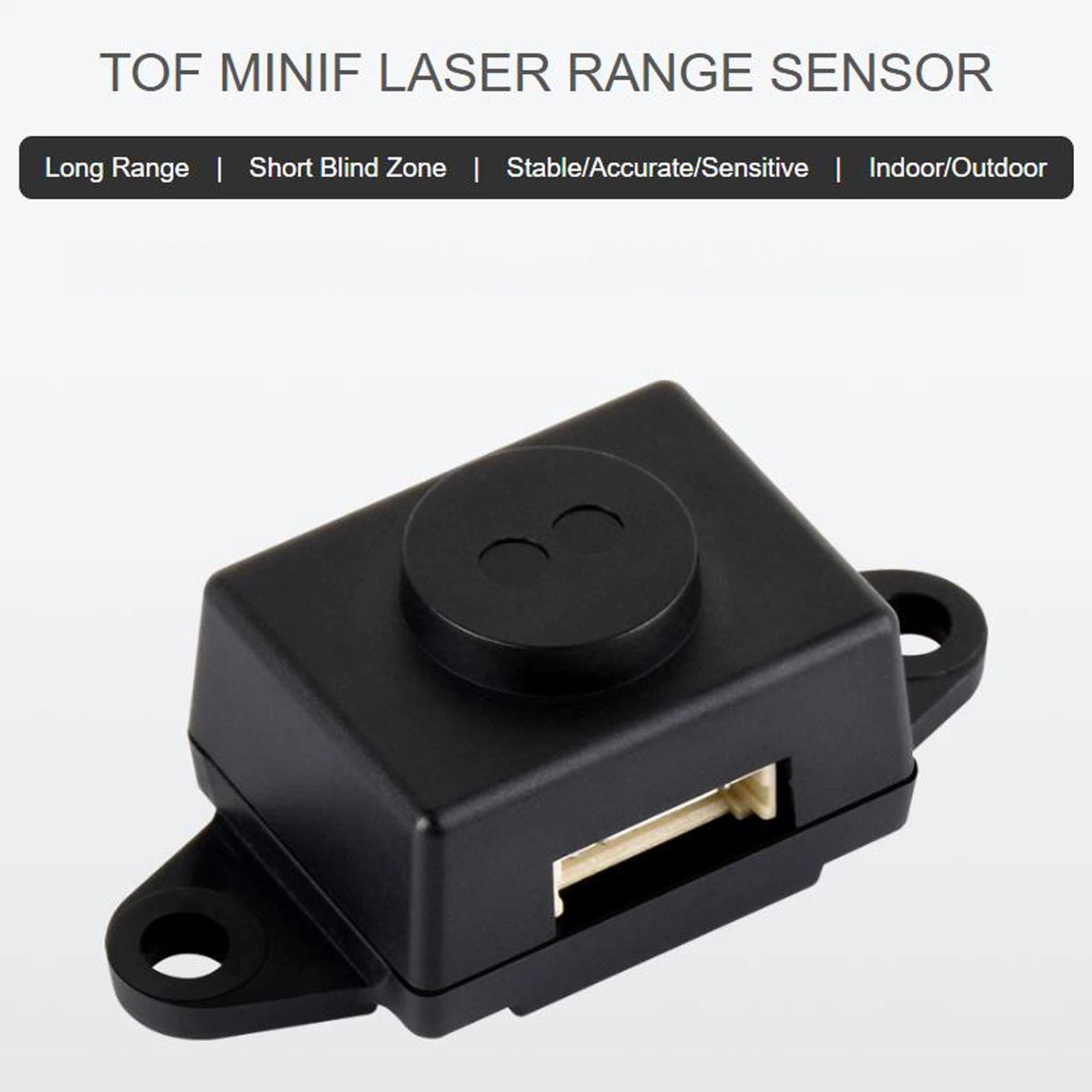

WAVESHARE 35106 TOF Laser Range Sensor Based On D-TOF Single-Point Laser Sensor UART Communication Support, Spec: 0.02-5m

Product Description

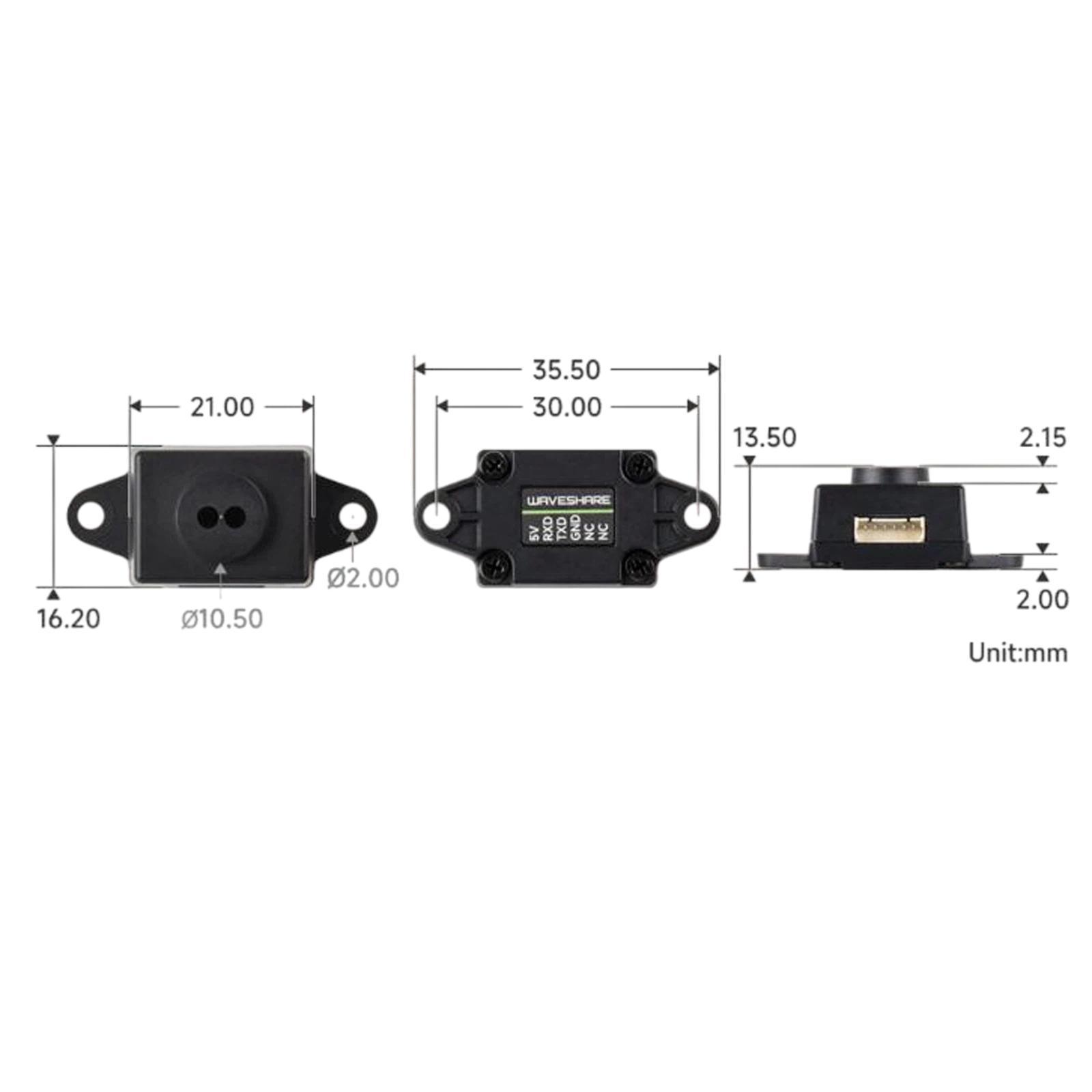

1. Typical measurement range: 0.02m - 5m 2. Error: ±(1% - 3%) 3. Field of View (FOV): 3° ± 0.5° 4. Refresh rate: 30Hz (This parameter supports batch customization, with a maximum of 90Hz) 5. Anti-environmental light capability: 100K Lux 6. Operating temperature: -20°C to +70°C 7. Operating humidity: 35% to 80% RH 8. Laser safety level: LASER CLASS 1 9. Wavelength: 940nm 10. Communication interface: UART 11. Communication baud rate: 115.2Kbps 12. Supply voltage: 4V - 5.6V 13. Communication level: 3.3V 14. Product power consumption: 100mW - 140mW 15. Storage temperature: -40°C to +80°C 16. Shell material: PC 17. Size: about 3.55 x 1.62 x 1.35 cm 18. Weight: about 3.6g 19. Packaging list: TOF MINIF Range Sensor (B) x 1, MX1.25 4PIN connector cable 100mm x 1

Specifications

SKU

TBD0607130501

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.074 kg

Delivery

Standard delivery
