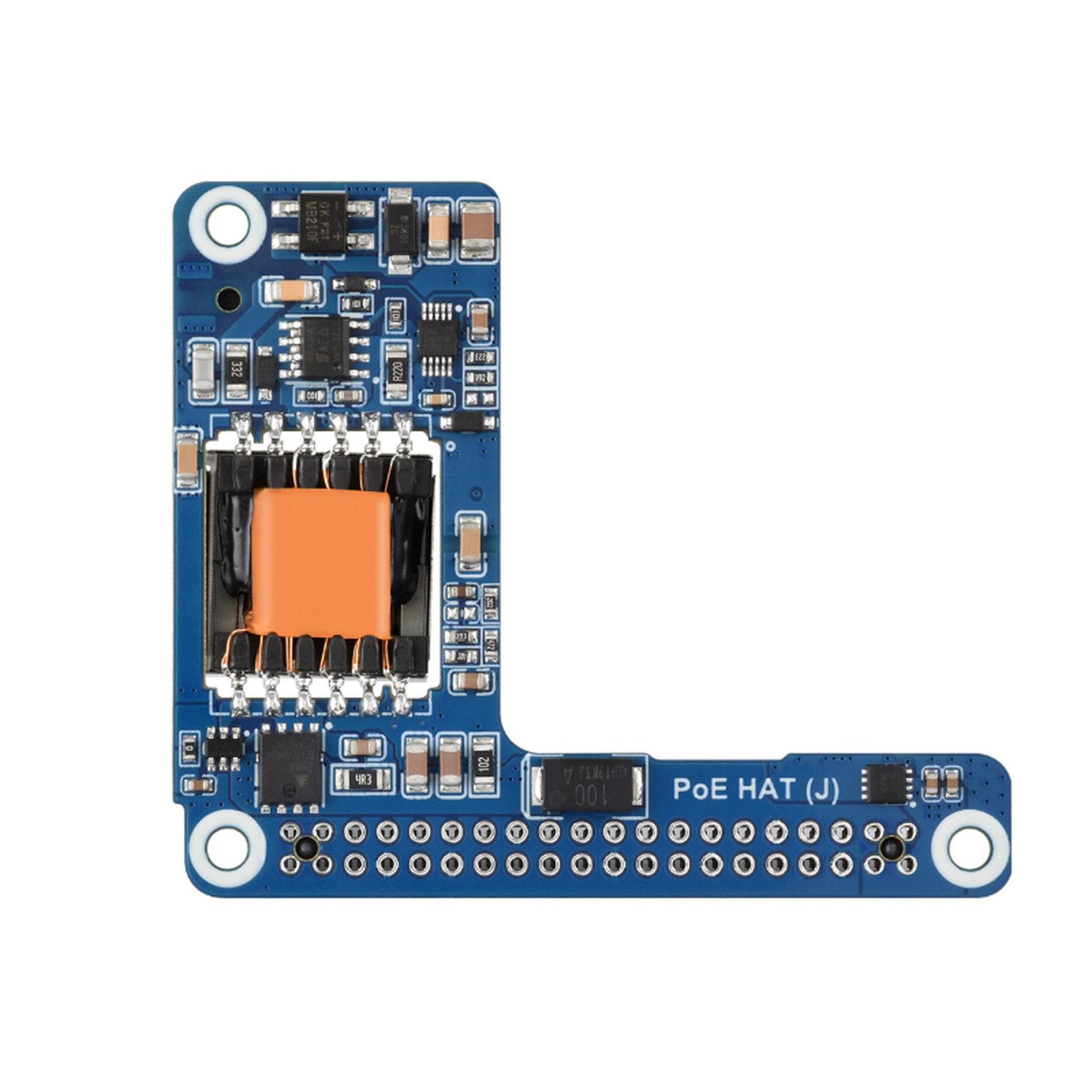

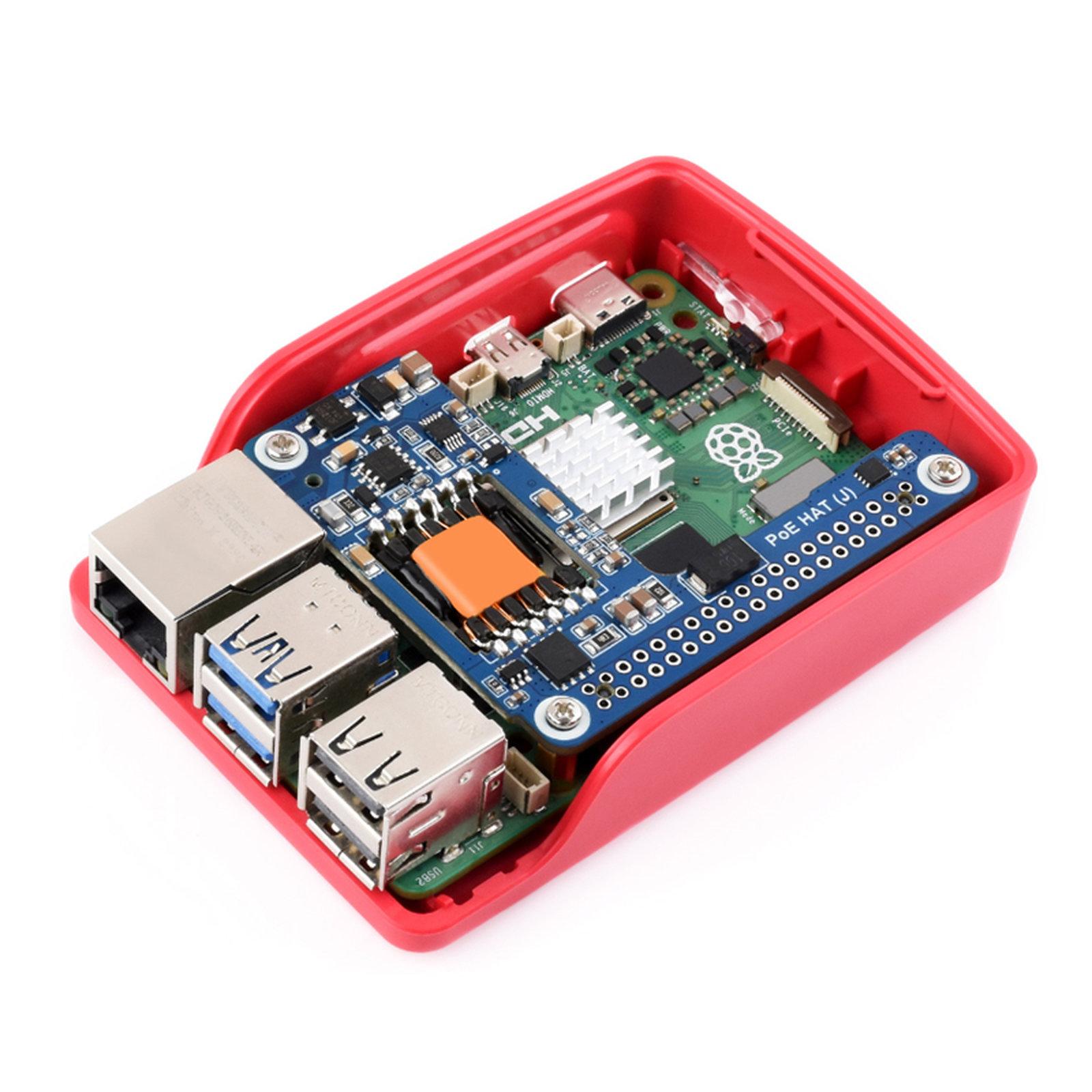

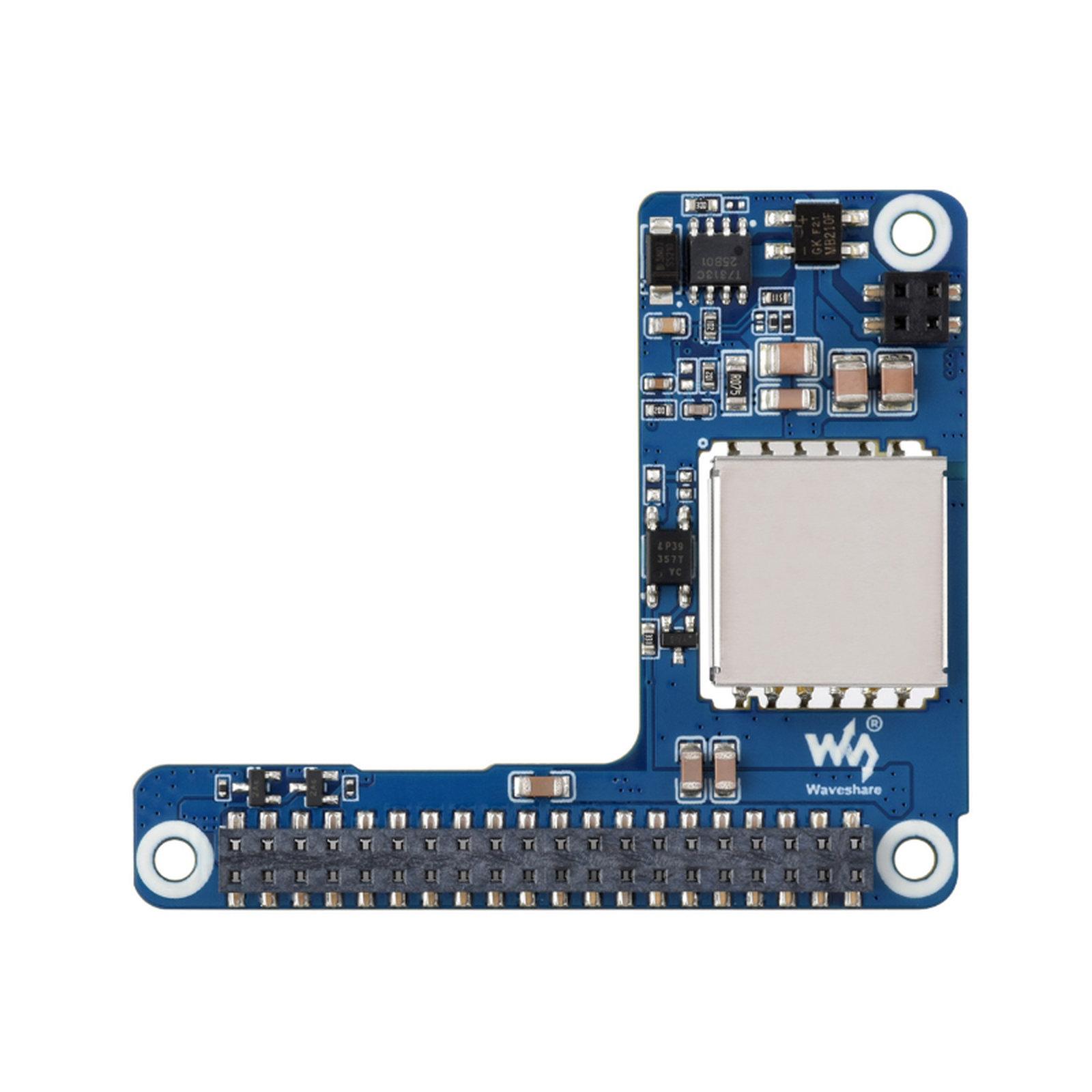

Waveshare 5/CM5 Dedicated PoE(+) Expansion Board For Raspberry Pi, Model: 34612+ Case

Product Description

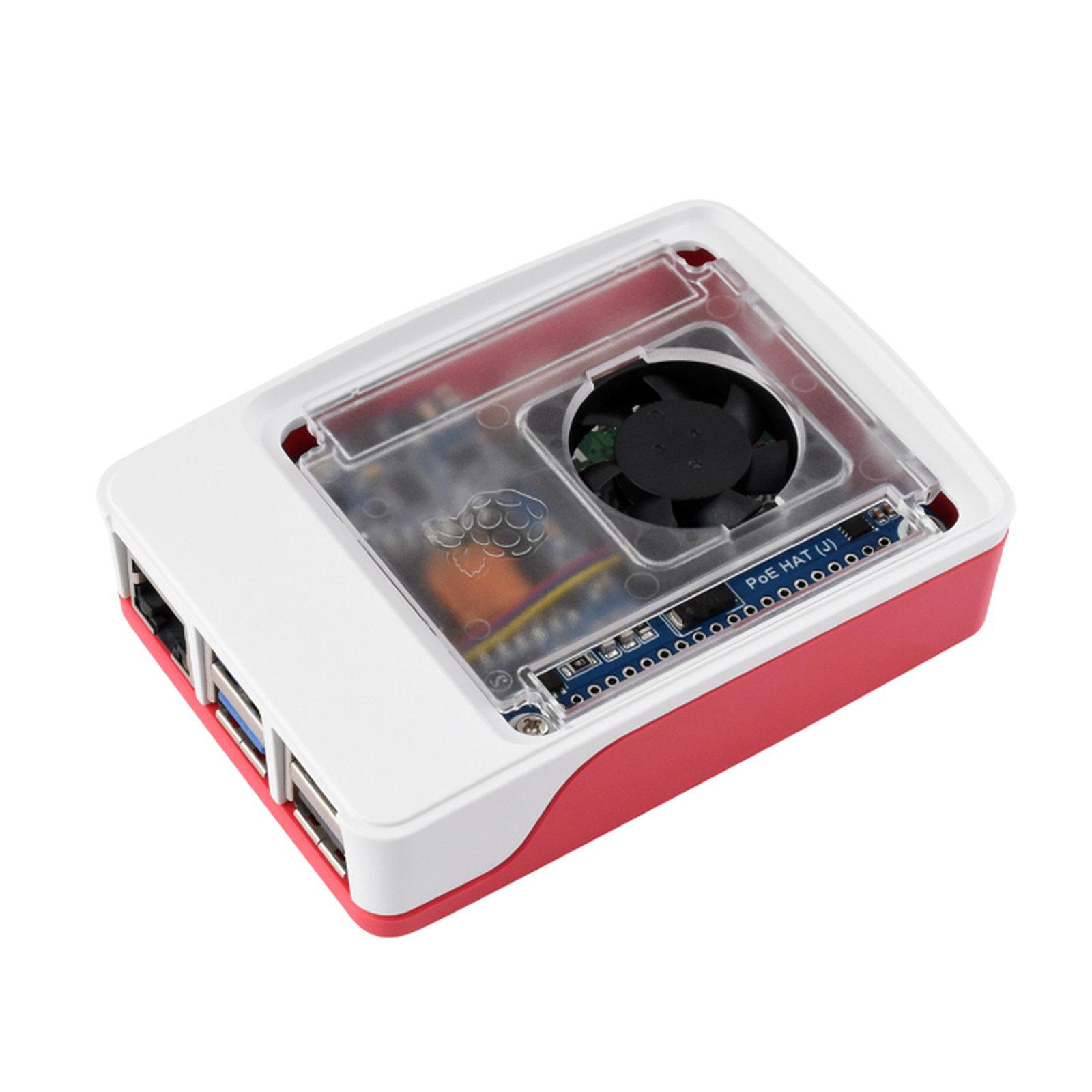

1. PoE power input: 38V ~ 57V DC 2. Power output: GPIO Header 5V 5A (MAX) 3. Product dimensions: 64.98 x 64.98 mm 4. Network standard: supports IEEE 802.3af/at (PoE / PoE+) 5. For Raspberry Pi 5 / CM 5, featuring an onboard 5V interface for use with official cases. Supports IEEE 802.3af/at network standard. 6. Works with PoE routers or switches supporting IEEE 802.3af/at; simply connect a single Ethernet cable to power and network the Raspberry Pi. Official case: 1. Input voltage: 5V DC (Powered via Raspberry Pi 5 fan header) 2. Fan speed control: PWM control with tachometer 3. Airflow: 2.79 CFM (Max) 4. Fan speed: 8000 RPM ?± 15% (Max) 5. Case material: ABS (base, frame, cover) and PC (fan assembly)

Specifications

SKU

TBD0607065802

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.084 kg
