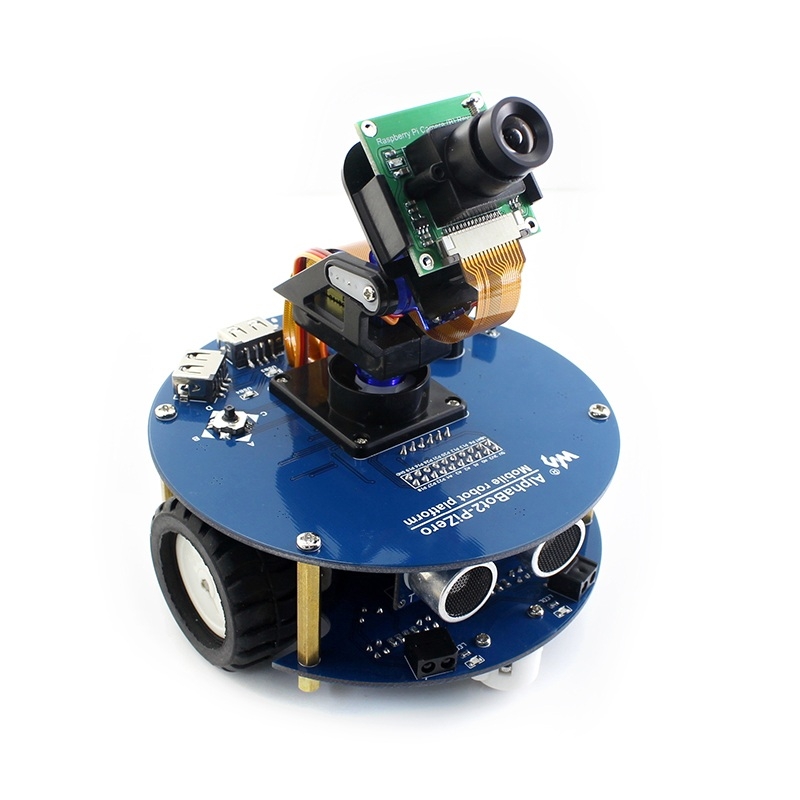

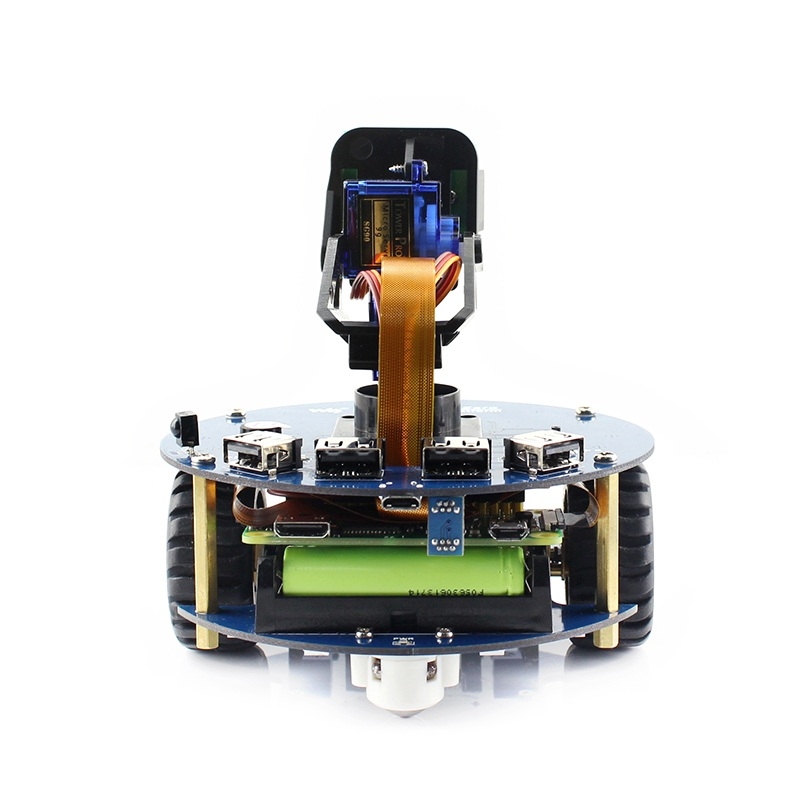

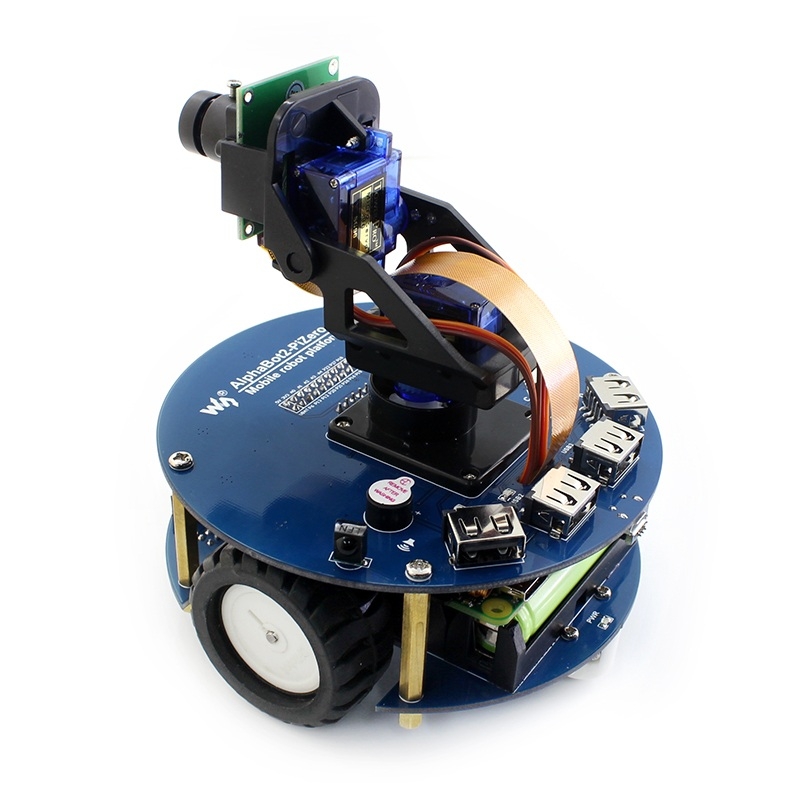

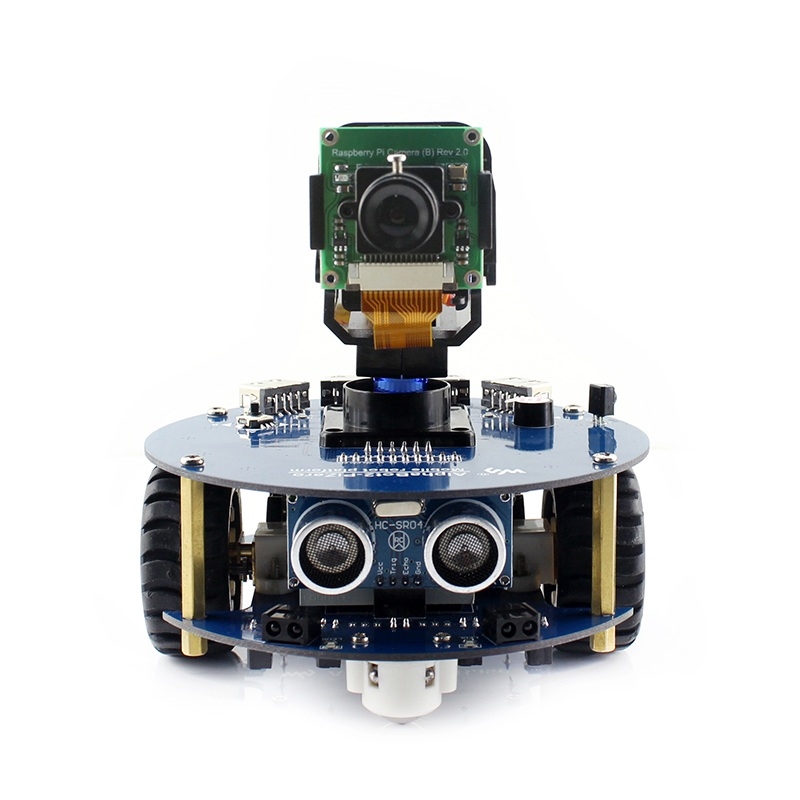

Waveshare AlphaBot2 Robot Building Kit for Raspberry Pi Zero/Zero W (no Pi)

Product Description

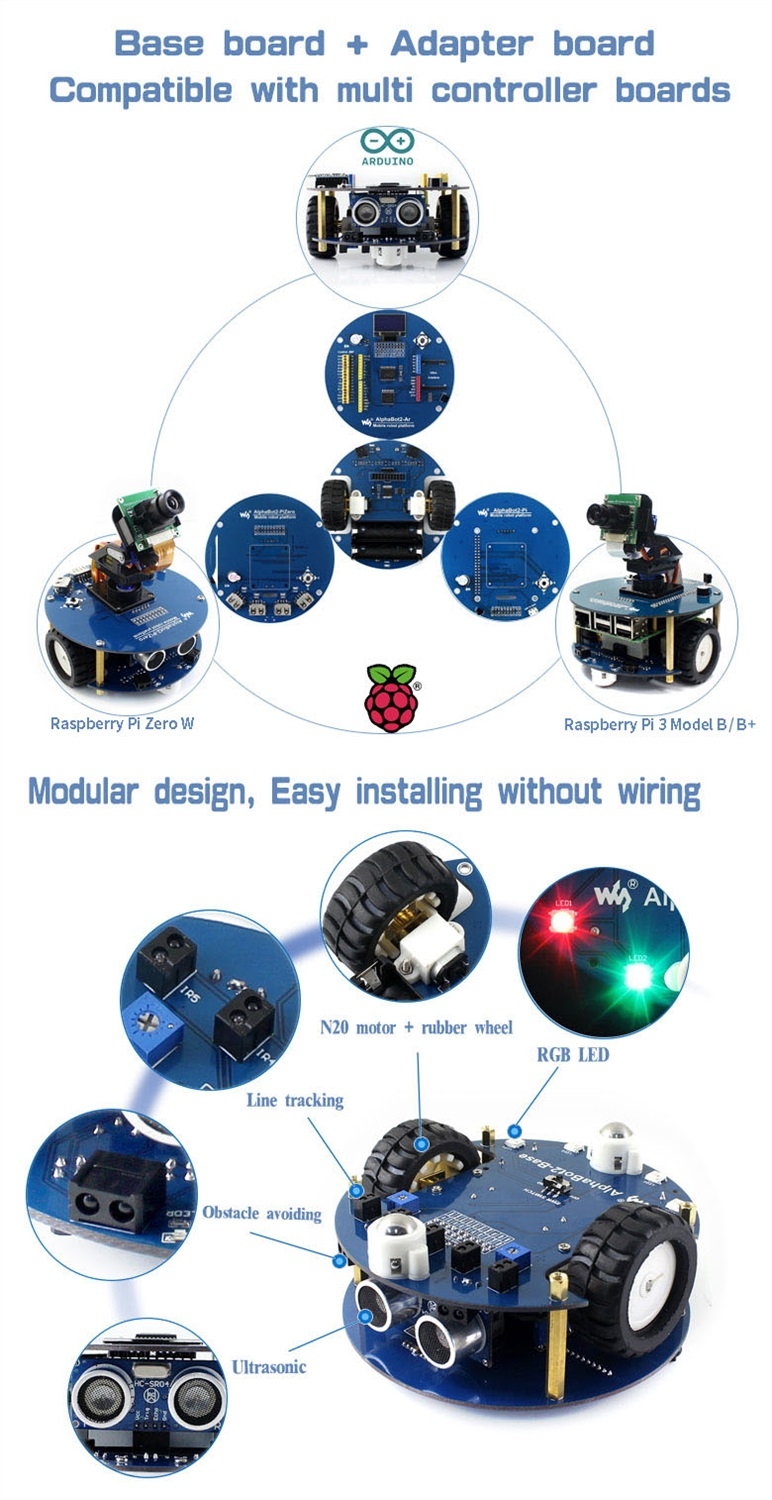

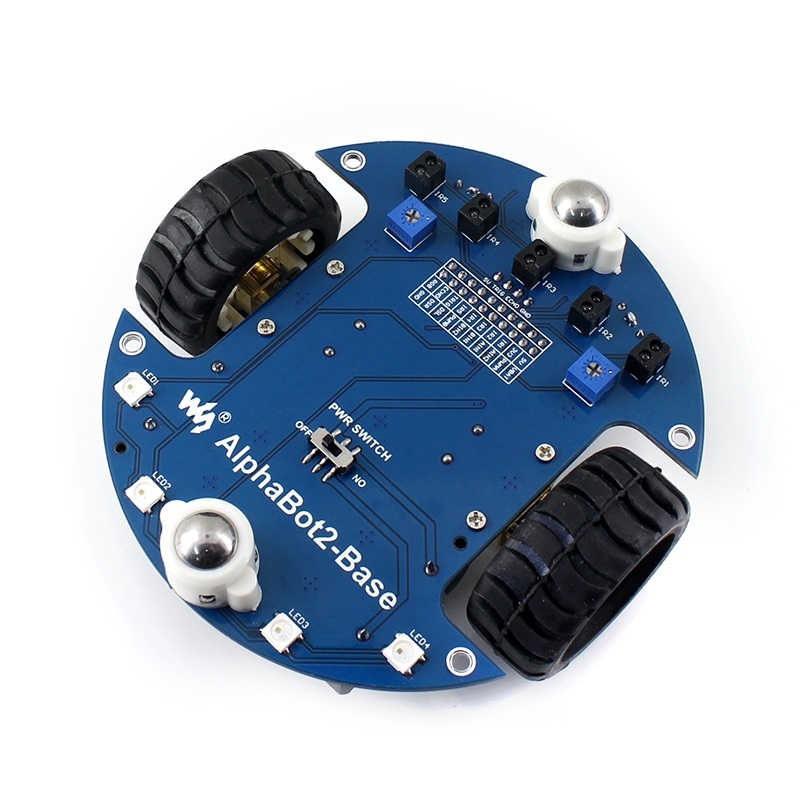

Overview This AlphaBot2 robot kit is designed to use with Raspberry Pi Zero/Zero W (not included). It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, Bluetooth/infrared/WiFi remote control (Bluetooth and WiFi are Zero W specific), video monitoring, etc. Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no wiring. After a few minutes spent on hardware assembing, youre almost there, our open source demo codes is ready to help you get started fast. AlphaBot2 Features AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility. AlphaBot2-Base, the lower base chassis: 1. 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking 2. Onboard modules like line tracking, obstacle avoiding, needs no messy wiring 3. TB6612FNG dual H-bridge motor driver, compared with L298P, its more efficient, more compact, and less heating 4. N20 micro gear motor, with metal gears, low noise, high accuracy 5. Onboard RGB LEDs, true color lighting, pretty cool AlphaBot2-PiZero, the upper adapter board for controller: 1. LM2596 voltage regulator, provides the Pi with stable 5V power 2. 1543 AD acquisition chip, allows the Pi to use analog sensors 3. PCA9685 servo controller, make it more smoothly to rotate the pan head 4. CP2102 UART converter, easy for controlling the Pi via UART 5. USB HUB chip, more USB ports for devices like NIC Package Contents 1. AlphaBot2-PiZero (adapter board) x1 2. AlphaBot2-Base (base chassis) x1 3. RPi Camera (B) x1 4. Ultrasonic sensor x1 5. Micro SD Card 16GB x1 6. Power adapter US standard 5V/3A micro x1 7. SG90 servo x2 8. 2 DOF pan and tilt kit x1 9. IR remote controller x1 10. FC-20P cable 8cm x1 11. Micro USB connector x1 12. RPi Zero V1.3 Camera Cable 30cm x1 13. USB type A plug to micro B plug cable x1 14. AlphaBot2-PiZero screws x1 15. Micro SD Card Reader x1 (Extra Free) 16. Screwdriver x1 (Extra Free)

Specifications

SKU

ZY13869195

Category

Consumer Electronics › Electronics Module › Robotics Accessories

Weight

0.42 kg

Delivery

Standard delivery
