Waveshare Beaglebone Adapter CAPE for Arduino

Product Description

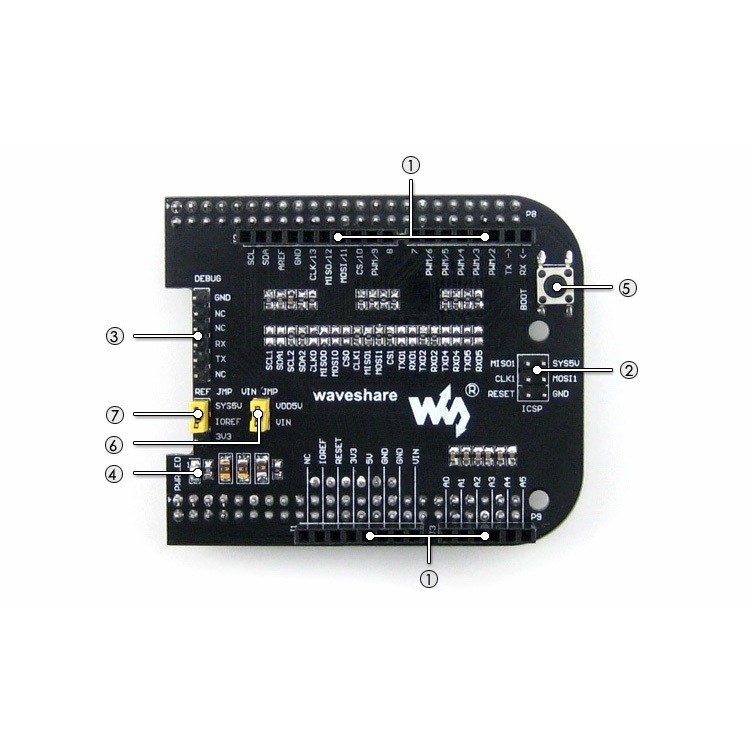

What is on the CAPE for Arduino 1. Arduino connector : for connecting compatible Arduino shields, such as Motor Control Shield 2. ICSP interface : for uploading Arduino programs 3. DEBUG interface : for debugging BB Black OR connected Arduino shields 4. Power indicator 5. BB Black BOOT selection button 6. VIN voltage level selection jumper : connects to VDD5V OR custom power supply 7. IOREF voltage level selection jumper : connects to SYS5V OR 3V3 Development resources:schematic, software, etc. www.waveshare.com/CAPE_for_Arduino

Specifications

SKU

ZY15277276

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.05 kg

Delivery

Standard delivery
