Waveshare CoreEP2C8, ALTERA Core Board

Product Description

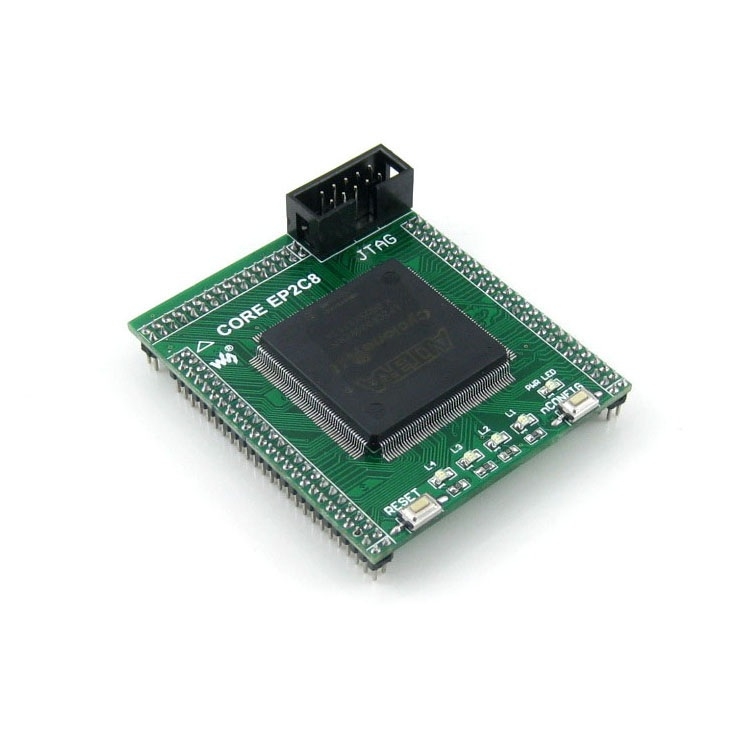

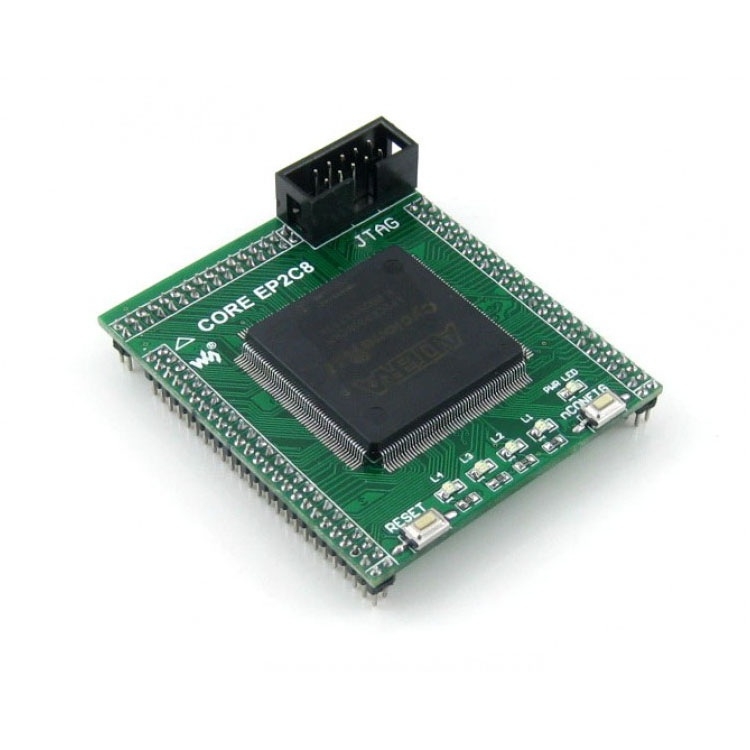

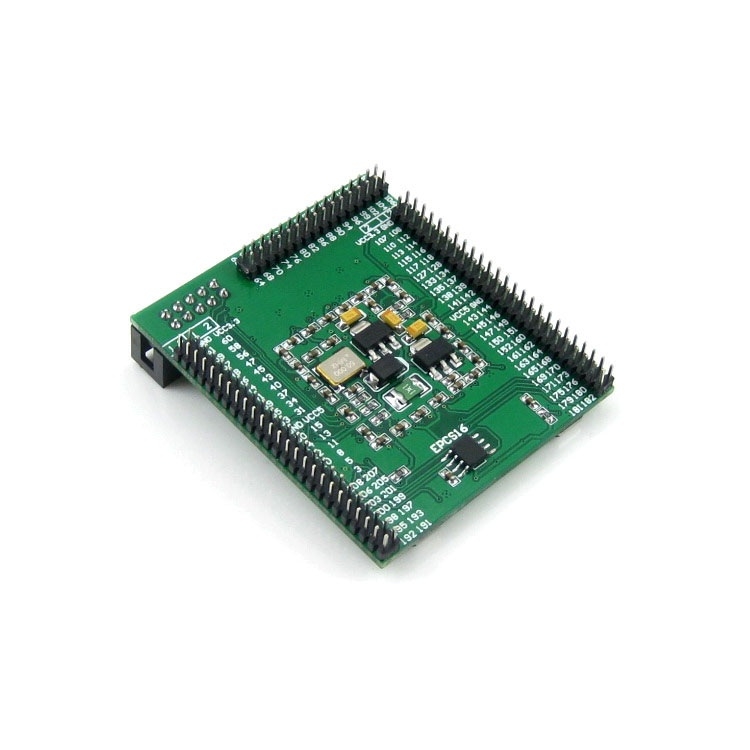

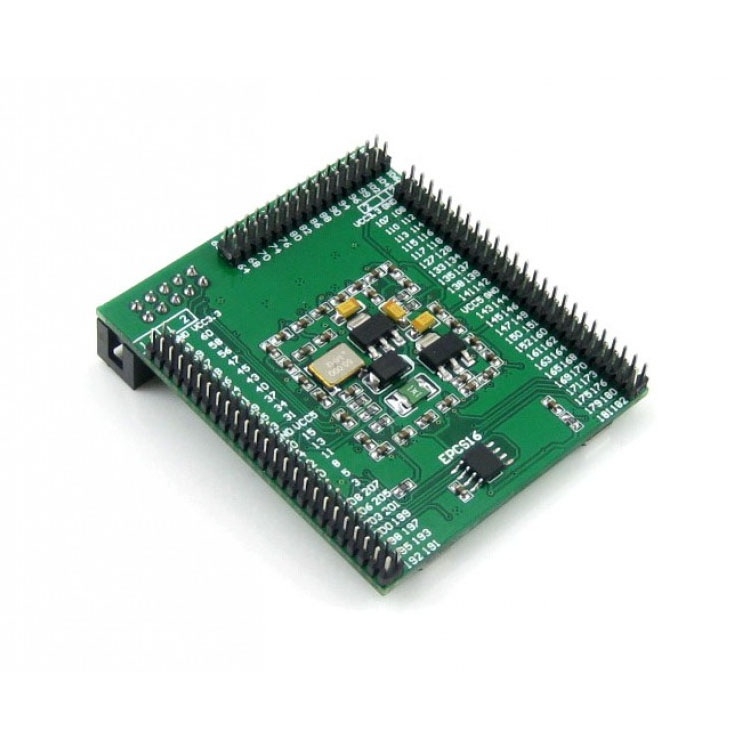

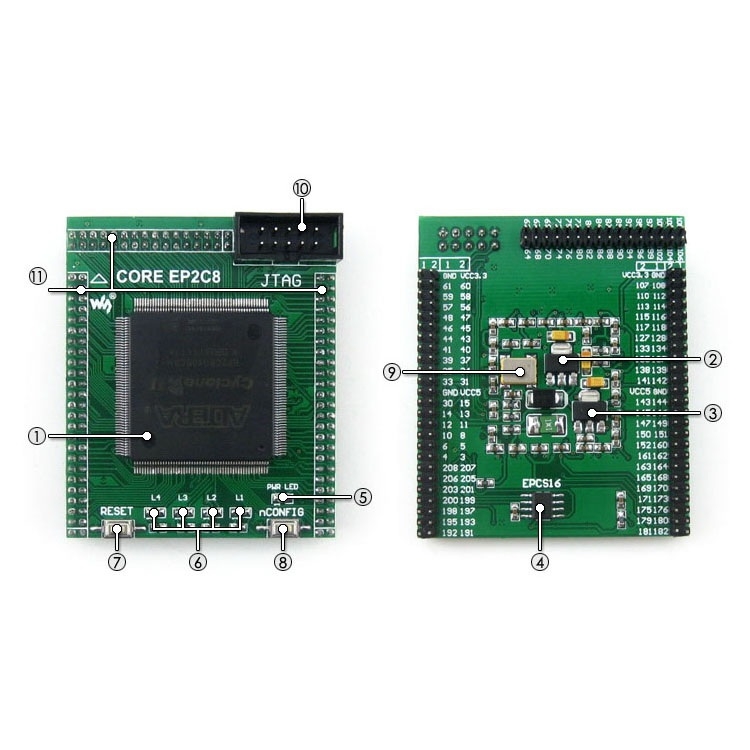

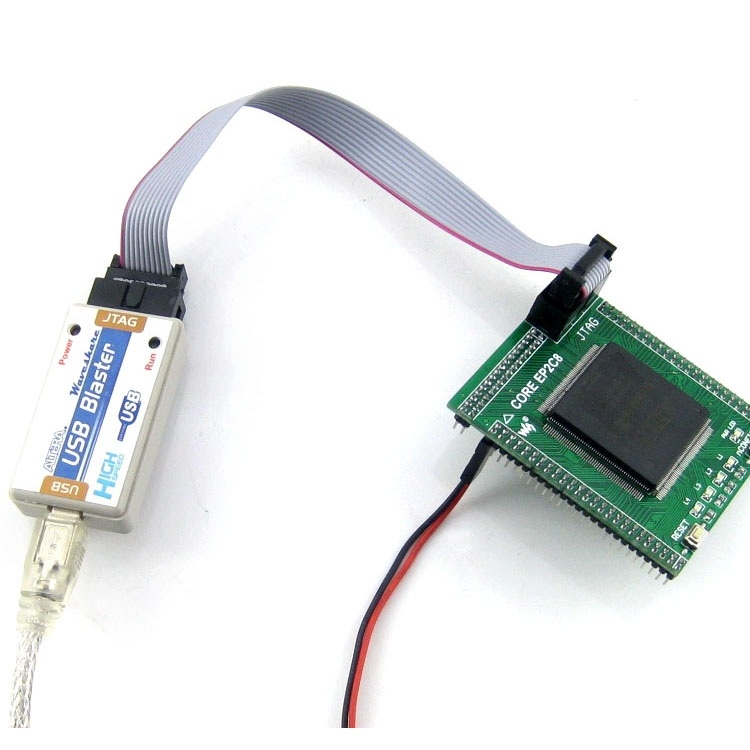

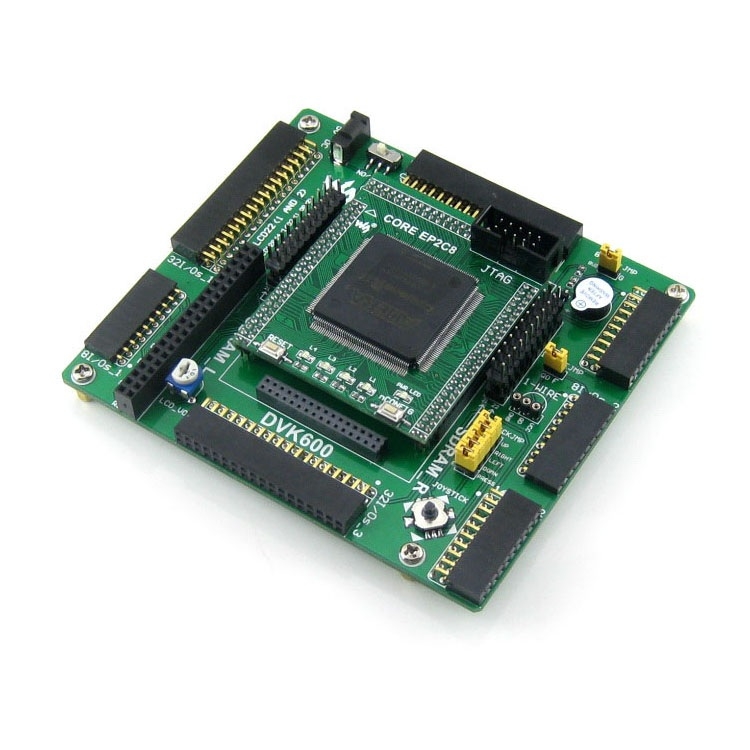

FPGA core board, features the ALTERA Cyclone II chip EP2C8Q208C8N onboard Overview CoreEP2C8 is an FPGA core board that features an EP2C8Q208C8N device onboard, supports further expansion. 1. Onboard Serial Configuration Device EPCS16SI8N 2. Integrated FPGA basic circuit, such as clock circuit 3. Onboard nCONFIG button, RESET button, 4 x LEDs 4. All the I/O ports are accessible on the pin headers 5. Onboard JTAG debugging/programming interface 6. 2.0mm header pitch design, suitable for being plugged-in your application system What is On Board 1. EP2C8Q208C8N: The ALTERA Cyclone II FPGA device which features: - Operating Frequency: 50MHz - Operating Voltage: 1.15V～3.465V - Package: QFP208 - I/Os: 138 - LEs: 8K - RAM: 165kb - PLLs: 2 - Debugging/Programming: supports JTAG 2. AMS1117-3.3, 3.3V voltage regulator 3. AMS1117-1.2, 1.2V voltage regulator 4. EPCS16, onboard serial FLASH memory, for storing code 5. Power indicator 6. LEDs 7. Reset button 8. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting 9. 50M active crystal oscillator 10. JTAG interface: for debugging/programming 11. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion Note 1. CoreEP2C8 provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required. 2. Mother board and programmer/debugger in the photos are NOT included in the price. Development Resources 1. Related software (Quaters II, NIOS II etc.) 2. Demo code (Verilog, VHDL, NIOS II C) 3. Schematic (PDF) 4. FPGA development documentations

Specifications

SKU

ZY14246263

Category

Consumer Electronics › Electronics Module › FPGA Tools

Weight

0.053 kg
