Waveshare CoreEP4CE10 ALTERA Core Board

Product Description

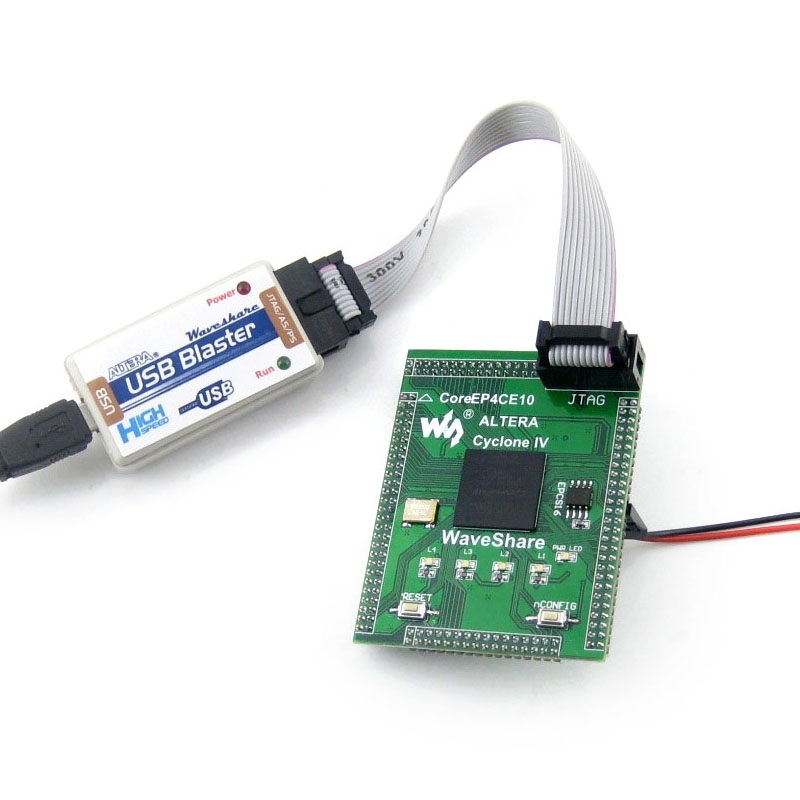

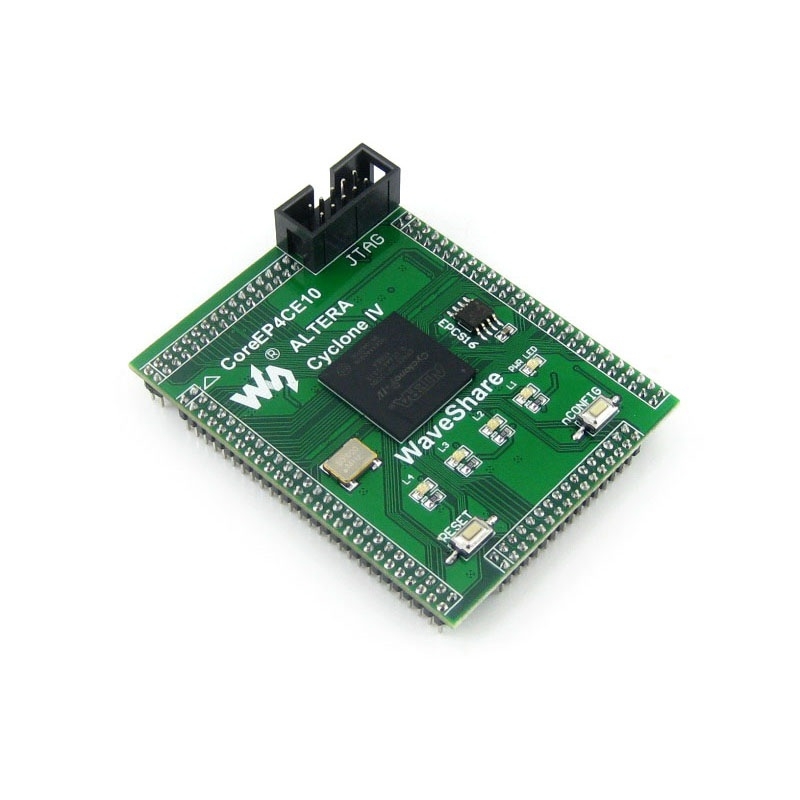

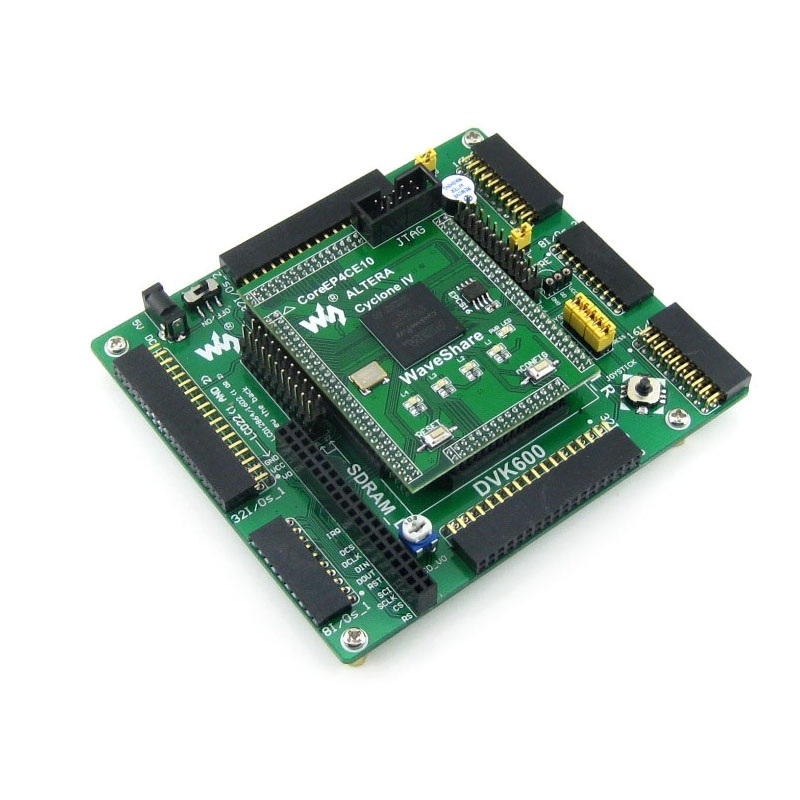

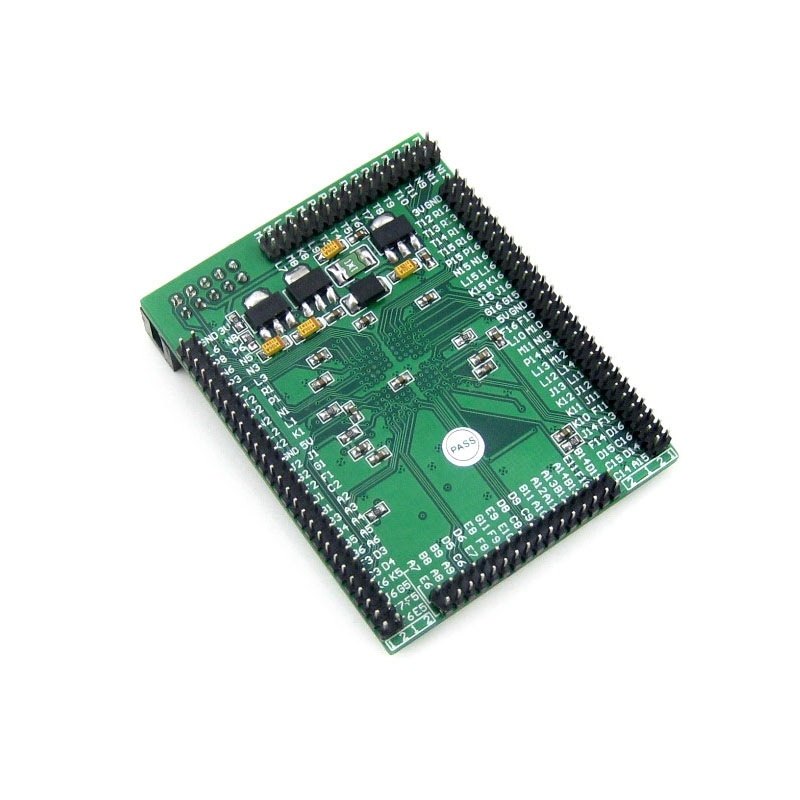

Overview CoreEP4CE10 is an FPGA core board that features an EP4CE10F17C8N device onboard, supports further expansion. 1. onboard Serial Configuration Device EPCS16SI8N 2. integrated FPGA basic circuit, such as clock circuit 3. onboard nCONFIG button, RESET button, 4 x LEDs 4. all the I/O ports are accessible on the pin headers 5. onboard JTAG debugging/programming interface 6. 2.00mm header pitch design, suitable for being plugged-in your application system Whats On Board 1. EP4CE10F17C8N:the ALTERA Cyclone IV FPGA device which features: - Operating Frequency: 50MHz - Operating Voltage: 1.15V～3.465V - Package: BGA256 - I/Os: 164 - LEs: 10K - RAM: 414kb - PLLs: 2 - Debugging/Programming: supports JTAG 2. AMS1117-3.3 (on bottom side), 3.3V voltage regulator 3. AMS1117-2.5 (on bottom side), 2.5V voltage regulator 4. AMS1117-1.2 (on bottom side), 1.2V voltage regulator 5. EPCS16, onboard serial FLASH memory, for storing code 6. Power indicator 7. LEDs 8. Reset button 9. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting 10. 50M active crystal 11. JTAG interface: for debugging/programming 12. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion Note 1. CoreEP4CE10 provides JTAG debugging interface, yet does NOT integrate any debugging function, a debugger is required. Mother board and programmer/debugger in the photos are NOT included in the price. Development Resources 1. Related software (Quaters II, NIOS II etc.) 2. Demo code (Verilog, VHDL, NIOS II C) 3. Schematic (PDF) 4. FPGA development documentations

Specifications

SKU

ZY14250358

Category

Consumer Electronics › Electronics Module › FPGA Tools

Weight

0.051 kg
