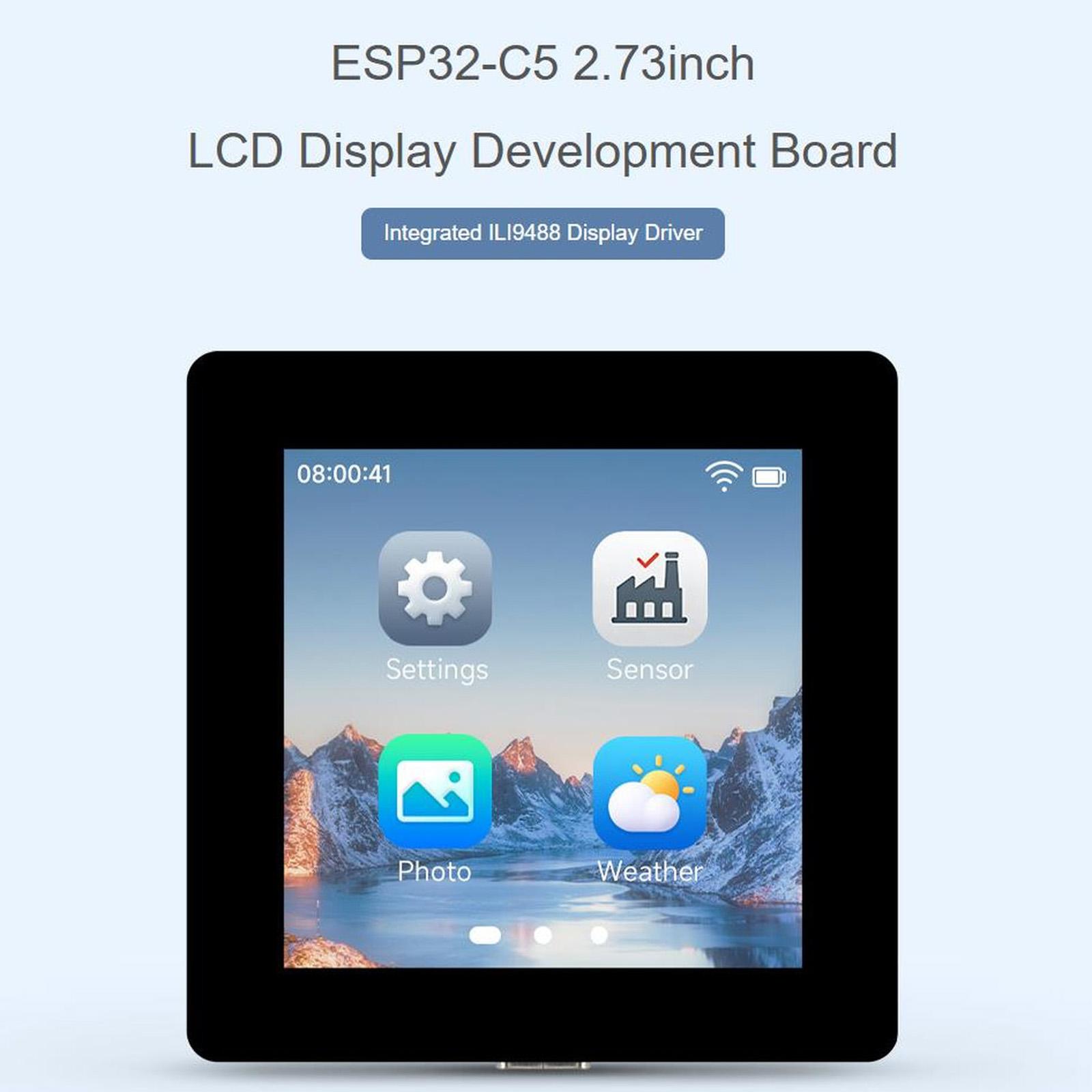

WAVESHARE ESP32-C5 2.73 Inch LCD Display Development Board, 32-Bit RISC-V Processor, Supports Dual-Band 2.4GHz / 5GHz Wi-Fi And Bluetooth 5, Spec: No Lithium Battery

Product Description

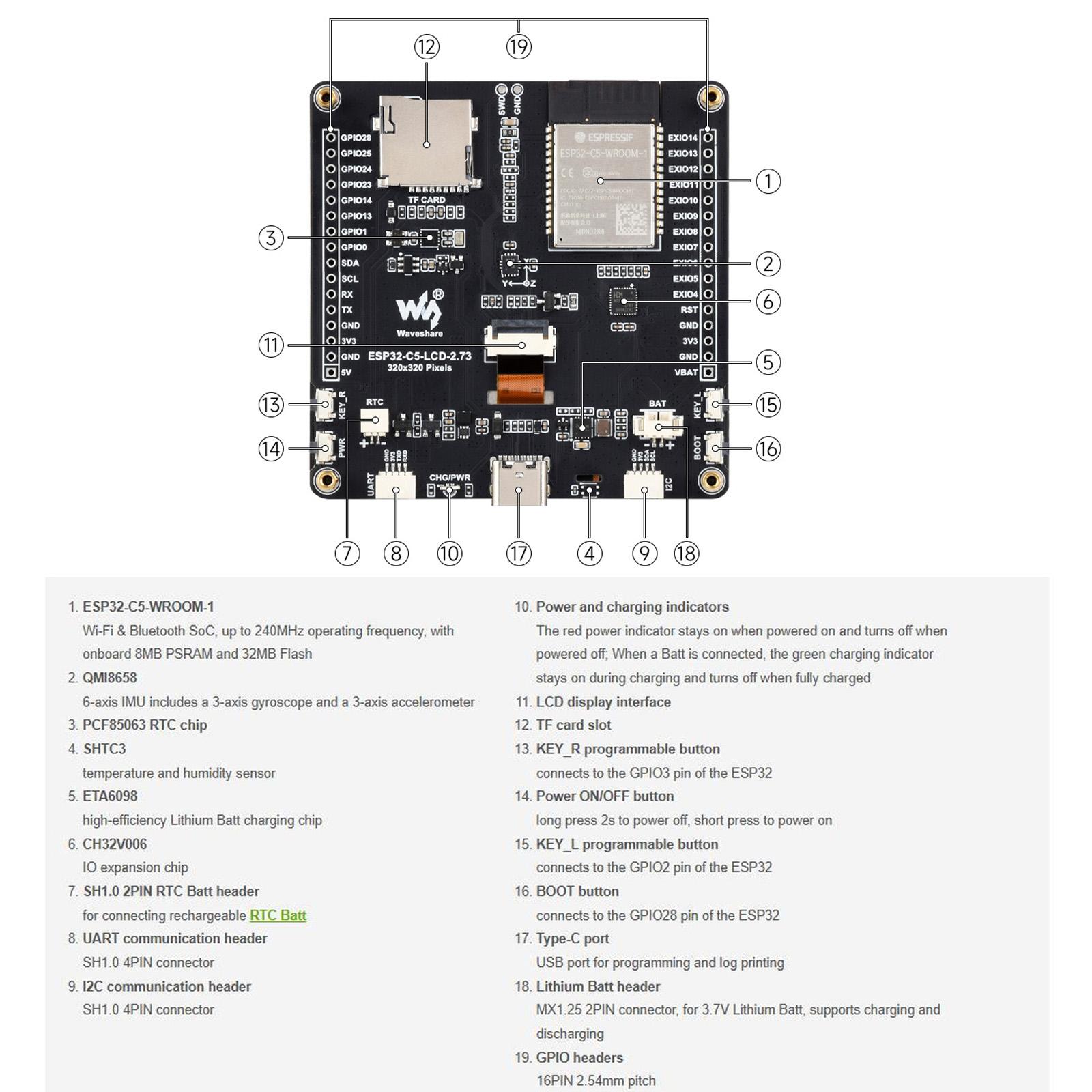

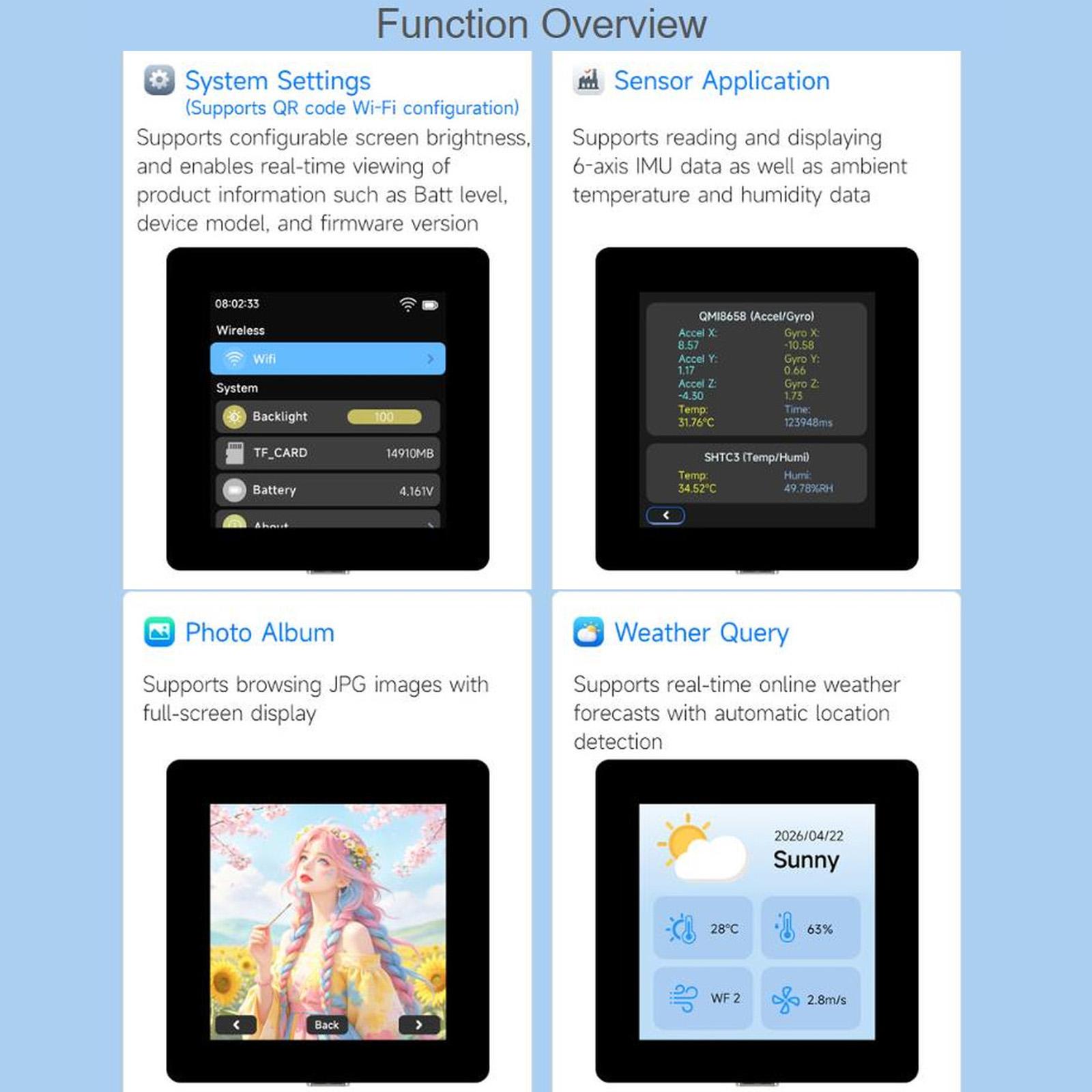

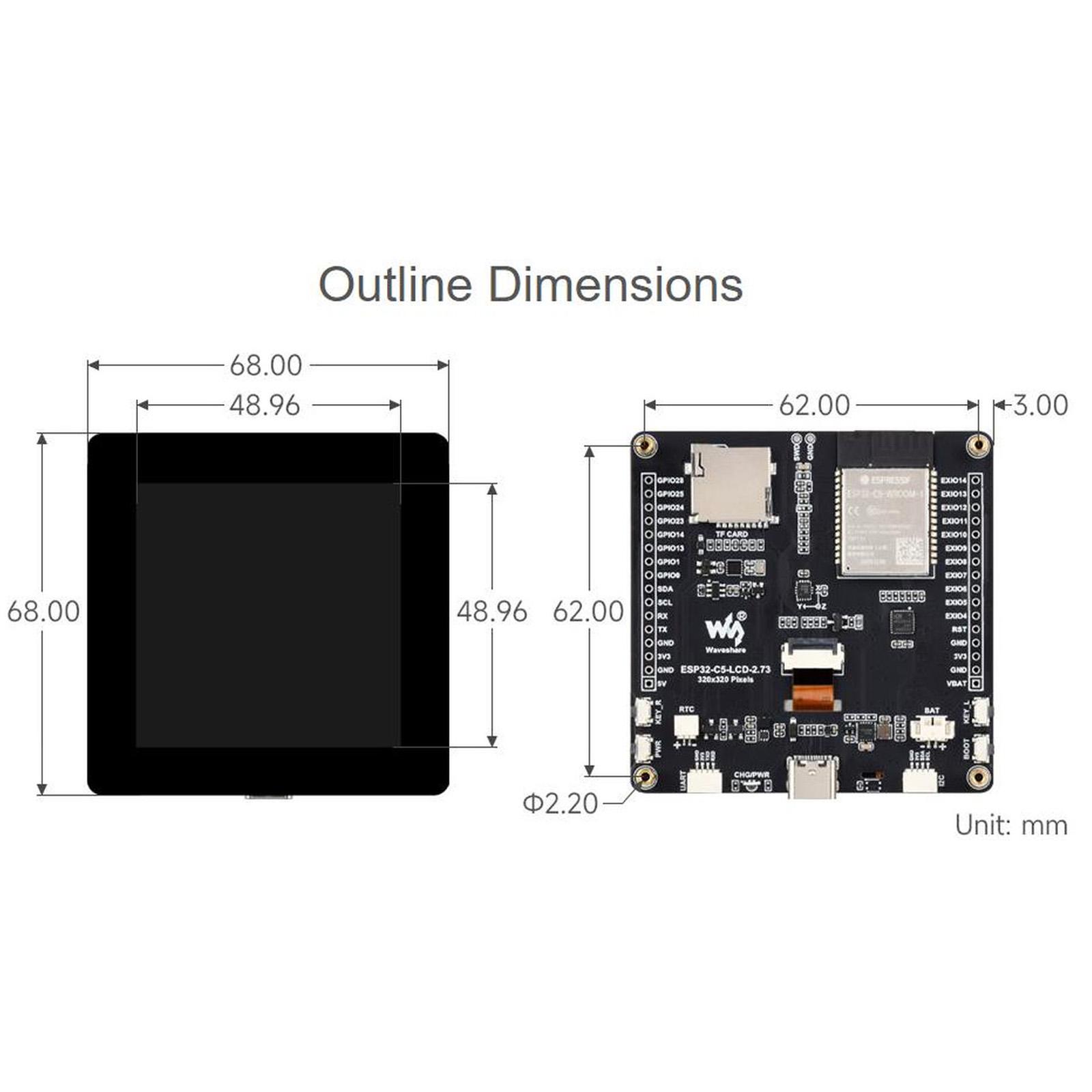

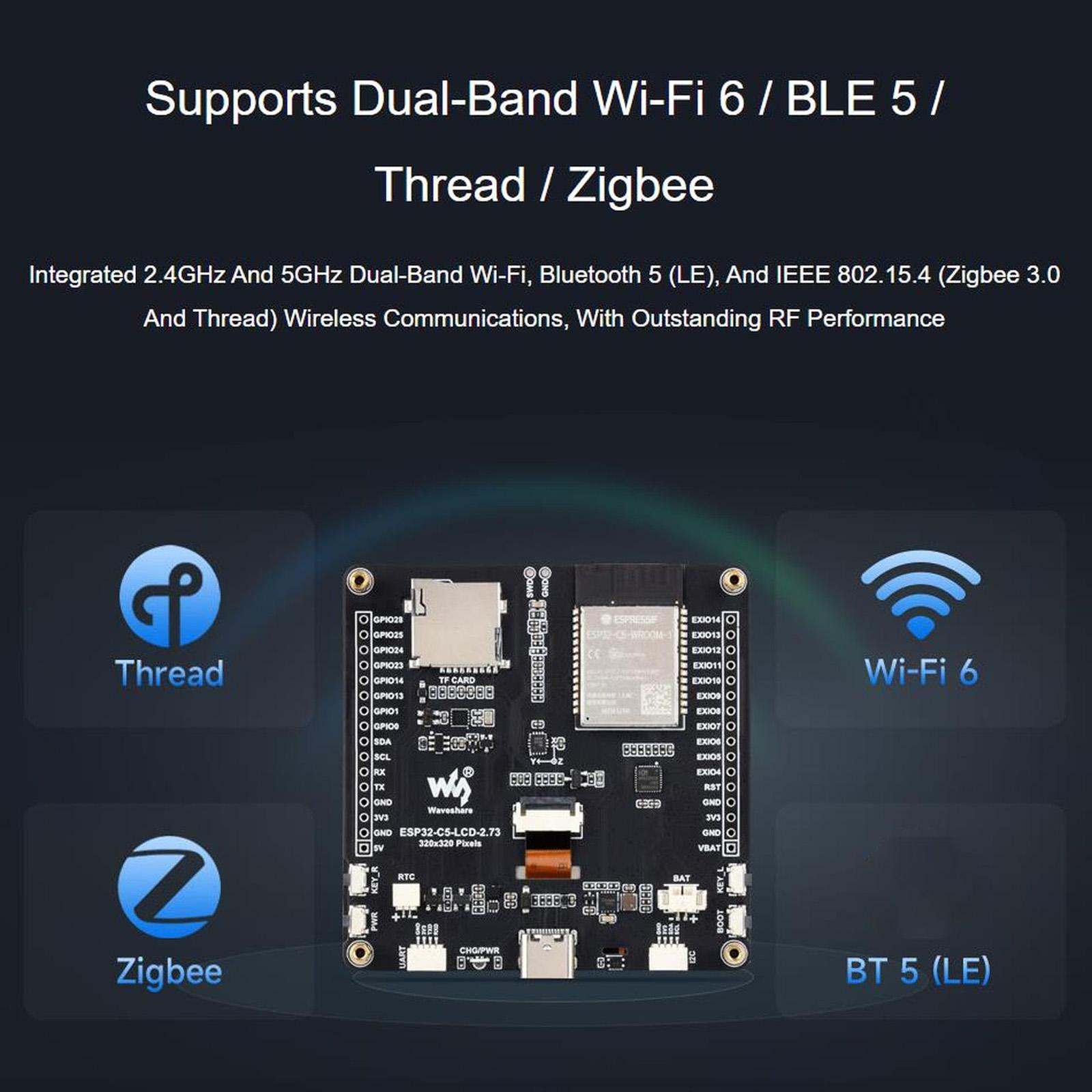

1. Display Panel: LCD 2. Display Size: 2.73 inch 3. Display Resolution: 320 x 320 pixels 4. Display Brightness: 620 cd/square meters 5. Display Colors: 262K 6. Contrast Ratio: 1200:1 7. Communication Interface: SPI 8. Driver IC: ILI9488 9. Dimensions: Approx. 68 x 68 mm Features: 1. Equipped with a high-performance ESP32-C5 RISC-V 32-bit single-core processor with a clock speed of up to 240 MHz 2. Features 384 KB of SRAM and 320 KB of ROM, along with 8 MB of on-board PSRAM and 32 MB of Flash, meeting the needs of program execution, graphical interfaces, and data storage 3. Integrates dual-band 2.4GHz and 5GHz Wi-Fi, Bluetooth 5.0 (LE), and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, with excellent RF performance 4. Features a built-in 2.73-inch LCD display for displaying graphical interfaces, status information, data curves, and more 5. Three onboard customizable buttons facilitate various functions such as menu navigation, parameter configuration, and human-machine interaction 6. Onboard TF card slot supports external storage expansion for storing images, logs, configuration files, or acquired data 7. On-board lithium battery charge management chip, supporting the development of portable and battery-powered applications 8. On-board six-axis sensor (three-axis accelerometer and three-axis gyroscope), usable for attitude detection and interactive control 9. On-board RTC (Real-Time Clock), supporting applications such as time logging and offline timing 10. On-board temperature and humidity sensor, suitable for environmental data acquisition and monitoring 11. Features a USB Type-C interface for convenient power supply, program download, and debugging 12. Supports development environments such as ESP-IDF and Arduino, with extensive documentation and an easy learning curve 13. Provides multiple GPIO pins and peripheral interfaces for easy connection to sensors, actuators, and other modules

Specifications

SKU

TBD0607114501

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.104 kg

Delivery

Standard delivery
