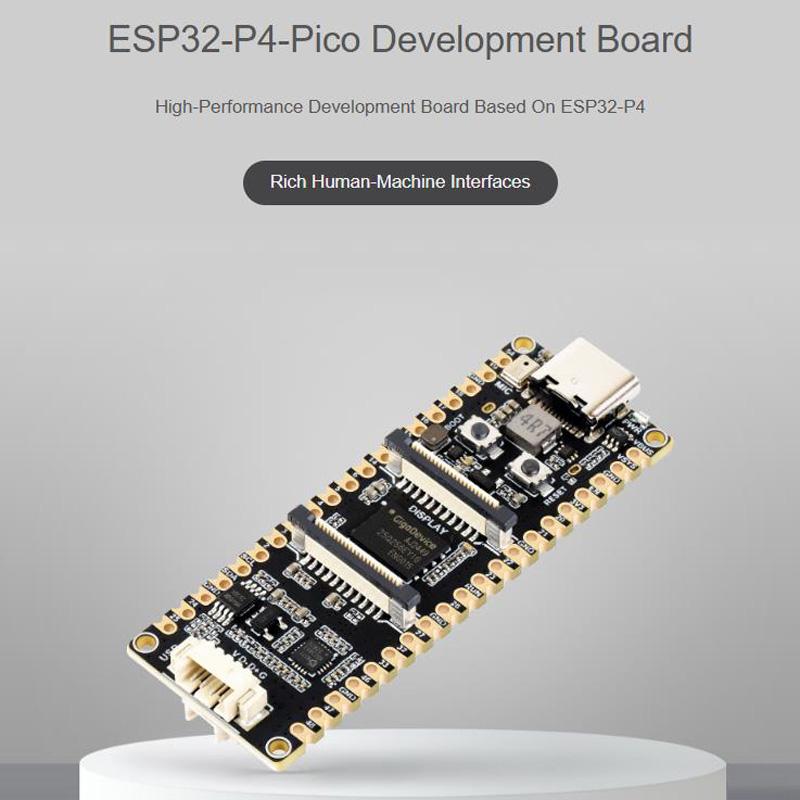

WAVESHARE ESP32-P4-Pico-KIT-B High-Performance Development Board With RISC-V Dual-Core And Single-Core Processors Rich Human-Machine Interfaces

Product Description

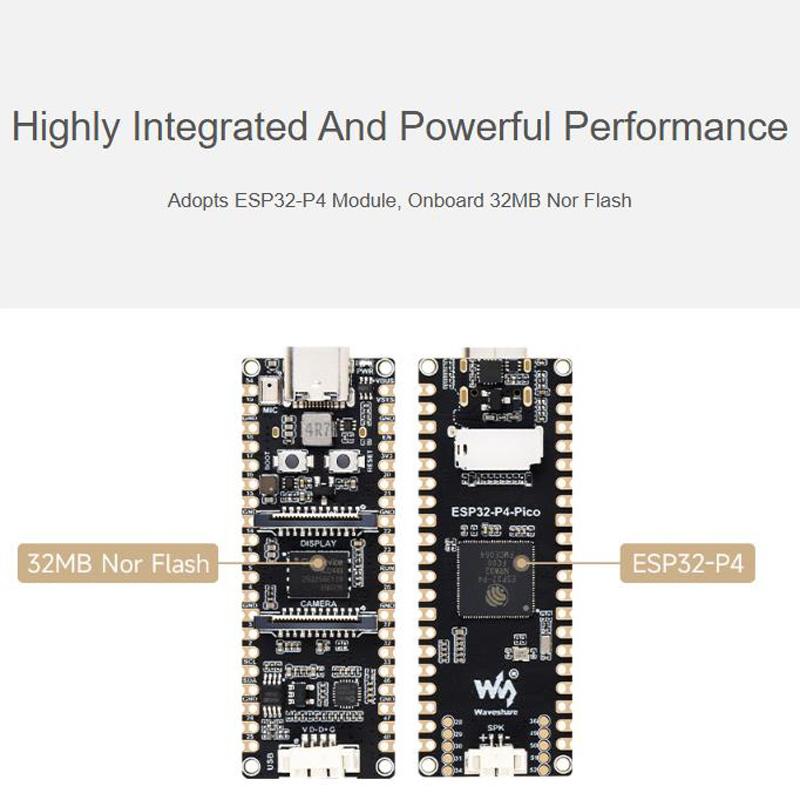

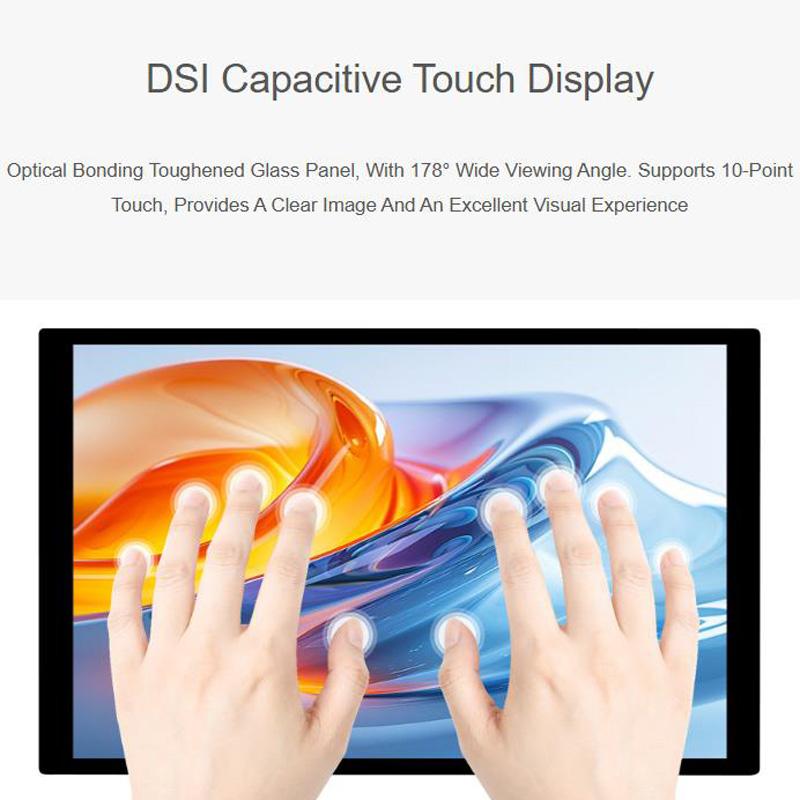

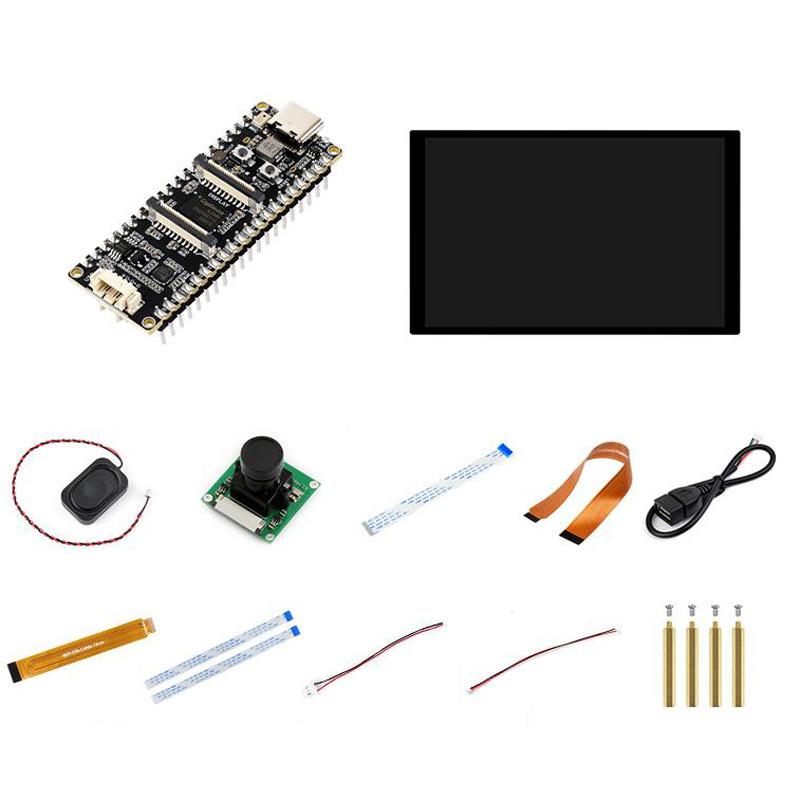

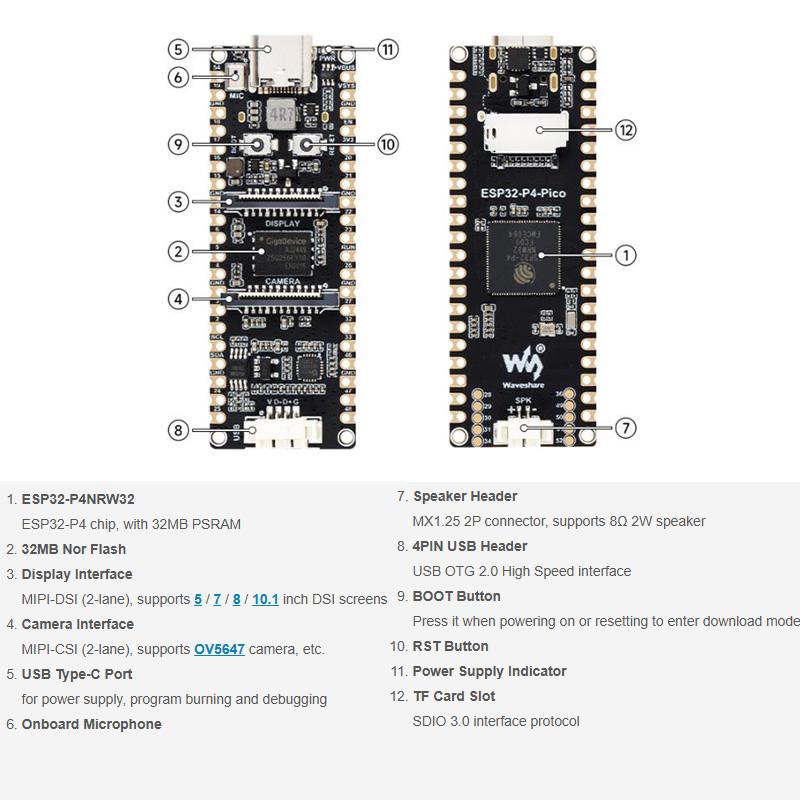

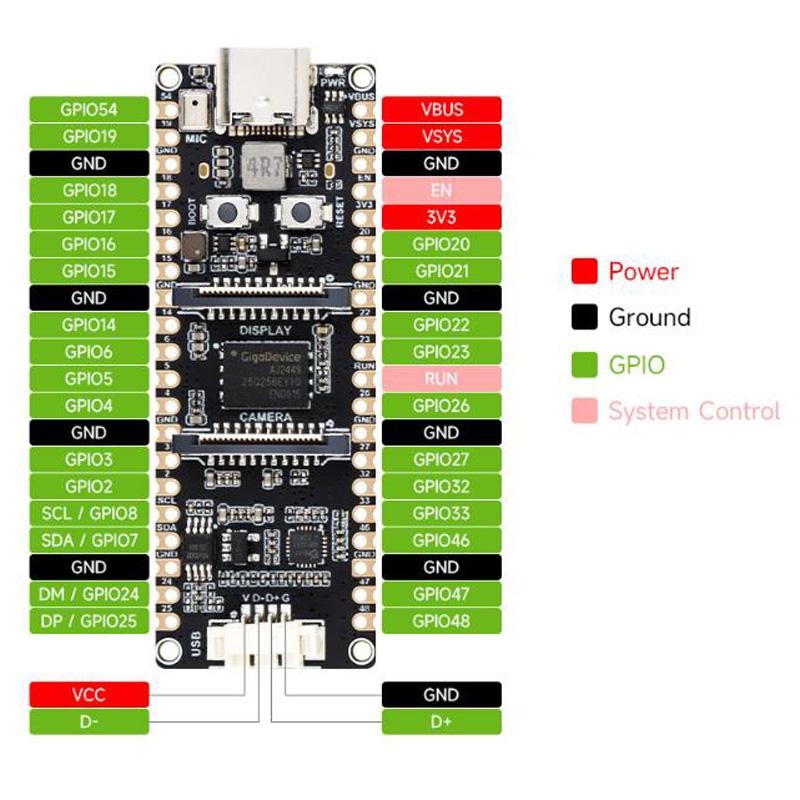

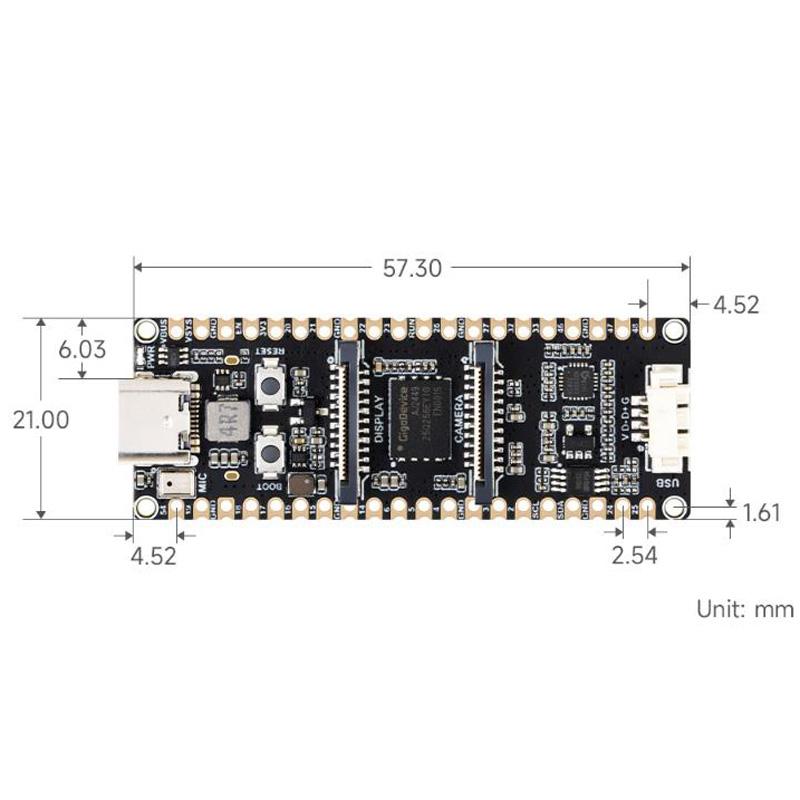

1. High-performance MCU featuring RISC-V 32-bit dual-core and single-core processors 2. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM 3. Robust image and voice processing capabilities, with interfaces including JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder 4. 32MB PSRAM stacked within the chip package, with an additional 32MB Nor Flash integrated externally 5. On-board peripheral interfaces include MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone, and speaker terminals 6. On-board 2 × 20 header pins expose 27 additional programmable GPIOs 7. Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection for implementing Access Permission Management (APM) and privilege separation 8. Highly integrated, powerful performance. Development board uses ESP32-P4 chip with 32MB Nor Flash onboard 9. Size: about 5.73 x 2.1cm ESP32-P4-Pico-KIT-B package contents: - ESP32-P4-Pico-M x 1 - 10.1-DSI-TOUCH-A x 1 - 8 ohms 2W speaker x 1 - Pi5-Camera-Cable-200mm x 1 - FFC 15-pin ribbon cable x 1 - RPi Camera (B) x 1 - MX1.25 4-pin to USB cable x 1 - MIPI-DSI-Cable-12cm x 1 - MX1.25 2-pin to 2.54mm 3-pin jumper cable x 1 - FFC cable 22PIN about 200mm (opposite direction) x 2 - MX1.25 2PIN to MX1.25 4PIN about 150mm x 1 - Copper pillar pack x 1

Specifications

SKU

TBD0606496104

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.524 kg
