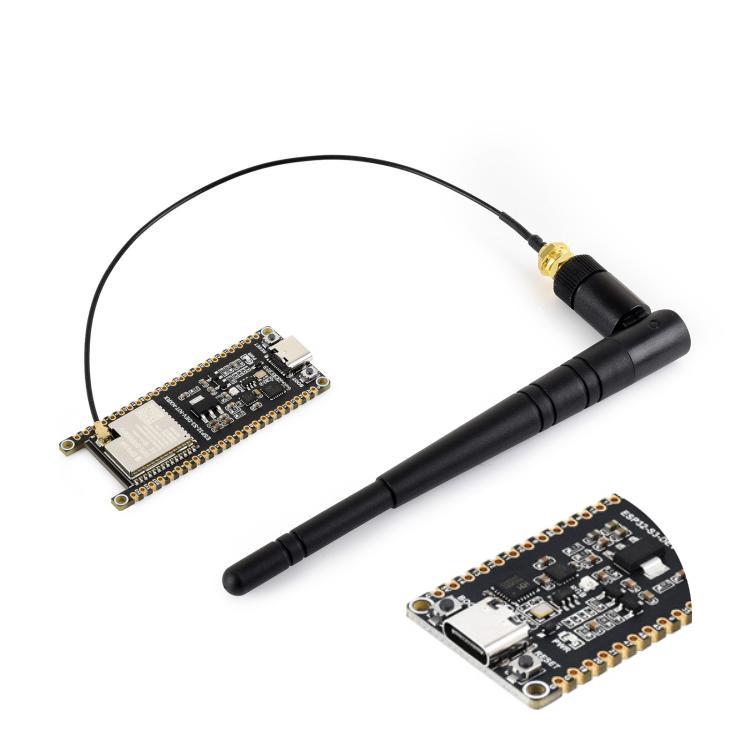

Waveshare ESP32-S3 1U-N16R8 Microcontroller 2.4GHz Wi-Fi Development Board 240MHz Dual Core Processor Without Header

Product Description

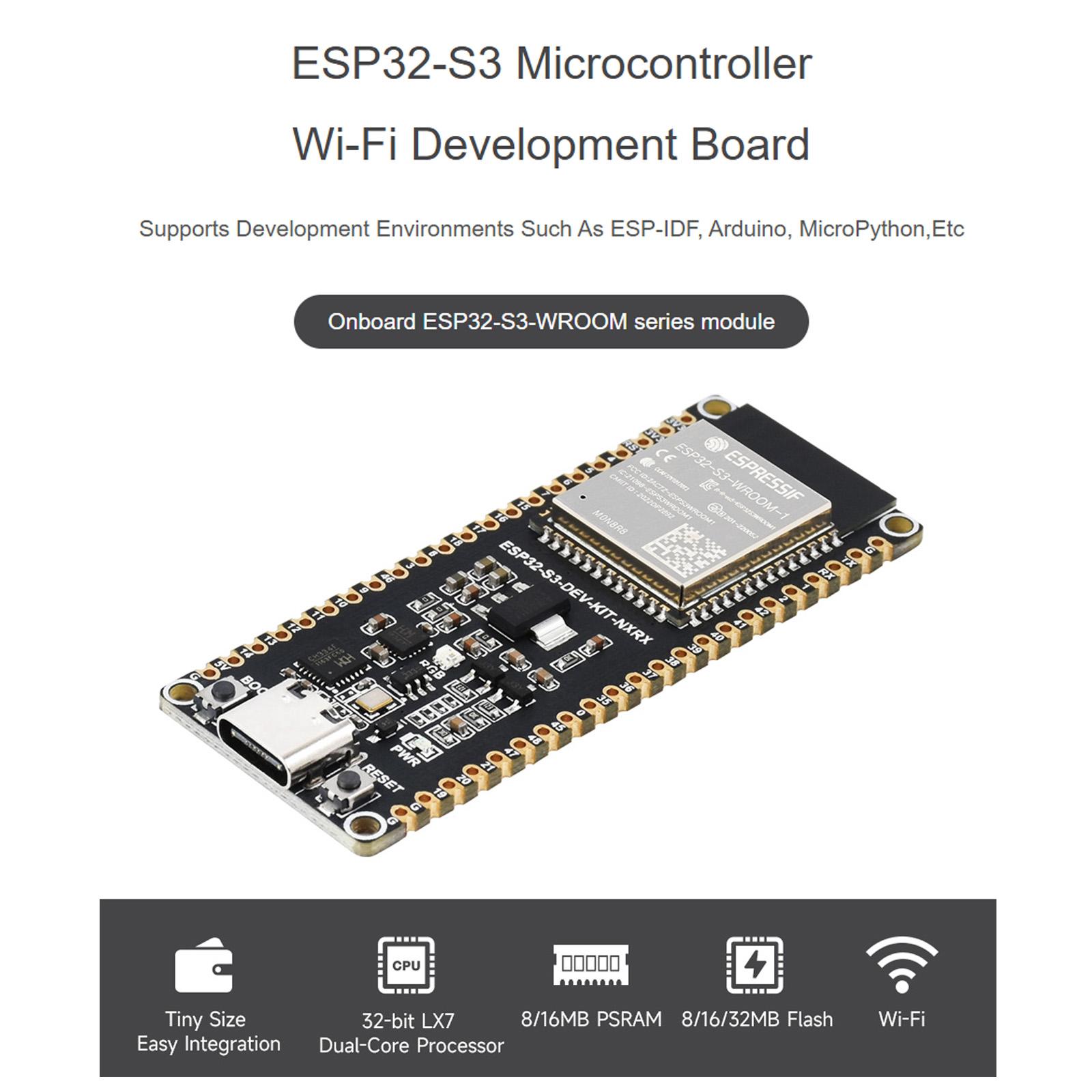

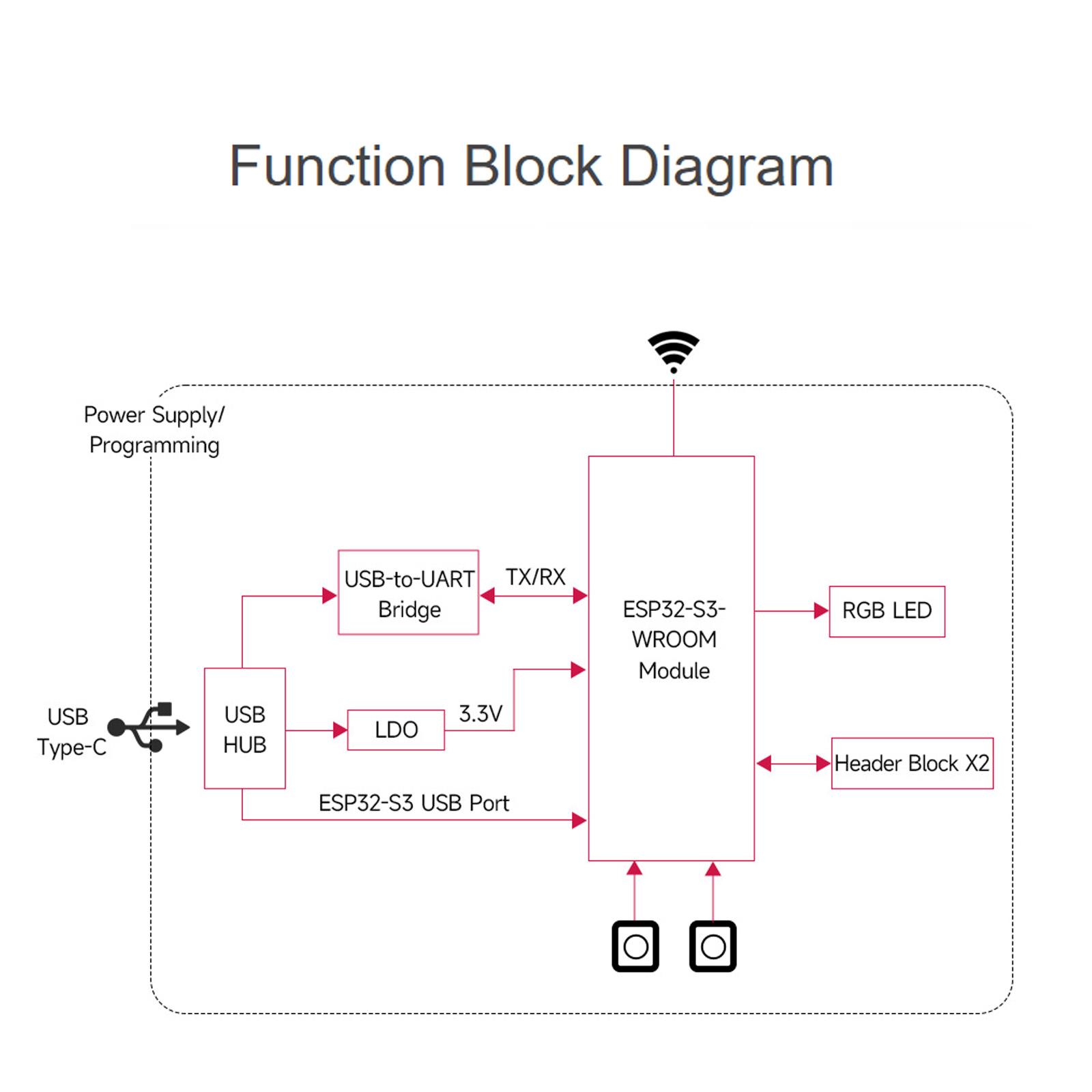

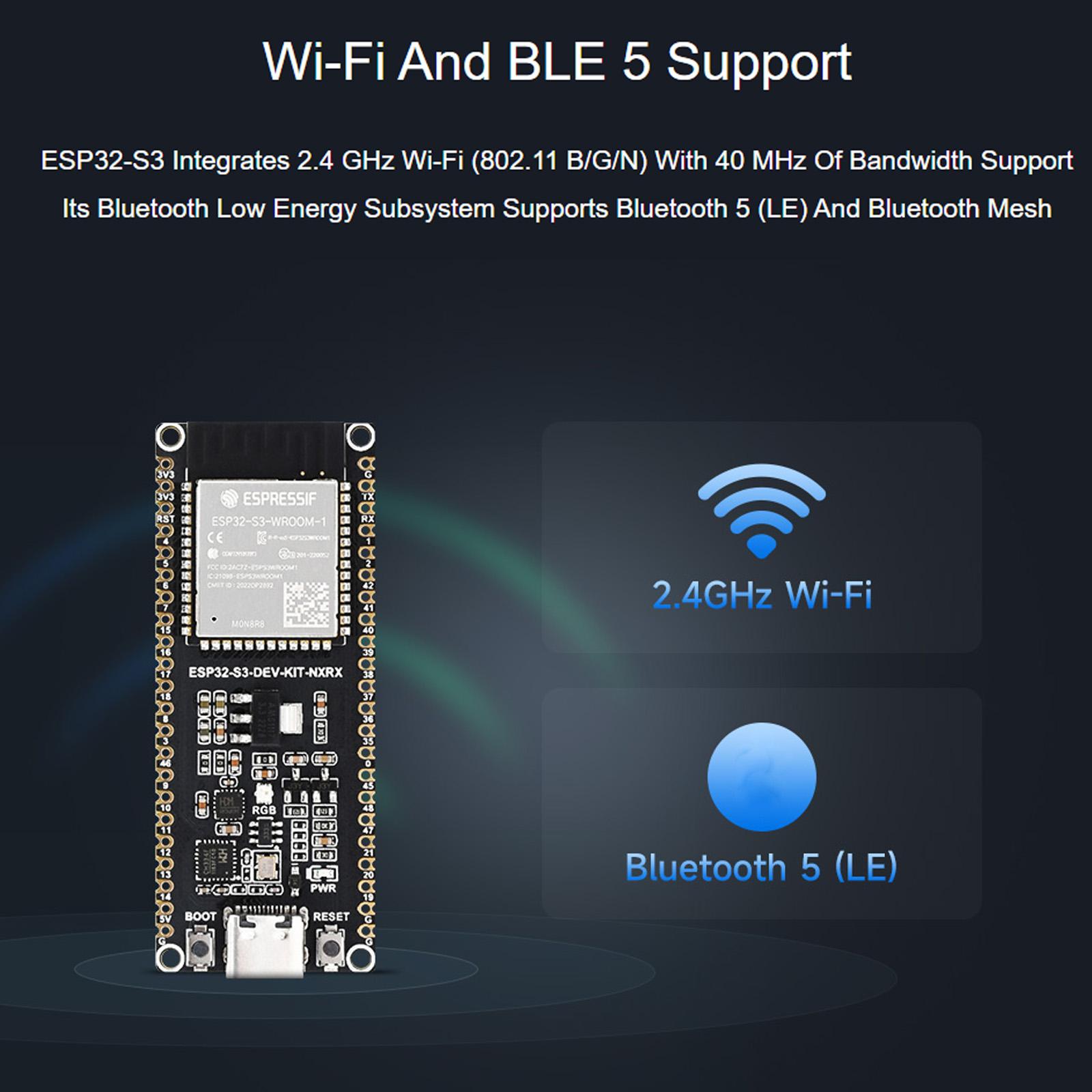

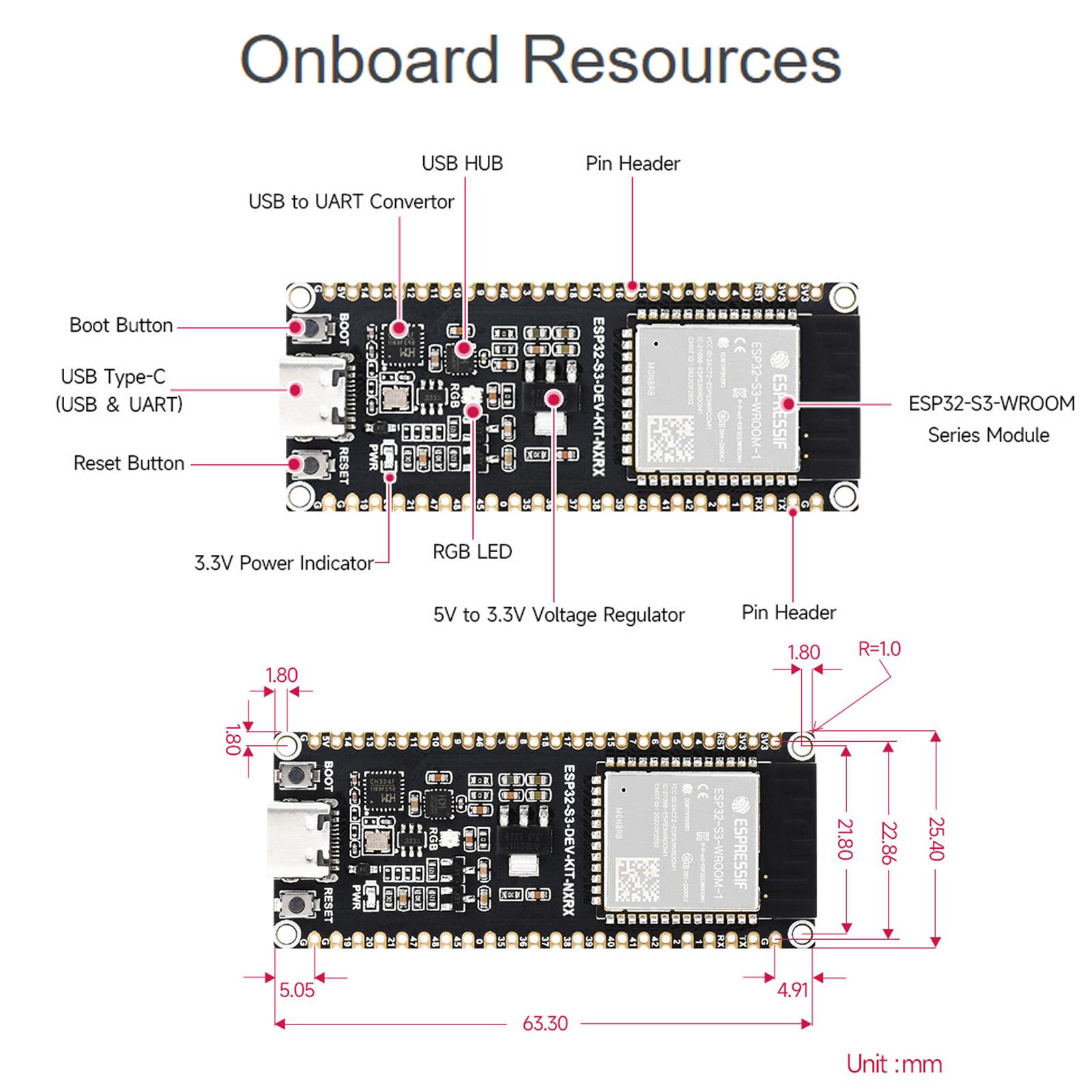

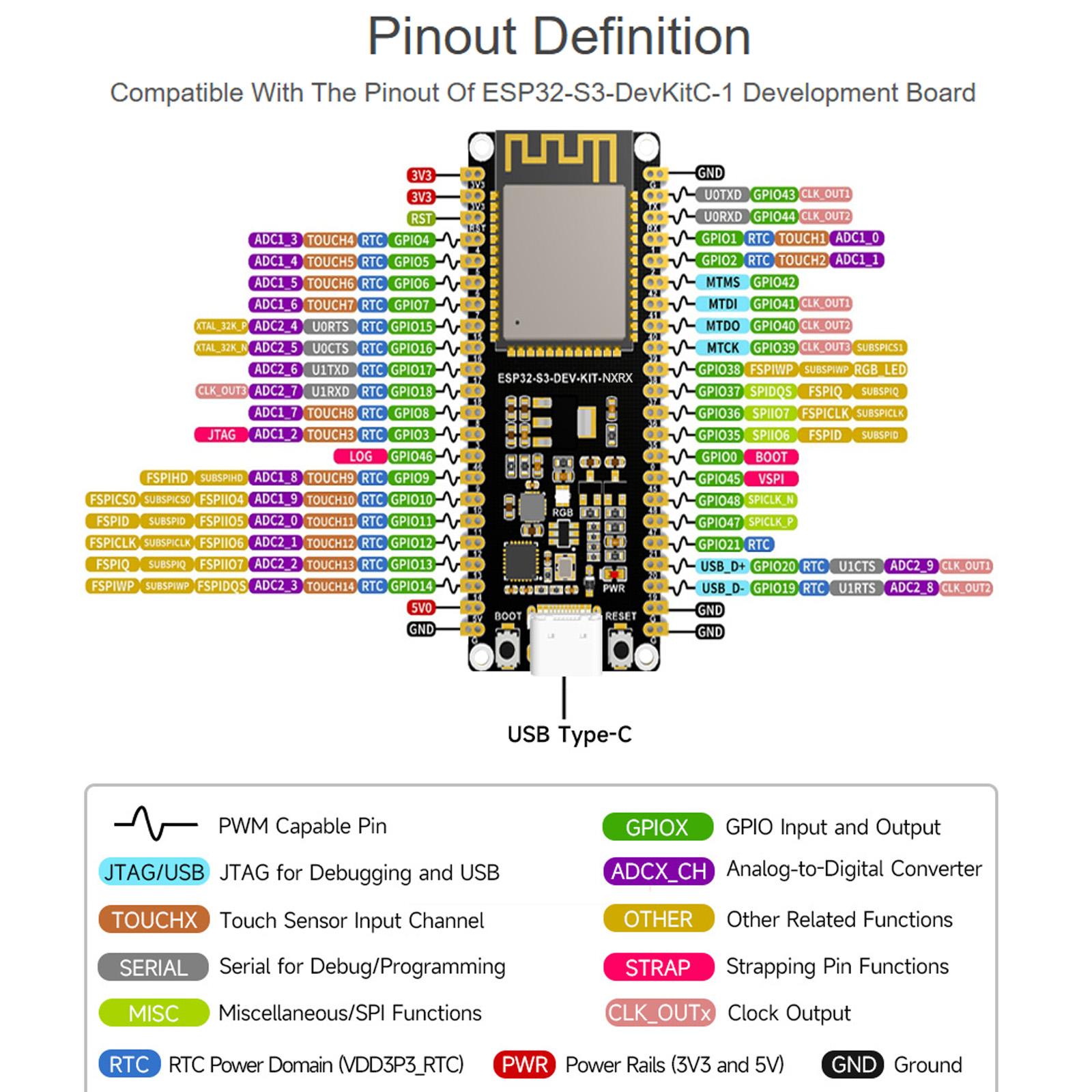

1. Adopts ESP32-S3-WROOM series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz 2. Integrates 512KB SRAM and 384KB ROM; 16MB Flash (Quad SPI, DIO/QIO modes) and 8MB PSRAM. 3. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. 4. Type-C connector, easier to use 5. Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface 6. Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability 7. Castellated module allows soldering directly to carrier boards 8. Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

Specifications

SKU

TBD0606930601

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.054 kg

Delivery

Standard delivery
