WAVESHARE Fakra Z-Coded Dual Female Waterproof Coaxial Cable, RG174 Coaxial Cable, 5m Length, Compatible With GMSL1/2 Cameras

Product Description

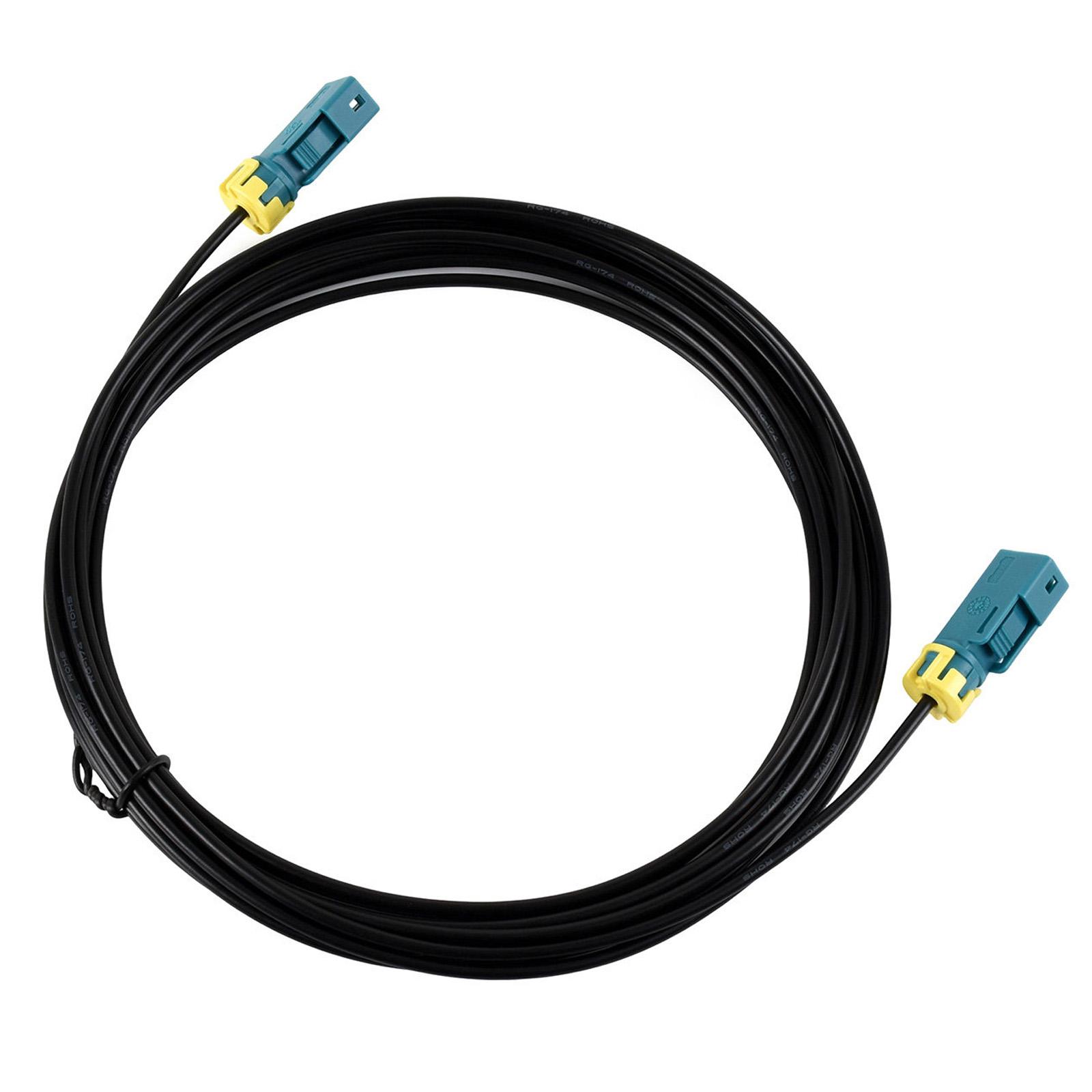

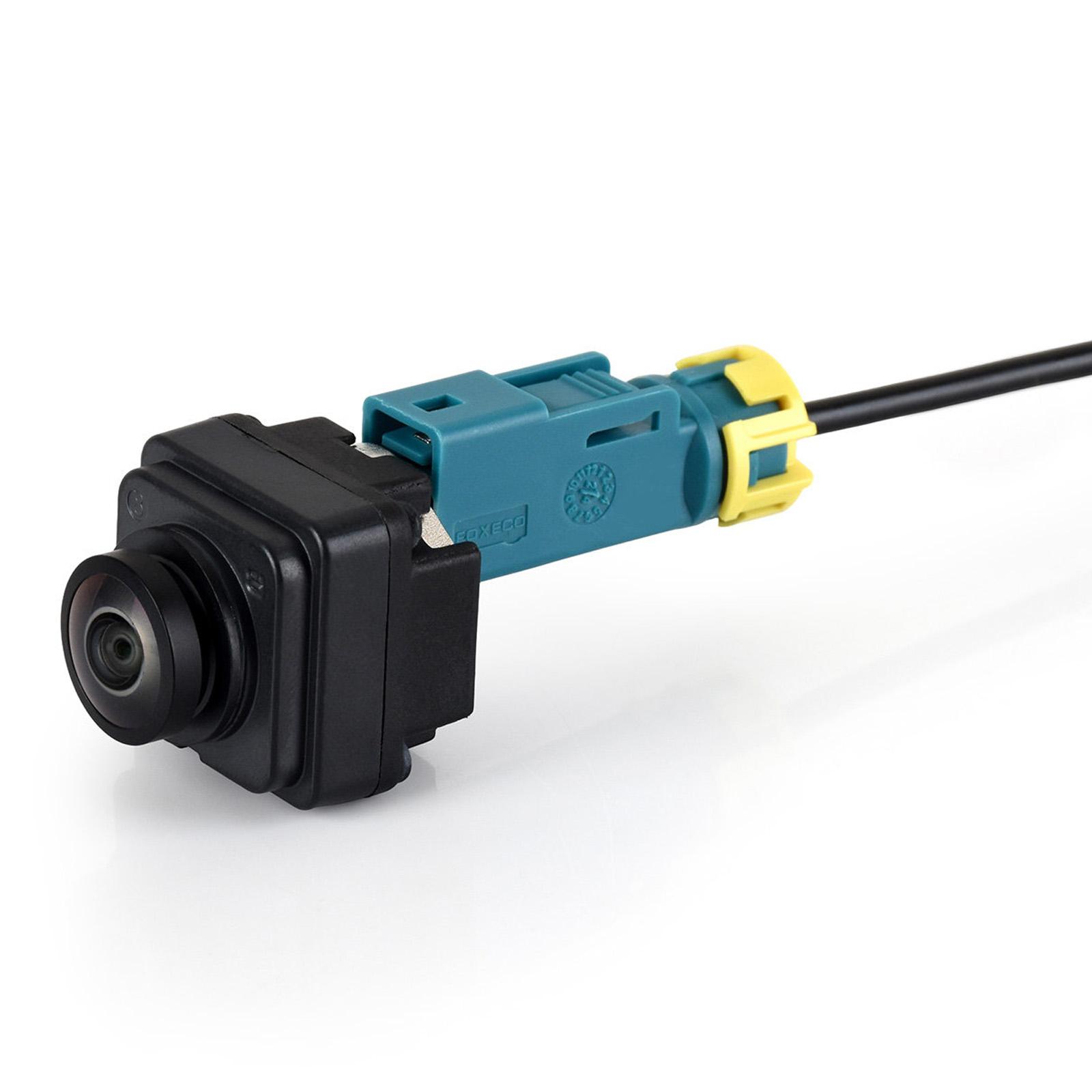

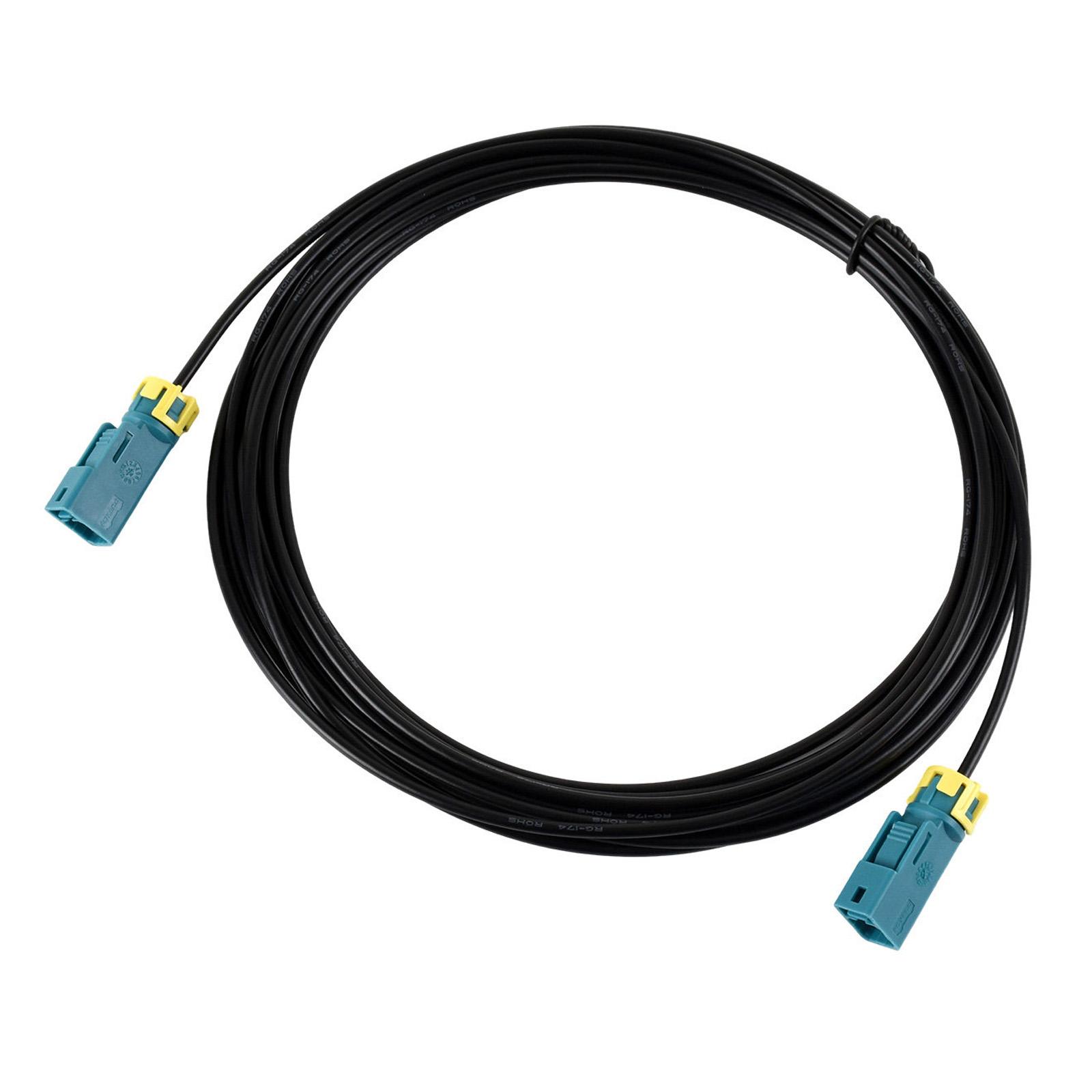

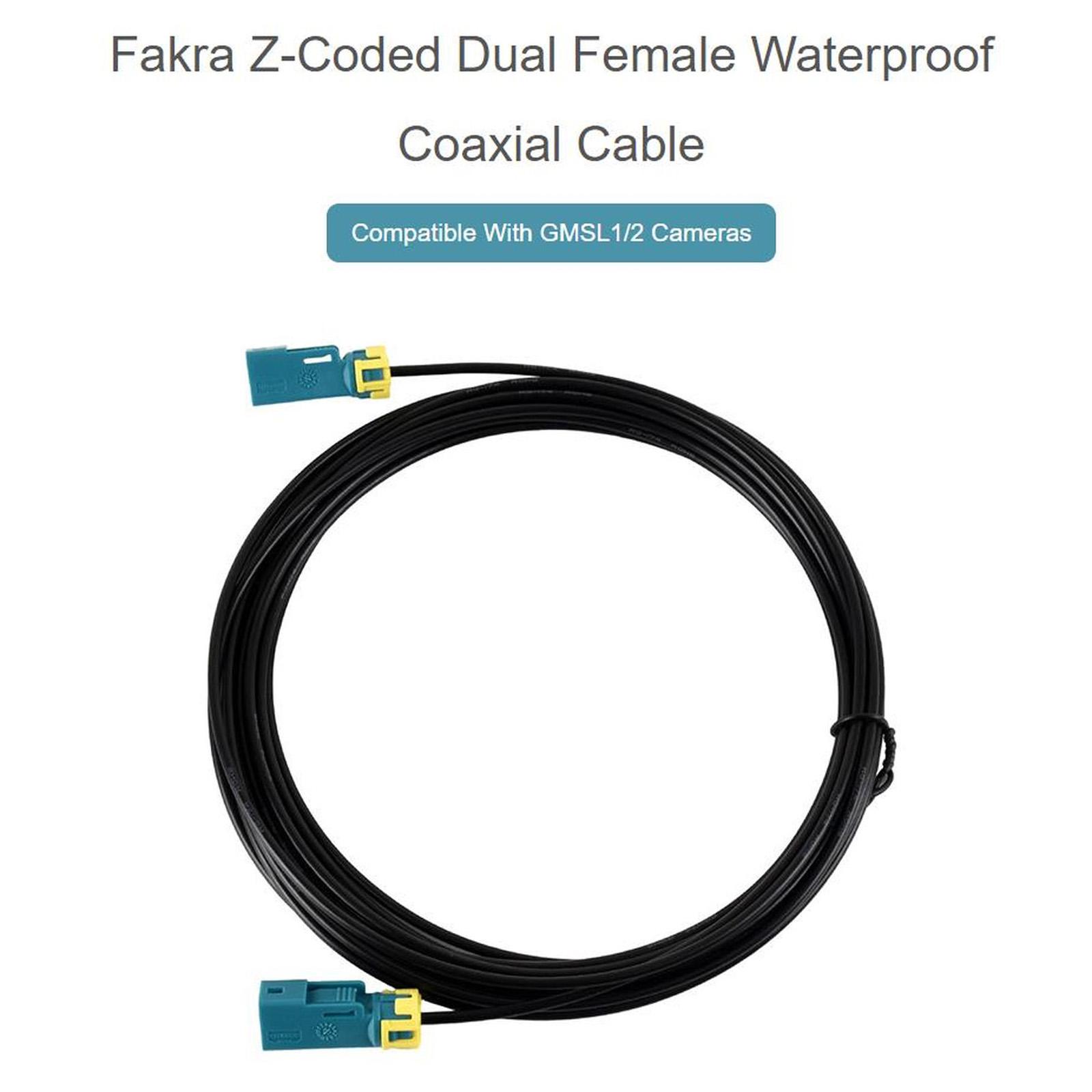

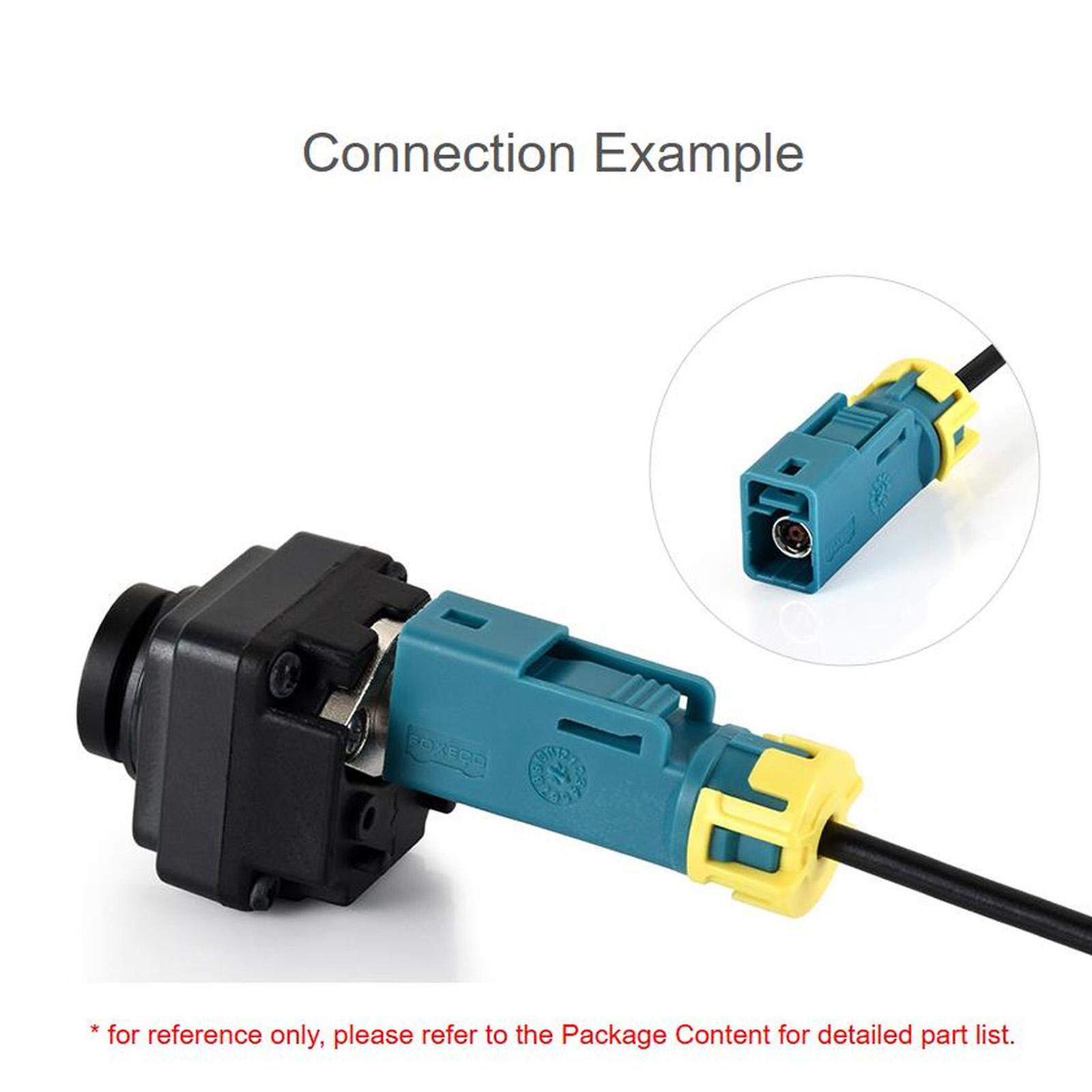

1. Features a standard aqua-blue Fakra Z-coded dual-female connector design with a universal anti-misinsertion mechanism, offering strong compatibility and reliable locking during insertion and removal 2. Specifically designed for in-vehicle and industrial vision systems to meet the high-speed video and data transmission requirements of GMSL1/2 cameras 3. The connector end is equipped with a yellow waterproof sealing latch, enhancing the connector’s resistance to water, dust, and vibration-induced disconnection, making it suitable for harsh operating environments 4. Features a 5-meter-long RG174 coaxial cable with excellent flexibility and stable RF shielding performance. 5. Suitable for connecting in-vehicle cameras, ADAS (Advanced Driver Assistance Systems), in-vehicle surveillance, robot vision, and industrial automation equipment. 6. Connector: Fakra Z-type waterproof dual-female connector, long-body 7. Cable: RG174 coaxial cable 8. Cable Length: Approx. 5m

Specifications

SKU

TBD06071108

Category

In Car › Car DVRs & Accessories › Accessories

Weight

0.104 kg

Delivery

Standard delivery
