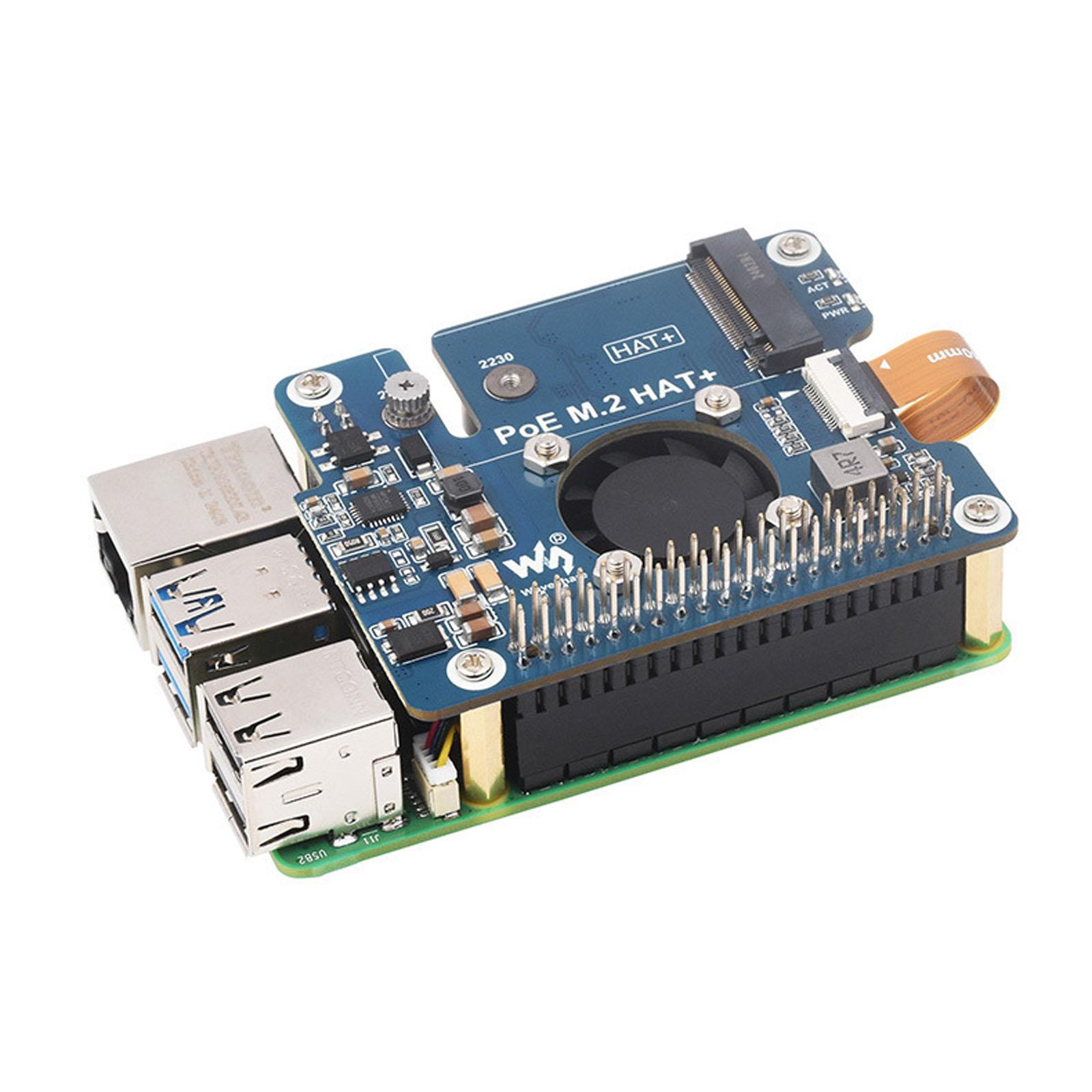

WAVESHARE For Raspberry Pi 5 PCIe To M.2 Adapter With PoE Function Supports NVMe Protocol M.2 Solid State Drive With Connector Pins

Product Description

1. Built-in dual LED indicators, clearly showing the working status of the device 2. Supports NVMe hard drive protocol, compatible with 2230/2242 size M.2 hard drives, supports Gen2 and Gen3 modes, supports booting from SSD for PI5 3. Supports PoE Ethernet power supply, just by connecting one Ethernet cable to the PoE device, the Raspberry Pi can achieve networking and power supply 4. Built-in power supply interface, built-in 5V and 12V pin interfaces, the total power output of the 5V interface can reach up to 4.5A (the total power output of 12V and 5V does not exceed 25W), meeting the power supply requirements of the Raspberry Pi while also powering additional devices 5. Built-in active cooling fan, accelerating heat dissipation and cooling, making the motherboard run more stably 6. PoE power input: 37V - 57V DC input 7. Power output: GPIO pins: 5V 4.5A (MAX); 2P pins: 12V 2A (MAX) 8. Network standard: supports IEEE 802.3af/at PoE 9. Size: about 5.65 x 7 cm

Specifications

SKU

TBD0607159101

Category

Consumer Electronics › Arduino & SCM Supplies › Raspberry Pi Accessories

Weight

0.089 kg

Delivery

Standard delivery
