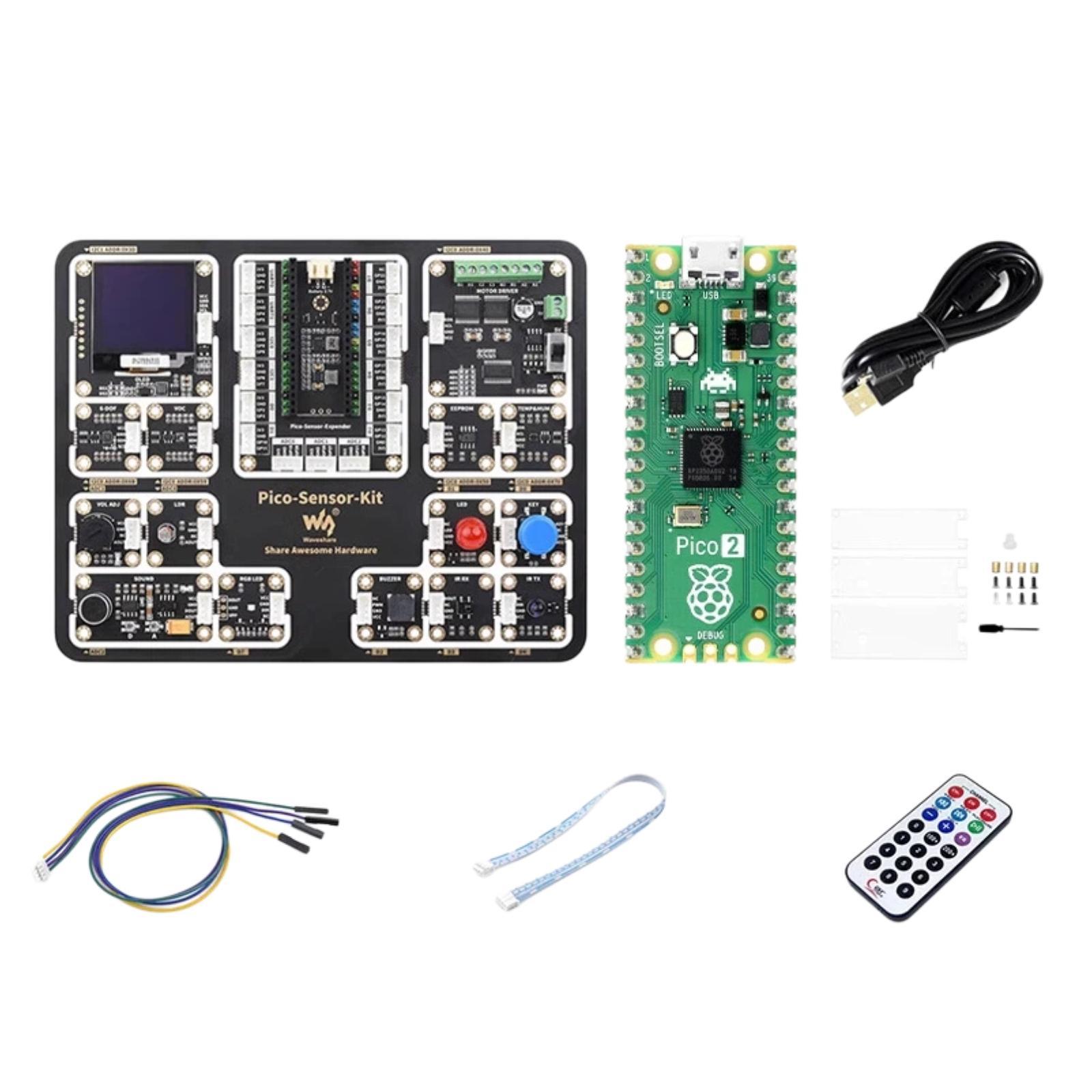

Waveshare For Raspberry Pi Pico 2 Microcontroller Board Based On Official RP2350 Chip Dual-Core & Dual-Architecture Design, Spec: Sensor Kit

Product Description

1. The official Raspberry Pi self-designed RP2350 microcontroller chip was adopted 2. It features a unique dual-core, dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, with operating frequencies reaching up to 150 MHz flexible clock 3. It is equipped with 520KB SRAM and 4MB on-chip Flash 4. The stamp hole design allows for direct soldering integration onto the user self-designed baseboard 5. Supports USB1.1 host and device 6. Supports low-power sleep and hibernation modes 7. Can be recognized as a large-capacity storage device via USB for drag-and-drop program download 8. Up to 26 multi-functional GPIO pins, 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, and 16 controllable PWM channels 9. Comes with a temperature sensor 10. 12 programmable I/O (PIO) state machines for custom peripheral support Parameters 1. Processor: dual-core ARM Cortex-M33; Dual-core Hazard3 RISC-V 150MHz 2. SRAM: 520KB 3. Flash: 4MB 4. Security features: boot signature, OTP storage for decryption, hardware SHA-256 accelerator, etc. 5. GPIO pins: 26 6. Peripherals: - UART x 2 - SPI x 2 - I2C x 2 - ADC x 3 - USB 1.1 and PHY x 1 - PWM x 16 - PIO state machines x 12 - HSTX x 1 Entry-level kit packaging list: - Raspberry Pi Pico 2 (with soldered yellow pin headers) x 1 - Acrylic transparent protective cover x 1 - Large breadboard + breadline x 1 - USB cable Type A male to Micro male, about 1.2 meters long x 1 Sensor kit packaging list: - Sensor kit x 1 - Raspberry Pi Pico 2 (with soldered yellow pin headers) x 1 - Acrylic transparent protective cover x 1 - PH2.0 4PIN connection cable 300mm (5pcs) × 1 - PH2.0 double-ended connection cable 4PIN opposite direction (15pcs) x 1 - Infrared remote control x 1 - USB cable Type A male to Micro male about 1.2 meters x 1

Specifications

SKU

TBD0606861403

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.264 kg
