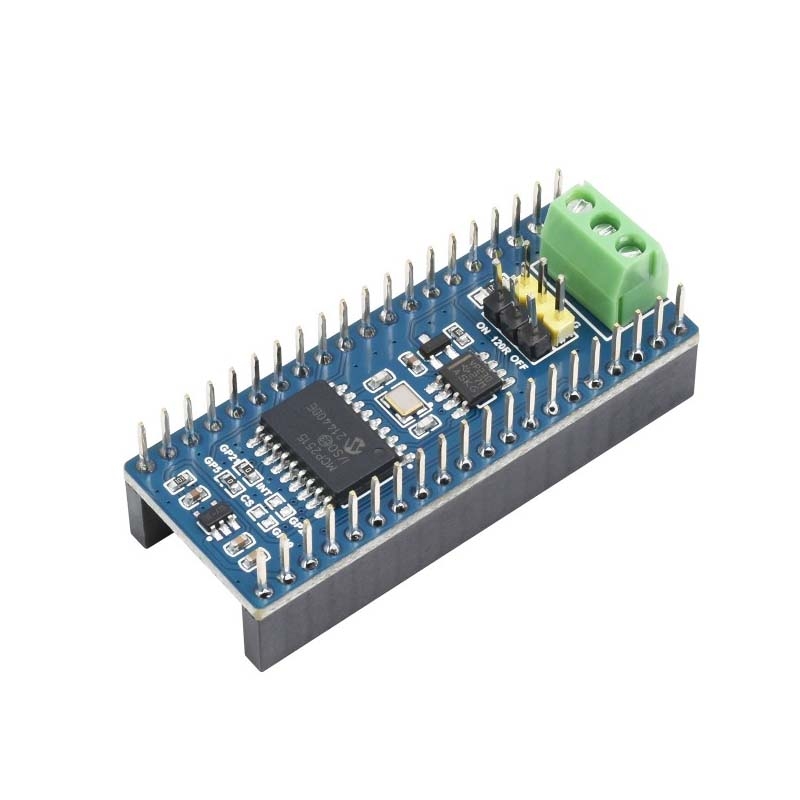

Waveshare For Raspberry Pi Pico CAN Bus Module (B),Enabling Long Range Communication Through SPI,23775

Product Description

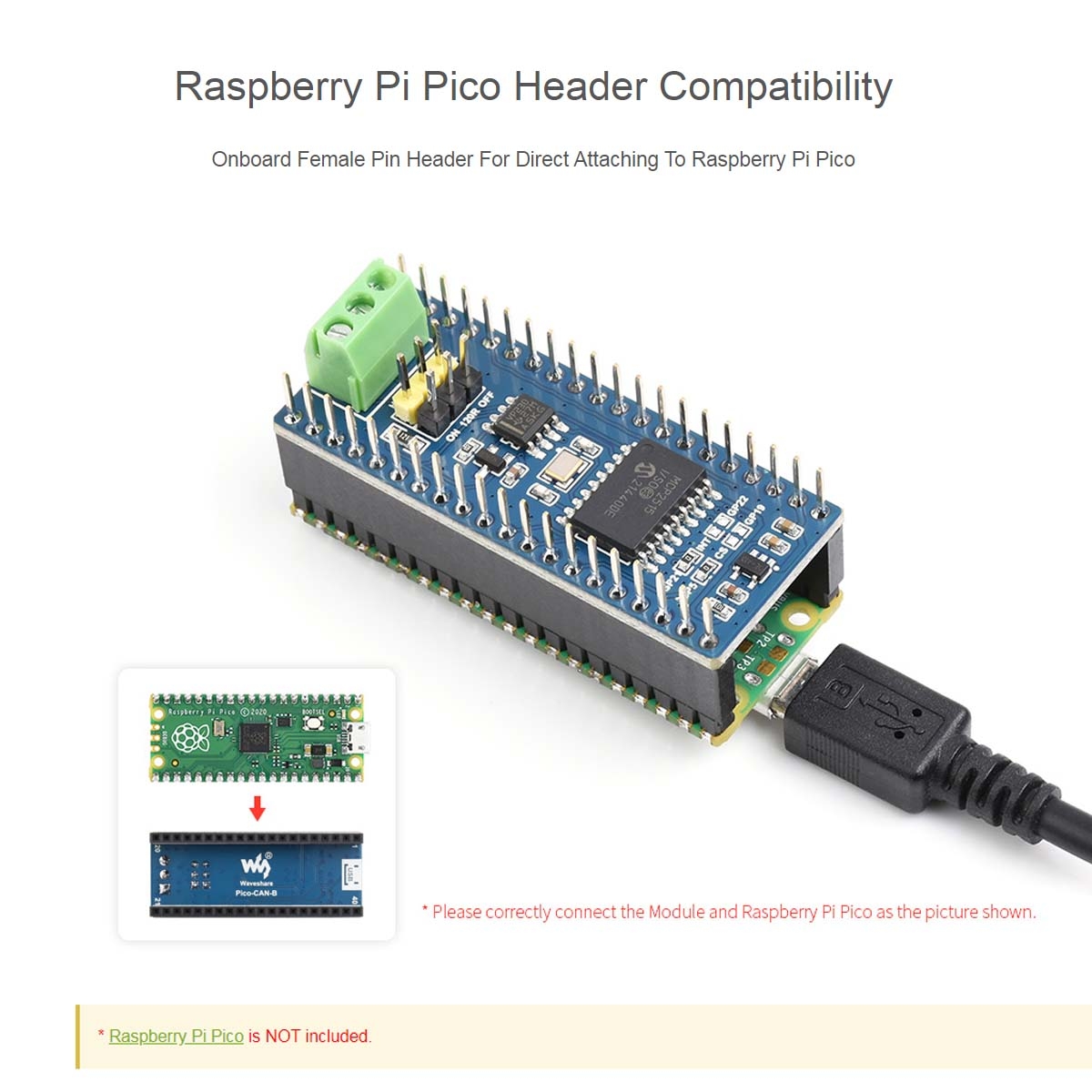

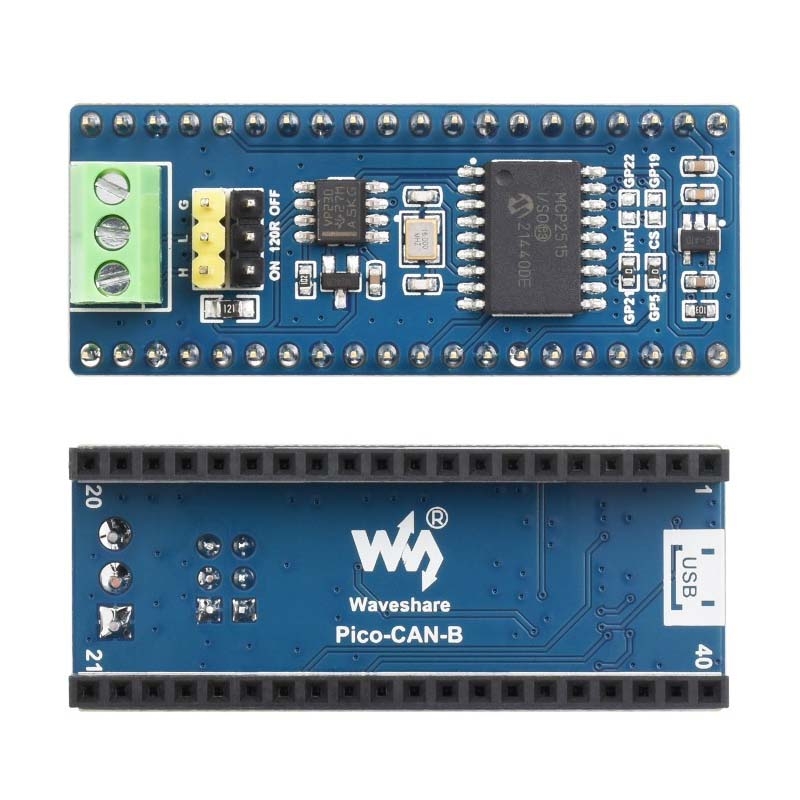

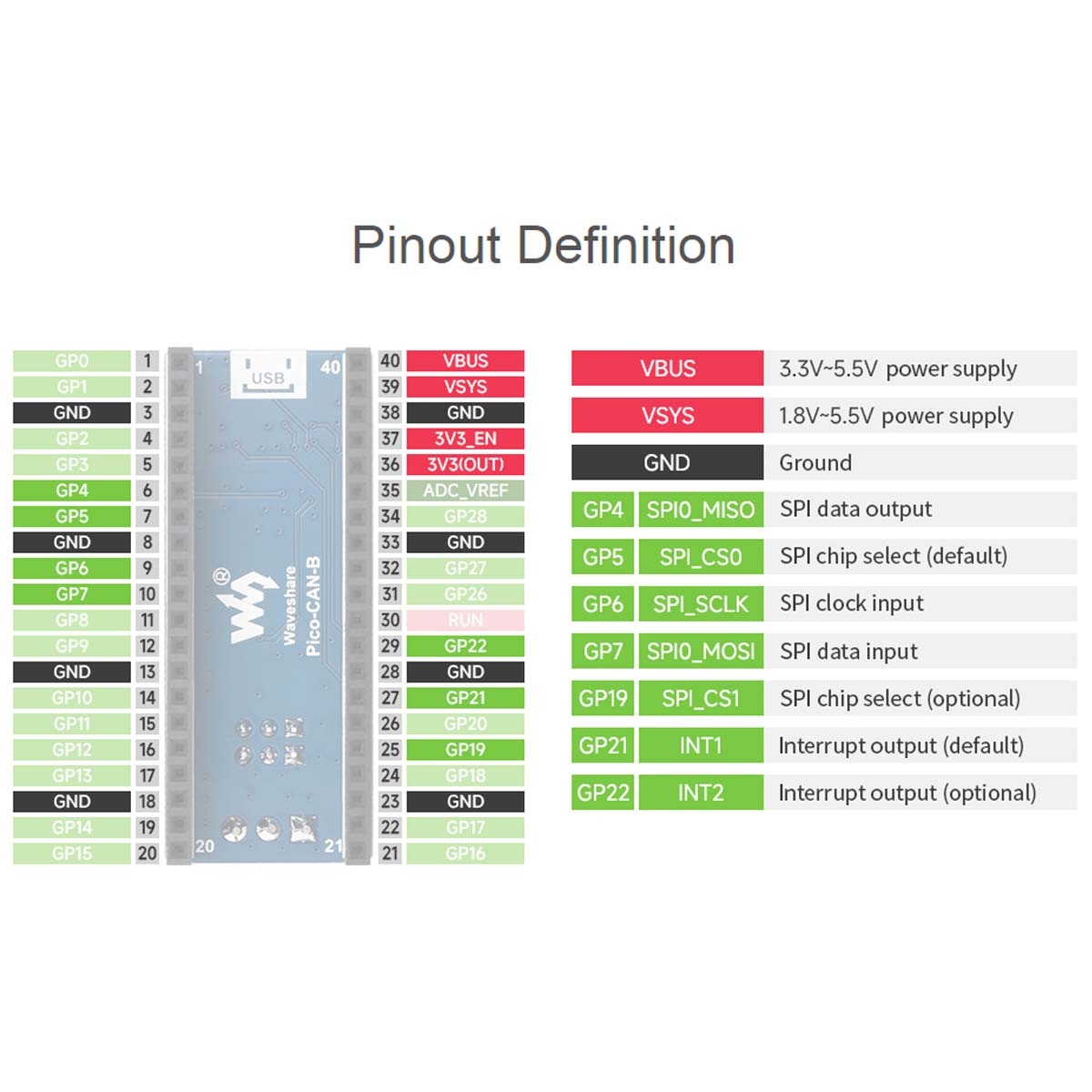

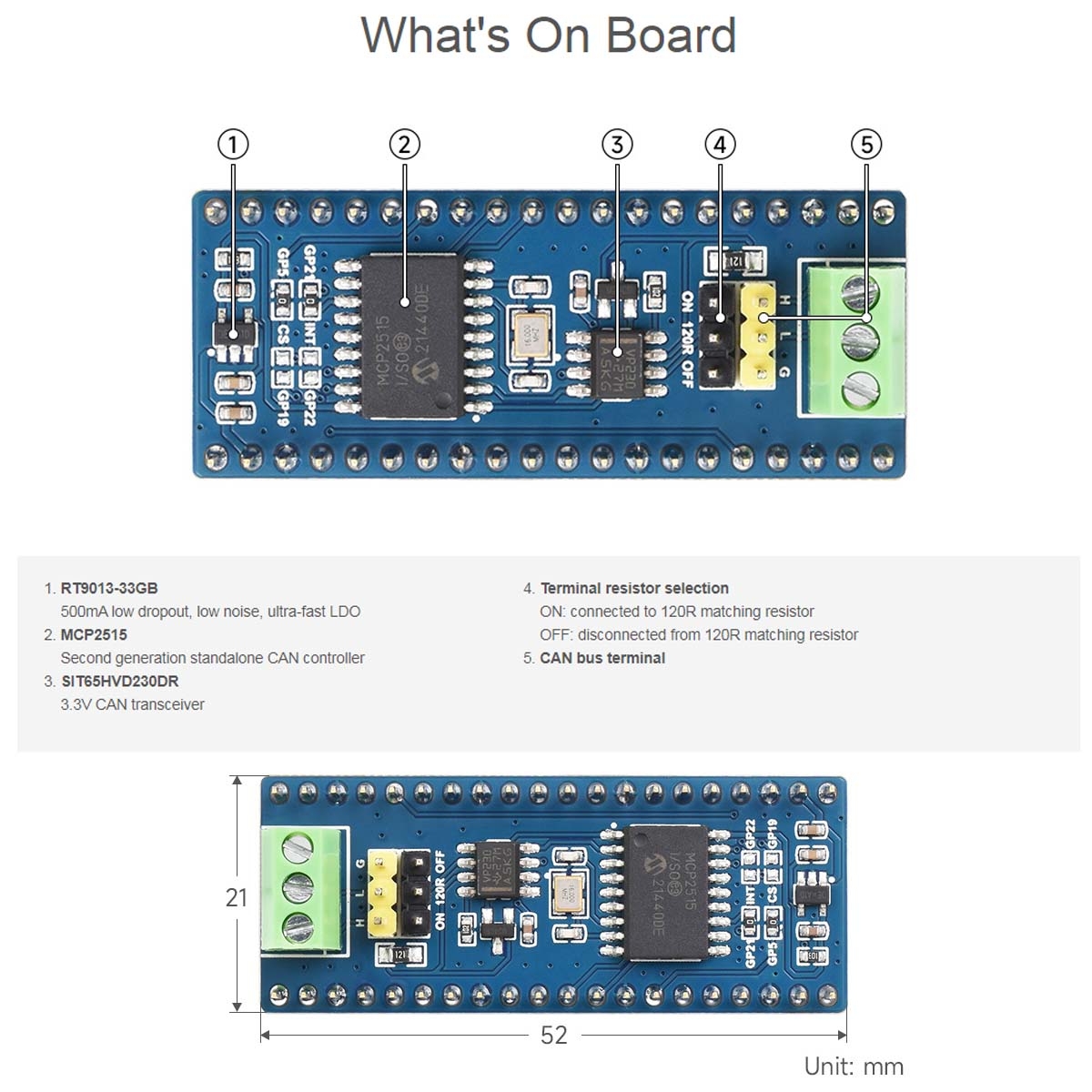

1. Suitable for Raspberry Pi Pico and other devices to achieve reliable remote communication 2. Standard Raspberry Pi Pico header supports Raspberry Pi Pico series boards. 3. Features CAN function, adopts SPL interface CAN controller MCP2515 with transceiver SIT65HVD230DR 4. Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPvthon examples)l 5. Operating voltage: 3.3V-5V 6. CAN controller: RMCP2515 7. CAN transceiver: SIT65HVD230DR 8. Communication bus: SPI 9. Baudrate: 5K-1000Kbps 10. Size: 52 x 21mm

Specifications

SKU

TBD04234119

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.024 kg

Delivery

Standard delivery
