Waveshare for Raspberry Pi Zero / Zero 2 W HDMI USB HUB Module+ POD Case, Set:With 2.8inch LCD Module + LAN Module

Product Description

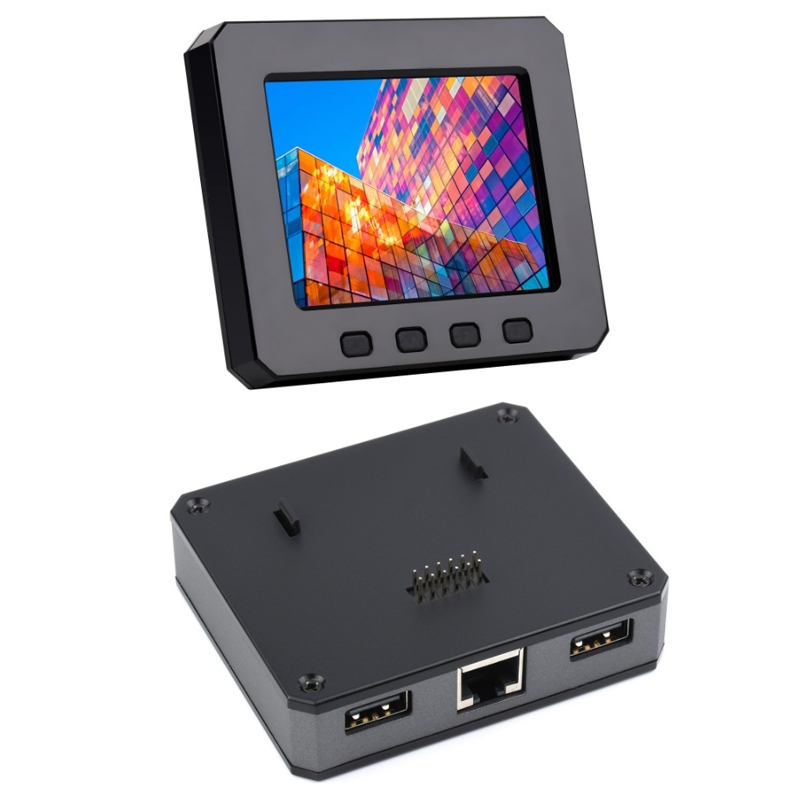

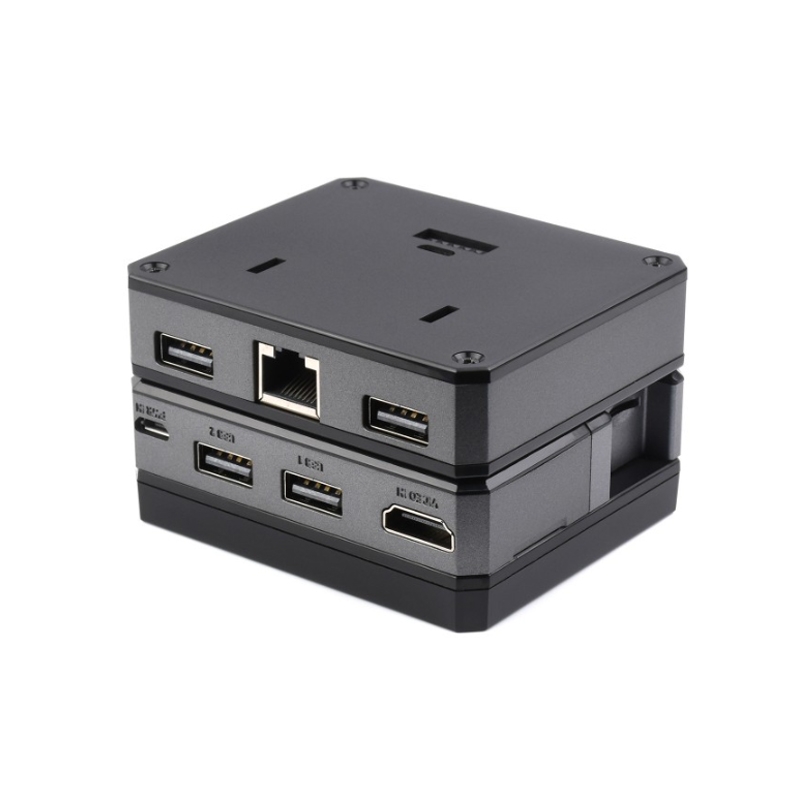

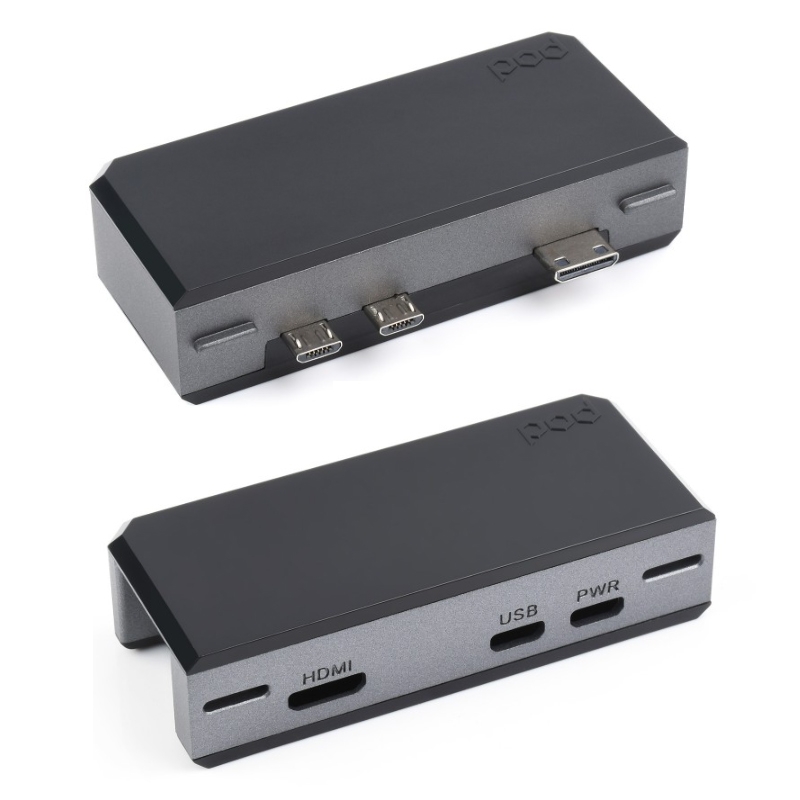

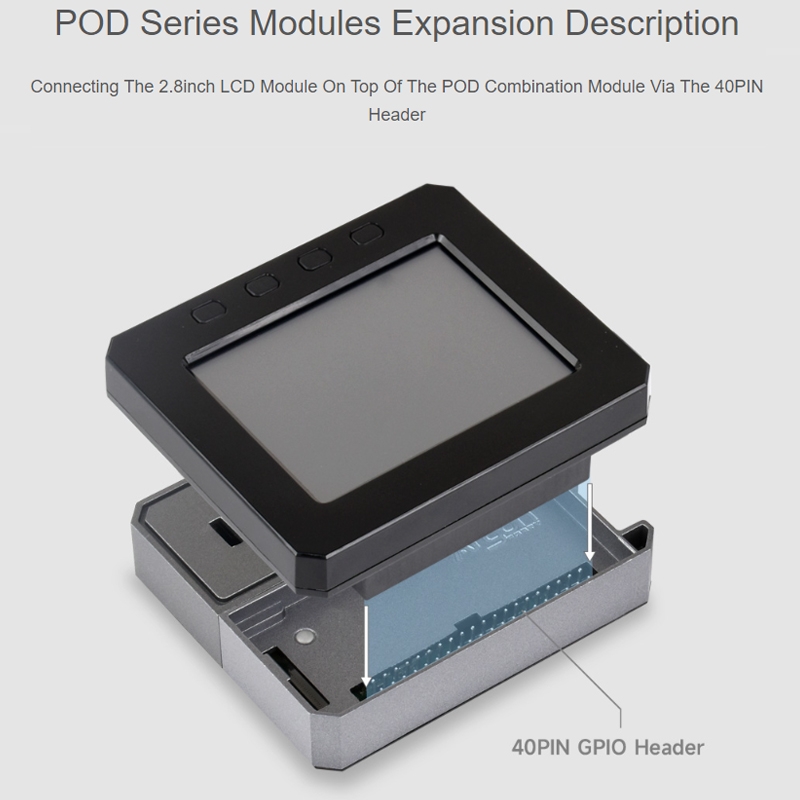

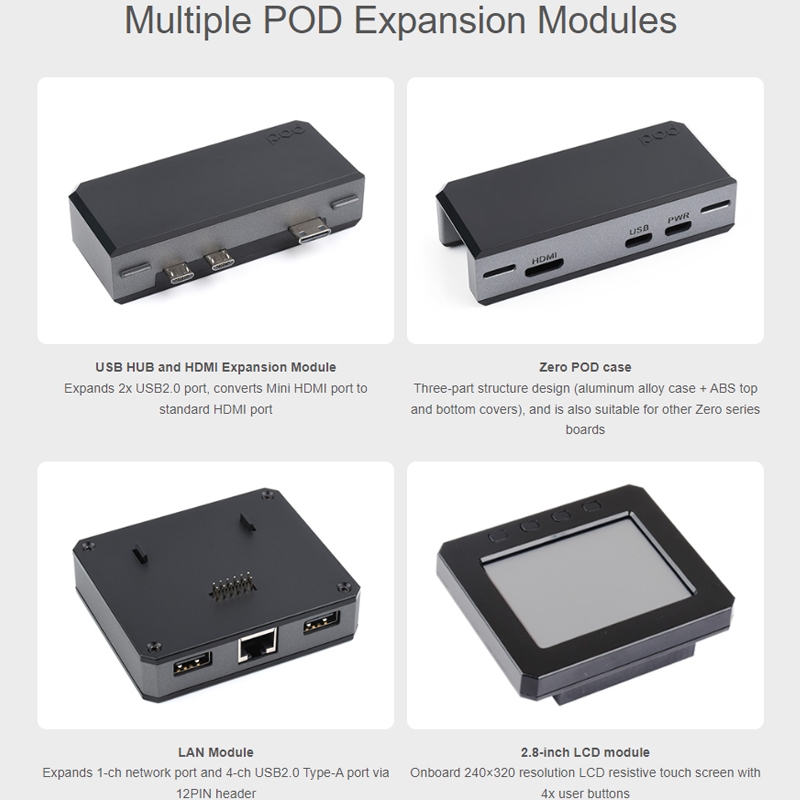

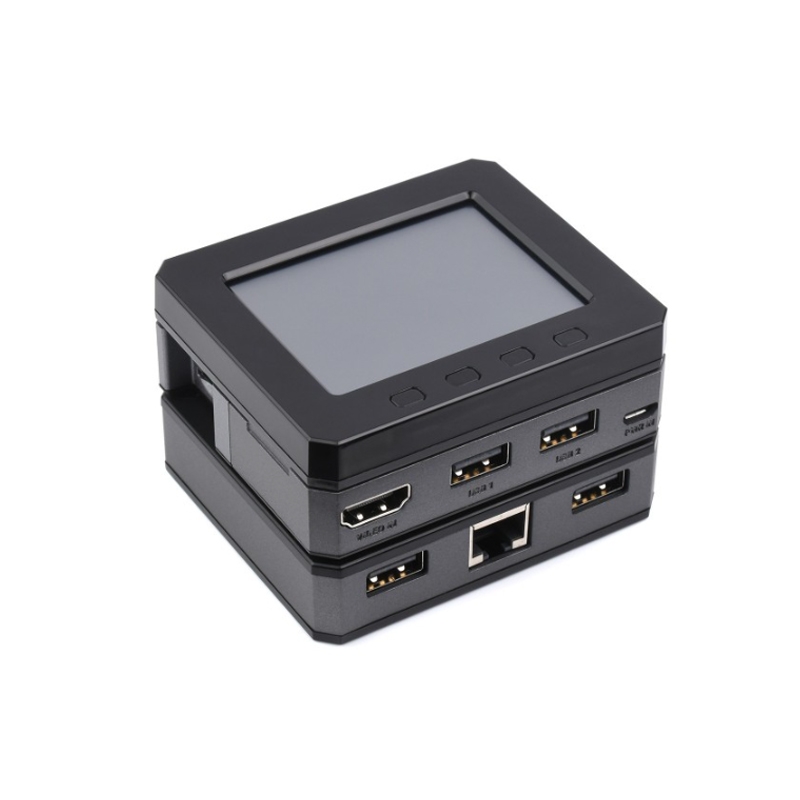

1. Expansion instructions for POD series modules, connect the 2.8-inch LCD module on the top of the POD combination module through the 40PIN header 2. The HDMI USB HUB module is the main POD module, which can convert the Mini HDMI interface of the Zero board into a standard HDMI interface, and also expand 2 x USB interfaces, which can be used to seamlessly connect with other POD modules 3. USB HUB and HDMI expansion module: expand 2 USB2.0 interfaces, convert Mini HDMI interface to standard HDMI interface 4. Three-stage structure design (aluminum alloy shell + ABS top cover and bottom cover), also suitable for other zero-series boards 5. LAN module: expand 1-way network port and 4-way USB2.0 Type-A interface through 12PIN header 6. 2.8-inch LCD module: Onboard 240×320 resolution LCD resistive touch screen with 4 user buttons 7. Weight: 97 grams Basic packing list: Zero point POD HDMI USB HUB module x1 Zero POD box x1 With LAN module packing list: Zero point POD HDMI USB HUB module x 1 Zero POD box x 1 POD USB LAN module x 1 With 2.8-inch LCD module packing list : Zero point POD HDMI USB HUB module x 1 Zero POD box x 1 POD 2.8 inch resistive touch display module x 1 With 2.8-inch LCD module + network card module packing list : Zero point POD HDMI USB HUB module x 1 Zero POD box x 1 POD USB LAN module x 1 POD 2.8 inch resistive touch display module x 1

Specifications

SKU

TBD055045404

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.104 kg

Delivery

Standard delivery
