Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module

Product Description

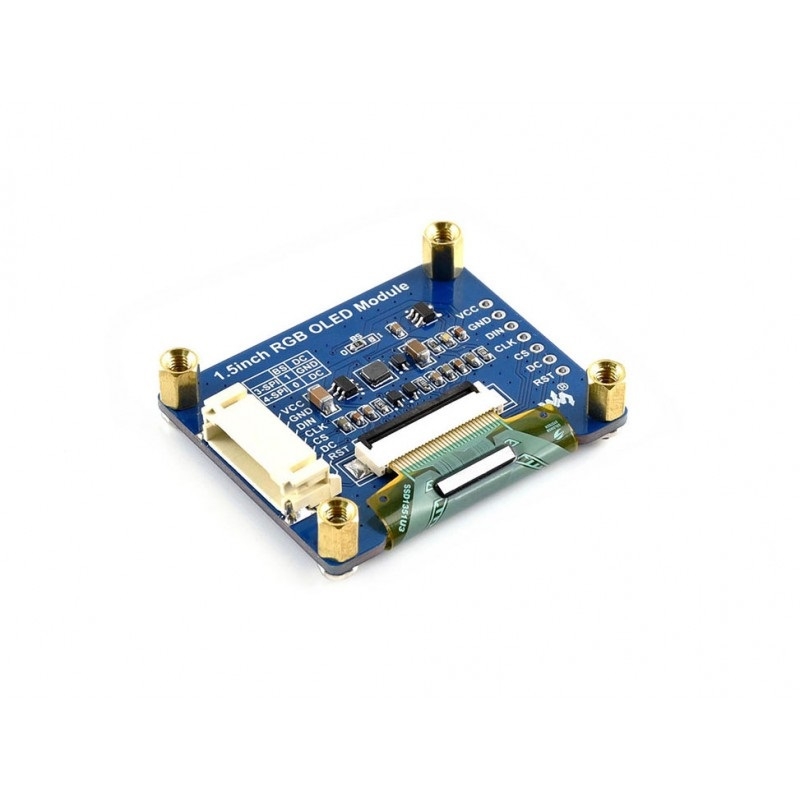

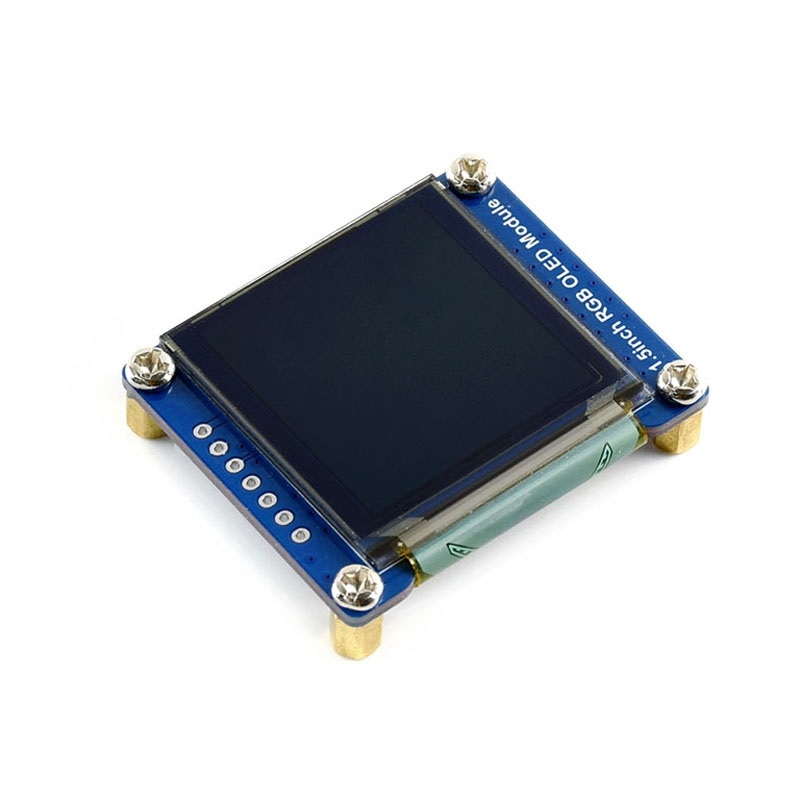

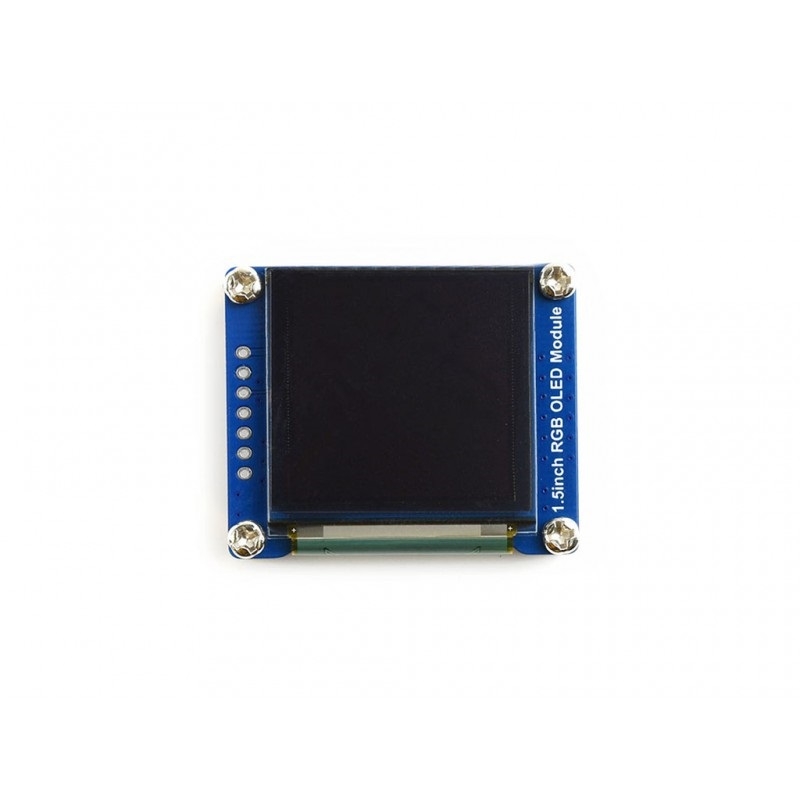

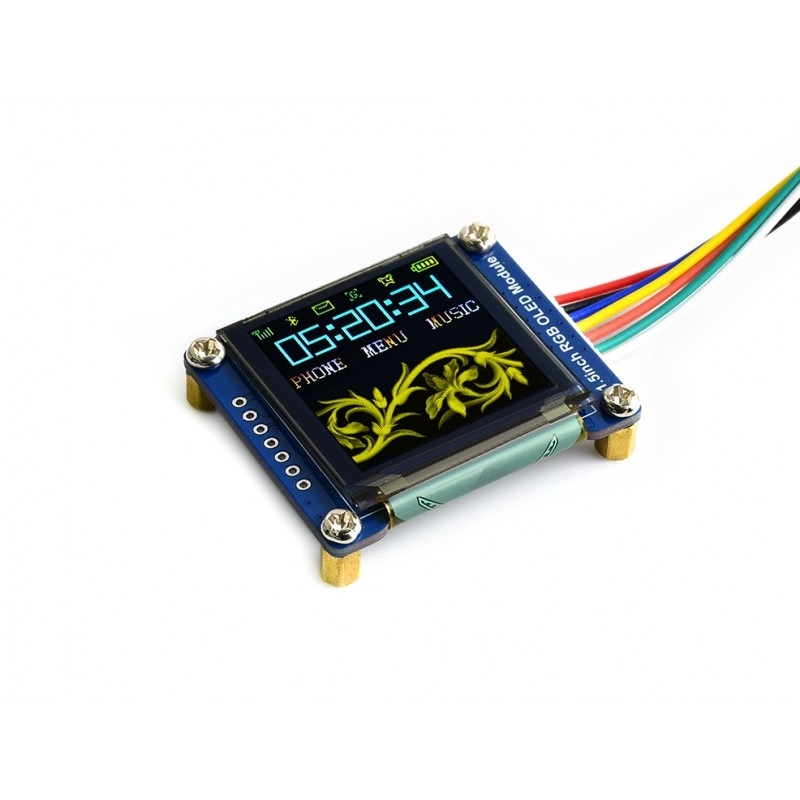

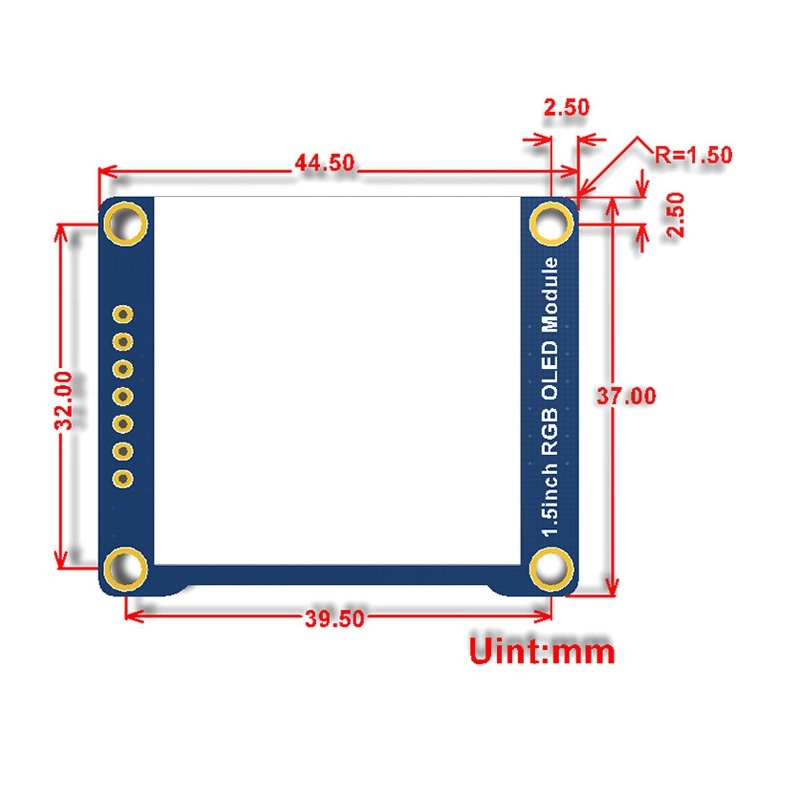

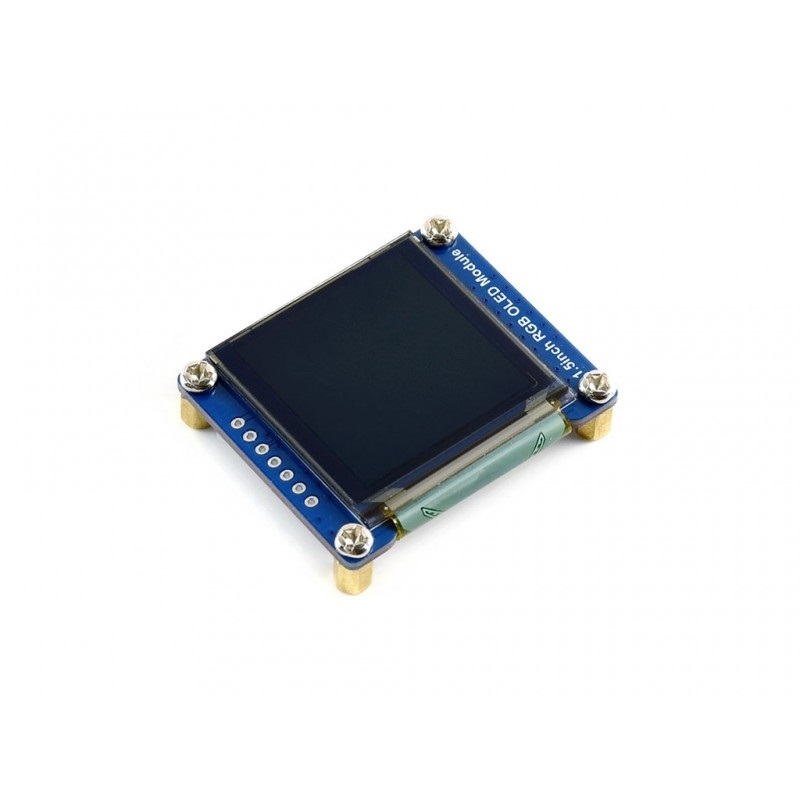

1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface Overview This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface. Features 1. 128x128 high resolution, 65K colors, clearly displays colorful images 2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor 3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Specifications 1. Driver: SSD1351 2. Interface: 4-wire SPI, 3-wire SPI 3. Display color: RGB, 65K colors 4. Resolution: 128x128 5. Viewing angle: >160 degree 6. Operating voltage: 3.3V / 5V 7. Dimension: 44.5 x 37 (mm) Package Contents 1. 1.5 inch RGB OLED Module x1 2. PH2.0 7Pin x1

Specifications

SKU

ZY15789485

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.03 kg

Delivery

Standard delivery
