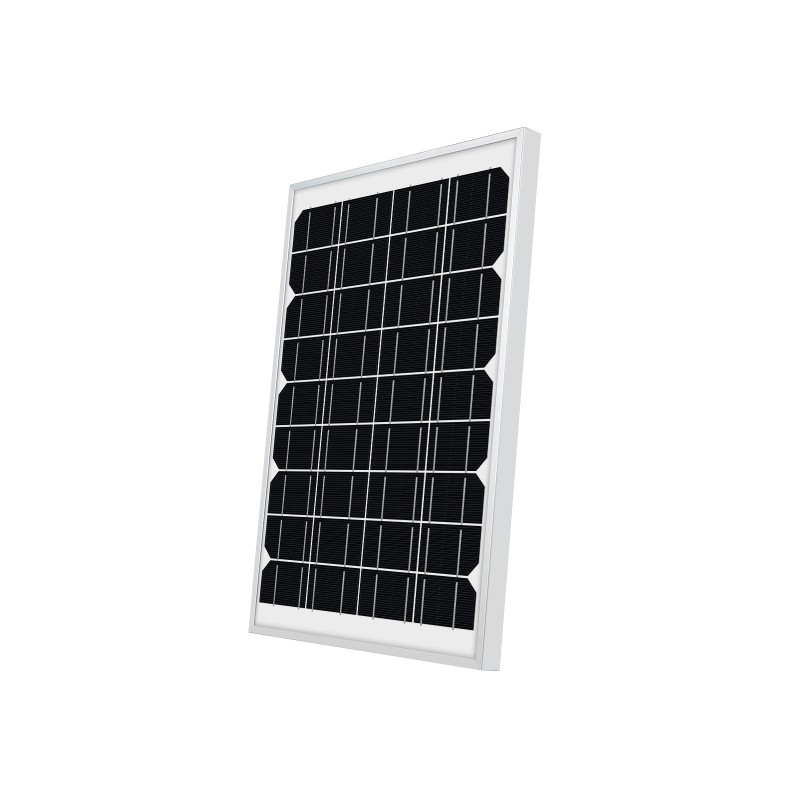

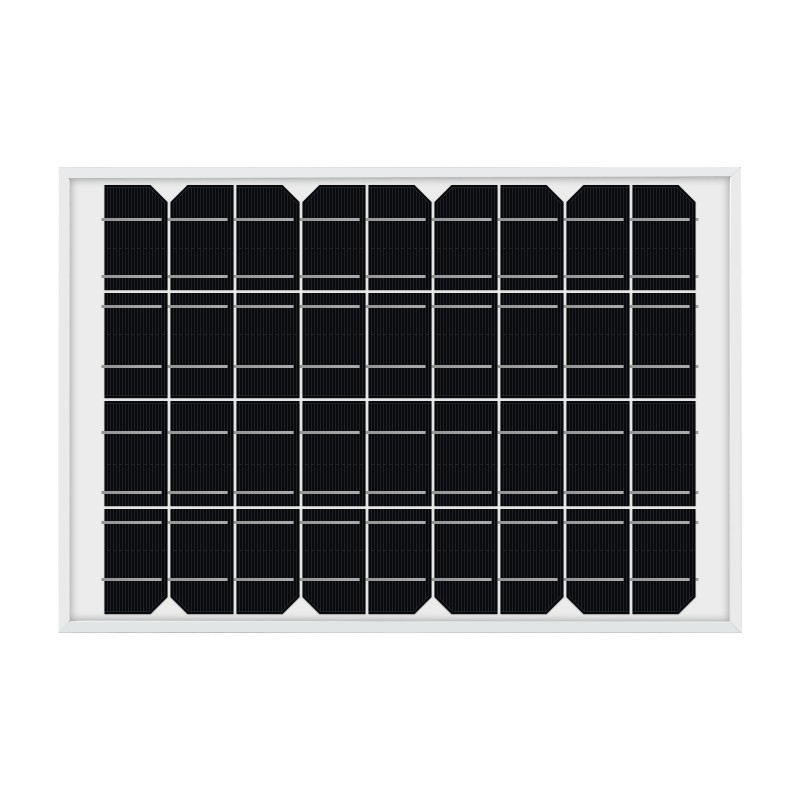

Waveshare High Conversion Efficiency 18V 10W Solar Panel

Product Description

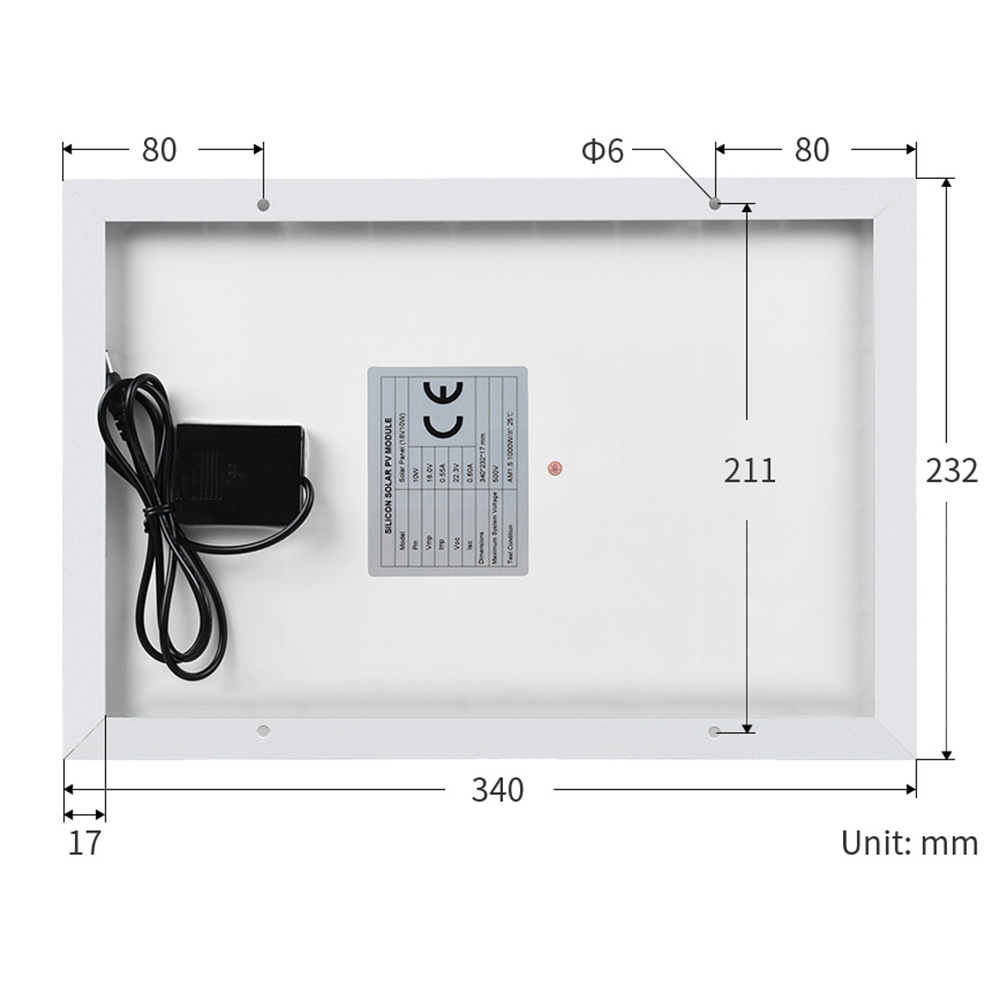

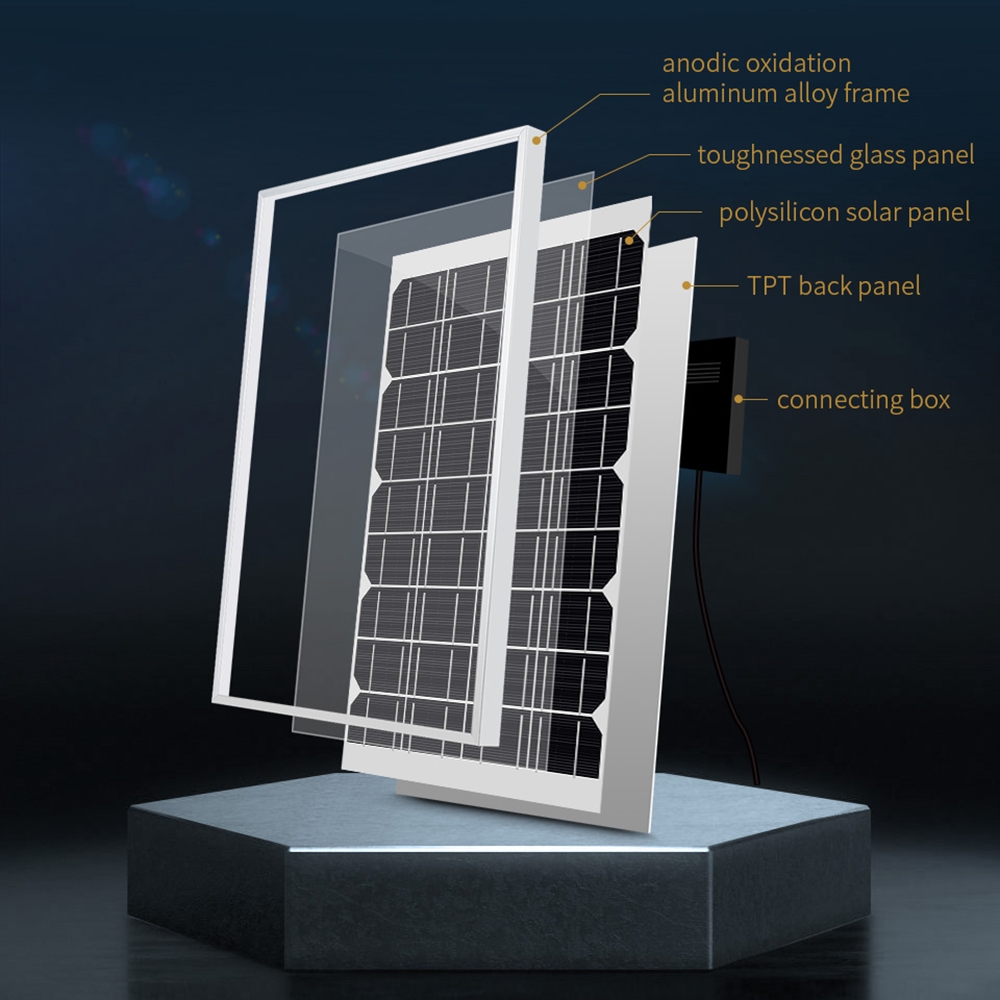

1. Solar cell type: Polysilicon 2. Power: 10 Wp 3. Output power tolerance: +/-3% 4. Conversion efficiency: Greater than 20% 5. Operating voltage: 17.6V 6. Operating current: 0.57A 7. Open circuit voltage: 21.6V 8. Short circuit current: 0.61A 9. Cell quantity: 36 (4x9) 10. Standard system voltage: 1000V 11. Operating temperature: -40 degree C ~ +85 degree C 12. Pressure on panel:30m/s(200kg/sq.m) (Max) 13. Cable length:90 cm 14. Frame material: Anodic oxidation aluminum alloy 15. Dimensions: 340 x 232 x 17 mm 19. Weight:0.935 kg

Specifications

SKU

DIY0213

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.965 kg

Delivery

Standard delivery
