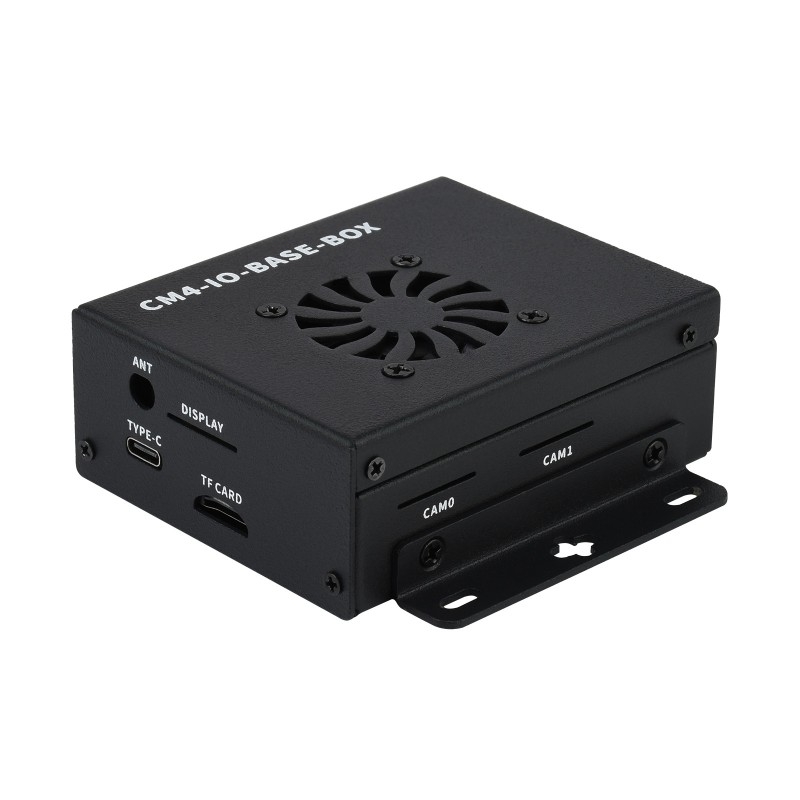

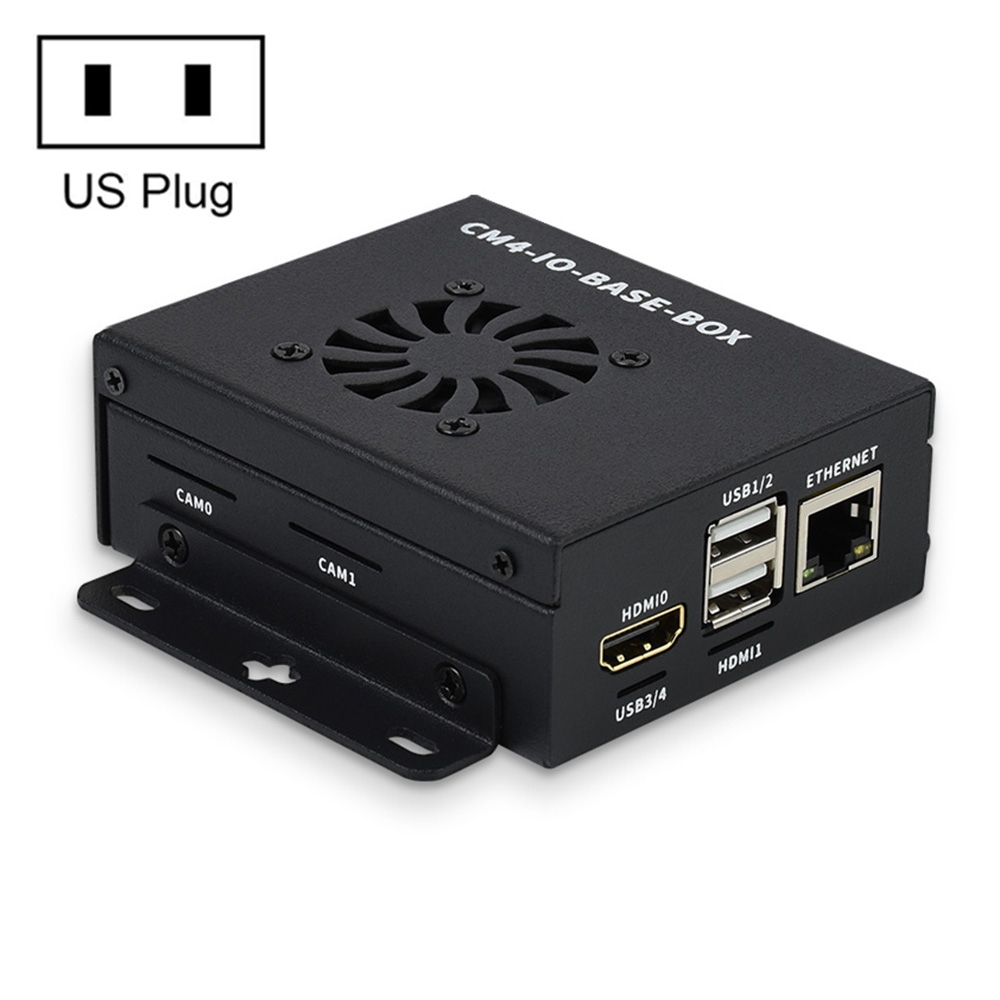

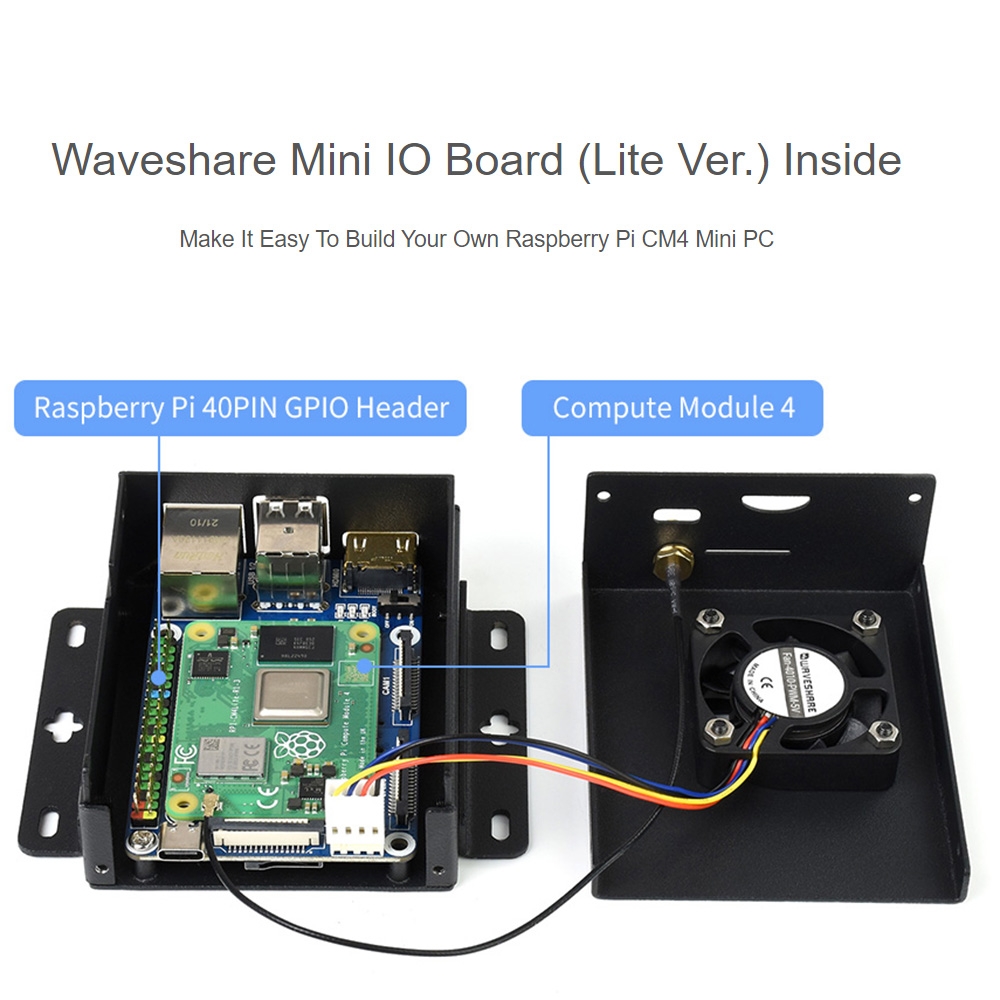

Waveshare Mini IO Board Lite Ver Mini-Computer Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4(US Plug)

Product Description

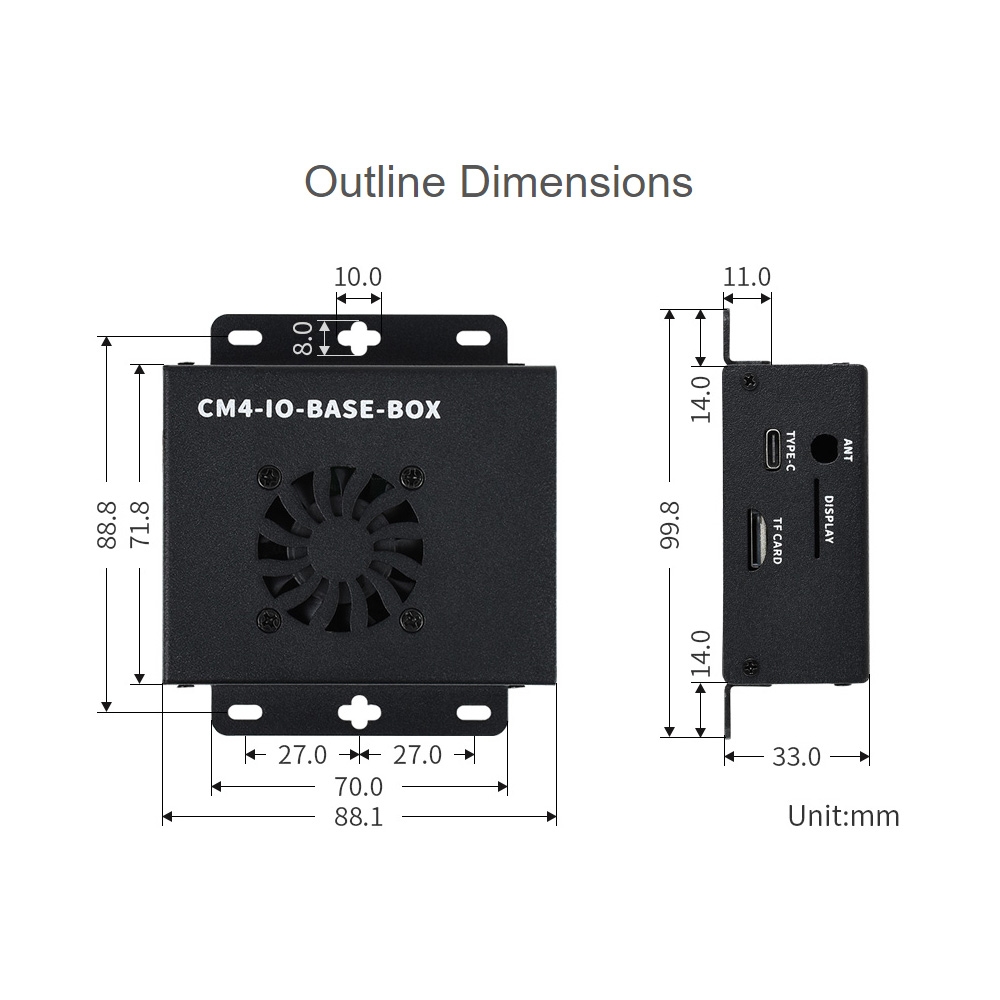

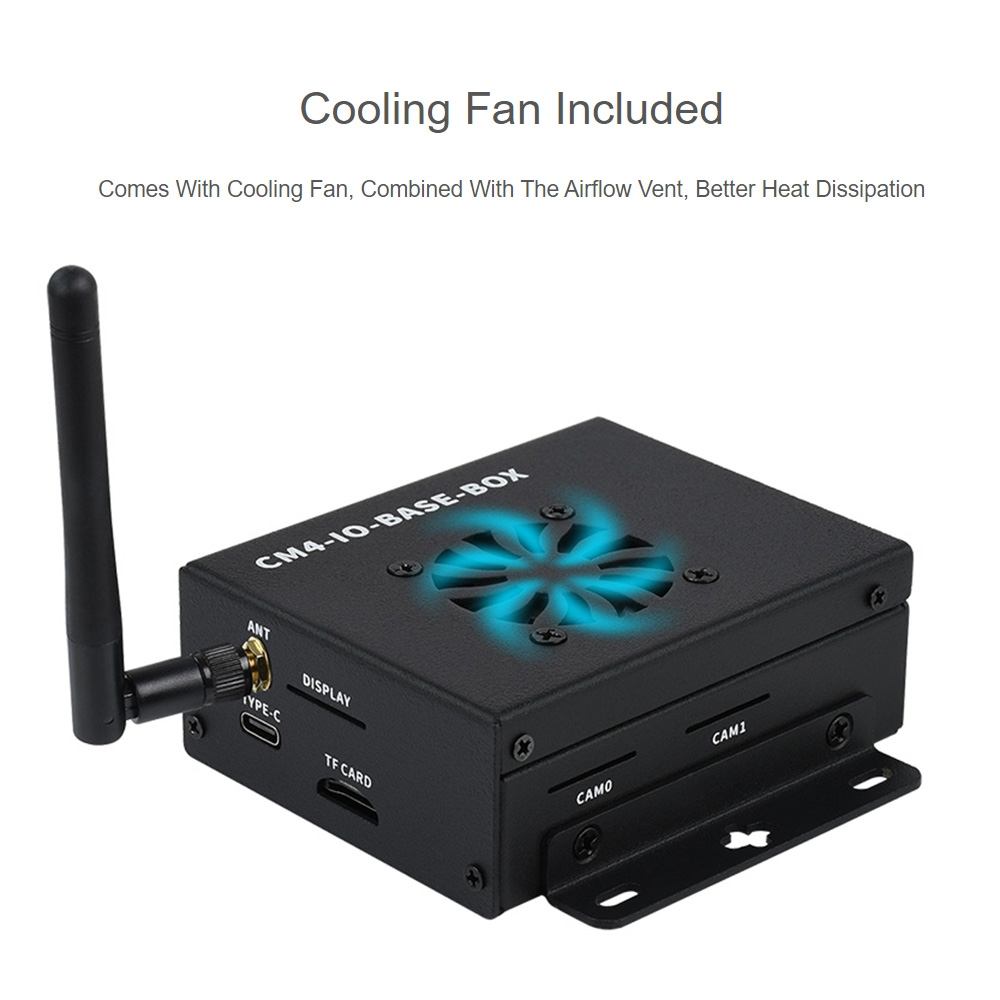

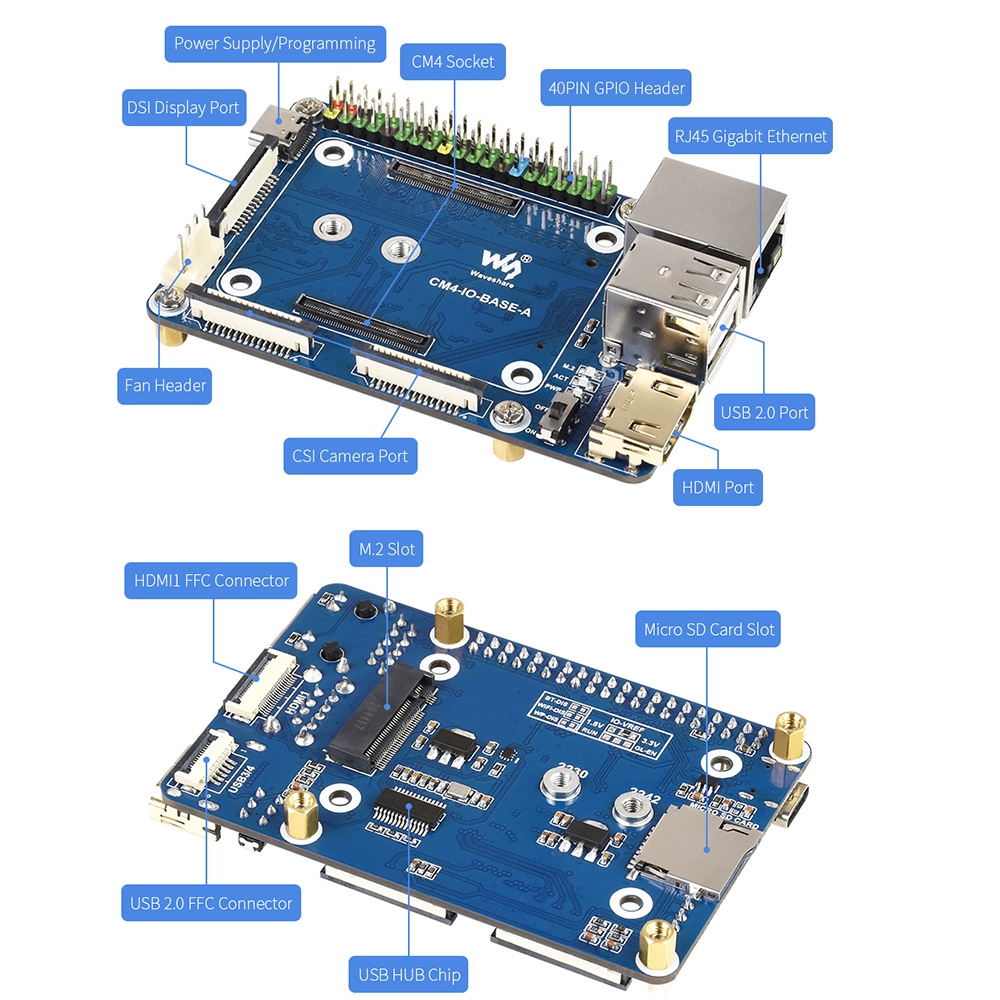

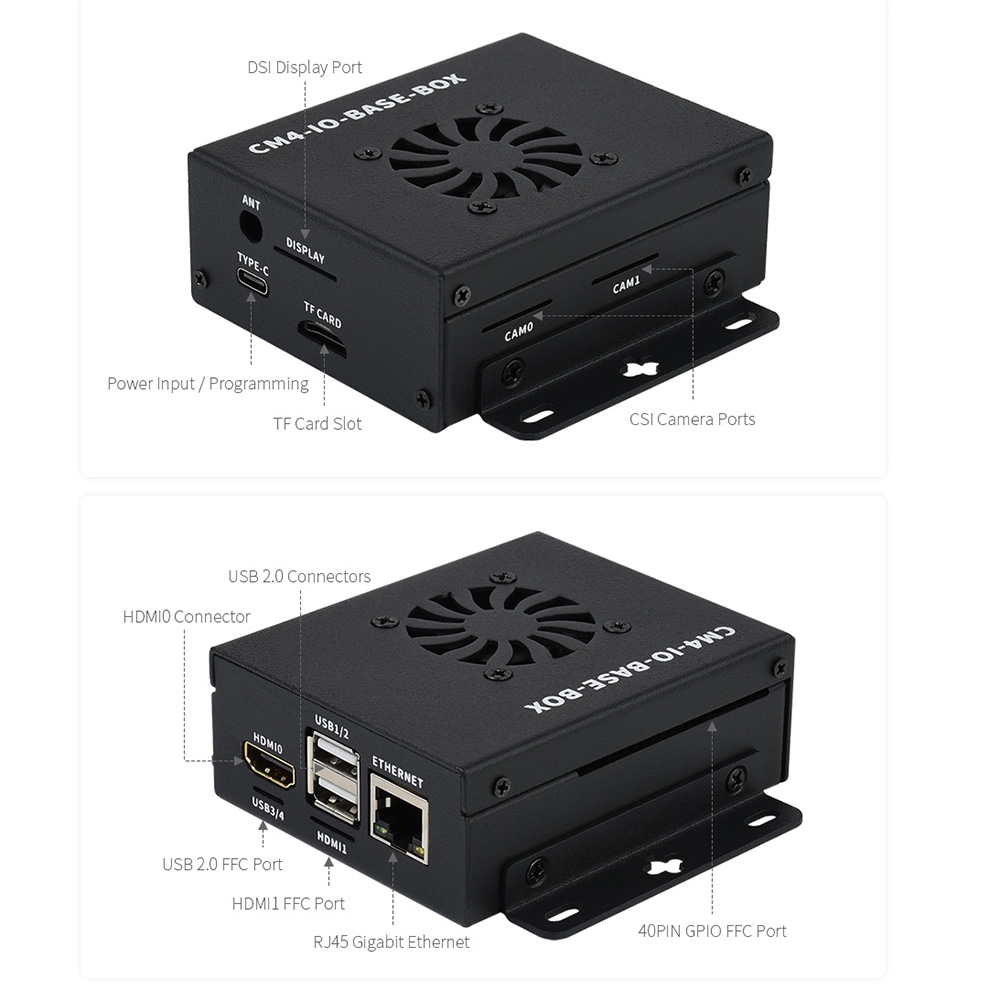

Specification 1. USB: - USB 2.0 x 2 - USB 2.0 x 2 (via FFC connector) 2. GPIO: Raspberry Pi 40 PIN GPIO x 1 3. Header: M.2 slot x 1 4. HD media interface: HDMI x 2, 1x via FFC connector, support 4K 30fps output 5. DSI display: MIPI DSI x 1 (15pin 1.0mm FPC) 6. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC) 7. Power input: 5V 8. FAN: 5V / 12V (no fan control) 9. RJ45 Ethernet: Gigabit Ethernet 10. CM4 slot: Suitable for all variants of Compute Module 4 11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12. Size: 85.0 x 56.0mm Package List 1. CM4-IO-BASE-A x 1 2. Metal case (top and bottom) x 1 3. Fan-4010-PWM-5V x 1 4. Screwdriver x 1 5. Screws pack x 1 6. 5V 3A USB-C power adapter x 1

Specifications

SKU

DIY0183US

Category

Consumer Electronics › Electronics Module › Mini PC Accessories

Weight

0.405 kg
