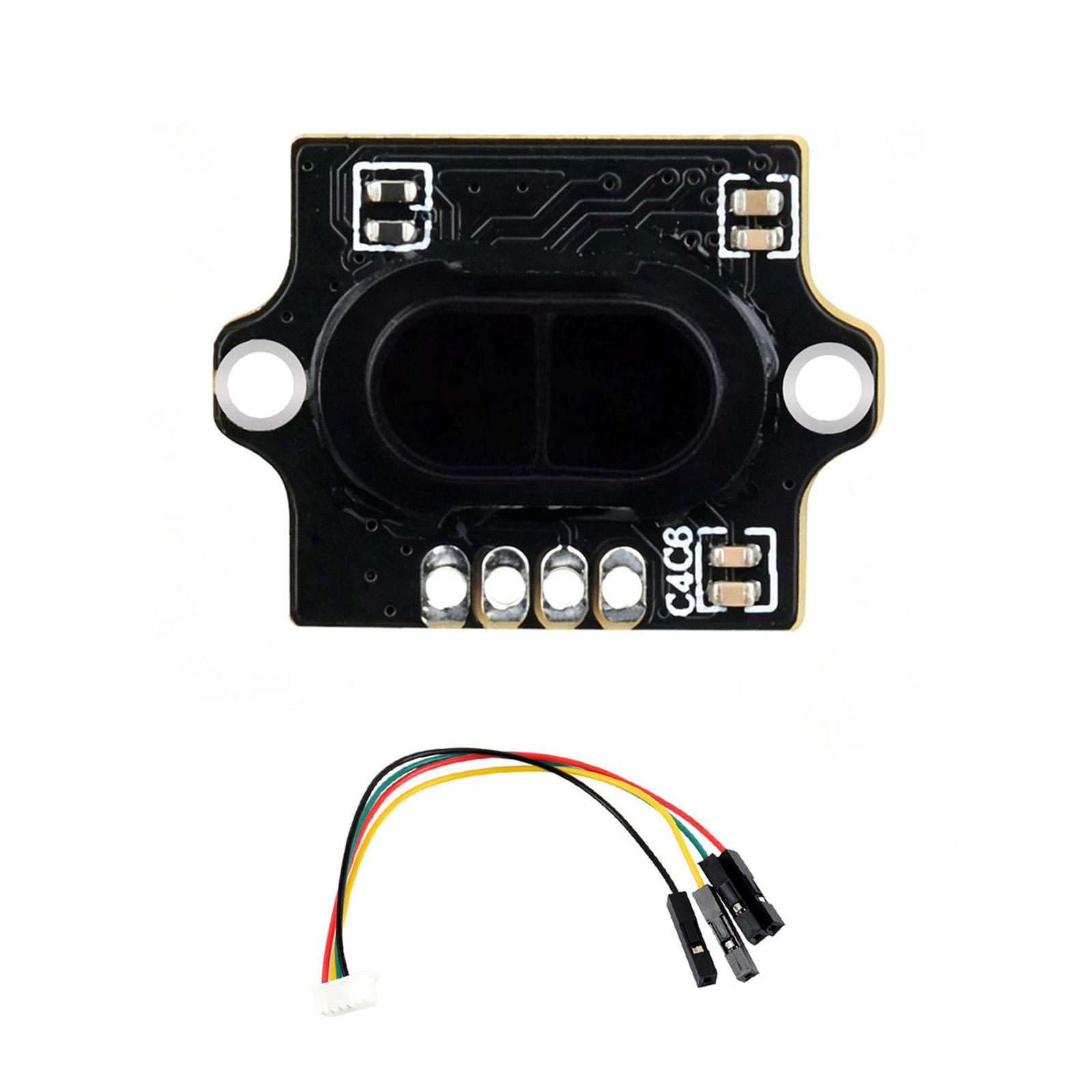

WAVESHARE MINI Laser Range Sensor, Based On Time-of-Flight Technology, Built-in Controller And Ranging Algorithm, UART Communication Support

Product Description

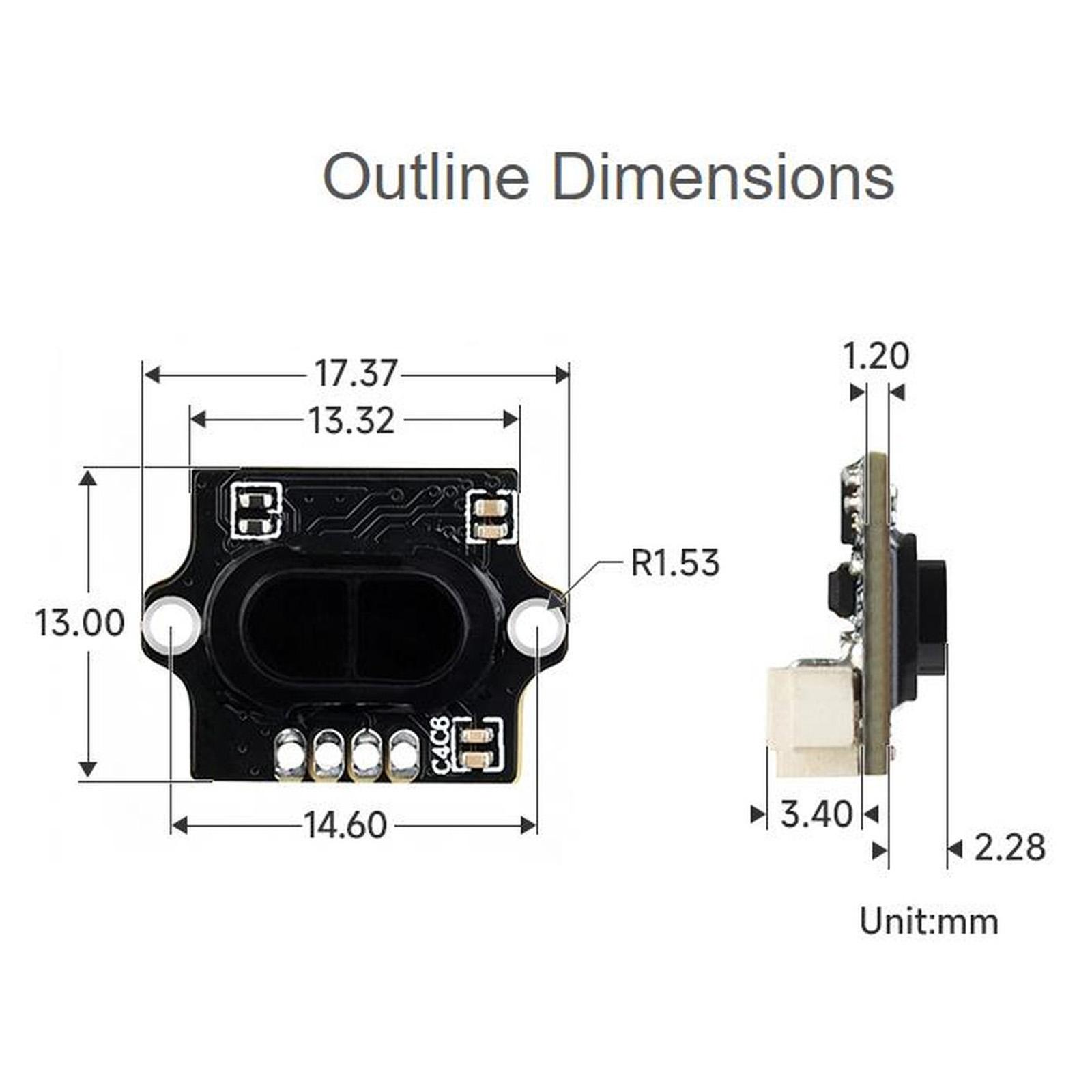

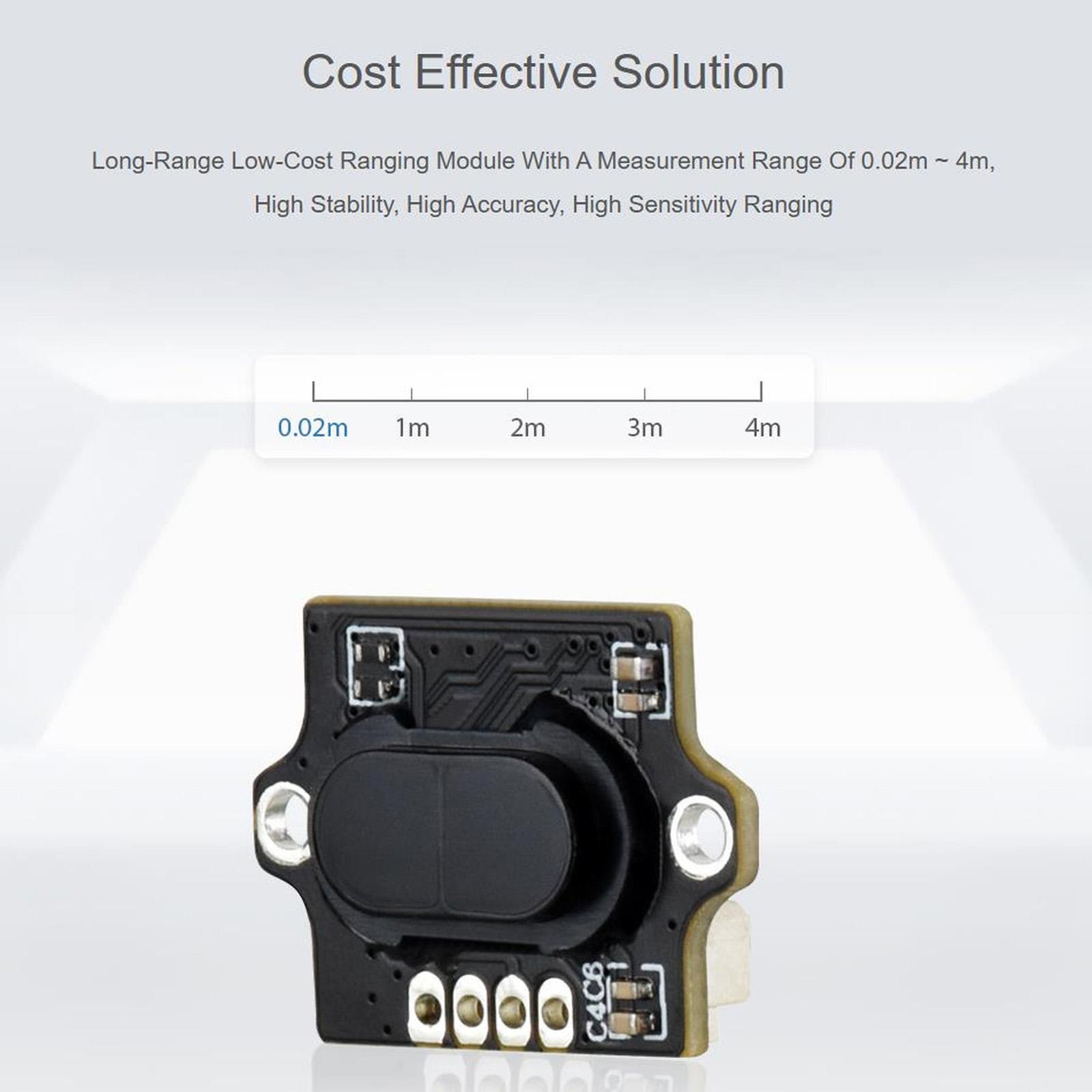

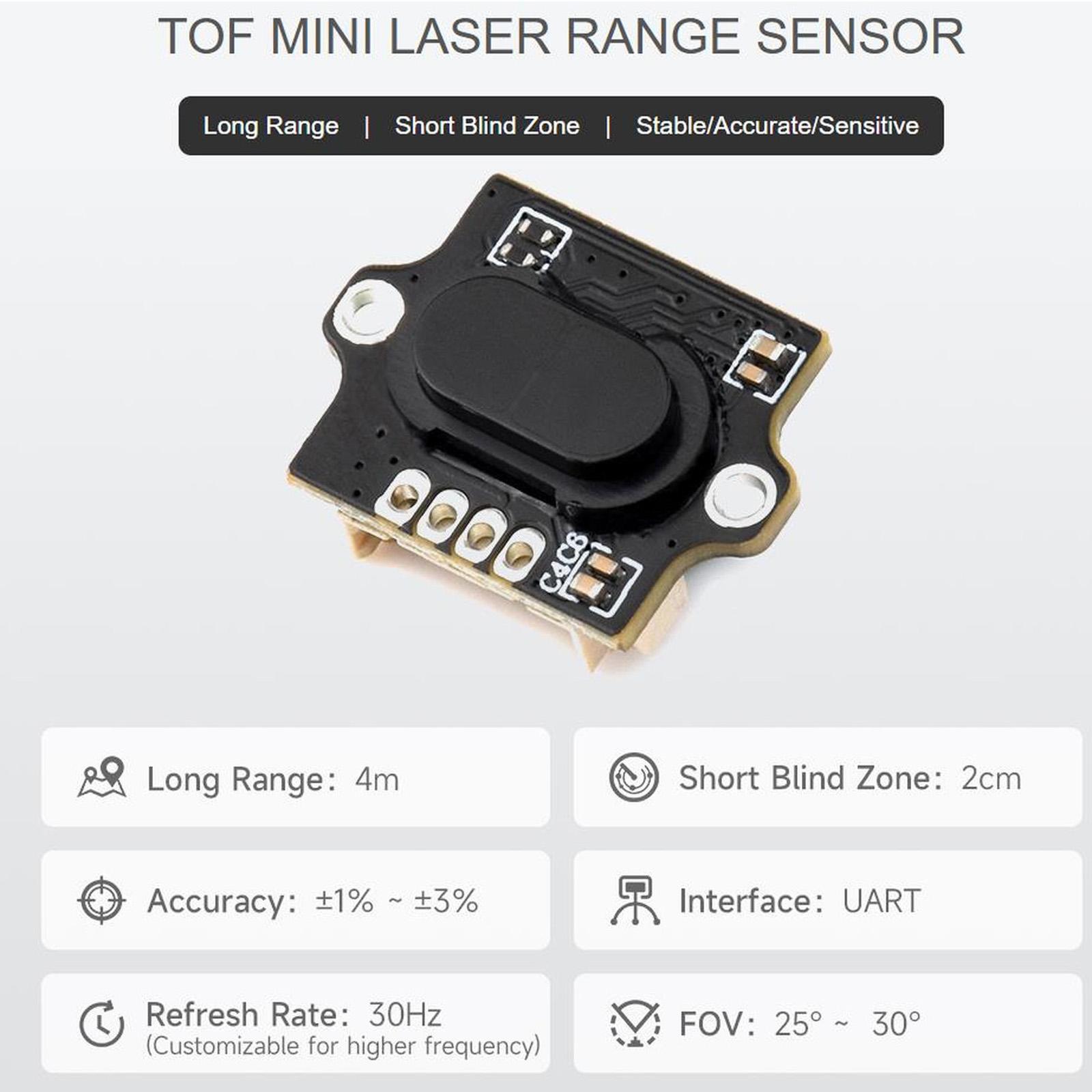

1. Typical ranging range: 0.02m - 4m 2. Error: +/- (1% - 3%) 3. Field of View (FOV): 25 - 30 degrees 4. Refresh rate: 30Hz 5. Ambient light immunity: 20K Lux 6. Operating temperature: -20 to 70 degrees Celsius 7. Operating humidity: 35% - 80% RH 8. Laser safety class: LASER CLASS 1 (IEC 60825-1: 2014) 9. Wavelength: 940nm 10. Communication interface: UART 11. Baud rate: 115200 12. Data bits: 8 13. Stop bit: 1 14. Parity: None 15. Supply voltage: 4V - 5.6V 16. Power consumption: 100mW - 140mW 17. Average/Peak current: 25mA/26mA 18. Housing material: PC 19. Storage temperature: -40 to 80 degrees Celsius 20. Weight: Approx. 3g 21. Dimensions: Approx. 17.37 x 13 x 6.88mm

Specifications

SKU

TBD06071089

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.034 kg

Delivery

Standard delivery
