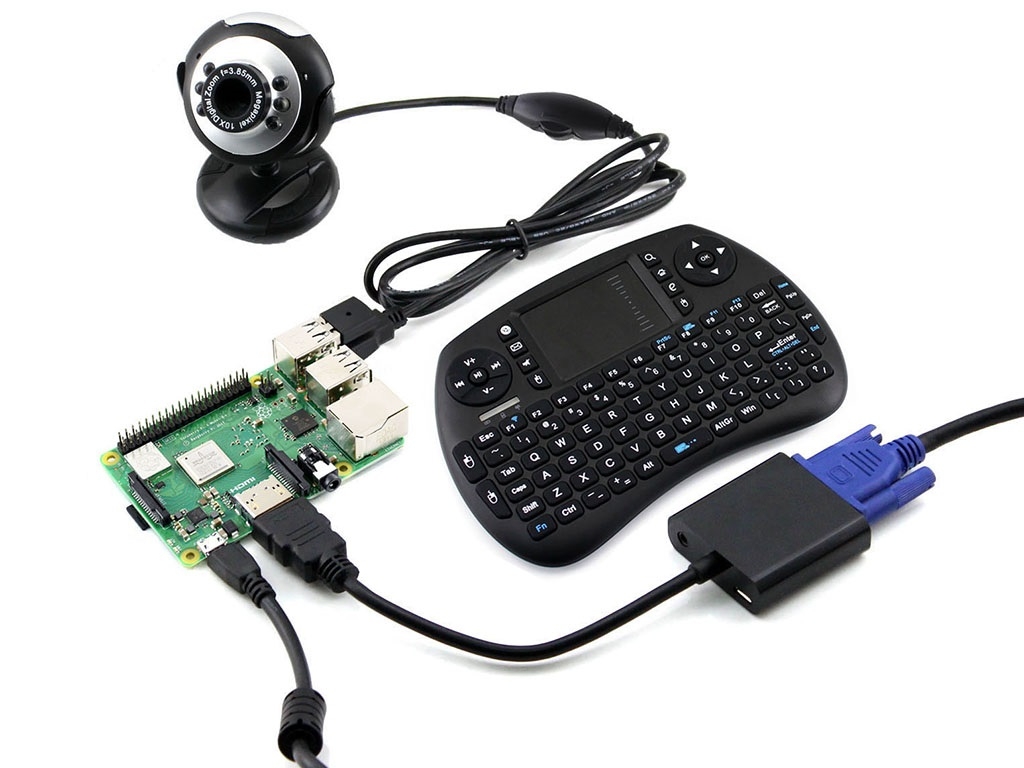

Waveshare Raspberry Pi 3 Model B+ Development Kit (Type C)

Product Description

Overview Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include: 1. A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU 2. Dual-band 802.11ac wireless LAN and Bluetooth 4.2 3. Faster Ethernet (Gigabit Ethernet over USB 2.0) 4. Power-over-Ethernet support (with separate PoE HAT) 5. Improved PXE network and USB mass-storage booting 6. Improved thermal management Raspberry Pi 3 Model B+ Specifications 1. Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz 2. 1GB LPDDR2 SDRAM 3. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE 4. Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps) 5. Extended 40-pin GPIO header 6. Full-size HDMI 7. 4 USB 2.0 ports 8. CSI camera port for connecting a Raspberry Pi camera 9. DSI display port for connecting a Raspberry Pi touchscreen display 10. 4-pole stereo output and composite video port 11. Micro SD port for loading your operating system and storing data 12. 5V/2.5A DC power input 13. Power-over-Ethernet (PoE) support (requires separate PoE HAT) Package Contents 1. Raspberry Pi 3 Model B+ x1 2. Micro SD Card 16GB x1 3. USB Camera 0307 x1 4. Mini Wireless Keyboard x1 5. HDMI Male to VGA Female Cable 0.2m with Audio and Power x1 6. Power adapter US standard 5V/3A micro x1 7. Ethernet Cable x1

Specifications

SKU

ZY14185486

Category

Consumer Electronics › Arduino & SCM Supplies › Raspberry Pi Accessories

Weight

0.45 kg

Delivery

Standard delivery
