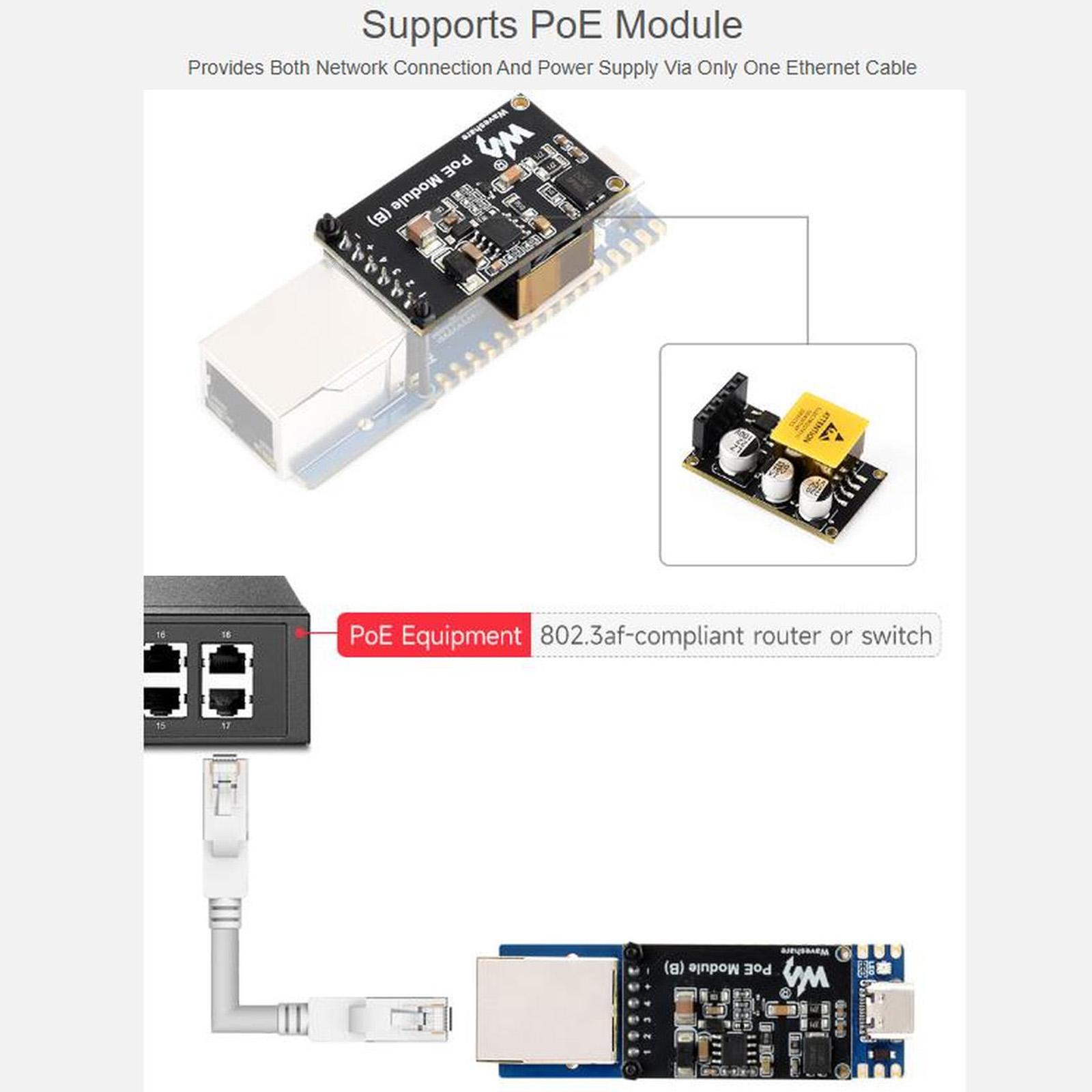

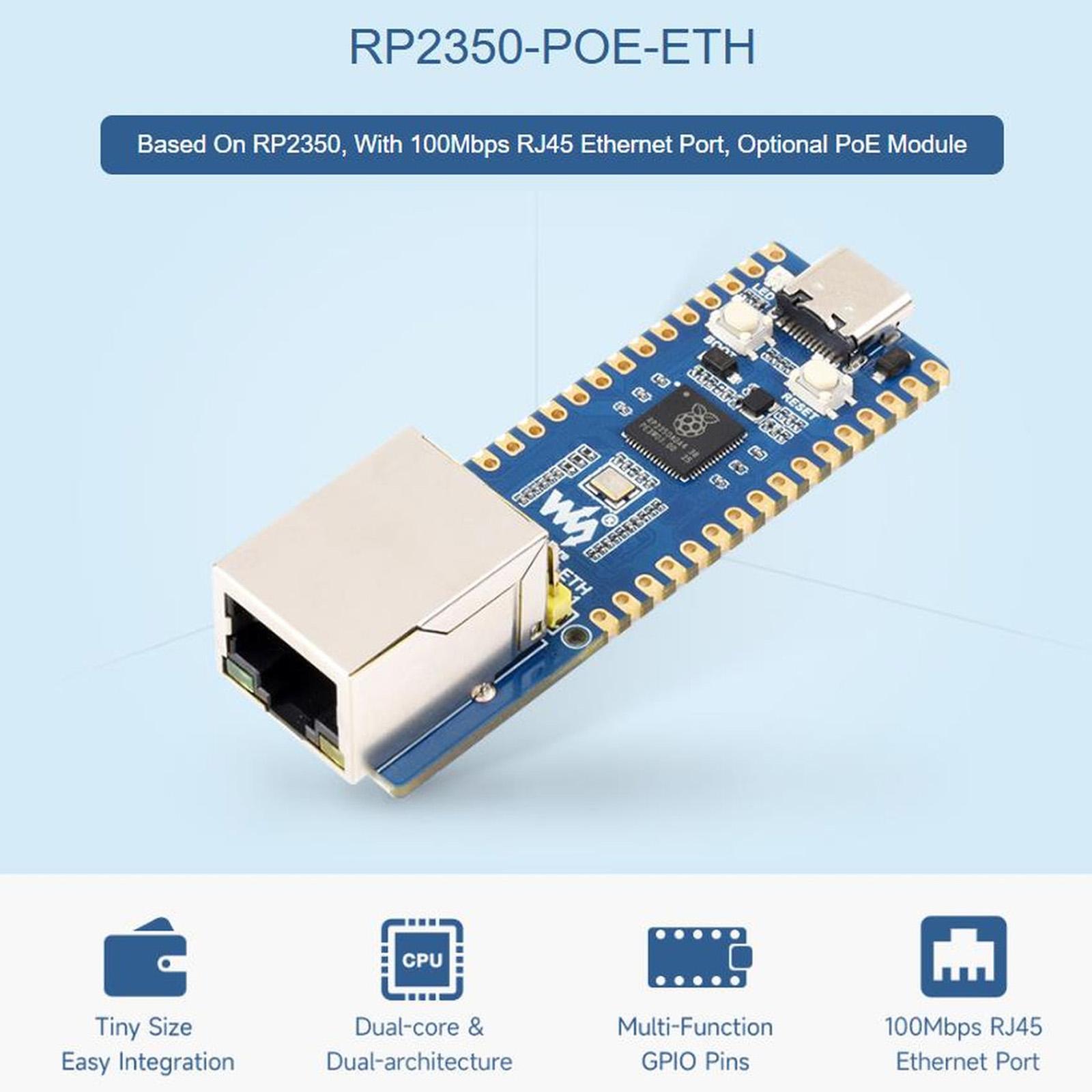

WAVESHARE RP2350 Development Board, Dual-Core And Dual-Architecture, W6300 Ethernet Controller, Supports PoE Expansion Via A PoE Module, Spec: No Soldered Pin Headers Without PoE Module

Product Description

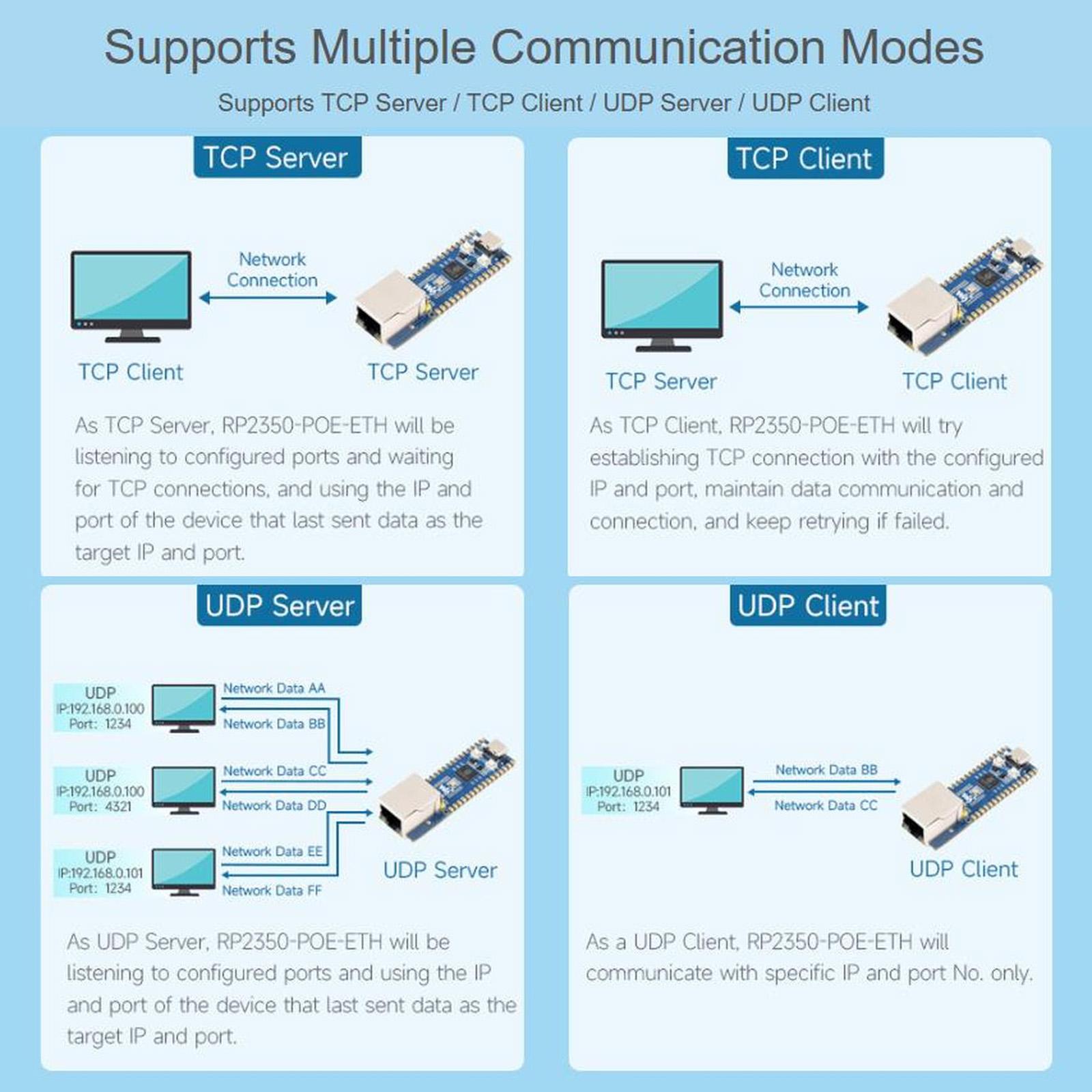

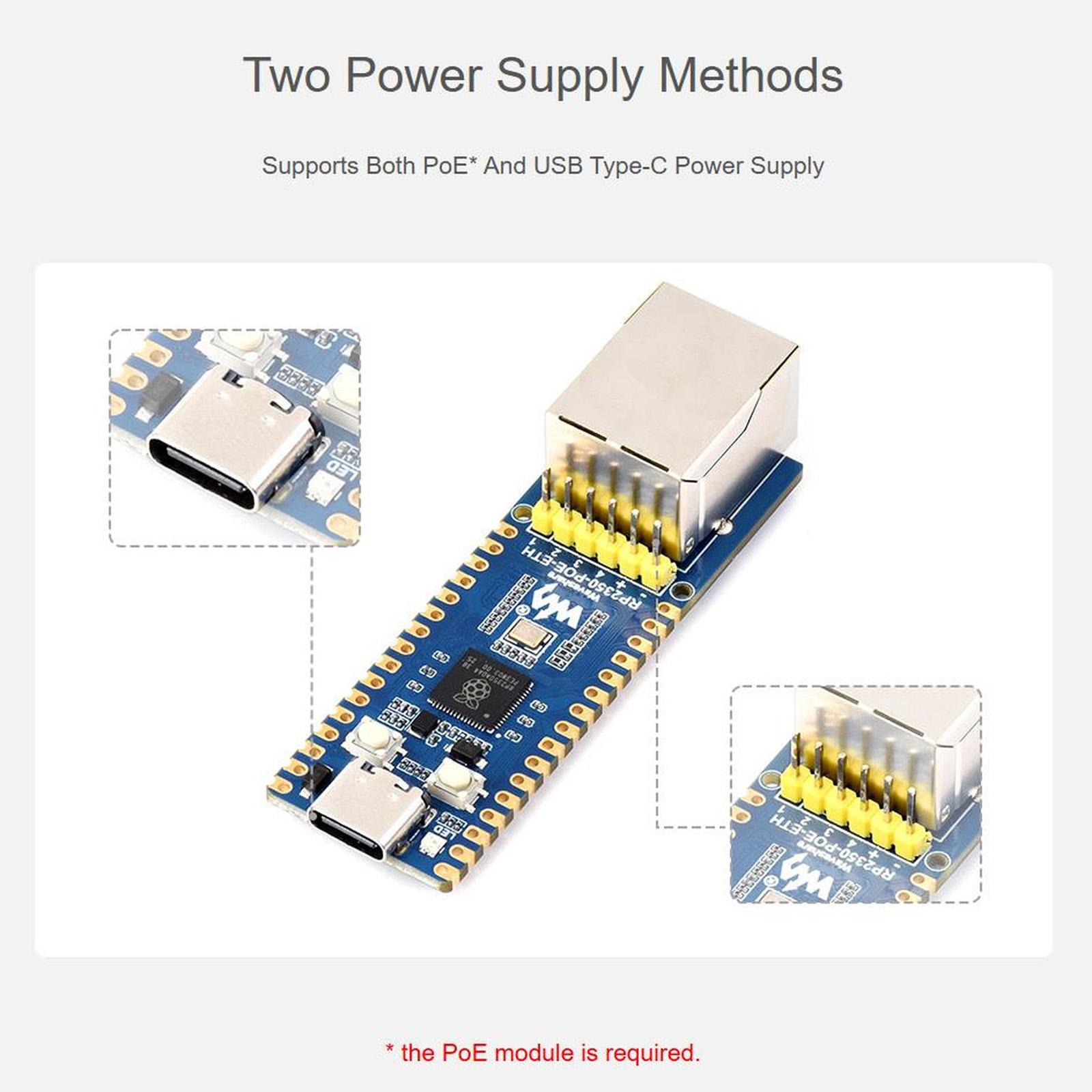

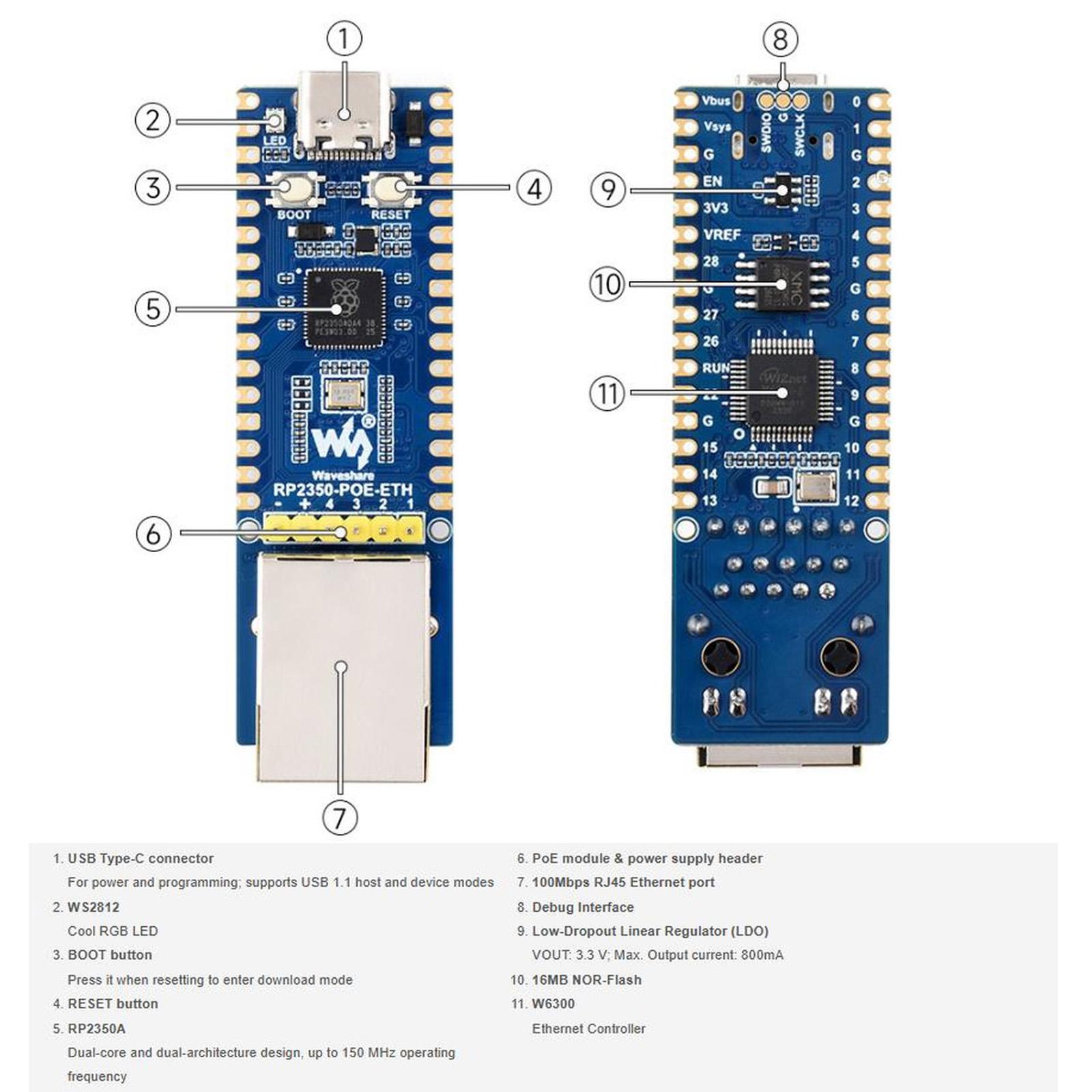

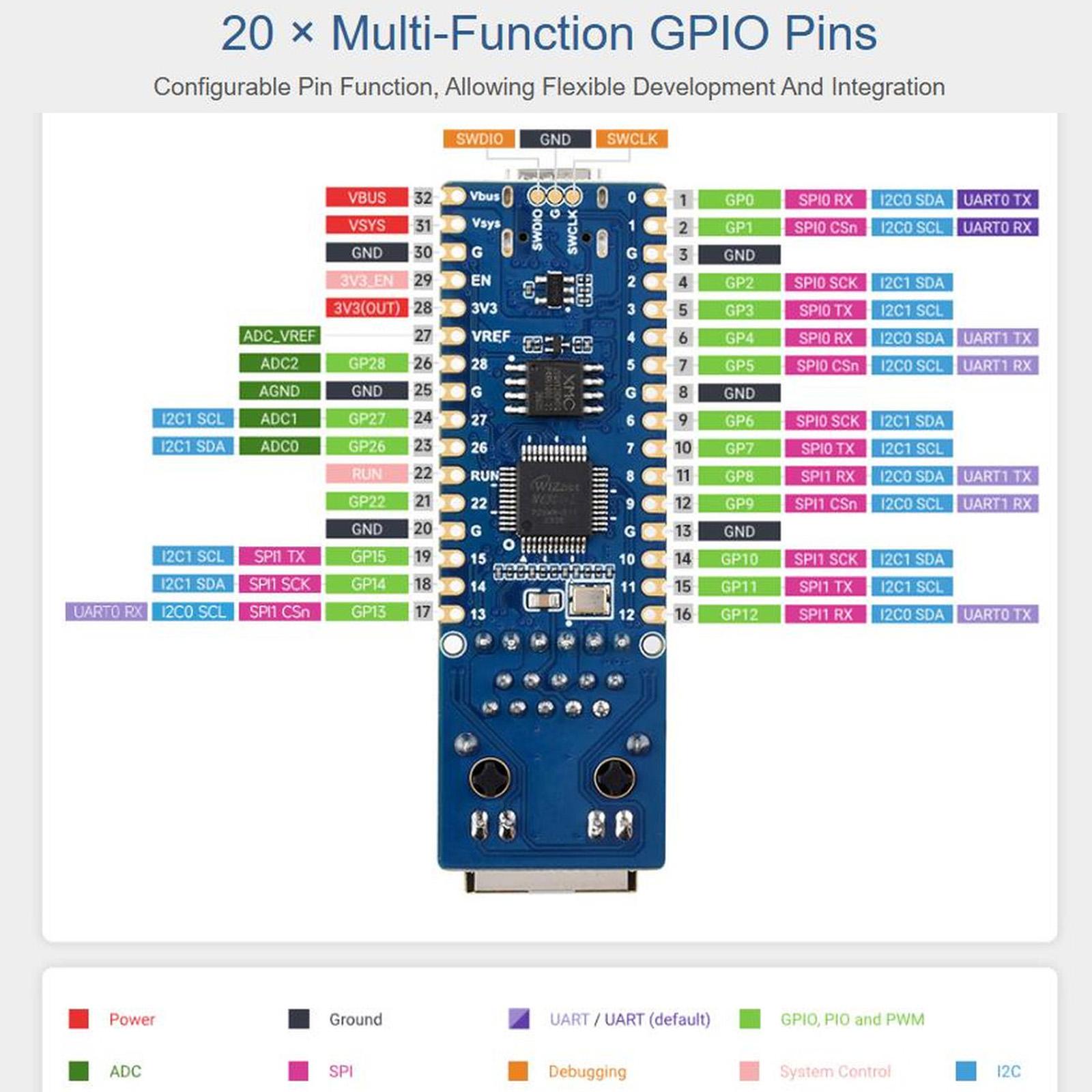

1. Utilizes the RP2350A microcontroller chip developed by Raspberry Pi 2. Unique dual-core, dual-architecture design featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, with a clock speed of up to 150 MHz, allowing users to flexibly switch between the two architectures 3. Features 520 KB of SRAM and 16 MB of on-chip Flash. Equipped with a Type-C interface to keep up with the latest trends, eliminating the need to worry about orientation when plugging in 4. On-board W6300 with an integrated TCP/IP protocol stack 5. Supports USB 1.1 host and device modes 6. Stamp-hole design allows for direct soldering and integration onto a custom-designed backplane 7. Can be recognized as a mass storage device via USB for drag-and-drop downloads 8. Precise on-chip clock and timers 9. Features 20 GPIO pins, compatible with some Pico expansion boards 10. Built-in temperature sensor for real-time monitoring of chip temperature 11. 12 programmable I/O (PIO) state machines for custom peripheral support 12. Dimensions: approximately 65.88 x 21 mm

Specifications

SKU

TBD0607112401

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.054 kg

Delivery

Standard delivery
