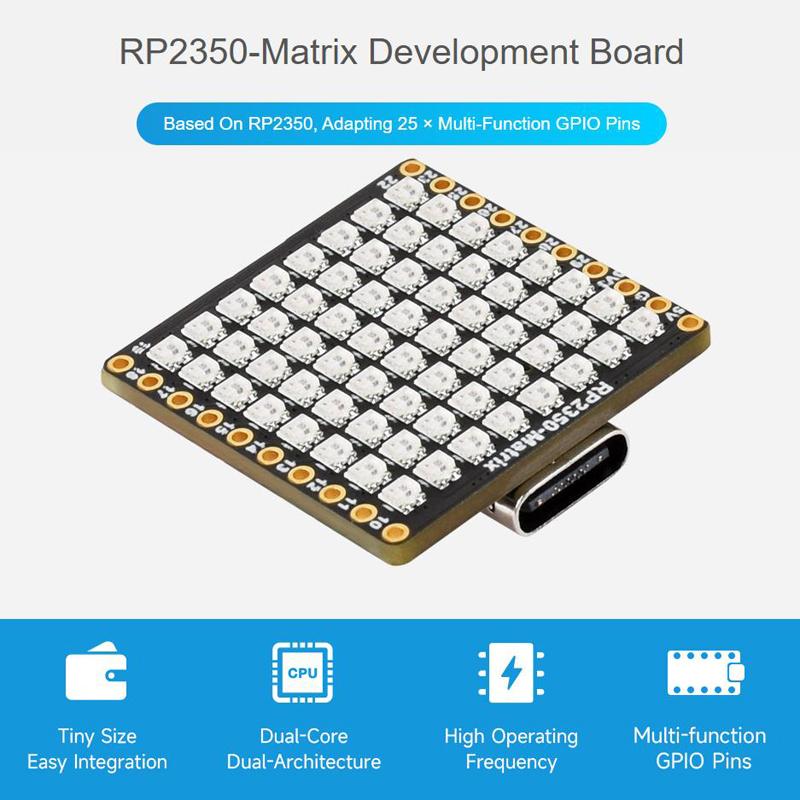

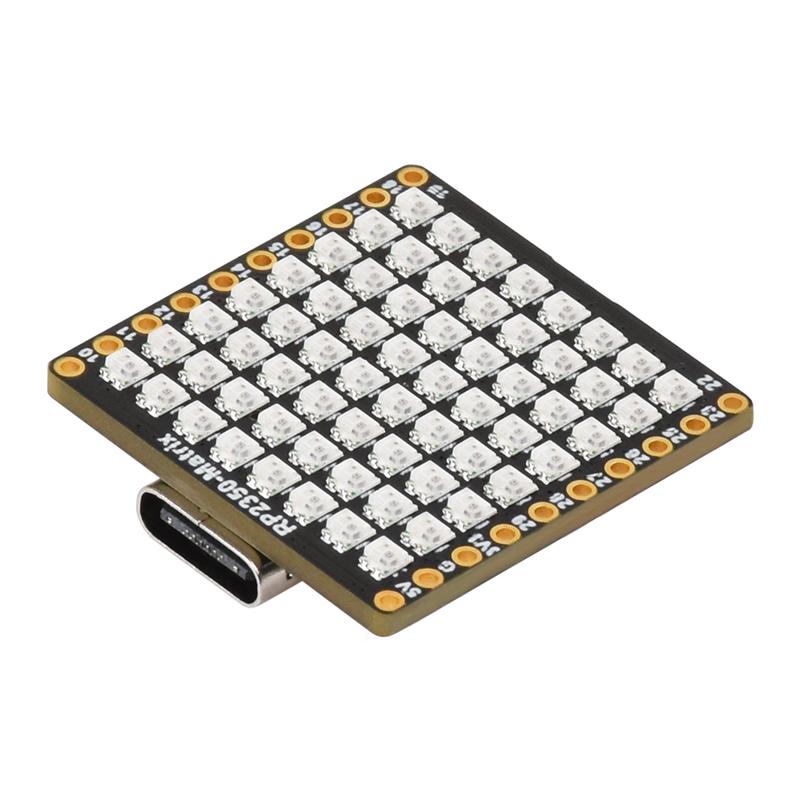

WAVESHARE RP2350 Matrix Microcontroller Development Board Dual Core Dual Architecture Six-Axis Sensor Display Cool Lighting Effects

Product Description

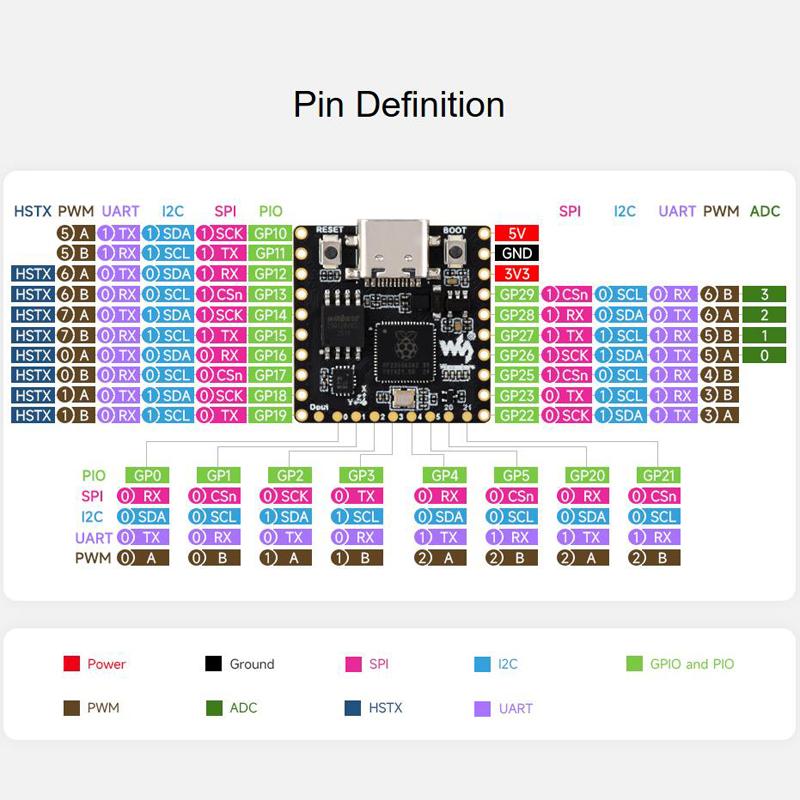

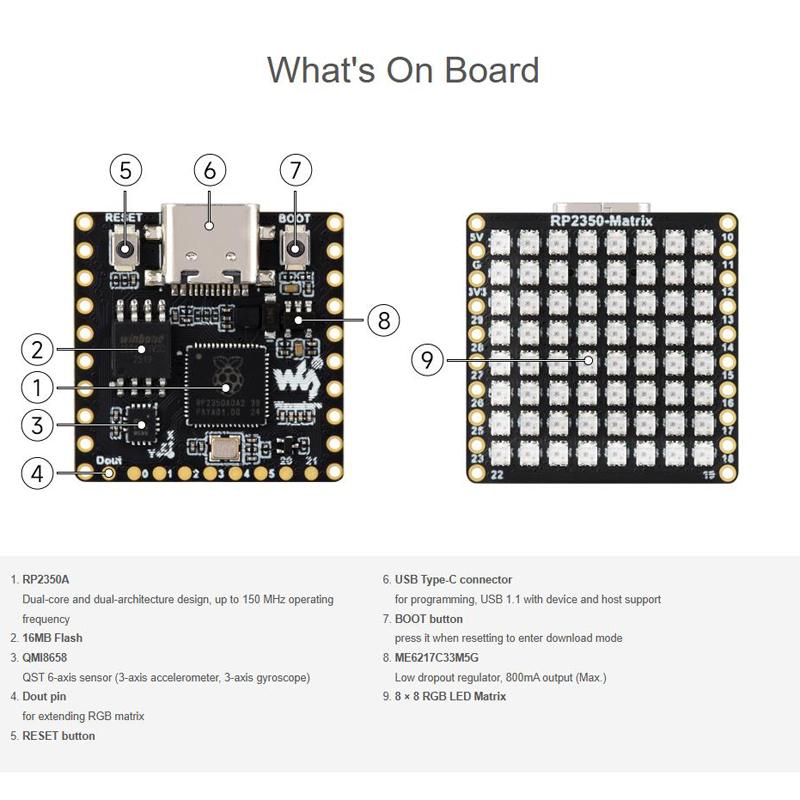

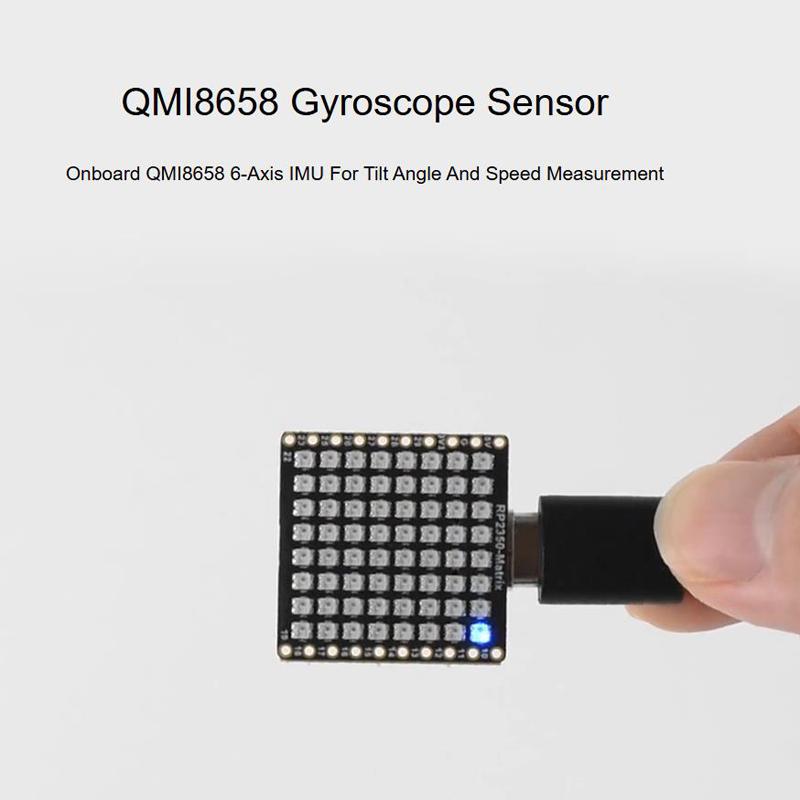

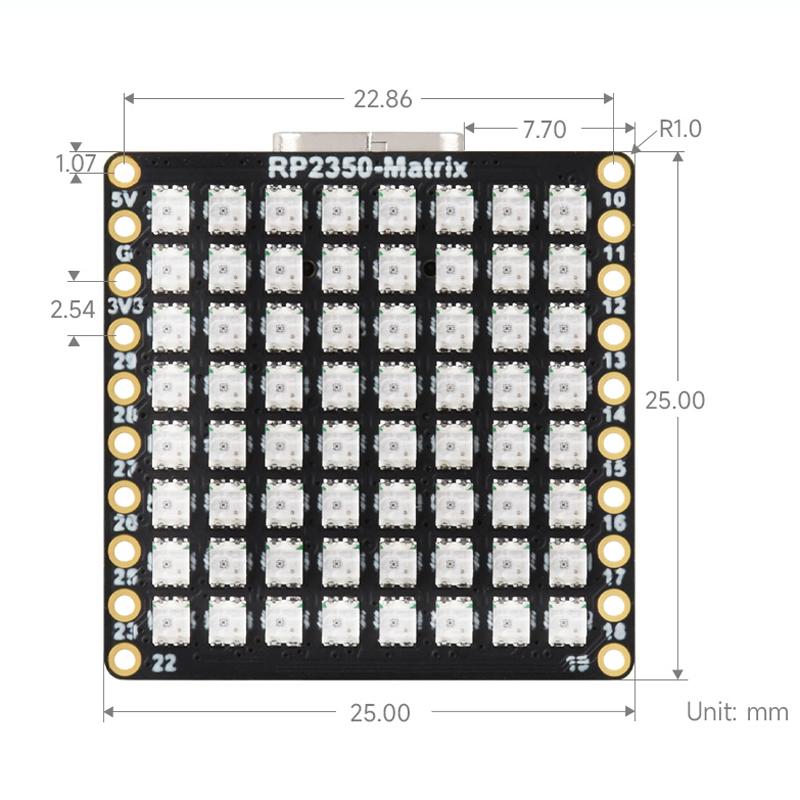

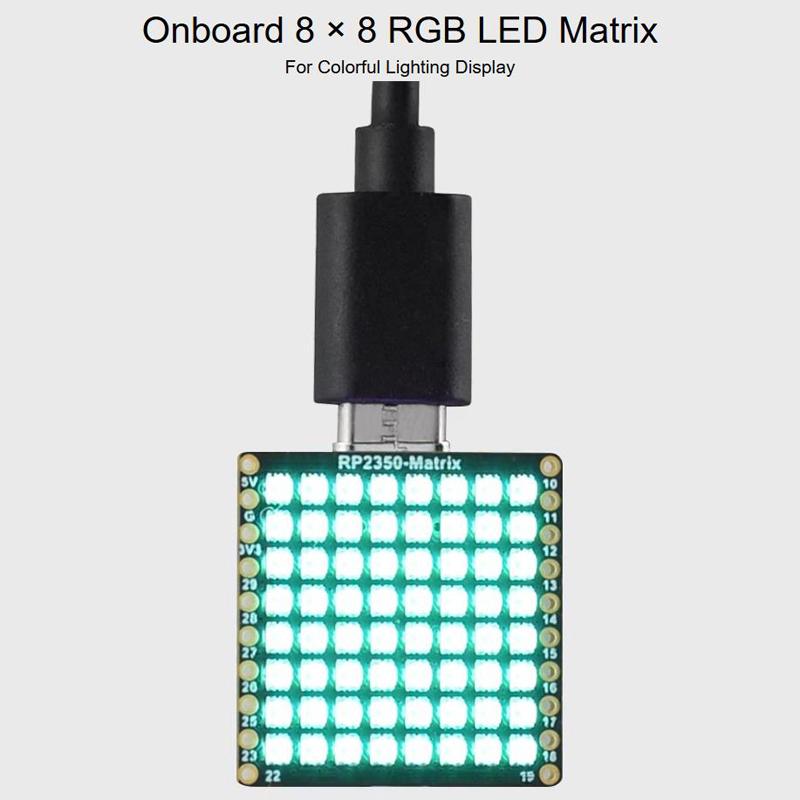

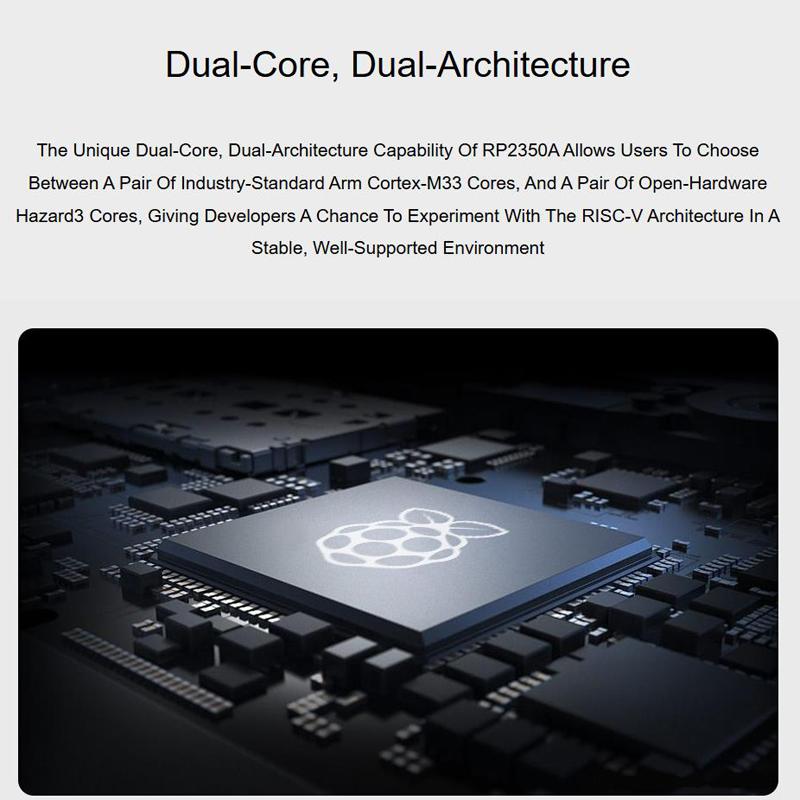

1. Using for Raspberry Pi designed RP2350A microcontroller chip 2. Unique dual-core, dual architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, the clock running frequency are up to 150MHz, to support the user in the two architectures to switch between the flexible 3. Built-in 520KB SRAM and 16MB on-chip Flash. 4. Adopting Type-C interface, no need to worry about forward and reverse plugging. 5. Built-in QM18658 6-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) 6. 8 x 8 RGB LED matrix on board, can display cool lighting effects 7. Dout pin, can be connected to expand the RGB matrix 8. USB1.1 host and slave support 9. Supports low power sleep and hibernation modes. 10. Drag-and-drop program download via USB recognized as mass memory 11. 25 multi-function GPIO pins referenced 12. 1 HSTX, 2 SPI, 2 12C, 2 UART, 4 12-bit ADC and 16 controllable PWM channels 13. Precision on-chip clocks and timers 14. Temperature sensors 15. On-chip accelerated floating point library 16. 12 programmable 1/O (PIO) state machines for custom peripheral support 17. Size: about 2.5 x 2.5cm

Specifications

SKU

TBD0606444301

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.024 kg

Delivery

Standard delivery
