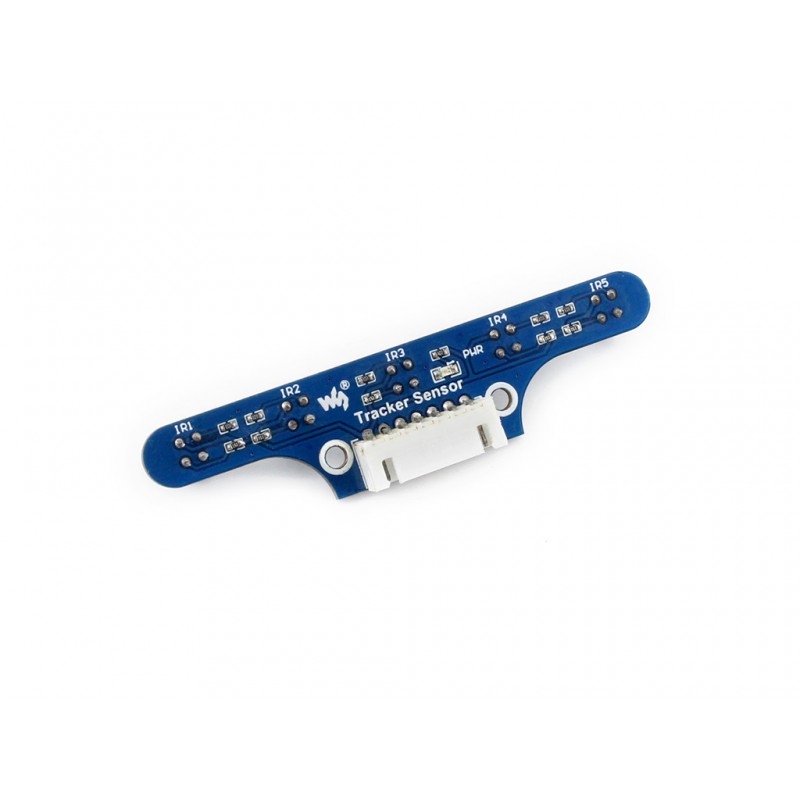

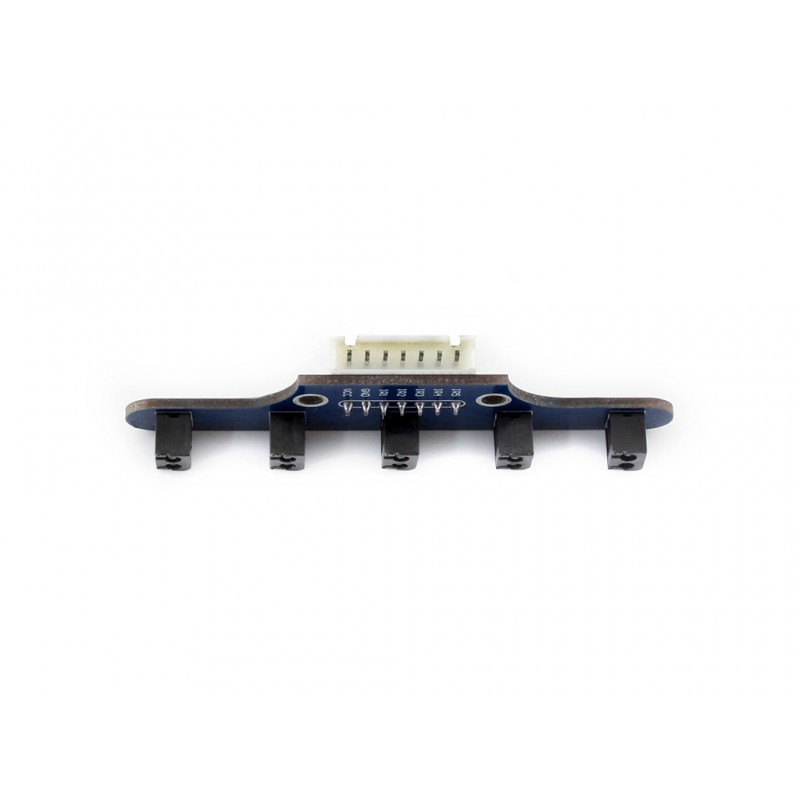

Waveshare Tracker Sensor, Infrared Line Tracking

Product Description

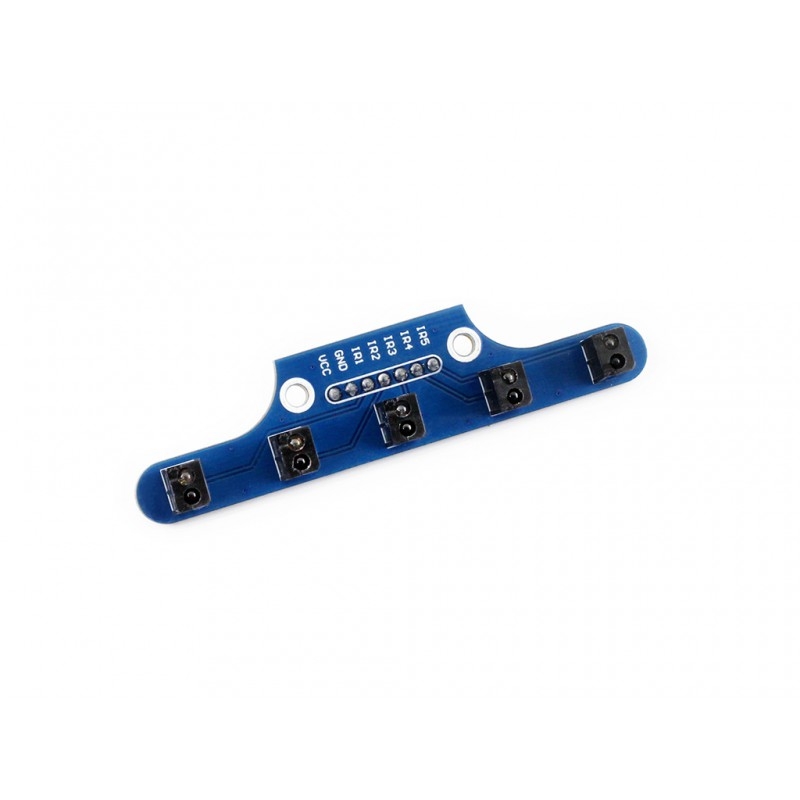

1. 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance 2. High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable Specifications 1. Power: 3.3V ~ 5V 2. Dimension: 78mm × 18mm 3. Detector spacing: 16mm 4. Mounting holes size: 3mm 5. Detection range: 1cm ~ 5cm Applications Robot line tracking How to Use In the case of working with a MCU: - VCC ? 3.3V ~ 5V - GND ? GND - IR1 ? MCU.IO (ch1, analog output) - IR2 ? MCU.IO (ch2, analog output) - IR3 ? MCU.IO (ch3, analog output) - IR4 ? MCU.IO (ch4, analog output) - IR5 ? MCU.IO (ch5, analog output)

Specifications

SKU

ZY13866703

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.03 kg
