Waveshare Ultraviolet Sensor, I2C Interface, UV Index Value Output

Product Description

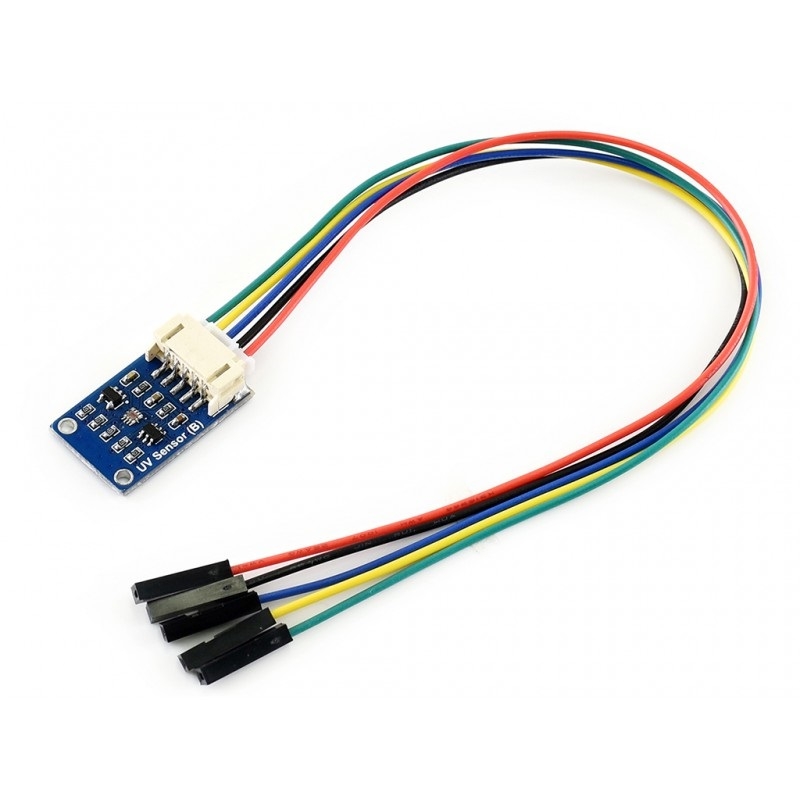

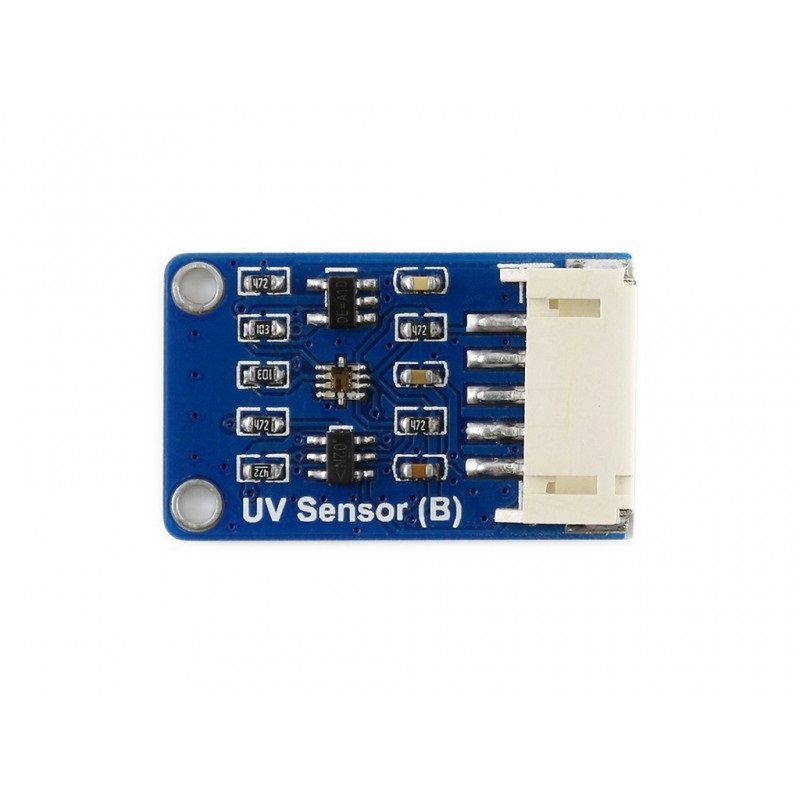

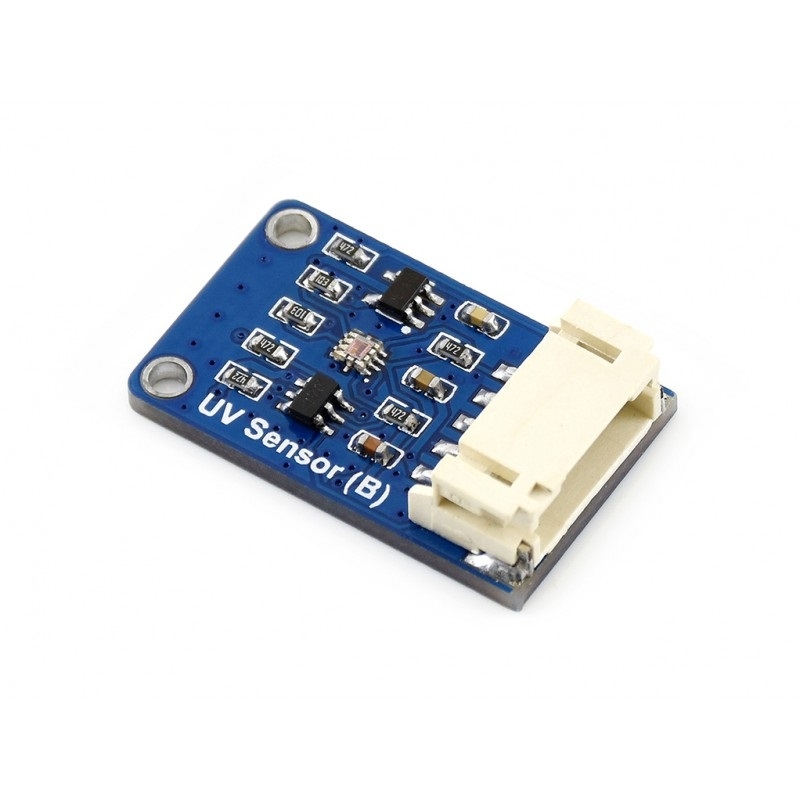

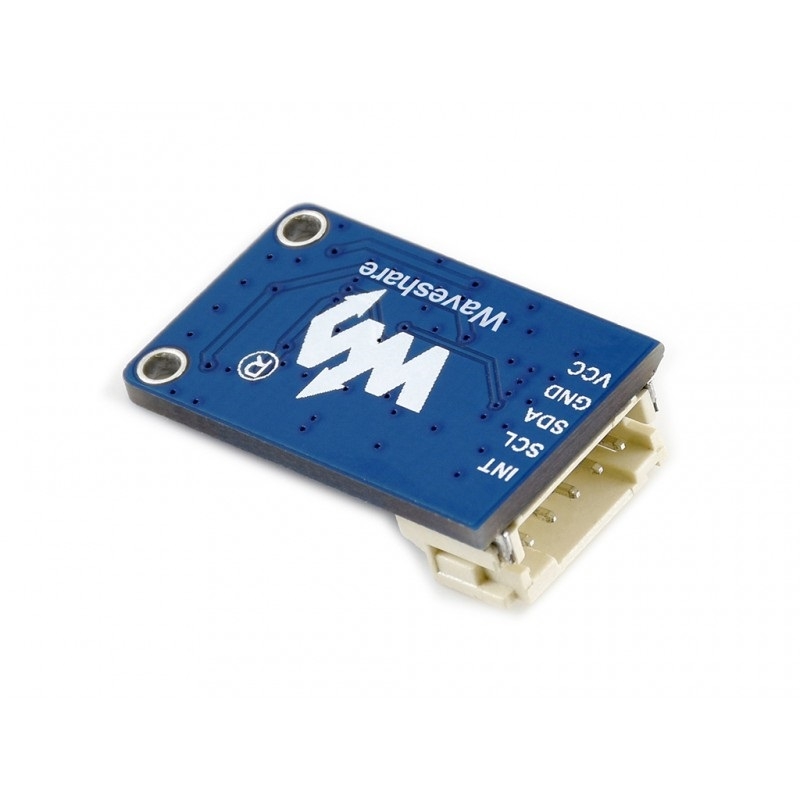

Overview This is an ultraviolet sensor board which will directly output UV index value via the I2C interface. It is compatible with both 3.3V and 5V levels. Features 1. Integrates Si1145 chip with embedded ADC, detects not only ultraviolet, but also ambient light intensity 2. Directly output UV index value via the I2C interface, needs no calculation 3. Supports interrupt output, programmable upper/lower threshold 4. Onboard voltage translator, compatible with 3.3V/5V operating voltages Specifications 1. Operating voltage: 3.3V ~ 5V 2. Dimension: 26mm x 16mm 3. Mounting hole size: 2.0mm 4. Operating temperature: –40 ~ +85 degree C Pinouts 1. VCC: Power input, 3.3V/5V 2. GND: Ground 3. SDA: I2C data pin 4. SCL: I2C clock pin 5. INT: interrupt output, optional

Specifications

SKU

ZY16349344

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.012 kg
