Waveshare XNUCLEO-F103RB Package A

Product Description

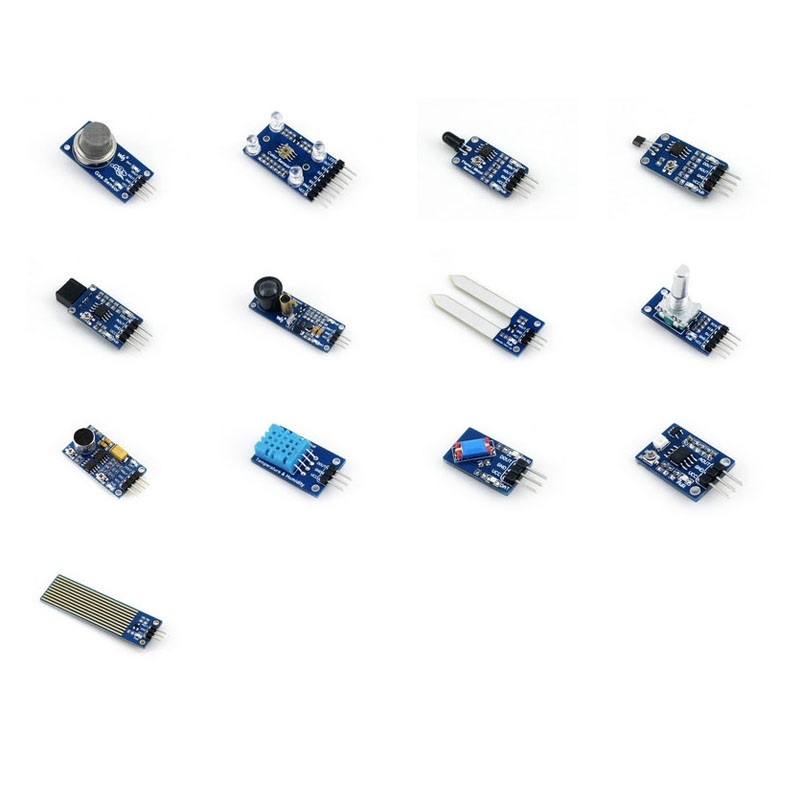

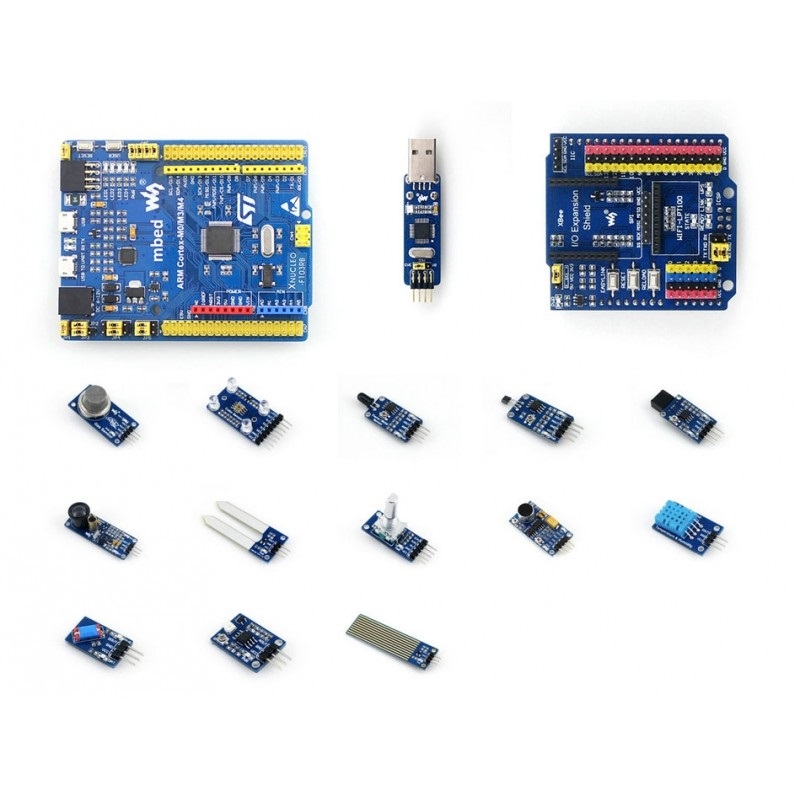

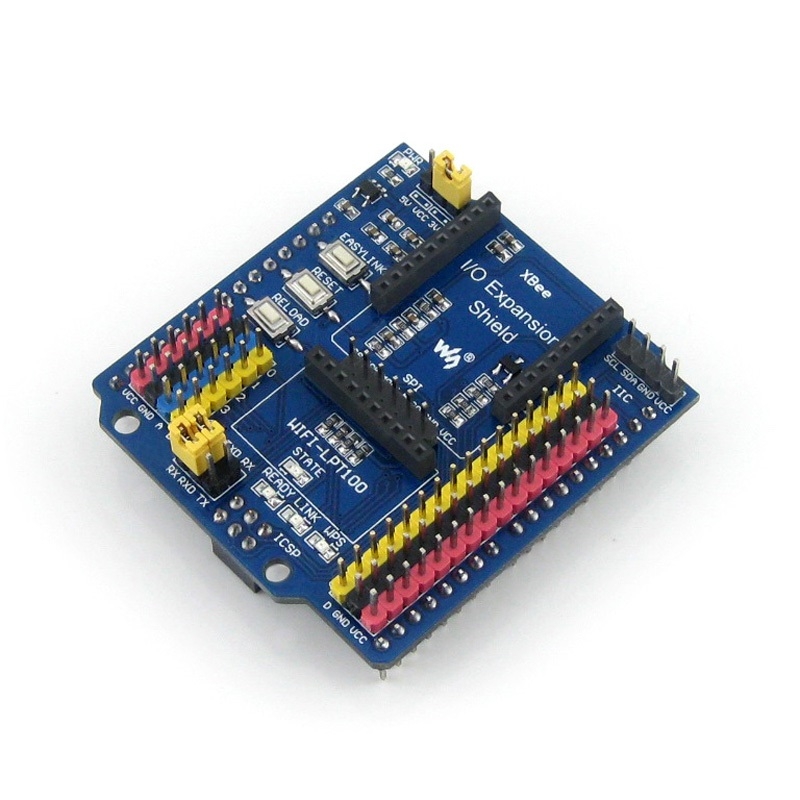

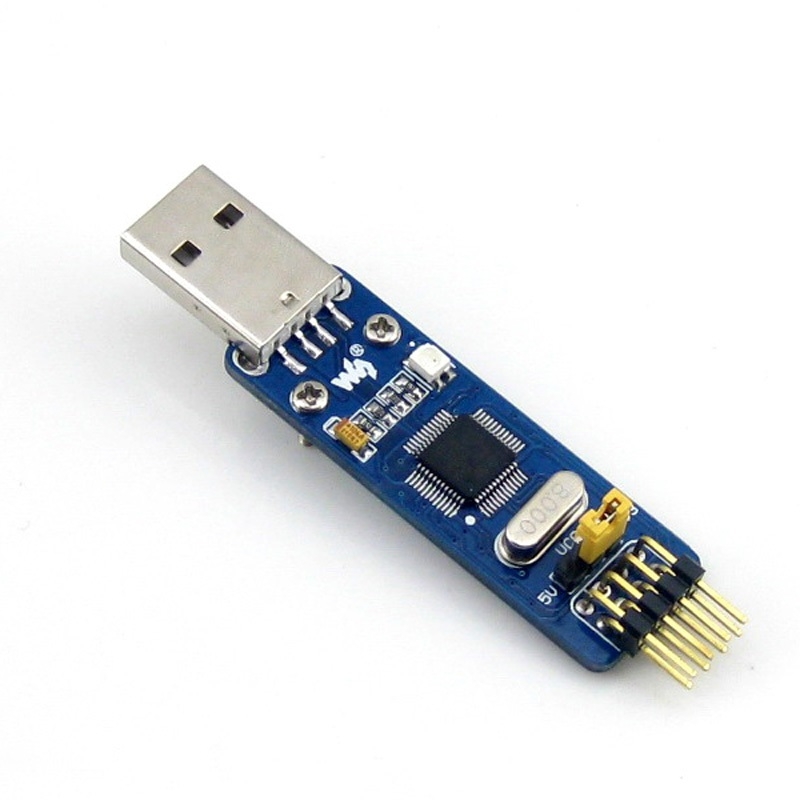

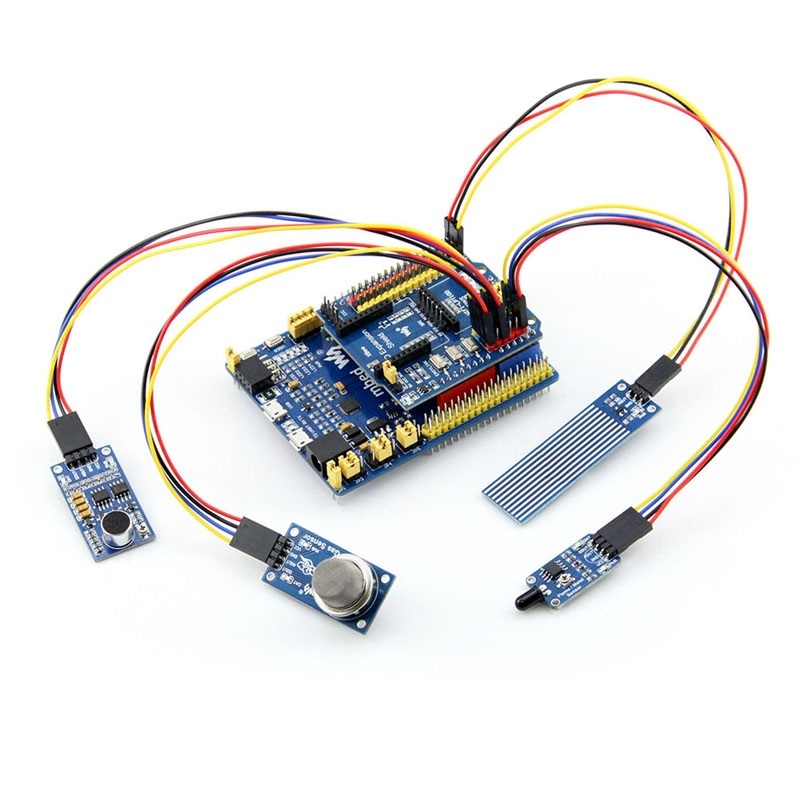

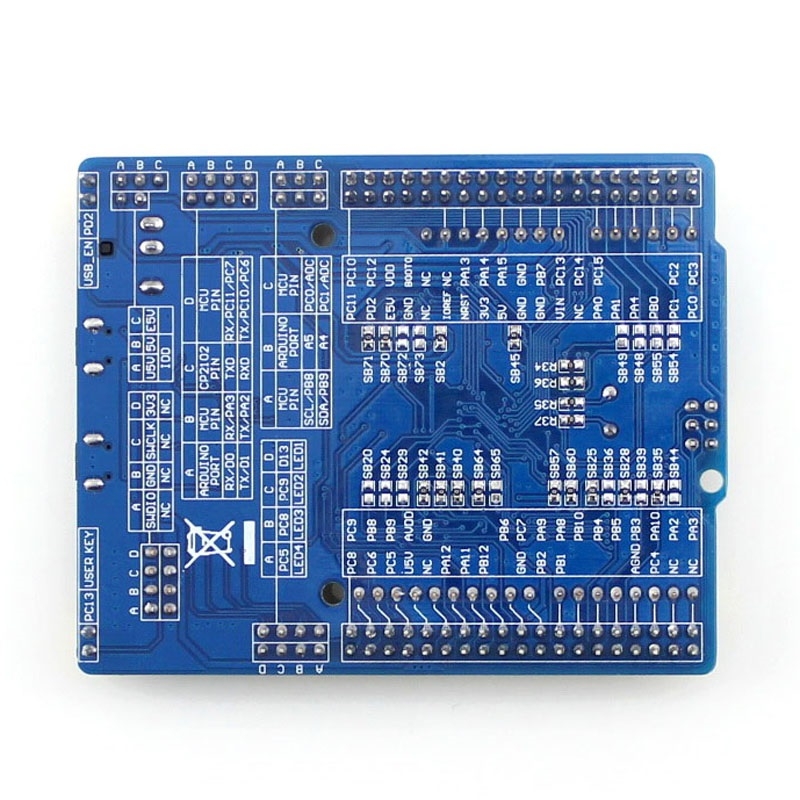

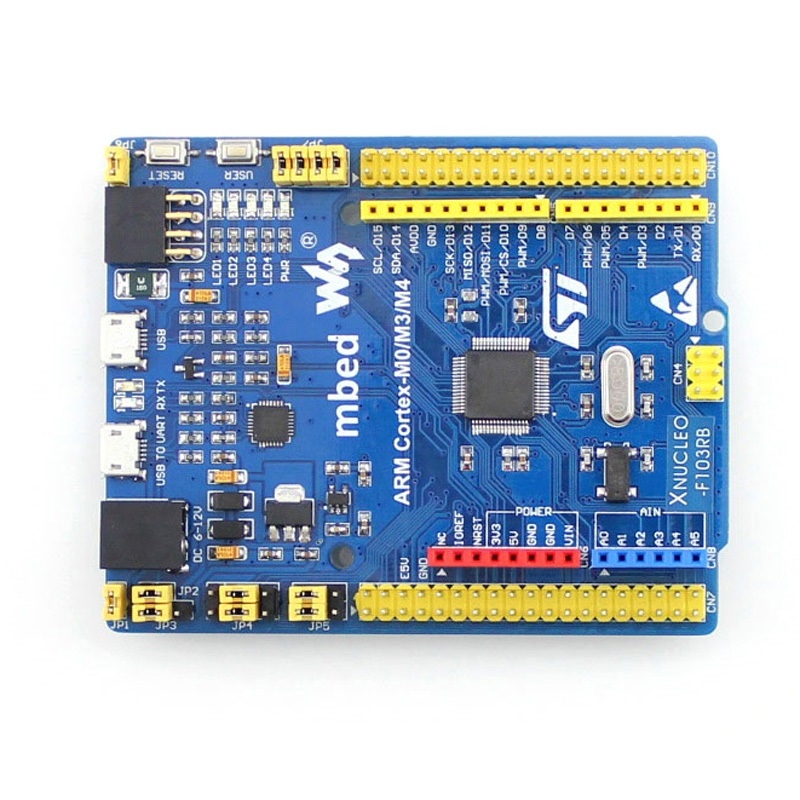

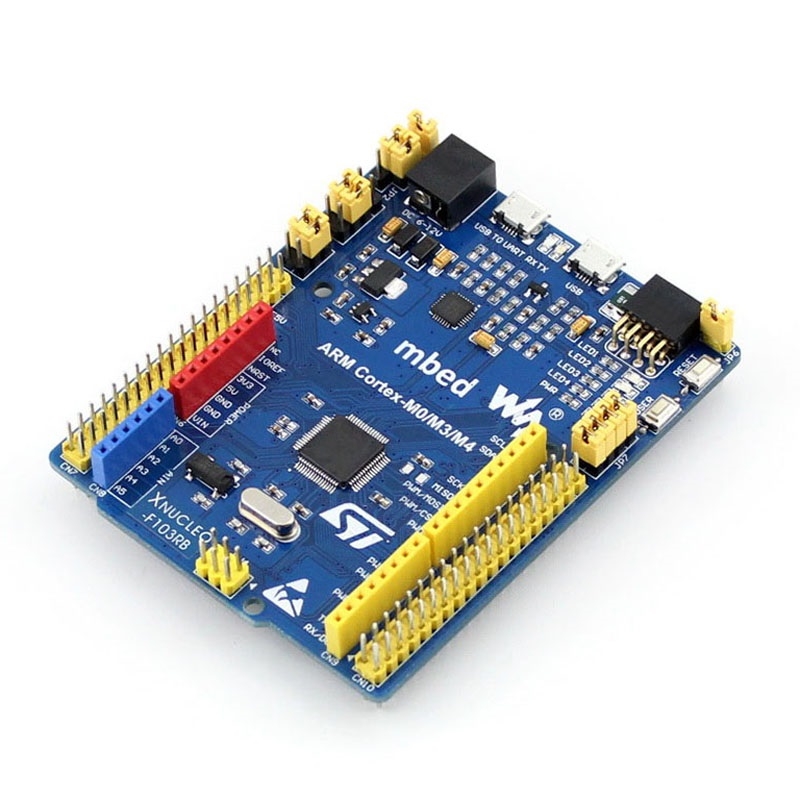

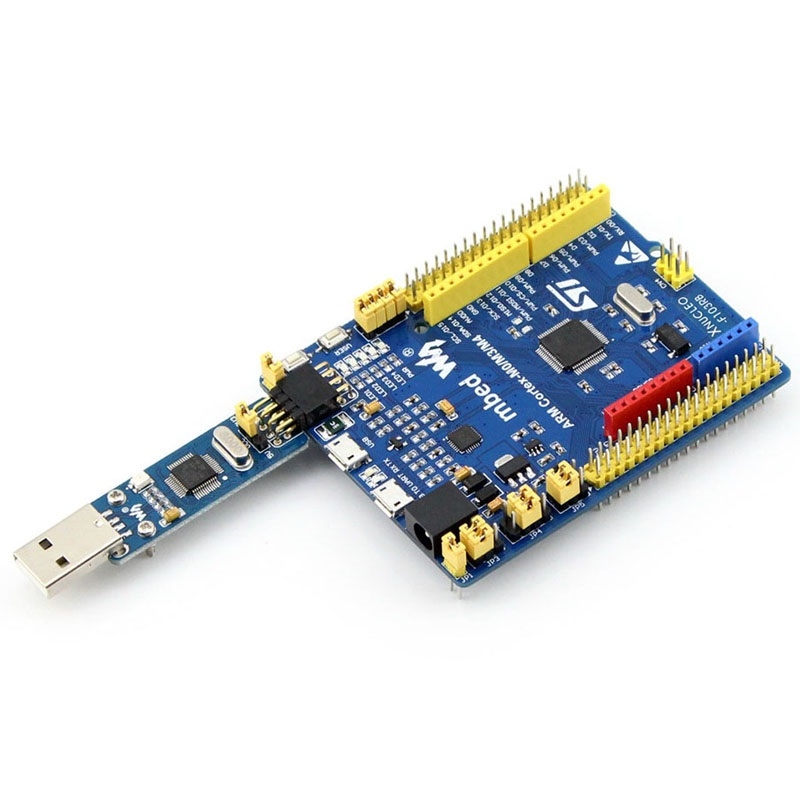

XNUCLEO-F103RB Development Kit, Comes with IO Expansion Shield and Various Sensors Overview This development kit includes : 1. XNUCLEO-F103RB (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB) 2. IO Expansion Shield (Provides interfaces for connecting XBee, WiFi-LPT100, and sensors) 3. Sensors Pack (Gas, Color, Flame, Hall, IR, UV, Laser, Sound, Temperature and Humidity, Tilt, Liquid level, etc.) XNUCLEO-F103RB Features 1. Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6 2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources 3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion 4. Supports mbed, build prototype quickly by mbed SDK and online tools 5. Comprehensive free software HAL library including a variety of software examples 6. Comes with a separated ST-LINK/V2 module What is on the XNUCLEO-F103RB 1. STM32F103RBT6 - Core : ARM? 32-bit Cortex?-M3 - Operating frequency : 72MHz - Operating voltage : 2.0V-3.6V - Package : LQFP64 - Memories : 128kB Flash, 20kB SRAM - Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB - AD/DA : 2 x AD (12 bit, 16 channels) 2. SPX3819M5 : 3.3V voltage regulator 3. AMS1117-5.0 : 5.0V voltage regulator 4. CP2102 : USB to UART convertor 5. Arduino connector : for connecting Arduino shields 6. ICSP interface : Arduino ICSP 7. USB TO UART : for debugging 8. USB connector : USB communication interface 9. SWD interface : for programming and debugging 10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion 11. 6-12V DC input 12. User button 13. Reset button 14. Power indicator 15. User LED 16. 500mA fast self-recovery fuse 17. Serial port Rx/Tx indicator 18. 8MHz crystal 19. 32.768KHz crystal 20. ADC/I2C selection jumper - Short A and B : Arduino A4, A5 is used as I2C - Short B and C : Arduino A4, A5 is used as ADC 21. UART selection jumper 22. MCU current test jumper : for low power tests 23. Power selection jumper - Short 5V and U5V : powered from USB connection - Short 5V and E5V : powered from external power supply 24. USB enable jumper - Short the jumper to enable - Open the jumper to disable 25. User button jumper - Short the jumper to connect to I/Os used in example code - Open the jumper to connect to other custom pins via jumper wires 26. User LED jumper - Short the jumper to connect to I/Os used in example code - Open the jumper to connect to other custom pins via jumper wires Package Contents 1. XNUCLEO-F103RB x 1 2. ST-LINK/V2 (mini) x 1 3. USB Type A Plug to Micro B Plug Cable x 1 4. USB Type A Plug to Receptacle Cable x 1 5. IO Expansion Shield × 1 6. Sensors Pack × 1

Specifications

SKU

ZY14187377

Category

Consumer Electronics › Electronics Module › MCU Tools

Weight

0.3 kg

Delivery

Standard delivery
