XNUCLEO-F103RB Package B

Product Description

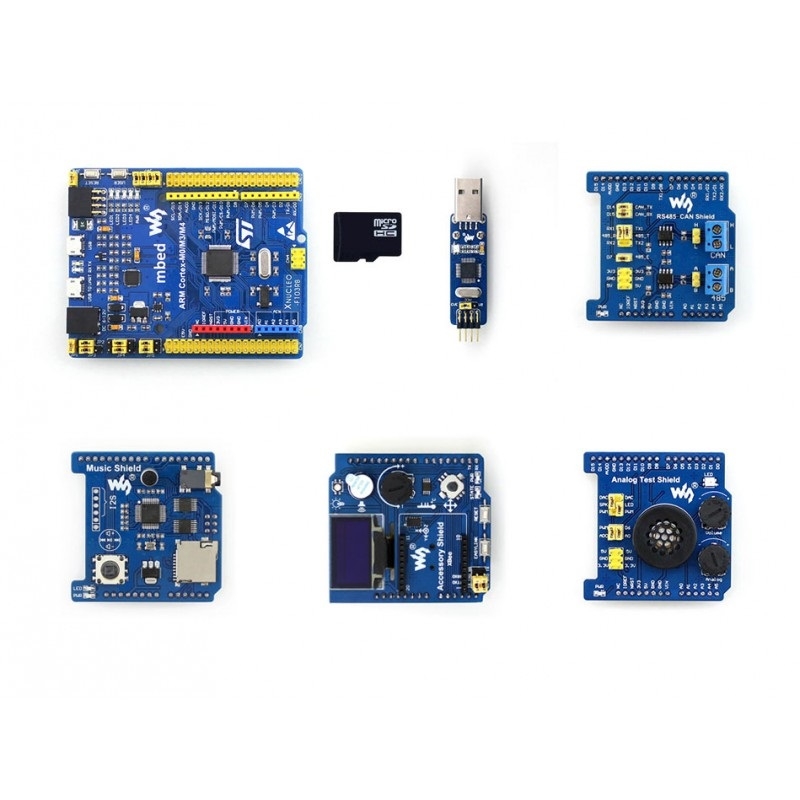

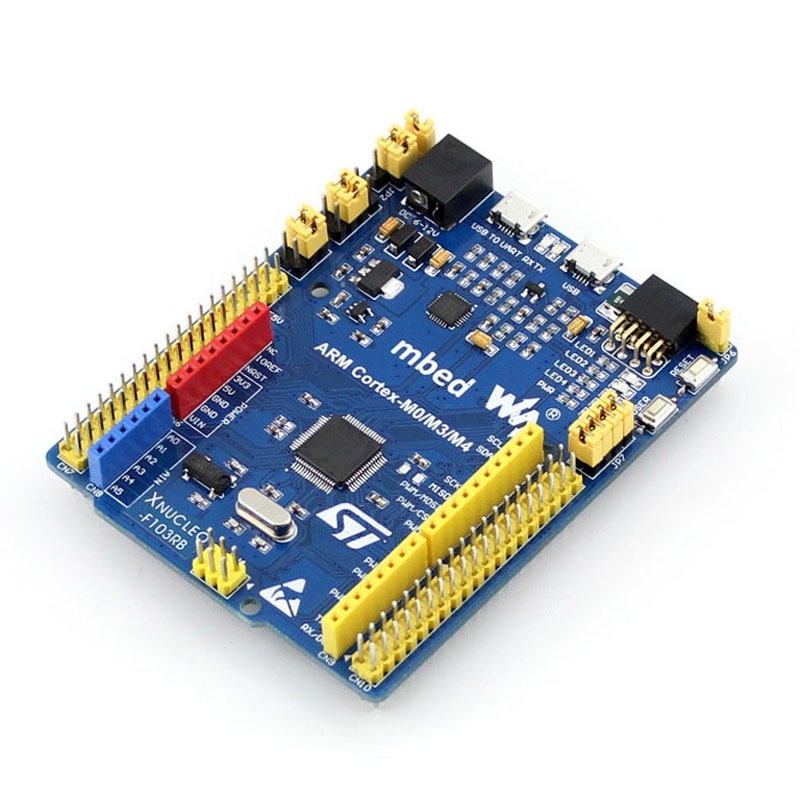

XNUCLEO-F103RB Development Kit, Comes with Common Used Peripheral Shields, OLED, RTC, AD/DA, Audio Codec, RS485, CAN ... Overview This development kit includes : 1. XNUCLEO-F103RB (STM32 Development Board, Supports Arduino, Compatible with NUCLEO-F103RB) 2. Accessory Shield (0.96inch OLED, high precision RTC, 3-axis accelerometer, temperature sensor, RGB LED, etc.) 3. Analog Test Shield (AD acquisition, DA output test) 4. Music Shield (Audio codec, music playing, recording) 5. RS485 CAN Shield (RS485 and CAN communication) XNUCLEO-F103RB Features 1. Compatible with NUCLEO-F103RB, onboard Cortex-M3 microcontroller STM32F103RBT6 2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources 3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion 10. Supports mbed, build prototype quickly by mbed SDK and online tools 11. Comprehensive free software HAL library including a variety of software examples 12. Comes with a separated ST-LINK/V2 module What is on the XNUCLEO-F103RB 1. STM32F103RBT6 - Core : ARM? 32-bit Cortex?-M3 -Operating frequency : 72MHz -Operating voltage : 2.0V-3.6V -Package : LQFP64 -Memories : 128kB Flash, 20kB SRAM -Interfaces : 2 x SPI, 3 x USART, 2 x I2C, 1 x CAN, 1 x USB -AD/DA : 2 x AD (12 bit, 16 channels) 2. SPX3819M5 : 3.3V voltage regulator 3. AMS1117-5.0 : 5.0V voltage regulator 4. CP2102 : USB to UART convertor 5. Arduino connector : for connecting Arduino shields 6. ICSP interface : Arduino ICSP 7. USB TO UART : for debugging 8. USB connector : USB communication interface 9. SWD interface : for programming and debugging 10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion 11. 6-12V DC input 12. User button 13. Reset button 14. Power indicator 15. User LED 16. 500mA fast self-recovery fuse 17. Serial port Rx/Tx indicator 18. 8MHz crystal 19. 32.768KHz crystal 20. ADC/I2C selection jumper - Short A and B : Arduino A4, A5 is used as I2C - Short B and C : Arduino A4, A5 is used as ADC 21. UART selection jumper 22. MCU current test jumper : for low power tests 23. Power selection jumper - Short 5V and U5V : powered from USB connection - Short 5V and E5V : powered from external power supply 24. USB enable jumper - Short the jumper to enable - Open the jumper to disable 25. User button jumper - Short the jumper to connect to I/Os used in example code - Open the jumper to connect to other custom pins via jumper wires 26. User LED jumper - Short the jumper to connect to I/Os used in example code - Open the jumper to connect to other custom pins via jumper wires Package Contents 1. XNUCLEO-F103RB x 1 2. ST-LINK/V2 (mini) x 1 3. USB Type A Plug to Micro B Plug Cable x 1 4. USB Type A Plug to Receptacle Cable x 1 5. Accessory Shield x 1 6. Analog Test Shield x 1 7. Music Shield x 1 8. Micro SD Card 16GB x 1 9. RS485 CAN Shield x 1

Specifications

SKU

ZY14186040

Category

Consumer Electronics › Electronics Module › MCU Tools

Weight

0.37 kg

Delivery

Standard delivery
