ZL-7801A Dual Output Intelligent Temperature And Humidity Conductor Automatic Temperature Conductor

Product Description

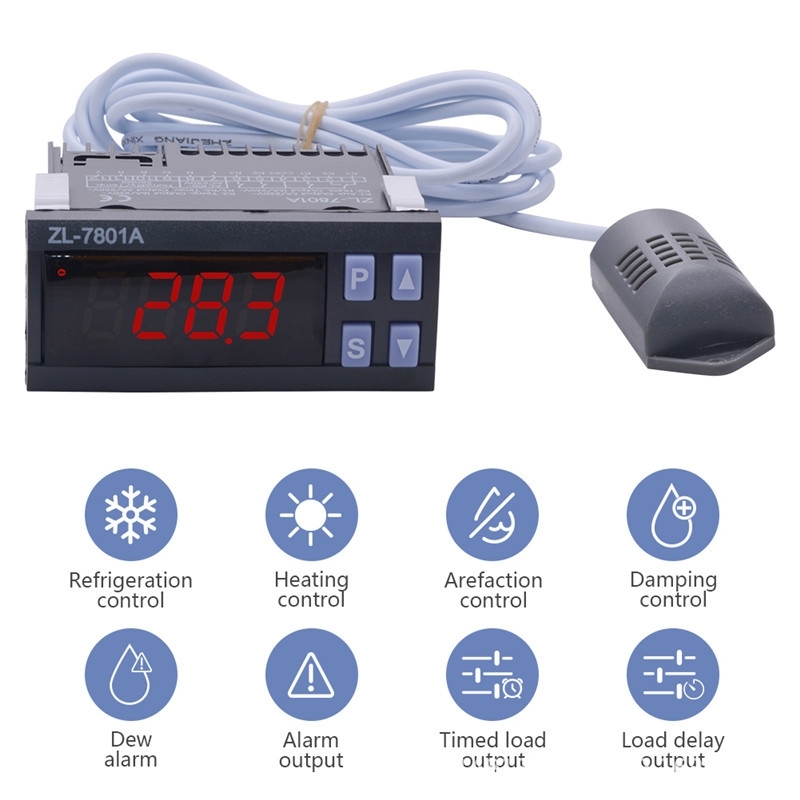

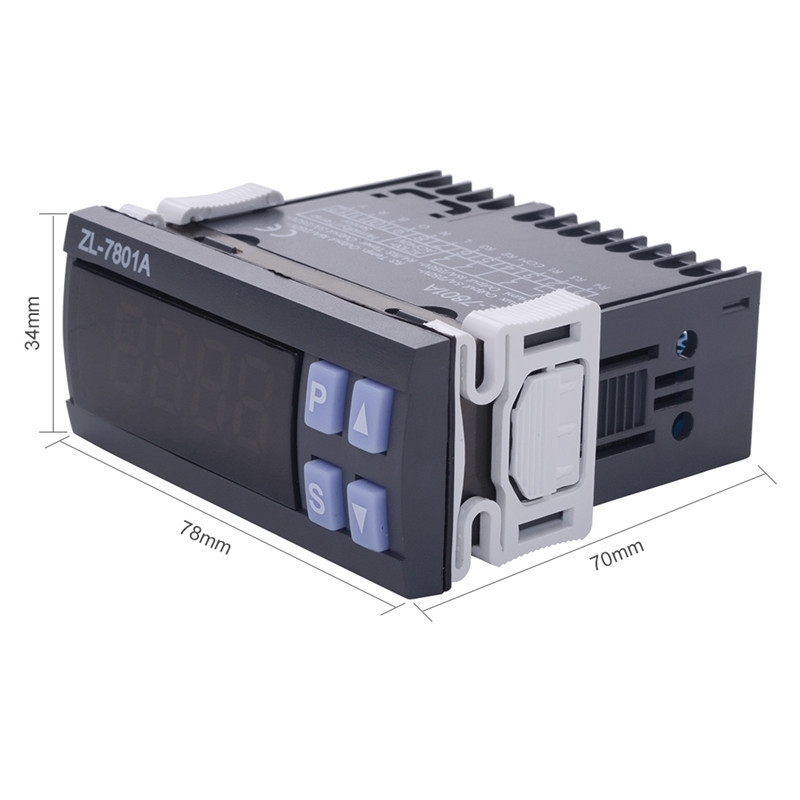

The main function: 1. Refrigeration control, heating control 2. Dehumidification control, humidification control 3. Condensation alarm, alarm output 4. Timing load output, load delay output Product specifications: 1. Material: PC + ABS flame retardant 2. Power supply voltage: AC100-240V 50/60HZ 3. Input signal: one integrated temperature and humidity sensor (line length 2 meters) 4. Output load: R1 load 5A/250Vac, R2, R3 load 16A/250Vac, R4, R5 load 3A/250Vac (loads are all resistive) 5. Setting range: humidity 5%-95%, RH division value: 0.1%, temperature: minus 20-60 degrees Celsius, division value: 0.1 degrees Celsius 6. Measurement accuracy: temperature ±1%; humidity ±5% 7. Working environment: minus 20-45 degrees Celsius; 10-90RH without condensation 8. Protection level: IP65 (front panel) 9. Overall size: 7.8 x 3.45 x 7.1 cm 10. Opening size: 7.1 x 2.9 cm

Specifications

SKU

TBD05732753

Category

Consumer Electronics › Test Equipment › Thermostat & Thermometer

Weight

0.454 kg

Delivery

Standard delivery
