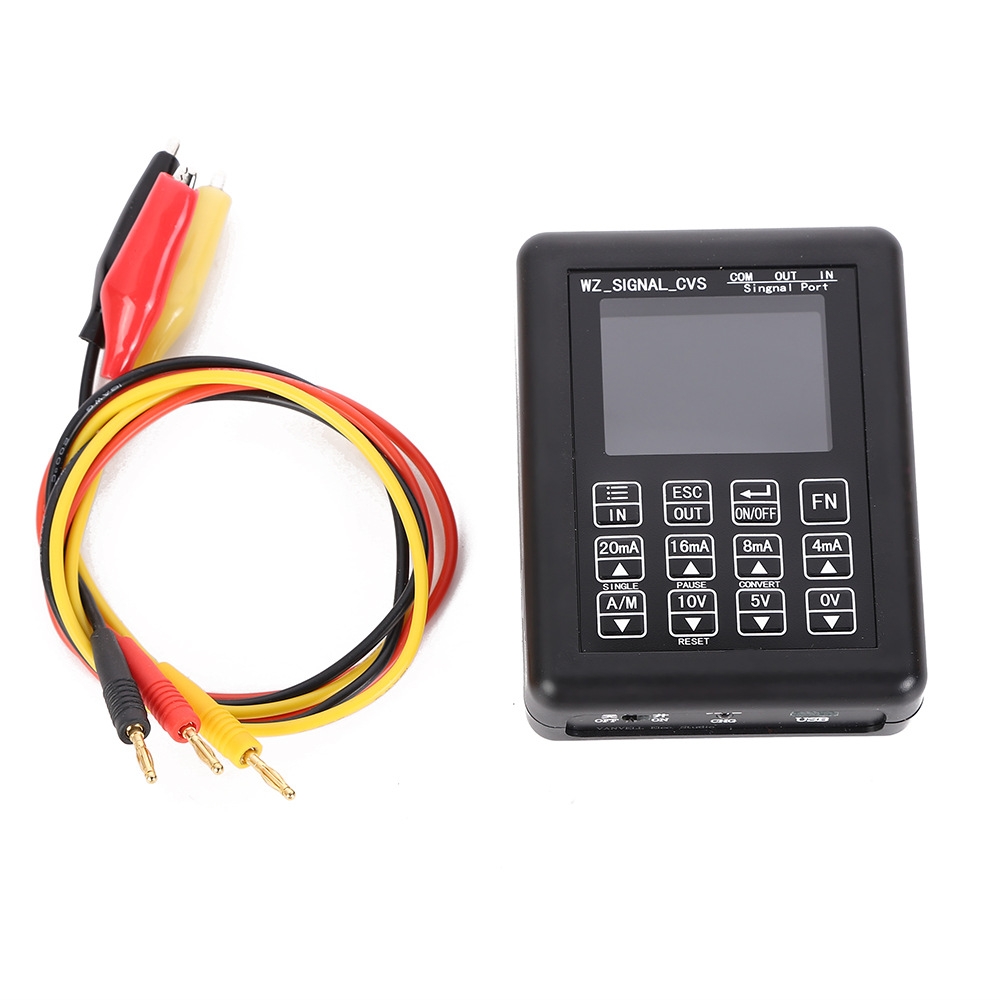

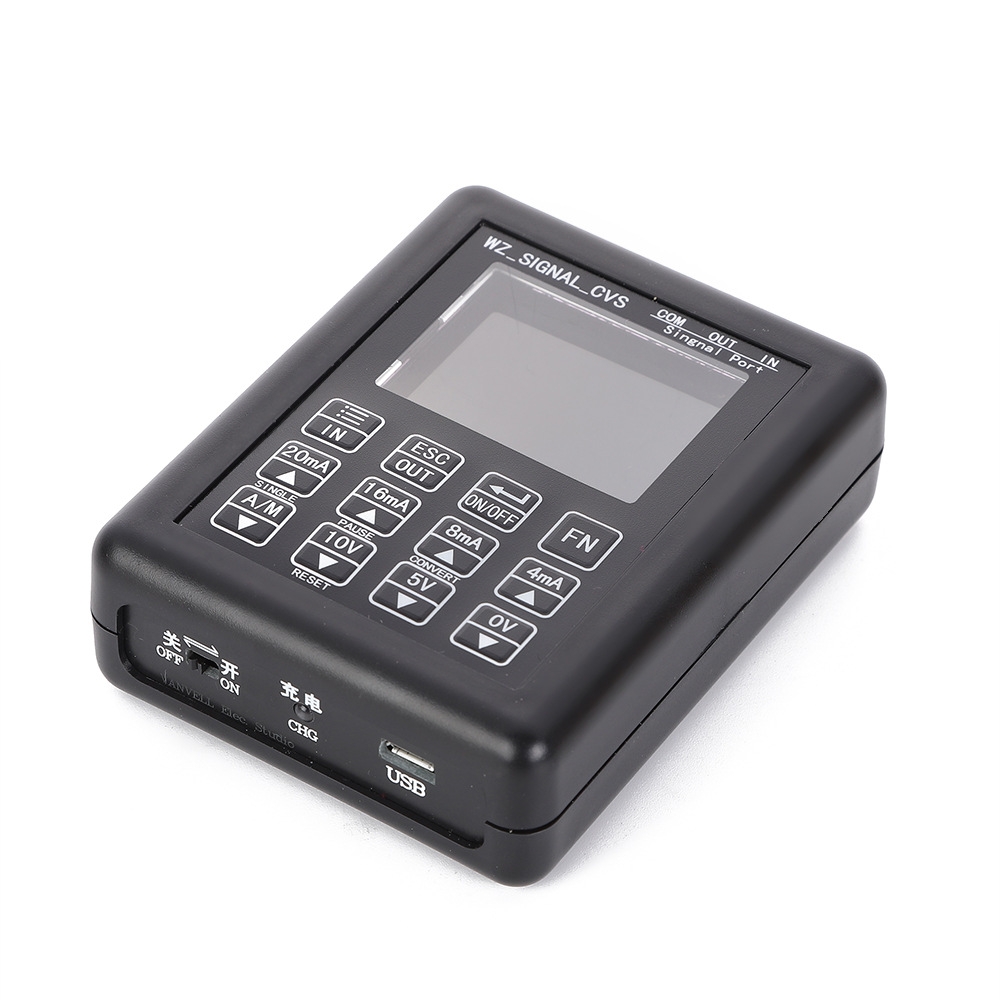

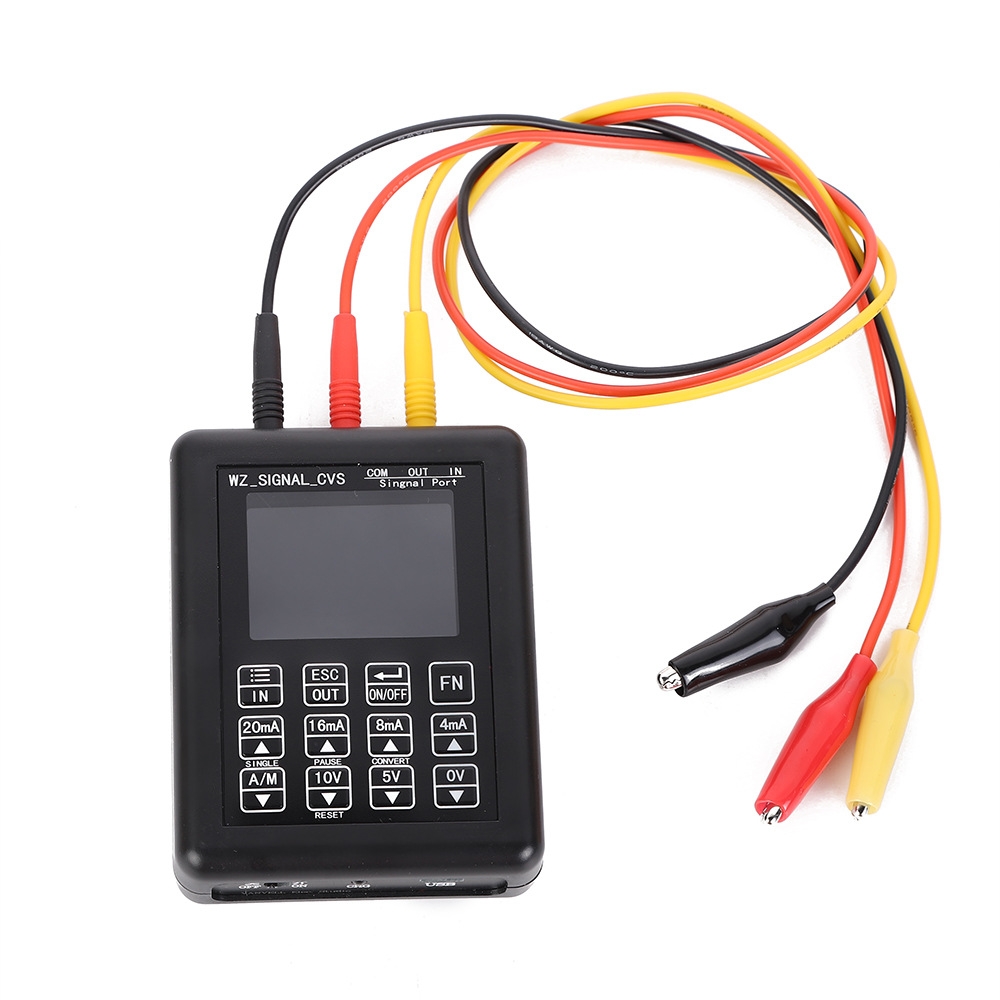

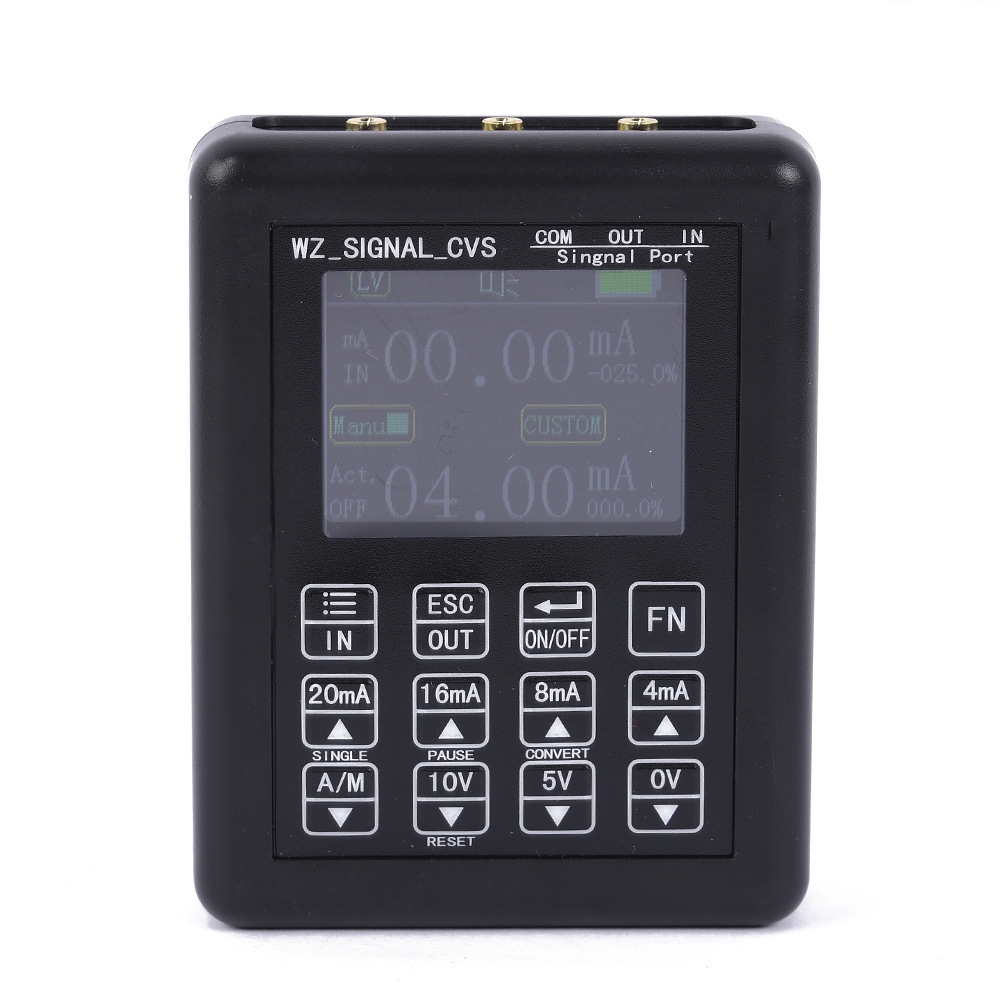

0-10V 4-20mA Signal Generator Adjustable Current Voltage Analog Simulator

Product Description

1. Active current output: Range: 0-24mA; Resolution: 0.01mA; Load (max): 750 ohms 2. Passive current output: Range: 0-24mA; Resolution: 0.01mA; External power supply up to 30V. 3. Voltage output range: 0-12V; Resolution: 0.01V; Current (max) 30mA 4. 24V voltage output: drive current: 24mA. 5. Current input measurement: Range: 0-24mA; Resolution: 0.01mA; Input impedance: 100Ω 6. Voltage input measurement: Range: 0-30V; Resolution: 0.01V; Input impedance: 2.5MΩ 7. Working environment: 0-50 degrees Celsius 8. Protection voltage: 30V 9. Product size: 90 x 70 x 28mm

Specifications

SKU

TBD06022743

Category

Consumer Electronics › Test Equipment › Current & Voltage Tester

Weight

0.124 kg

Delivery

Standard delivery
