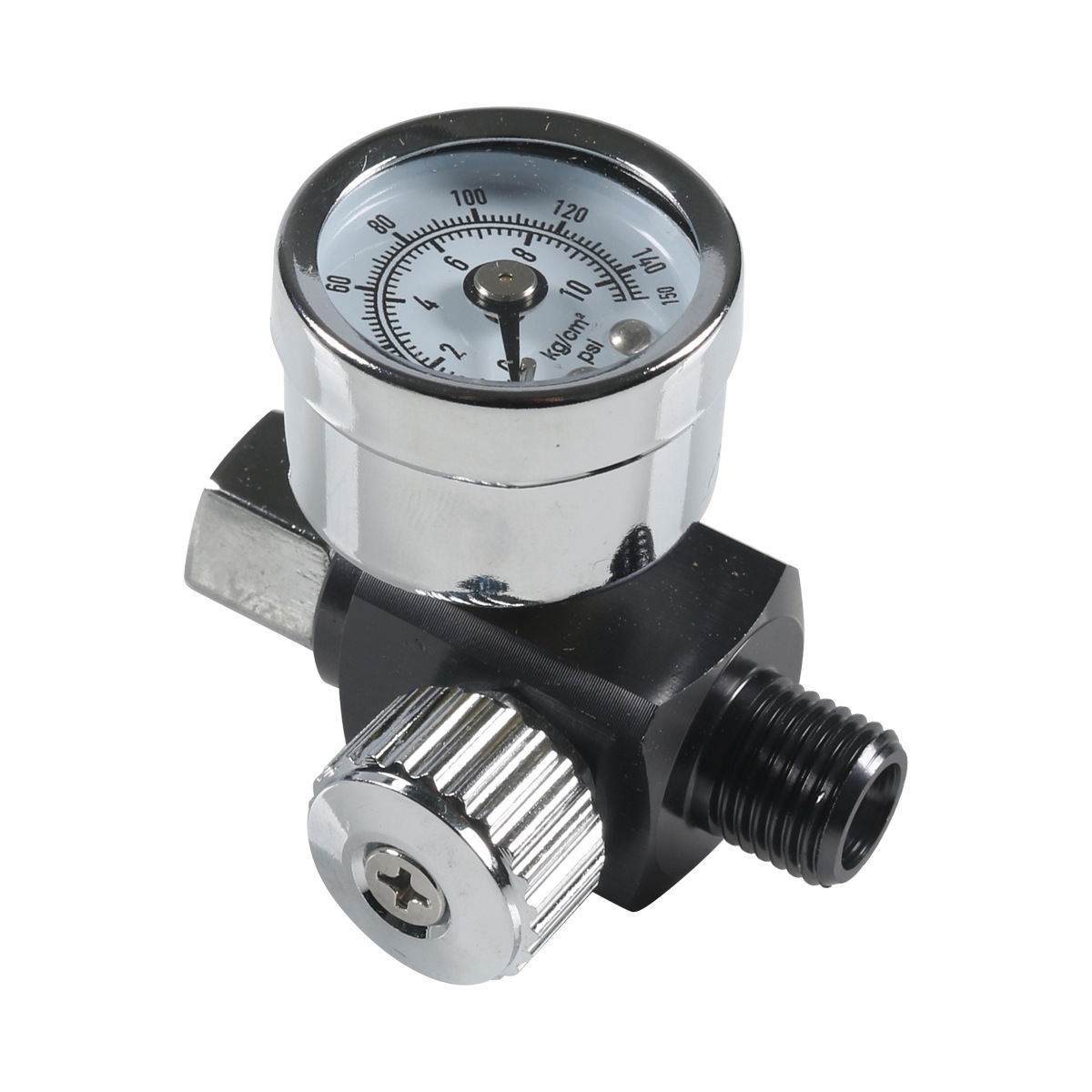

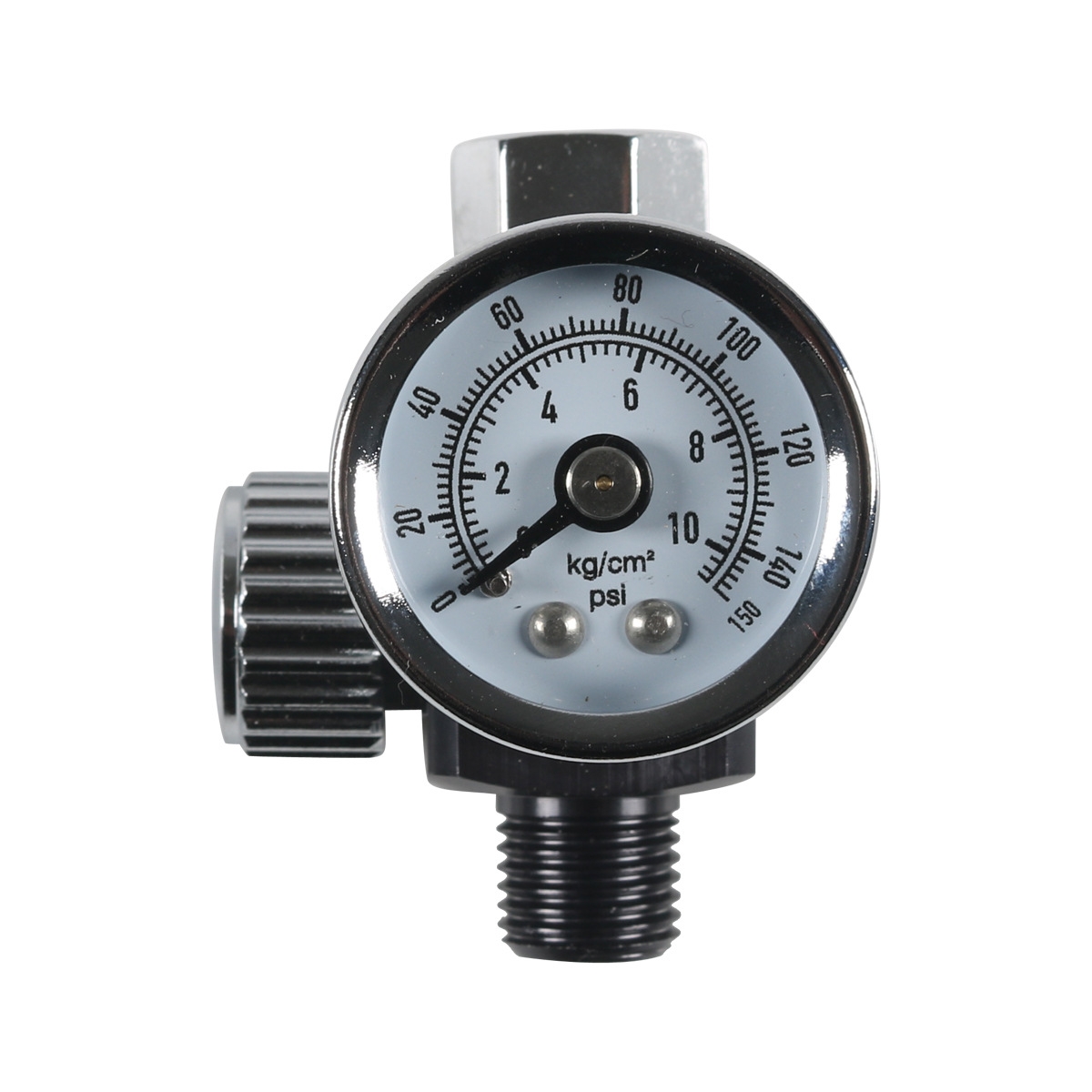

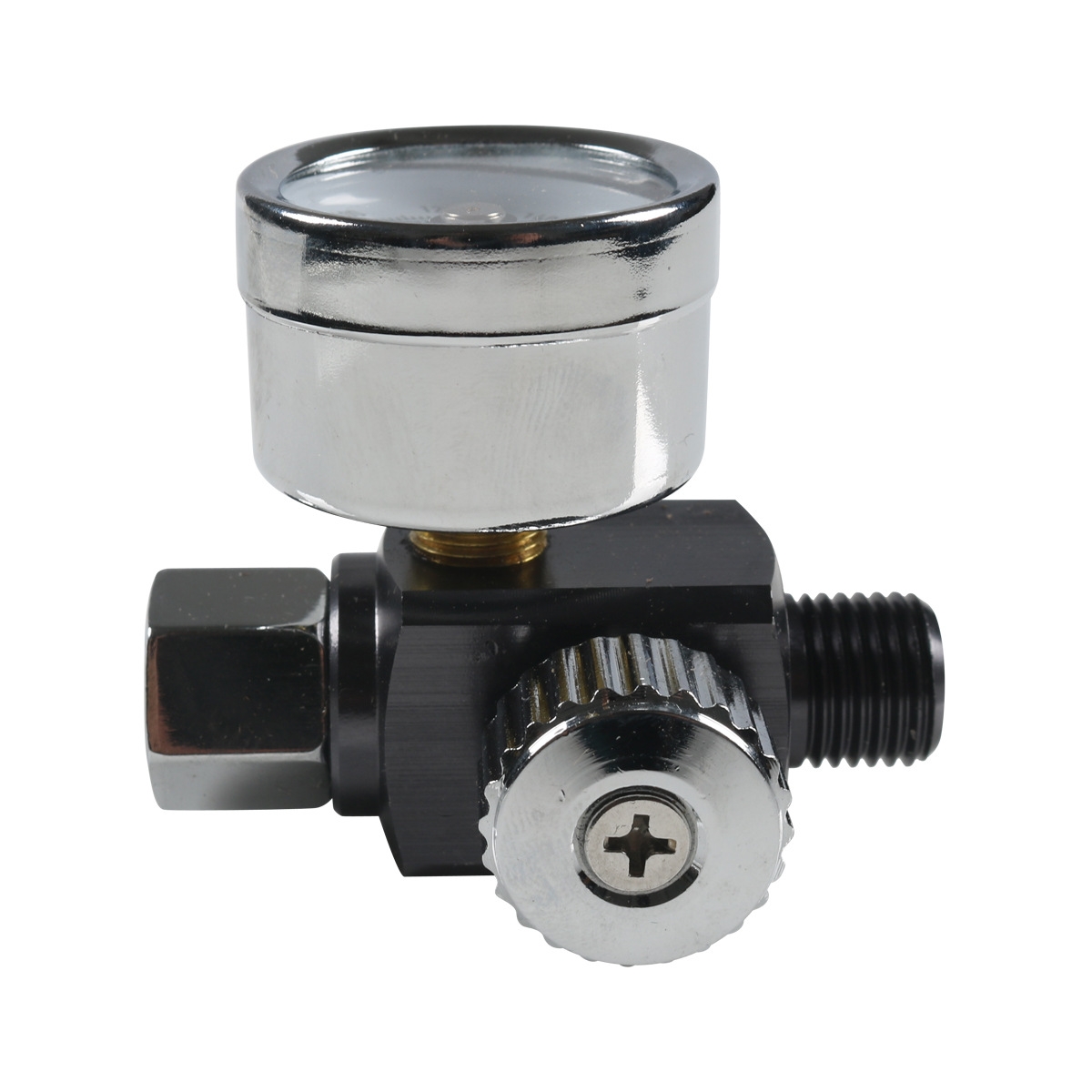

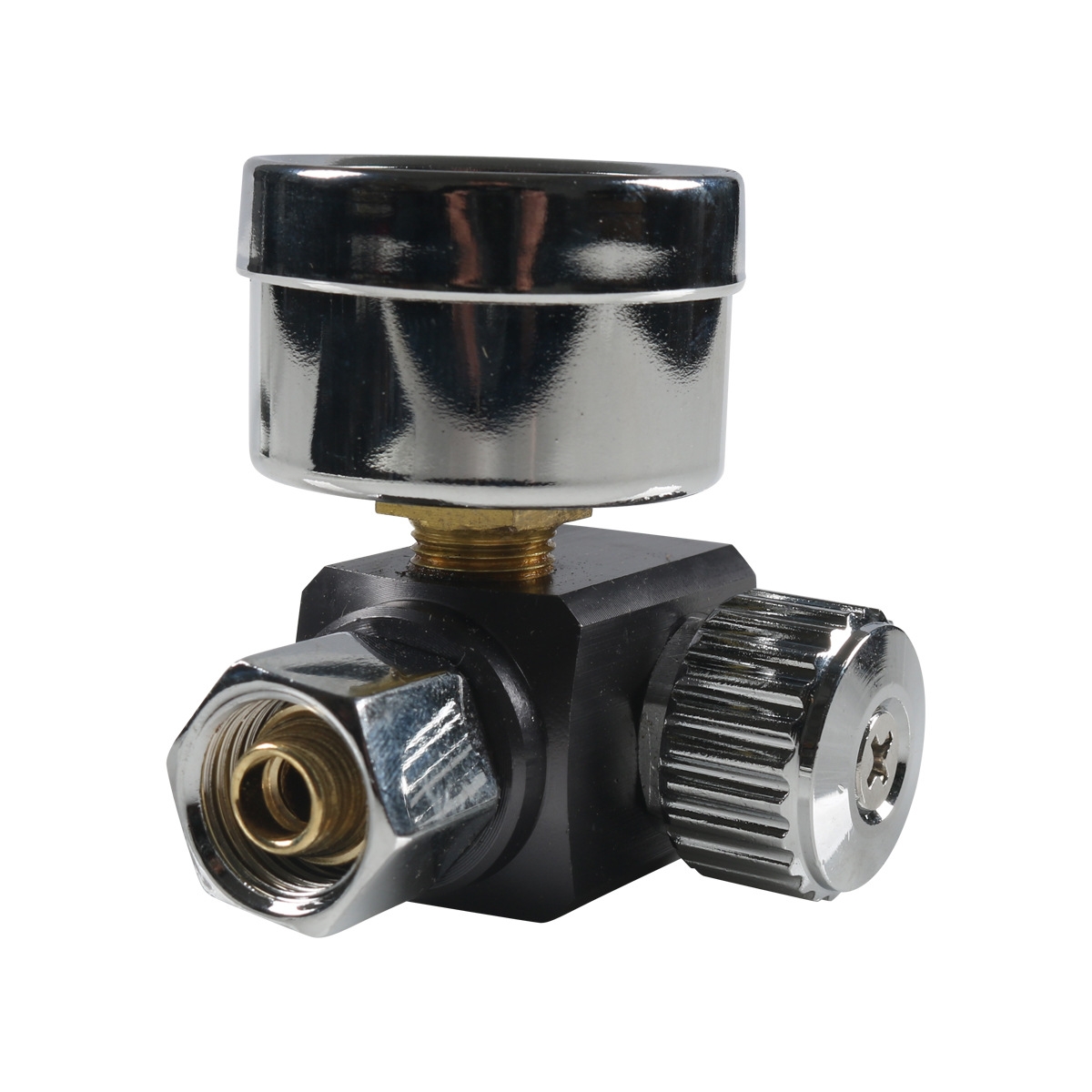

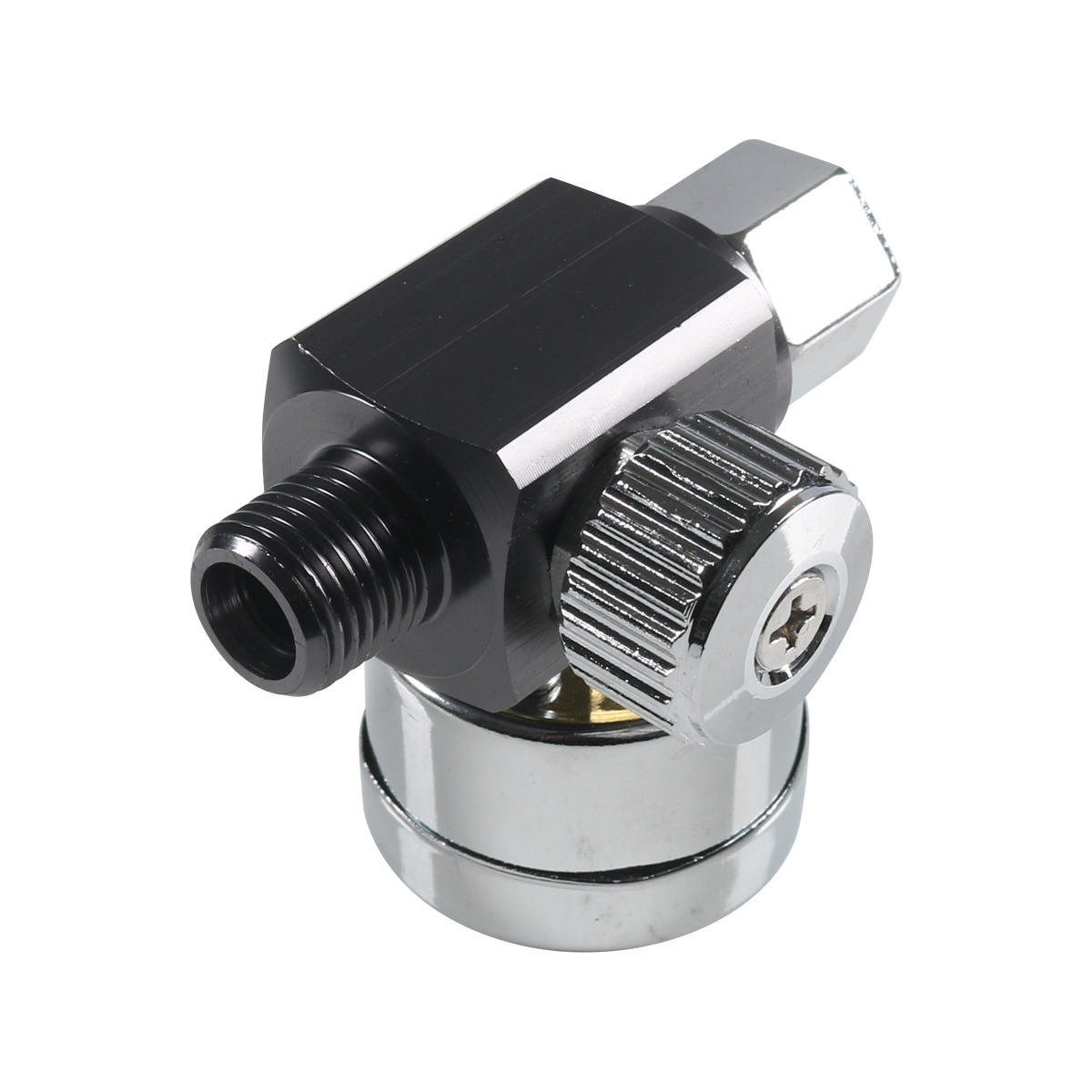

1/4 Inch NPS Thread Paint Nozzle Air Pressure Regulating Valve(A9517)

Product Description

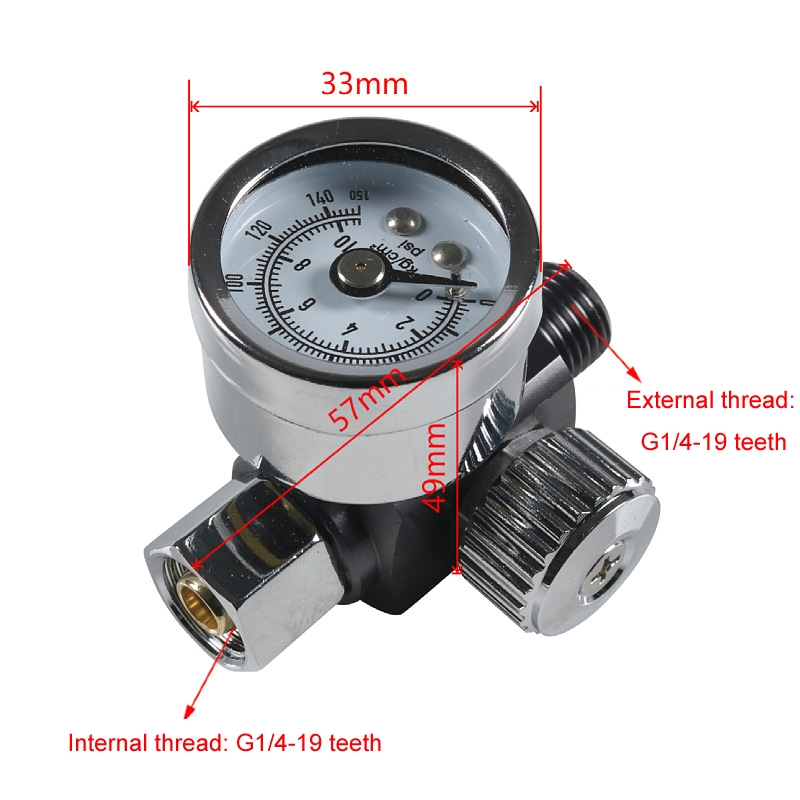

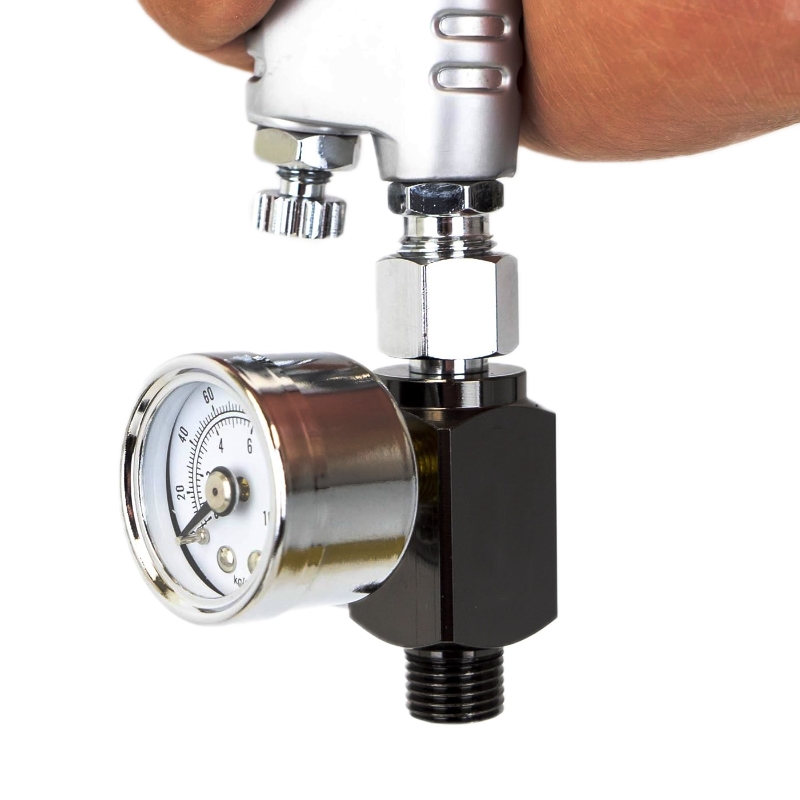

1. Material: aluminum alloy + copper 2. Adjustment method: rotary 3. Air adjustment range: 0-150 PSI 4. Air flow: 16 CFM 5. Air inlet: external thread size: G1/4-19 thread (usually 2-point thread) 6. Air outlet: hexagonal cap (internal thread): G1/4-19 thread (usually 2-point thread) 7. Product use: The main function is to accurately adjust the compressed air pressure supplied to the nozzle so that it can work according to the predetermined atomization mode 8. Features: accurately control the compressed air pressure entering the nozzle to ensure stable and consistent atomization effect during the spraying operation, and can be finely adjusted according to actual process requirements 9. Net weight: 98g 10. Size: 5.7x4.9x3.7cm

Specifications

SKU

TBD0605271201A

Category

Home & Garden › Tools & Industrial & Scientific › Others

Weight

0.113 kg

Delivery

Standard delivery
