1040 5 Pin Waterproof Integrated Automotive Relay With Bracket, Rated voltage: 12V

Product Description

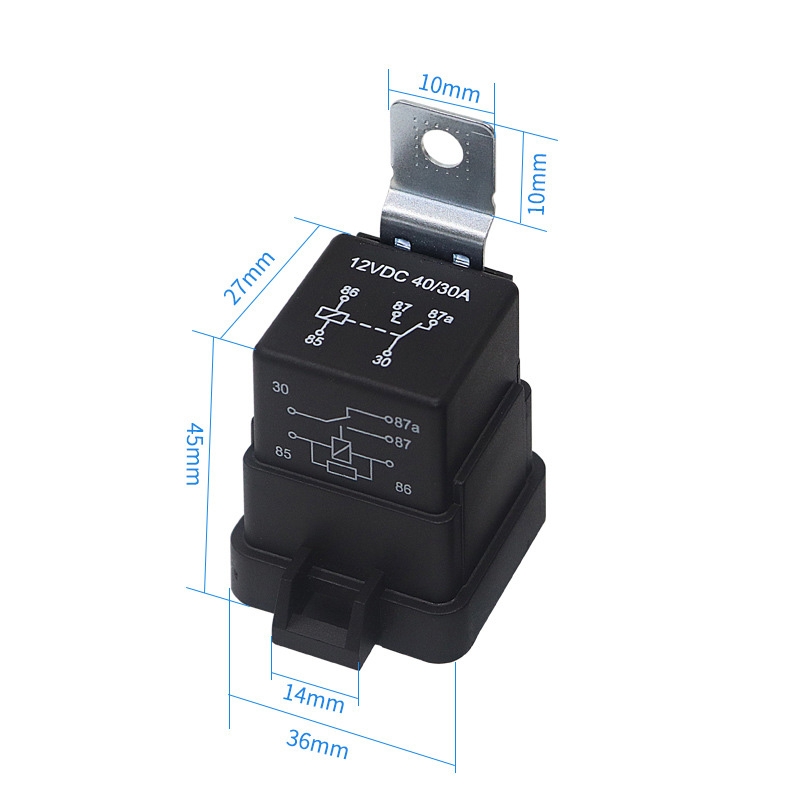

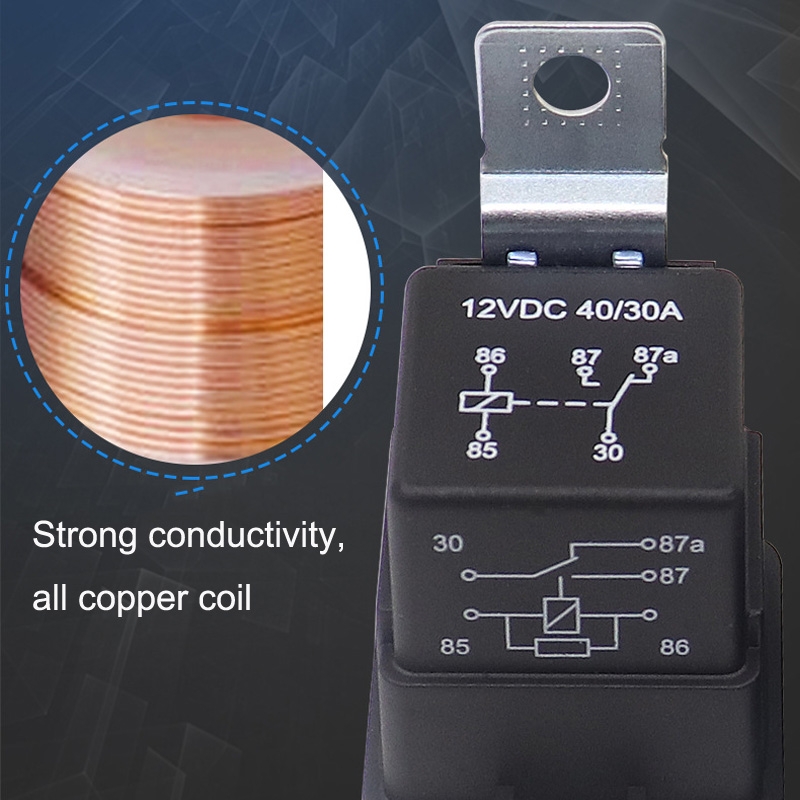

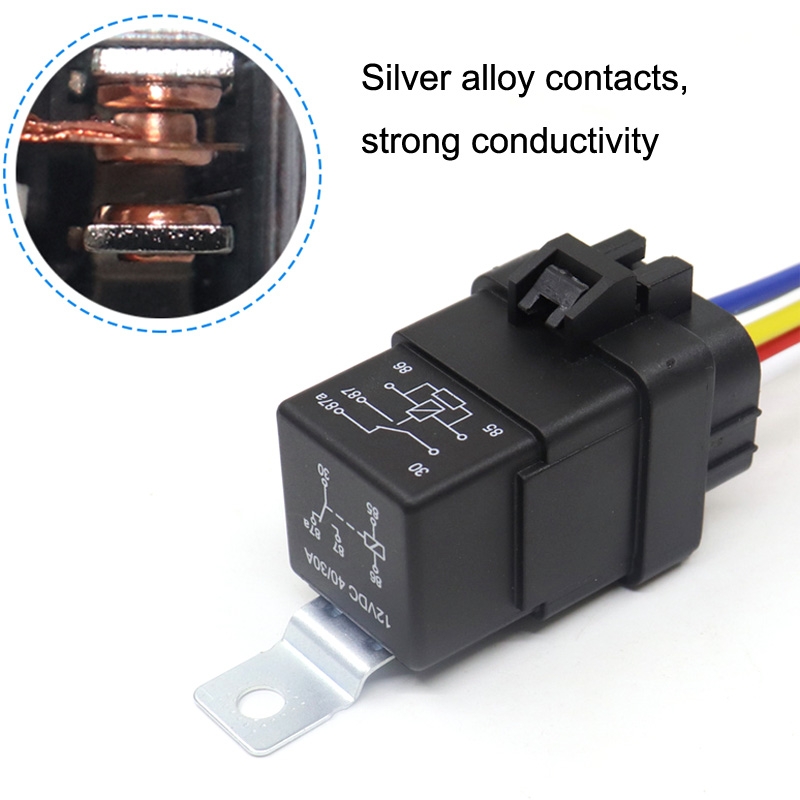

1. Safe to use and long life 2. Strong conductivity, all copper coil 3. Flame-retardant plastic material, integrated waterproof 4. The electromagnetic coil is reliable in attracting, the whole copper enameled wire, the temperature rise is lower, the suction is stronger, and the performance is more stable 5. Application: car control device 6. Working temperature: -40 to 125 degrees Celsius 7. Silver alloy contacts, strong conductivity 8. Contact form: conversion 9. Rated voltage: 12V, 24V 10. Coil power supply: 12V 11. Coil power: 1.8w 12. Contact current: 40A 13. Contact switching current: 35mA 14. Size: about 45 x 36 x 27mm 15. Weight: about 35g

Specifications

SKU

TBD0601835201

Category

In Car › Replacement Parts › Relays

Weight

0.105 kg

Delivery

Standard delivery
