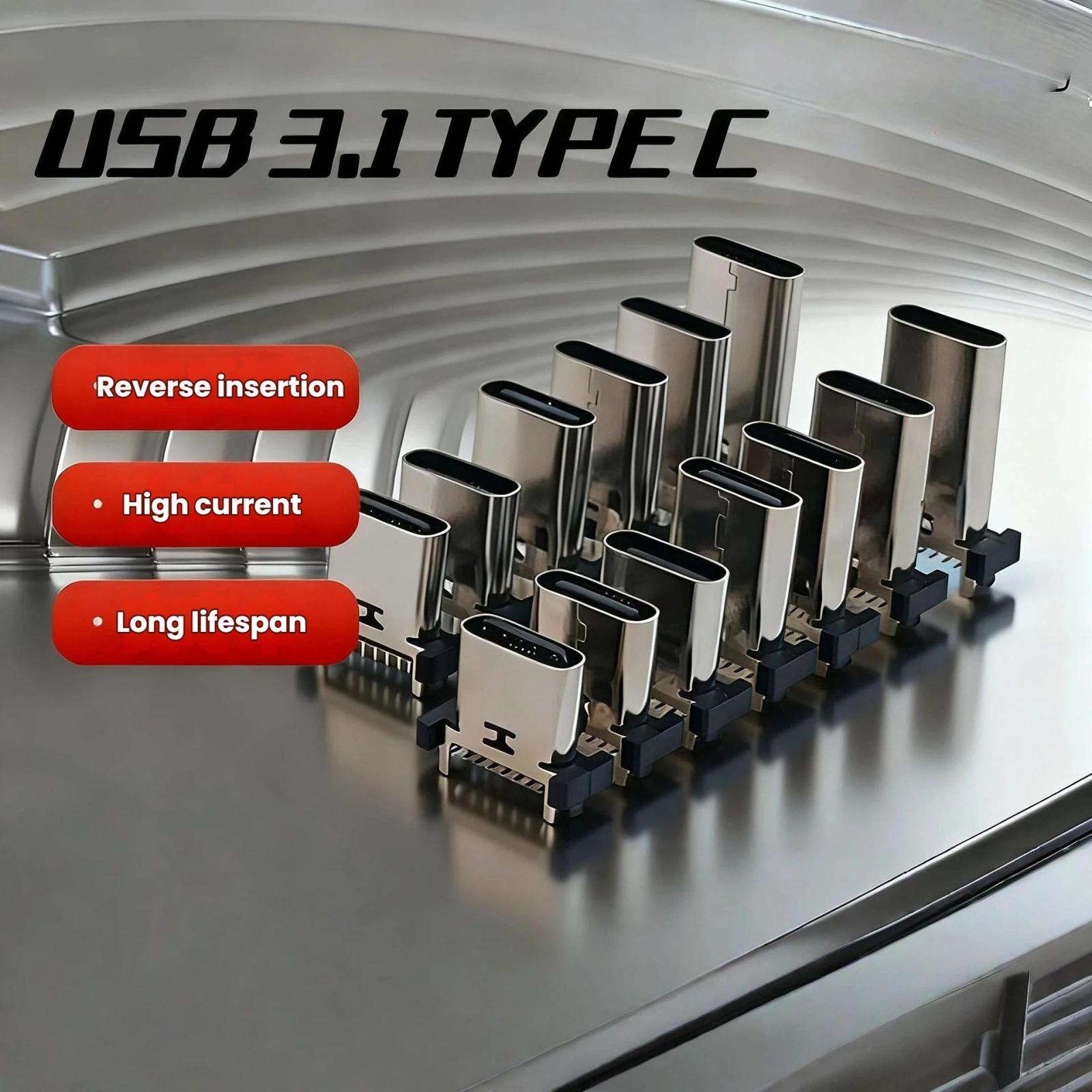

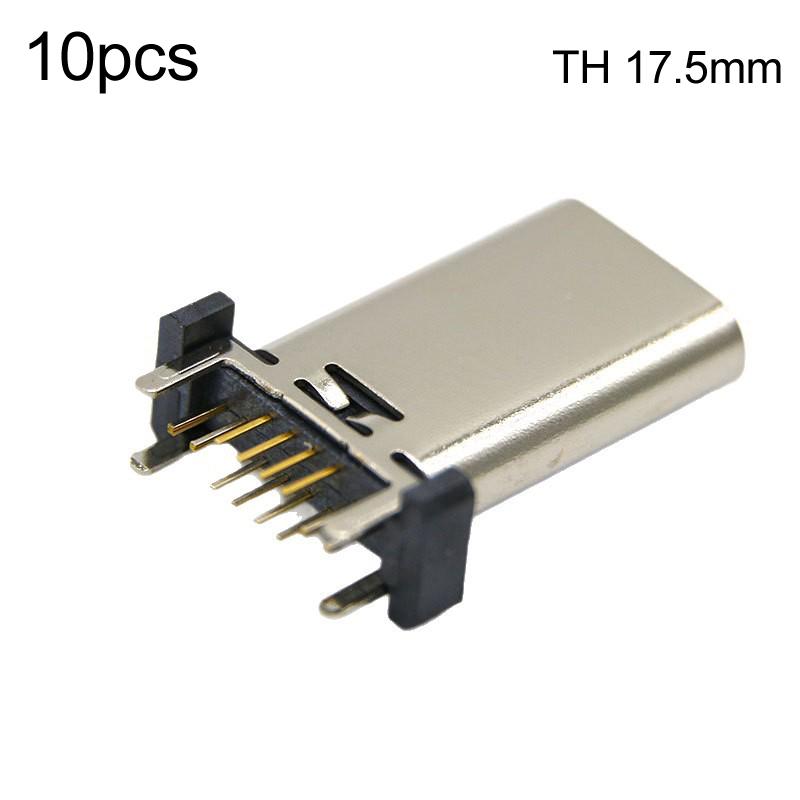

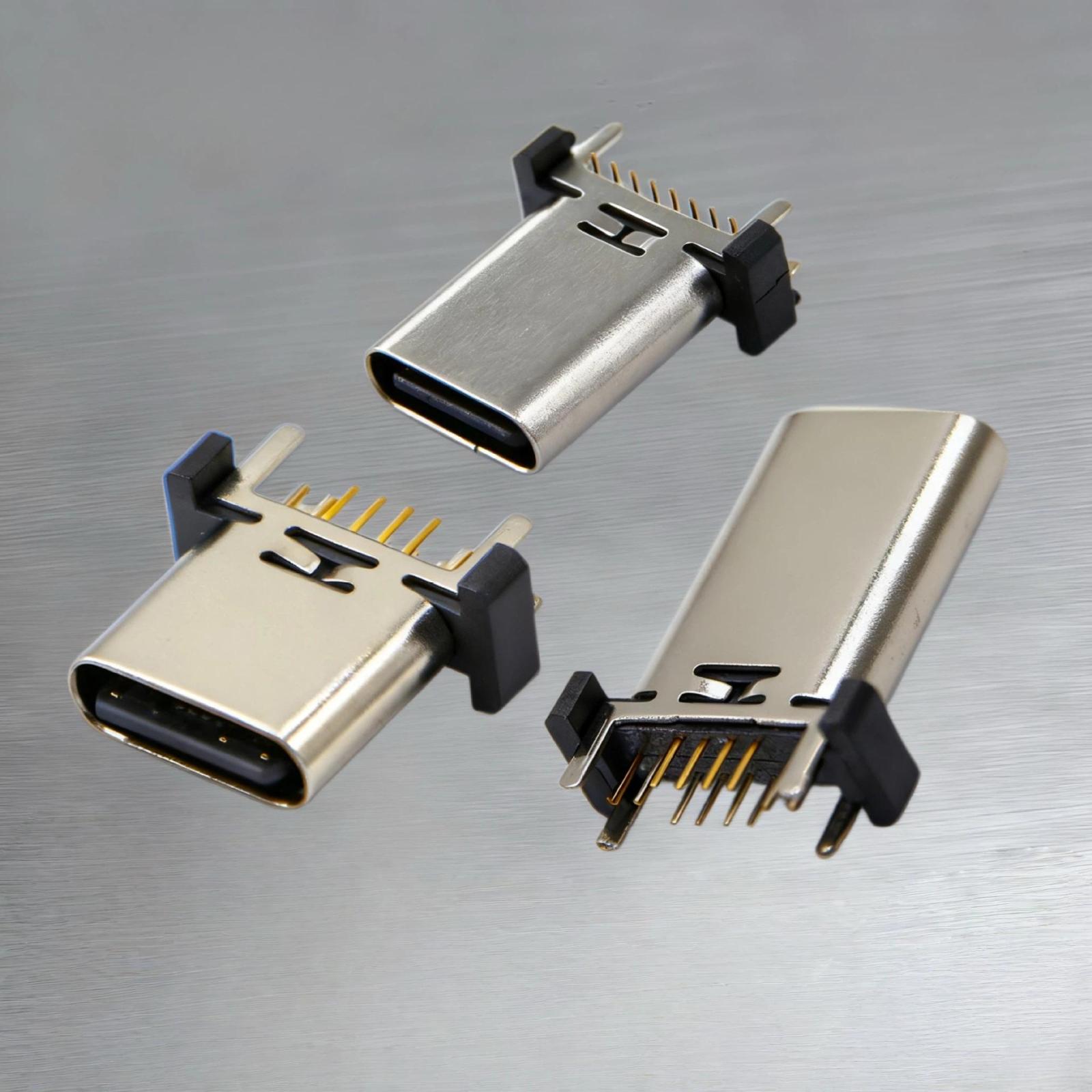

    10pcs 16-Pin USB Type-C Female Connector PD Fast Charge Port TH 17.5mm

    SKU: TBD0606635308

    SAR 22.27

    Price excludes VAT. Shipping is calculated at checkout.

    Standard Delivery

    Imported through standard delivery.

    Product Description

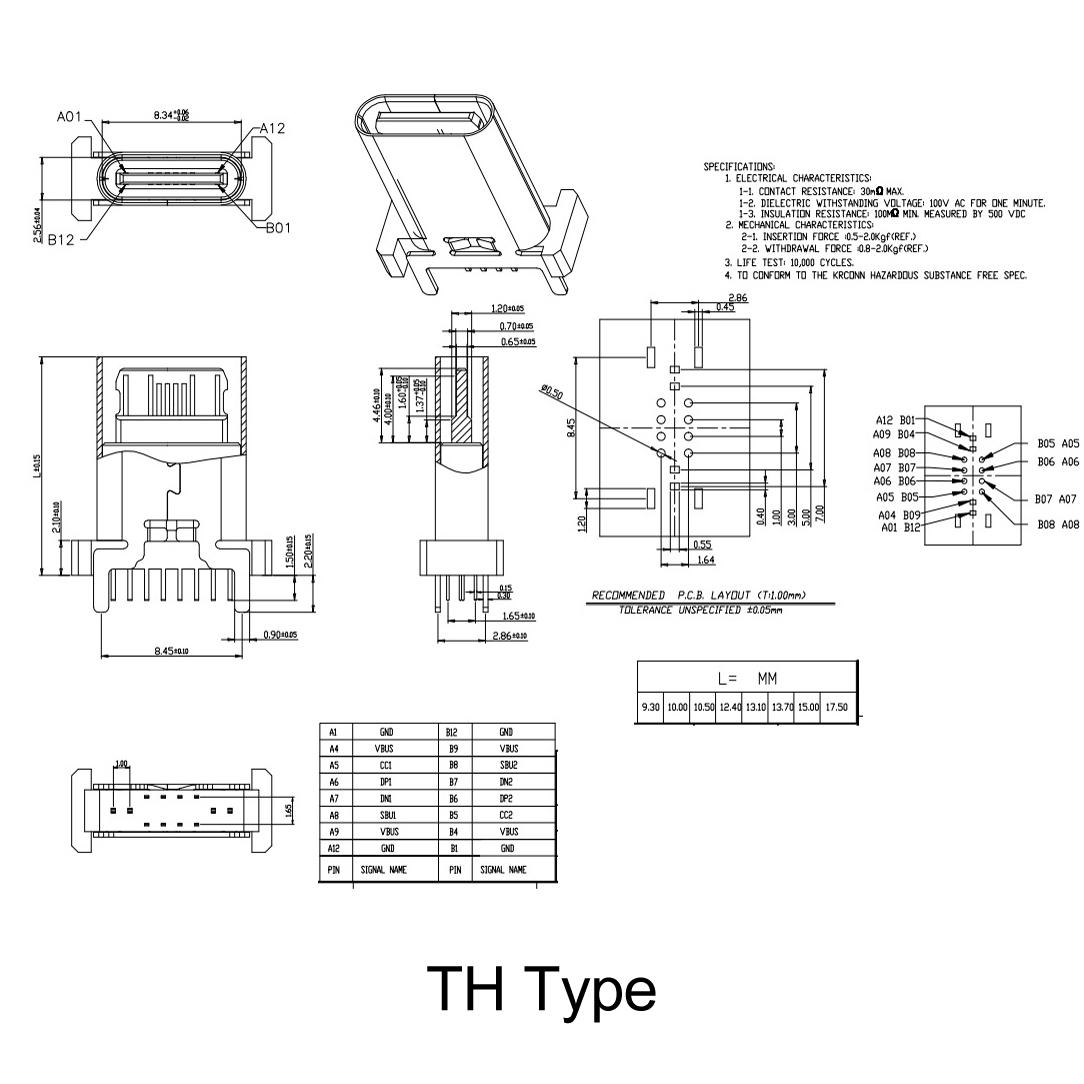

    I. Electrical Performance: 1. Rated Current: 5.0A 2. Contact Resistance: 40 milliohms maximum 3. Withstanding Voltage: 100V AC / 1mA MAX 4. Insulation Resistance: 150V DC / 100 megohms minimum II. Mechanical Performance: 1. Insertion Force: 5~20N 2. Withdrawal Force: 8~20N 3. Service Life: 10,000 cycles, withdrawal force 5N MIN

    Specifications

    SKU
    TBD0606635308
    Category
    Consumer Electronics › Plugs & Sockets › Connectors
    Weight
    0.084 kg
    Delivery
    Standard delivery
