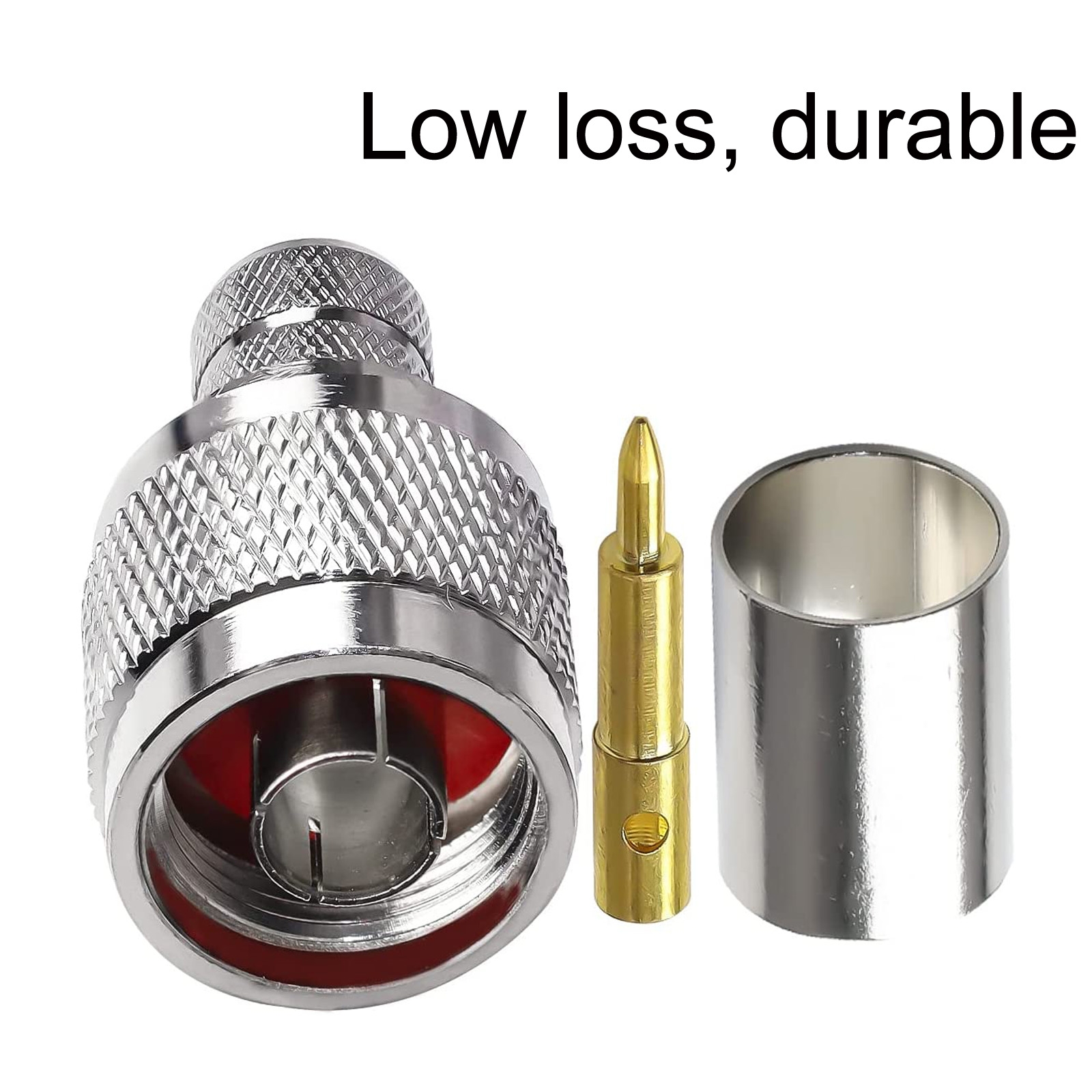

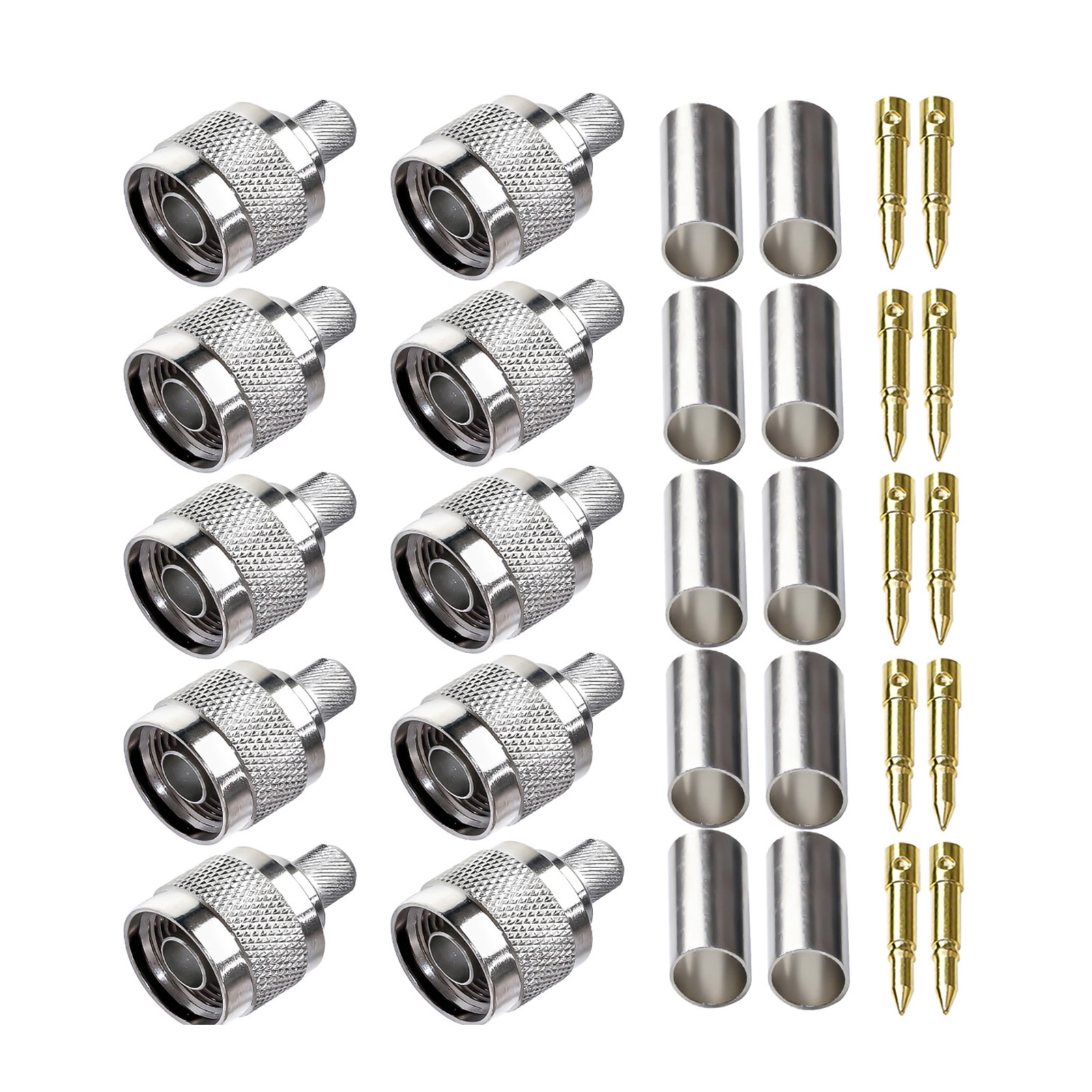

10pcs NJ-5 For LMR300/5D-FB N Type Plug Connector Low Loss RF Coaxial Connector

Product Description

1. RF coaxial connector, N type plug adapter 2. Low loss, durable 3. Insulator: PTFE 4. Outer Material: Nickel Plating 5. Pin contacts: pure copper 6. Impedance: 50 ohms 7. Temperature range: -65 to 165 degrees Celsius (PE cable -40 to 85 degrees Celsius) 8. Installation method: free suspension 9. Working voltage: 335V 10. Frequency range: 6GHz 11. Insulation resistance: greater than or equal to 5000 megohms 12. Insertion loss: less than or equal to 0.15 dB/6GHz 13. Durability: greater than or equal to 500 cycles 14. Vibration: 100 square meters (10-500Hz) 15. Peak gain: 0-12dB 16. Voltage standing wave ratio: less than or equal to 1.2

Specifications

SKU

TBD0425832704

Category

Computer & Networking › Wifi Antenna › Connectors

Weight

0.204 kg

Delivery

Standard delivery
