11x11mm Drone Model Airplane Joystick Vehicle Gimbal 3D Joystick Compact Gaming Controller Joystick

Product Description

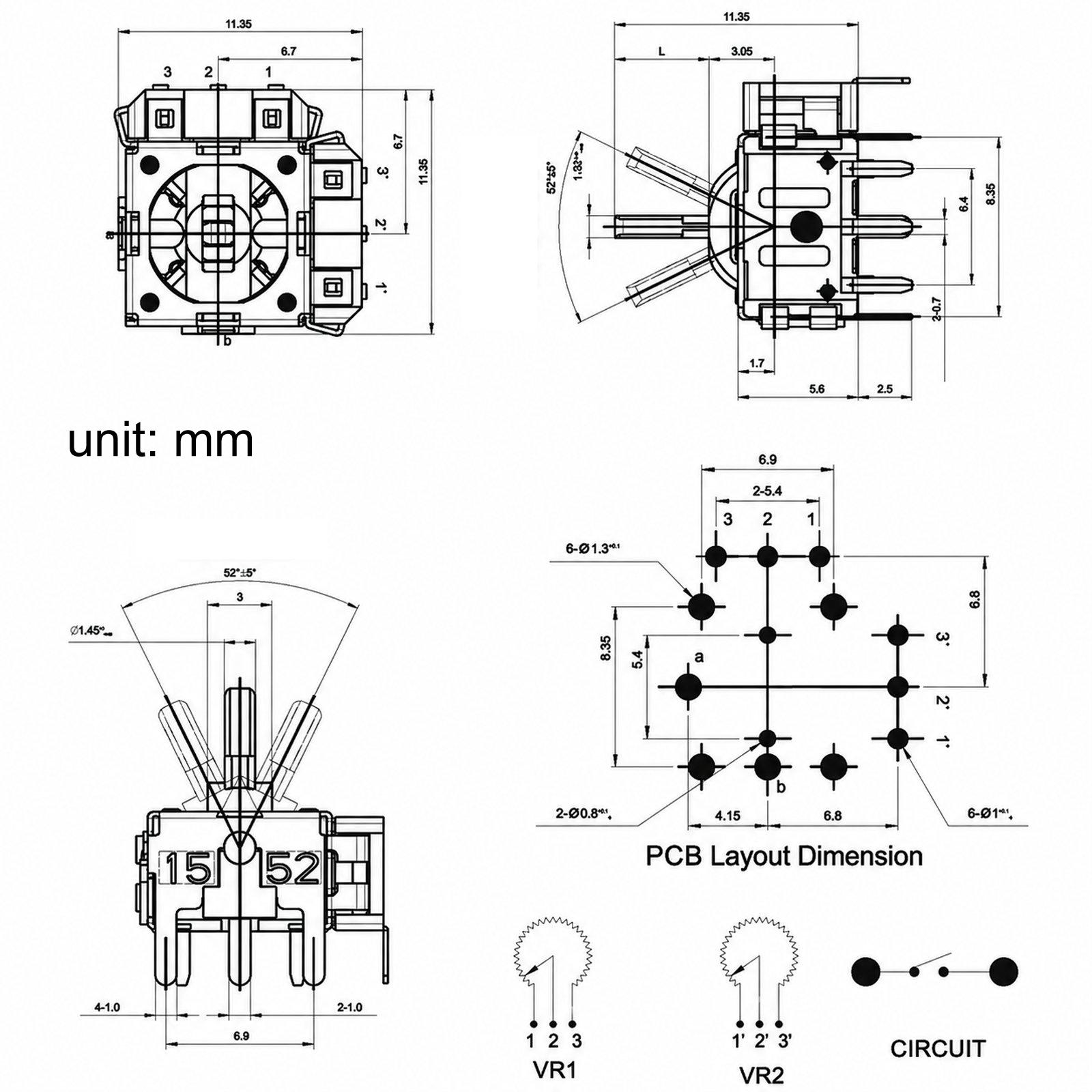

1. Suitable for drones, small joysticks, and RC model control sticks; can be mounted on either the left or right side 2. Highly compact, suitable for use in miniature devices with limited PCB layout space 3. Equipped with dual high-precision carbon-film potentiometers (standard resistance value: B10K) to achieve precise X/Y-axis analog output 4. Features an integrated micro-switch, supporting a press-to-activate function for additional confirmation or switching operations during control 5. Features a metal-reinforced housing and sturdy control shaft, ensuring a stable mechanical structure capable of withstanding frequent daily operation 6. Electrical resistance: B10K 7. Noise: Less than 68 mV 8. Dimensions: 11.35 x 11.35 x 5.6 mm, with a push-to-activate switch function

Specifications

SKU

TBD06070526

Category

Mobile Parts › DJI Spare Parts › Others

Weight

0.014 kg

Delivery

Standard delivery
