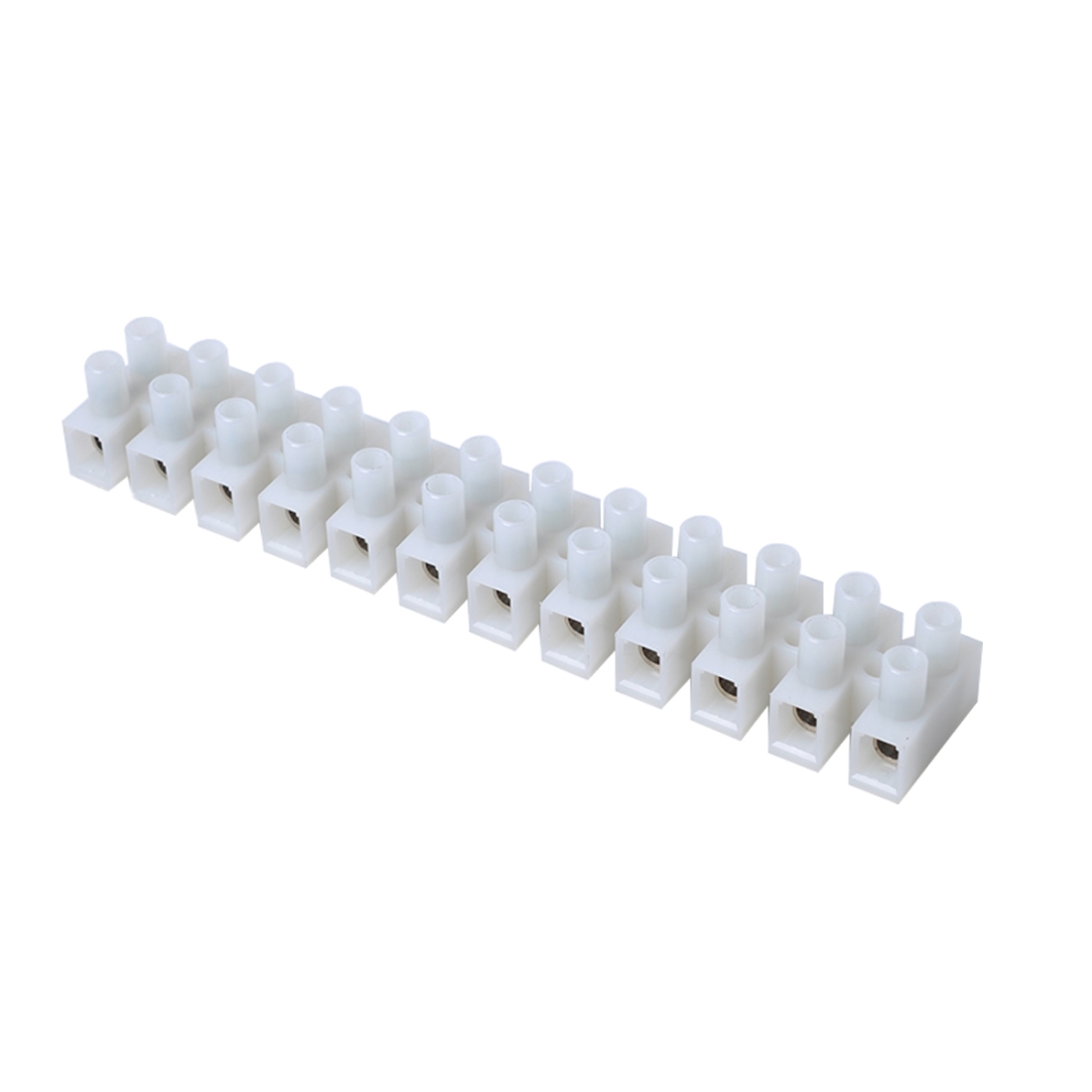

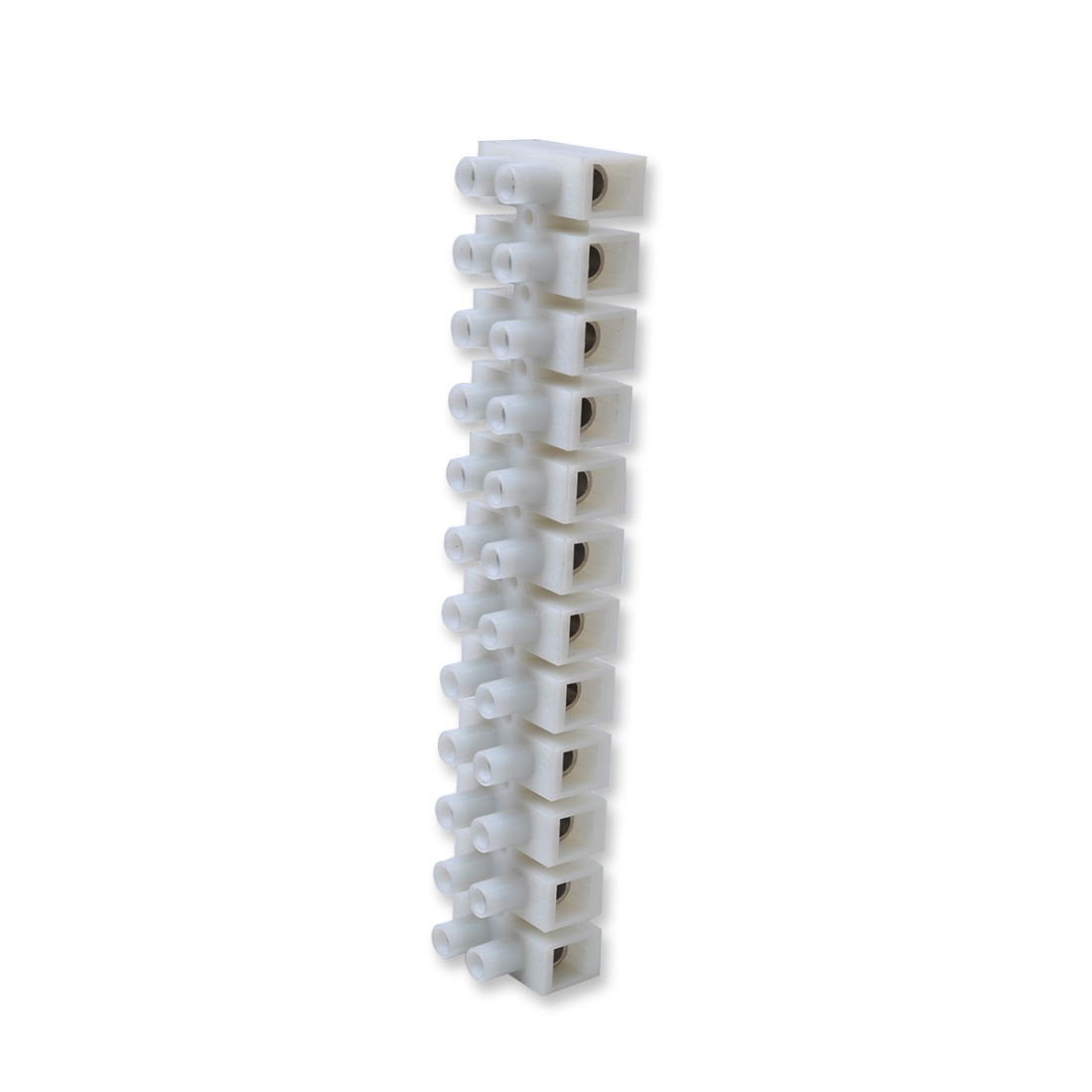

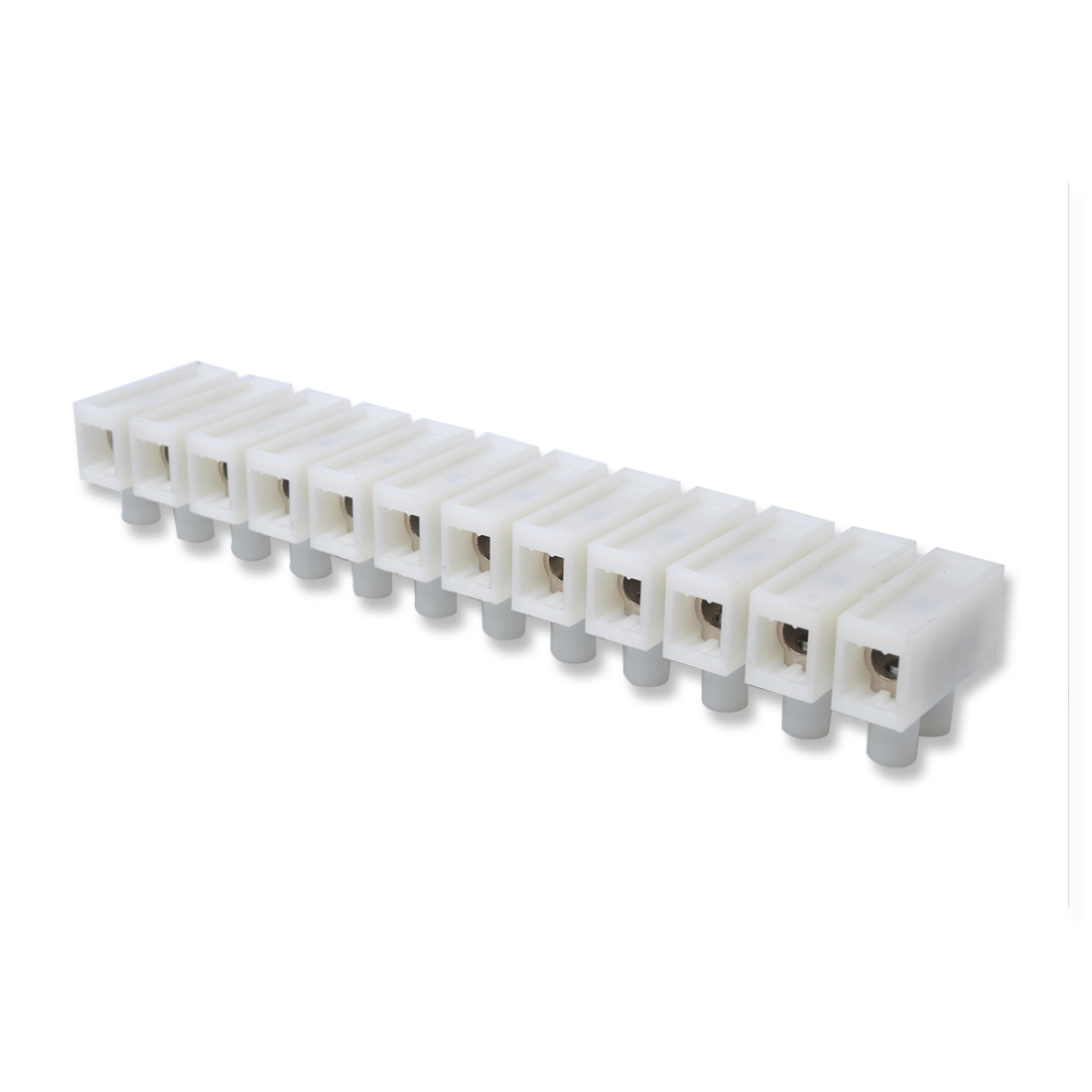

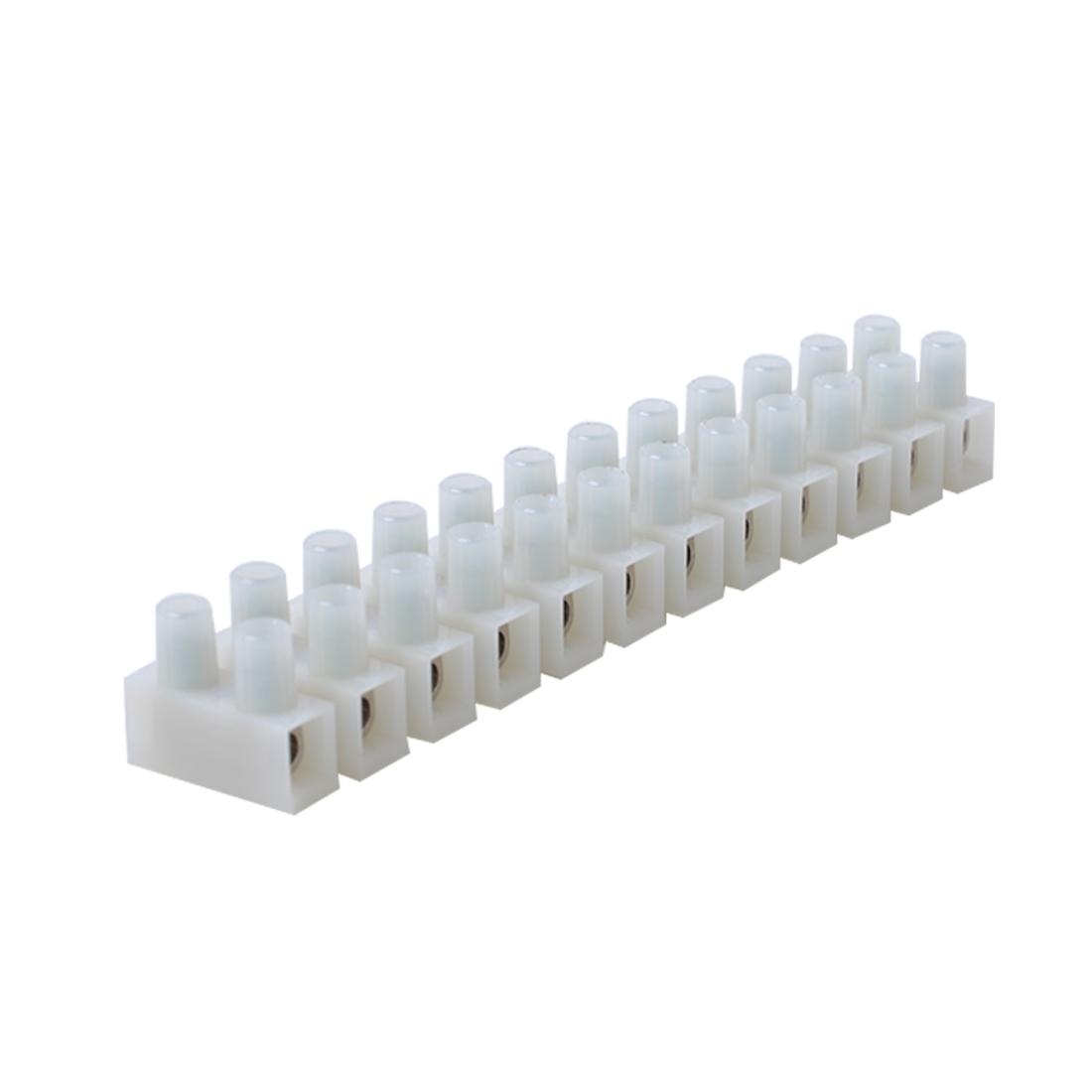

12 Position Barrier Screw Terminal Block Wire Dual Row Connector Strip 300V 50A with Screwdriver

Product Description

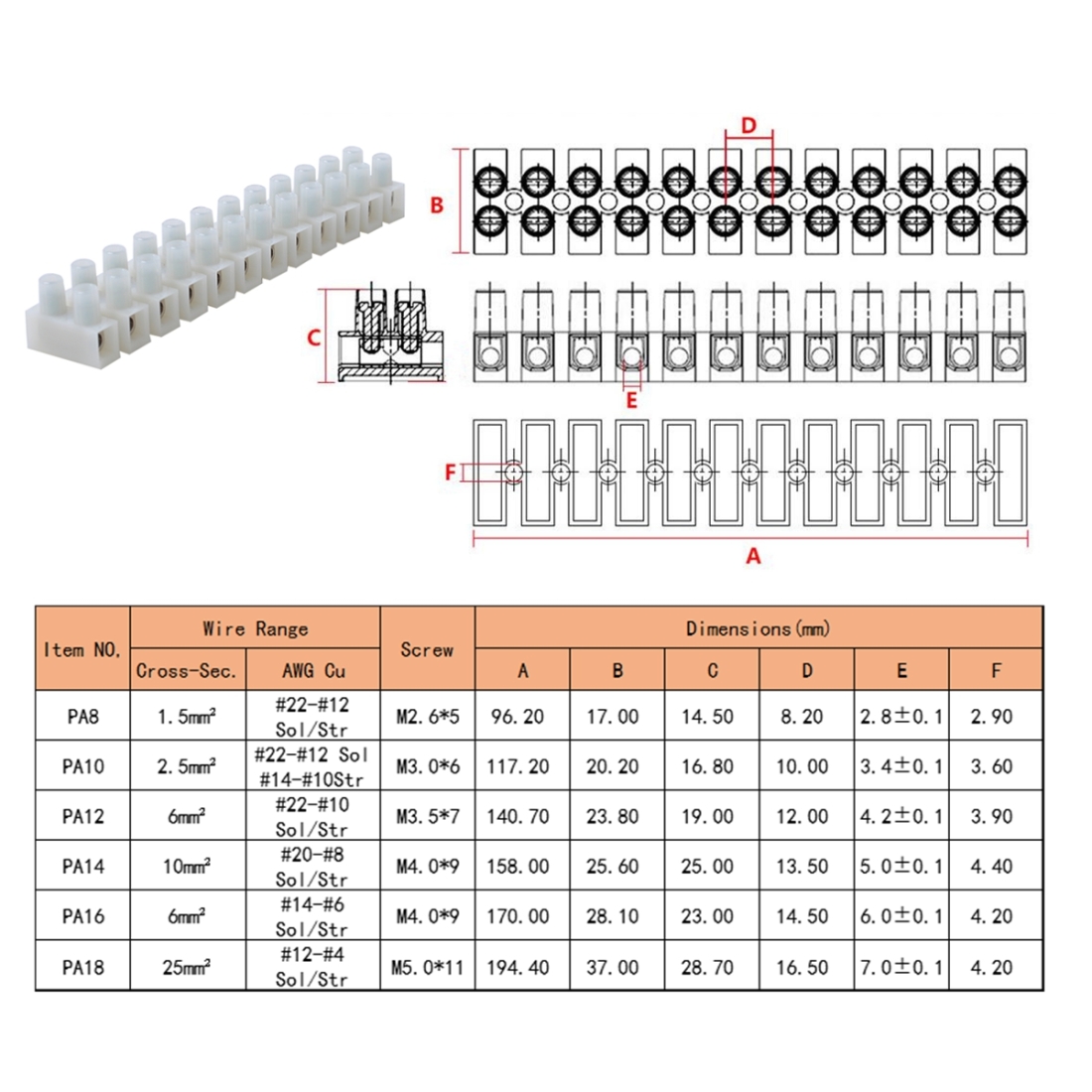

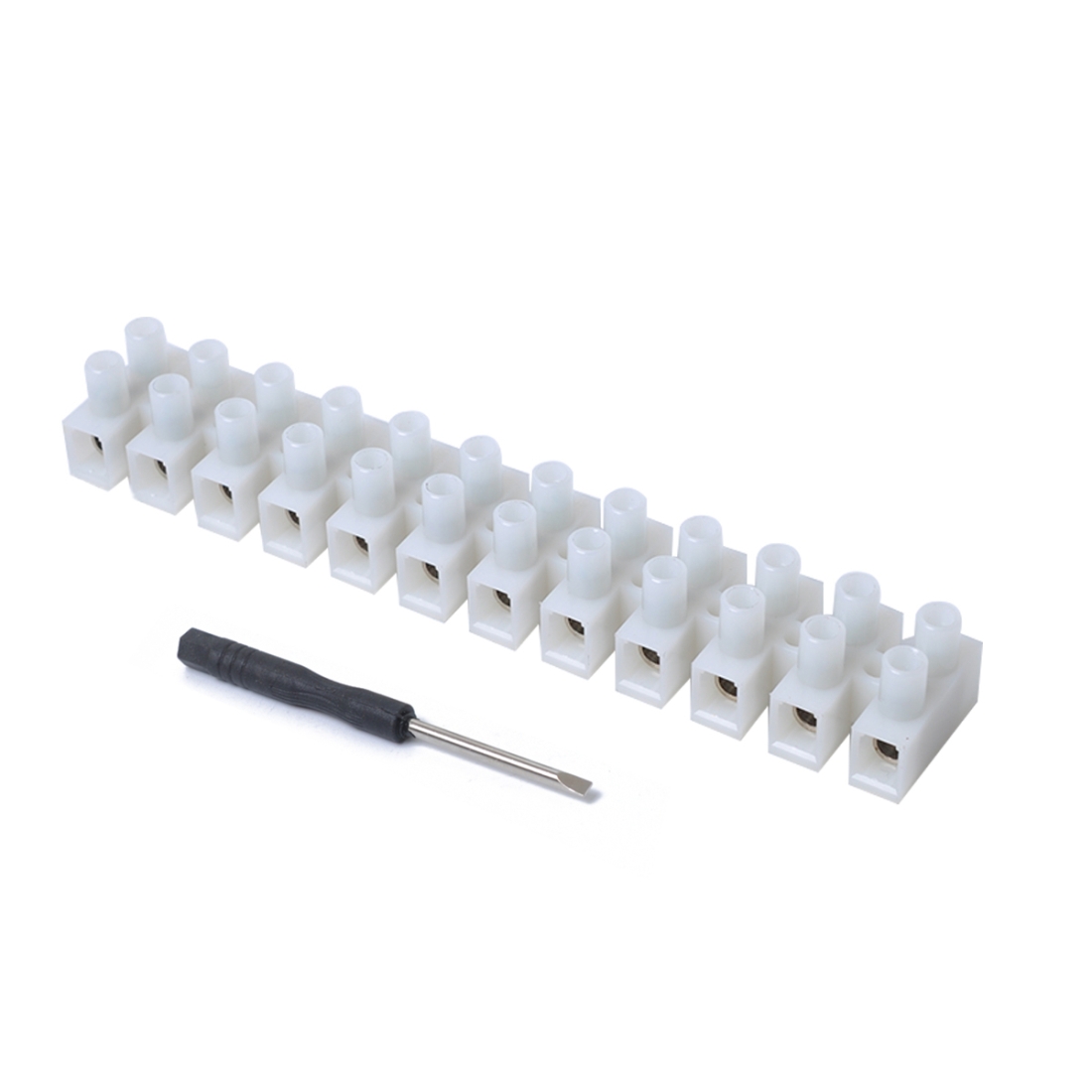

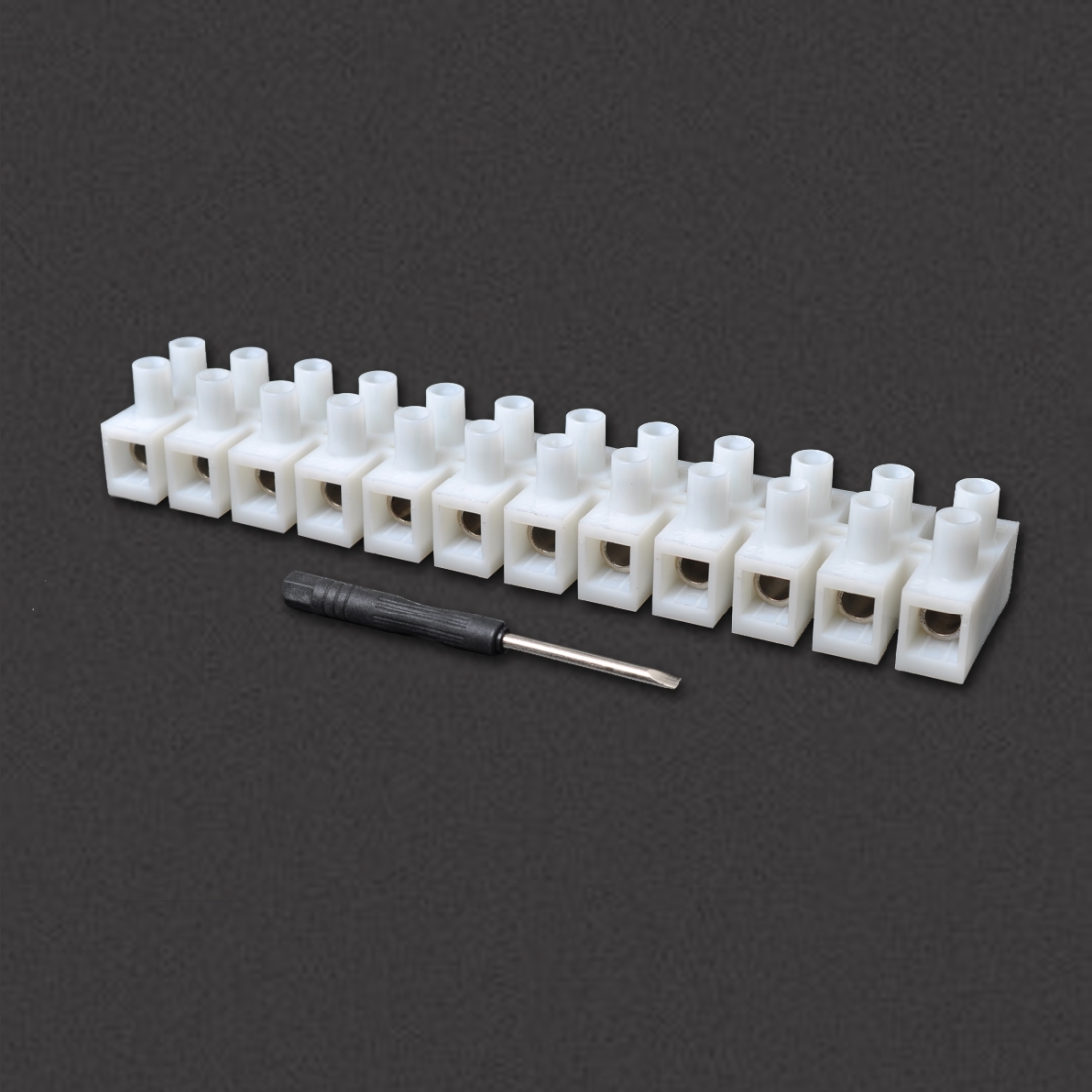

Parameter H-type terminal block (base height type) Base: Heightening 2.5mm Number of rows: 12 Plastic shell: PA66 engineering plastic, UL94V-2 or 94V-0 flame retardant grade Temperature: 105 Celsius(UL), -30 to T110 Celsius, T 140 Celsius (IEC) Wire seat: copper alloy nickel plating Screw: copper galvanized Product size: 194.4*37*28.7mm Stripping length: PA18 is about 13.0mm / 0.51in; Electrical specifications: PA18 500V 101A 25mm2; 300V 87A #12-#4 General purpose wire: PA18 25mm2; #12-#4 Sol/Str Screw: PA18 M5.0*11 Screwdriver length: about 8.5cm / 3.34" Package: 1 PA18 terminal block 1 screwdriver Widely used in the automotive field, yacht ships, motor homes, electrical and electronic, mechanical and other joints

Specifications

SKU

CRP0034

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.194 kg

Delivery

Standard delivery
