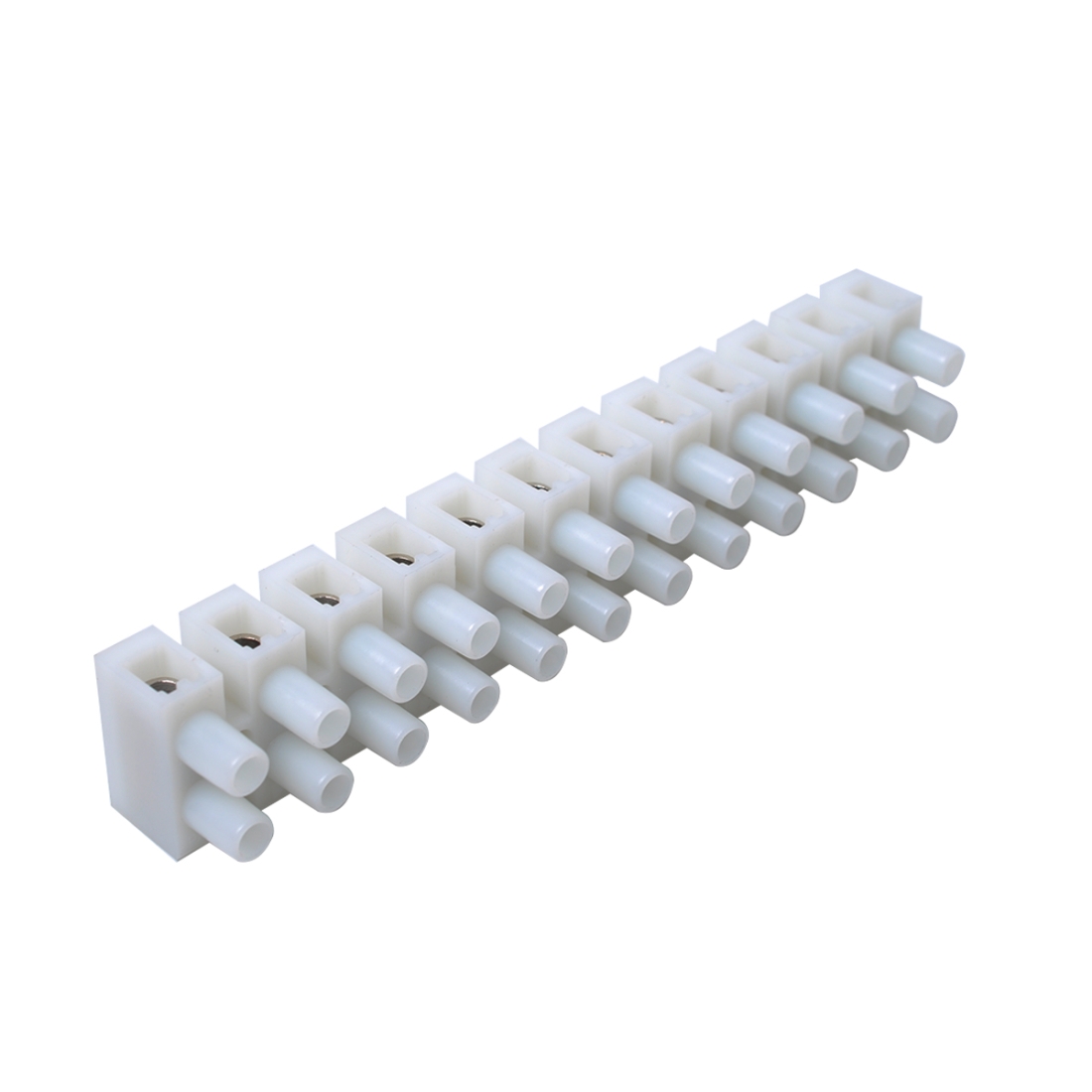

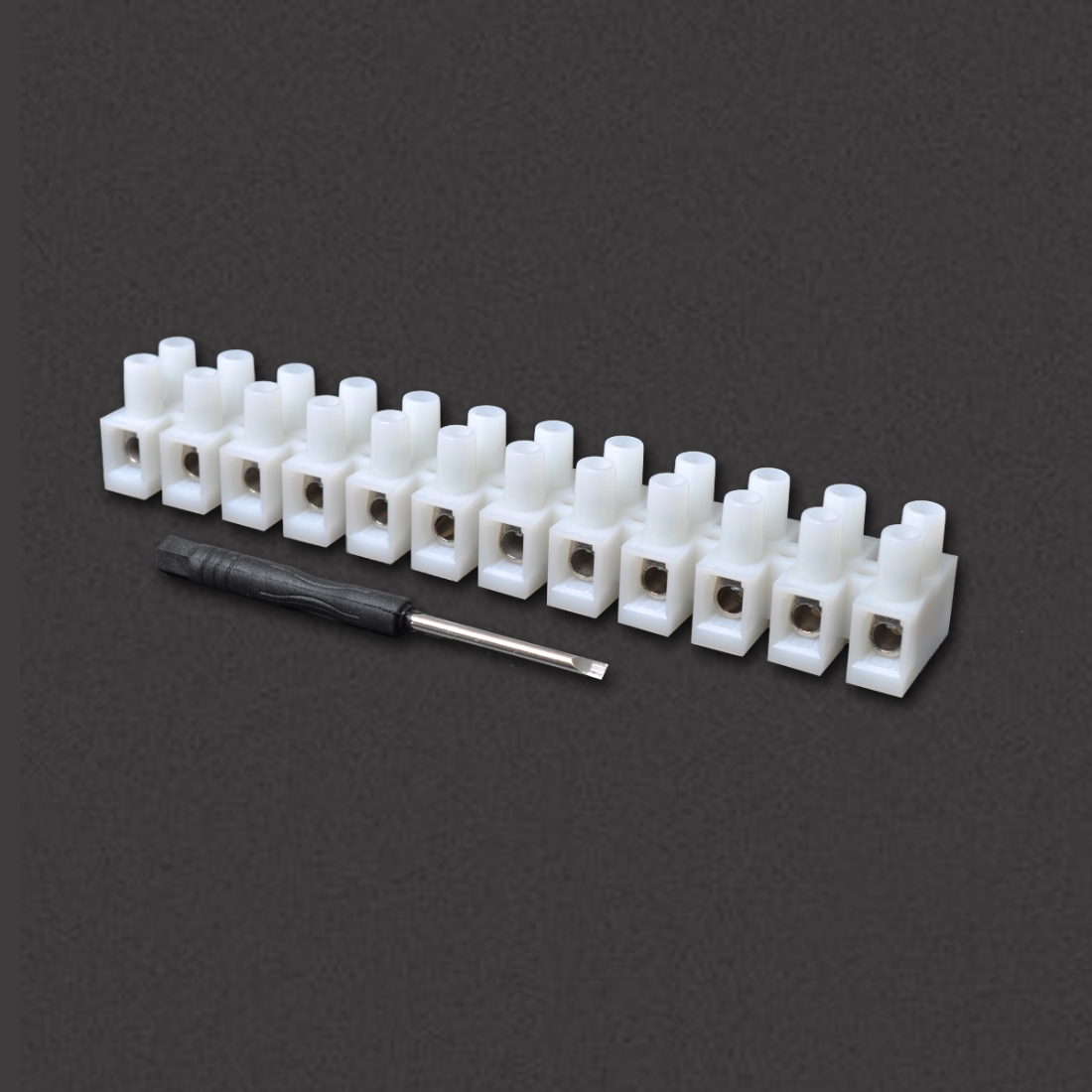

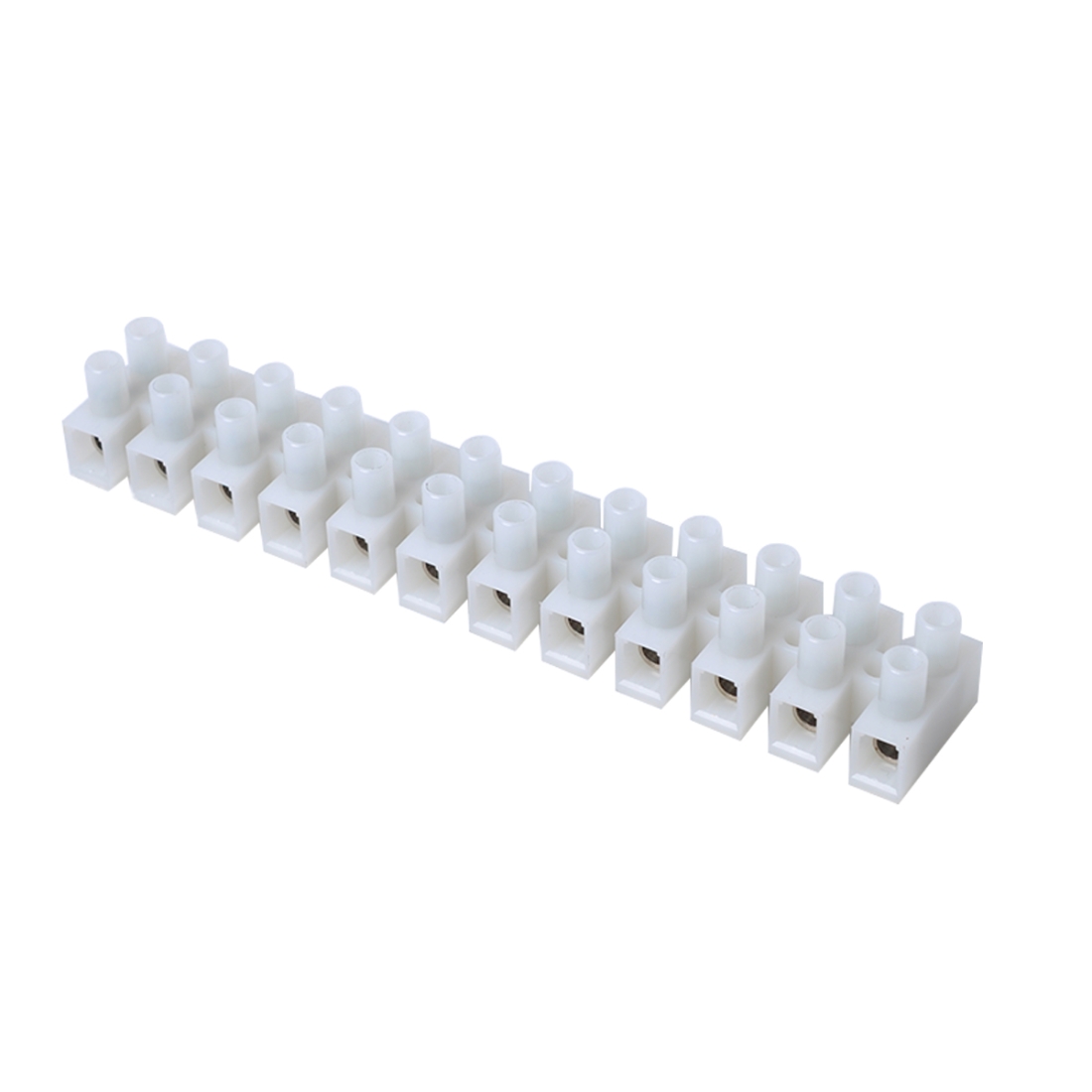

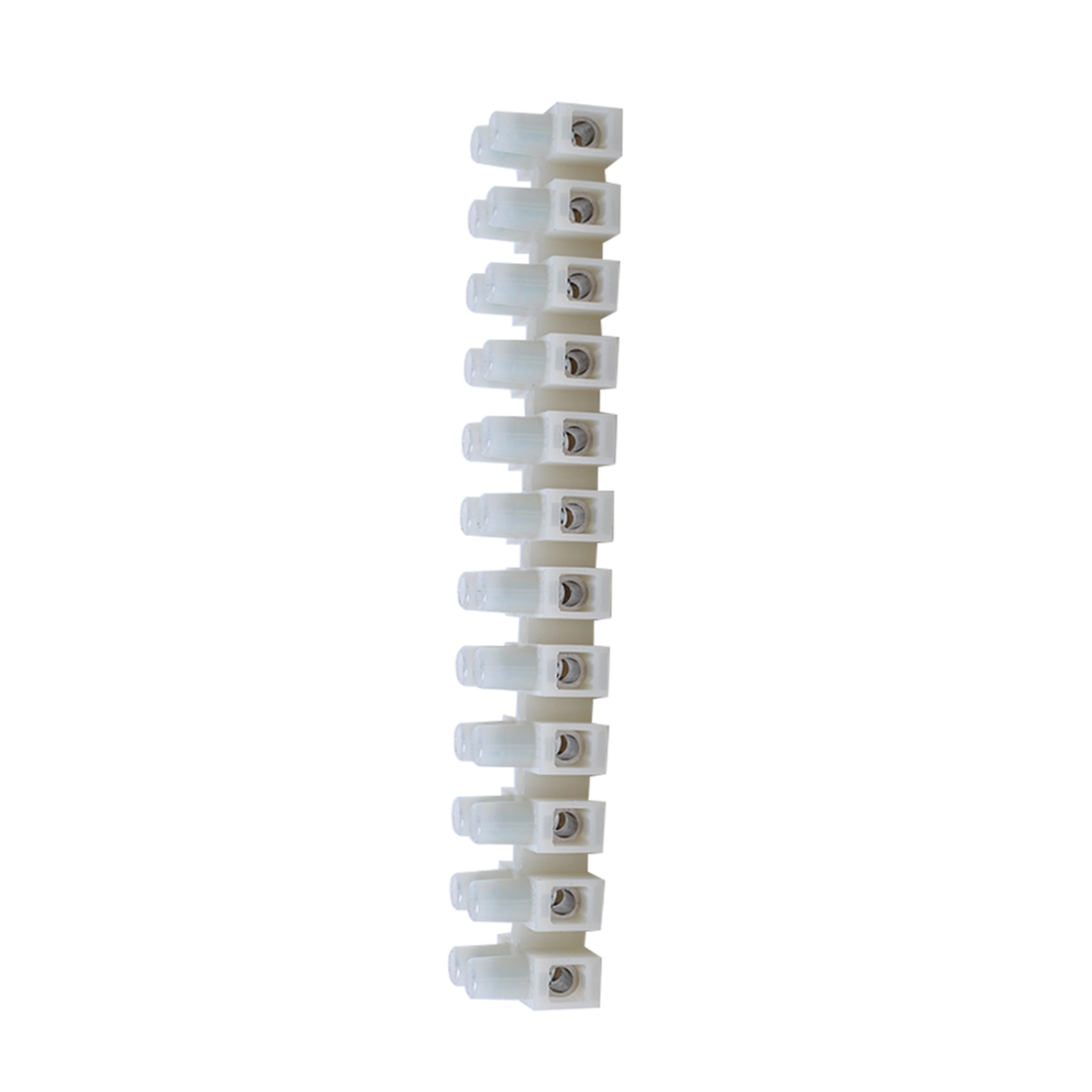

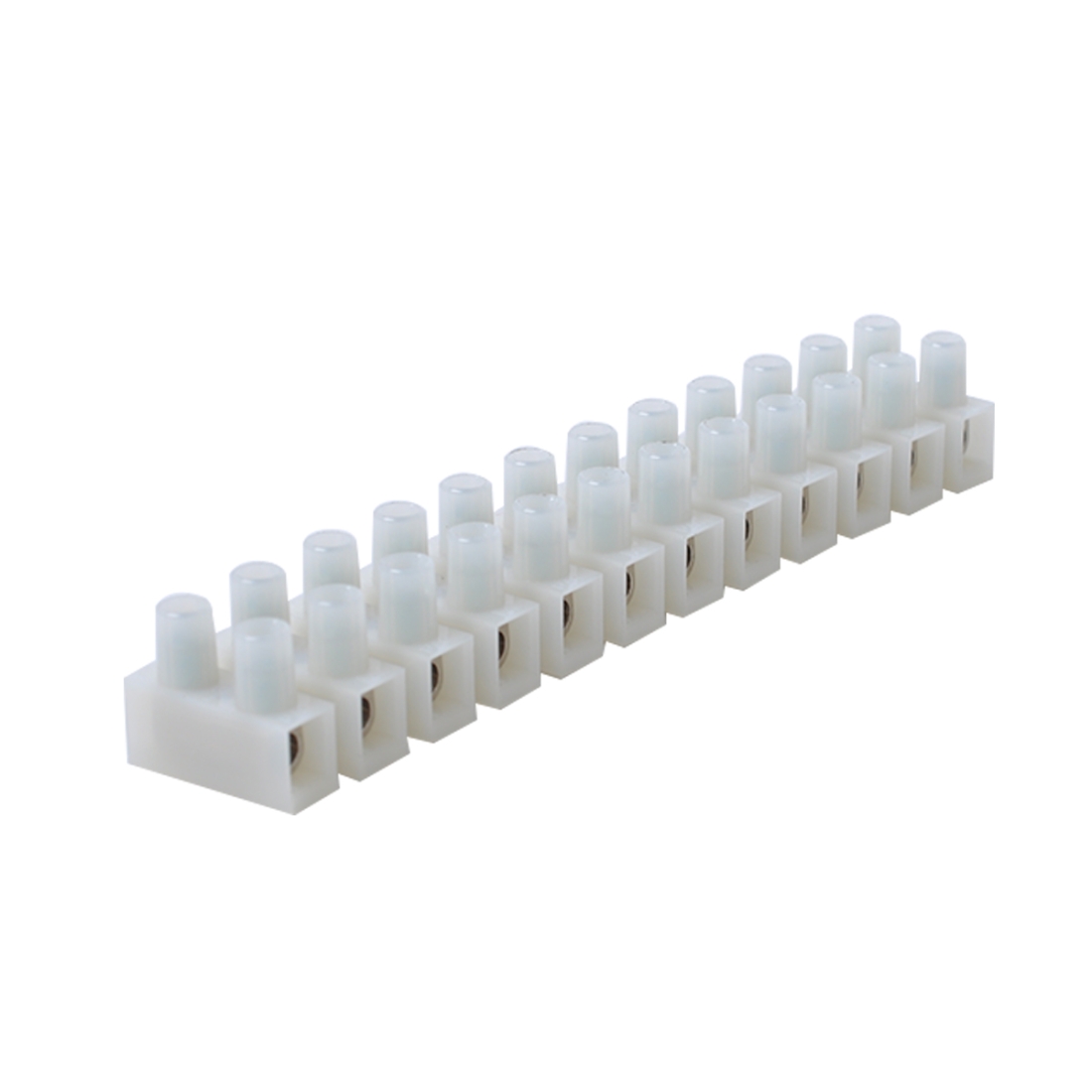

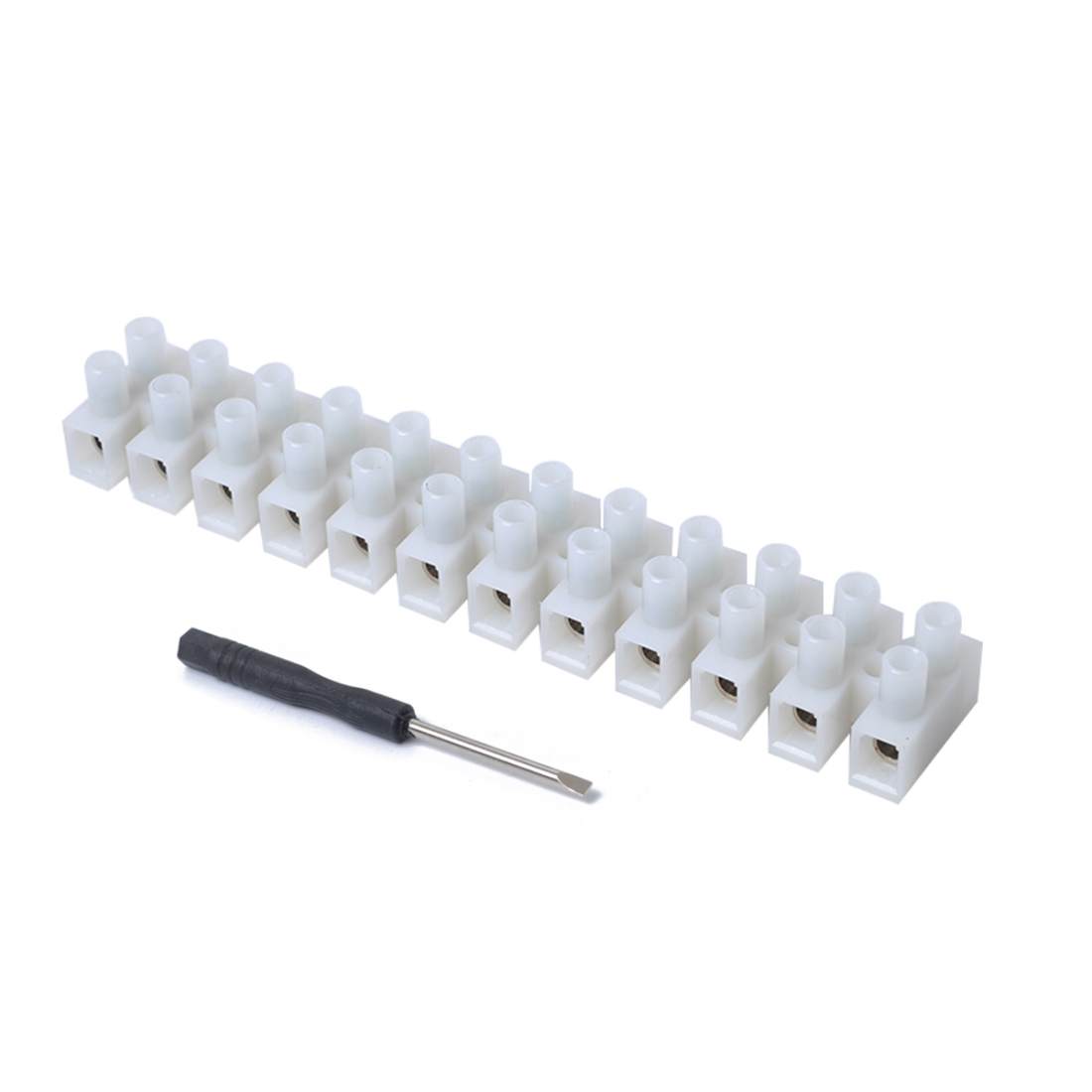

12 Position Barrier Screw Terminal Block Wire Dual Row Connector Strip 300V 50A with Screwdriver

Product Description

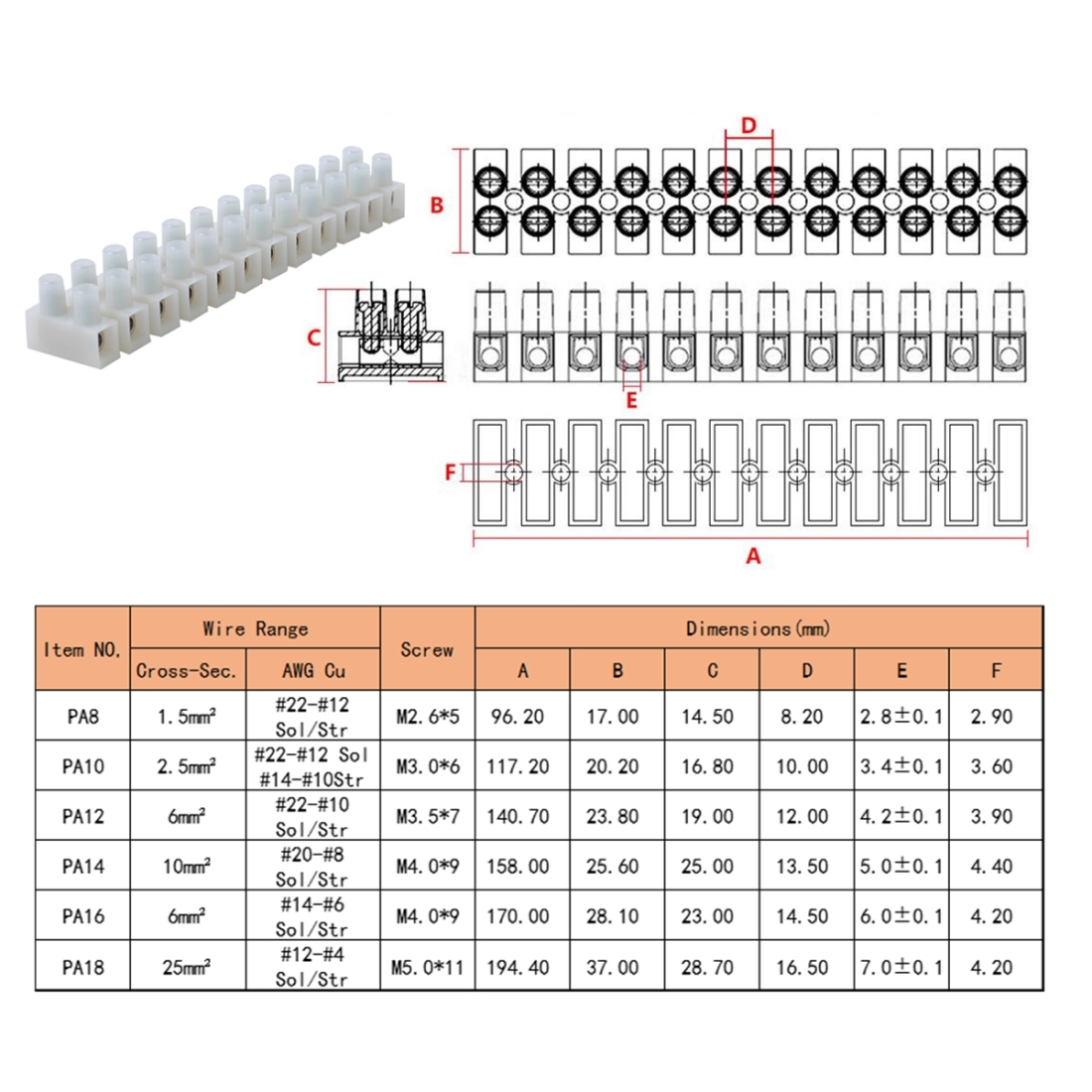

Parameter H-type terminal block (base height type) Base: Heightening 2.5mm Number of rows: 12 Plastic shell: PA66 engineering plastic, UL94V-2 or 94V-0 flame retardant grade Temperature: 105 Celsius(UL), -30 to T110 Celsius, T140 Celsius(IEC) Wire seat: copper alloy nickel plating Screw: copper galvanized Product size: 158*25.6*25mm Stripping length: PA14 is about 9.0mm/0.35in; Electrical specifications: PA14 500V 57A 10mm2; 300V 50A #20-#8 General purpose wire: PA14 10mm2; #20-#8 Sol/Str Screw: PA14 M4.0*9 Screwdriver length: about 8.5cm / 3.34" Package: 1 PA14 terminal block 1 screwdriver Widely used in the automotive field, yacht ships, motor homes, electrical and electronic, mechanical and other joints

Specifications

SKU

CRP0033

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.104 kg

Delivery

Standard delivery
