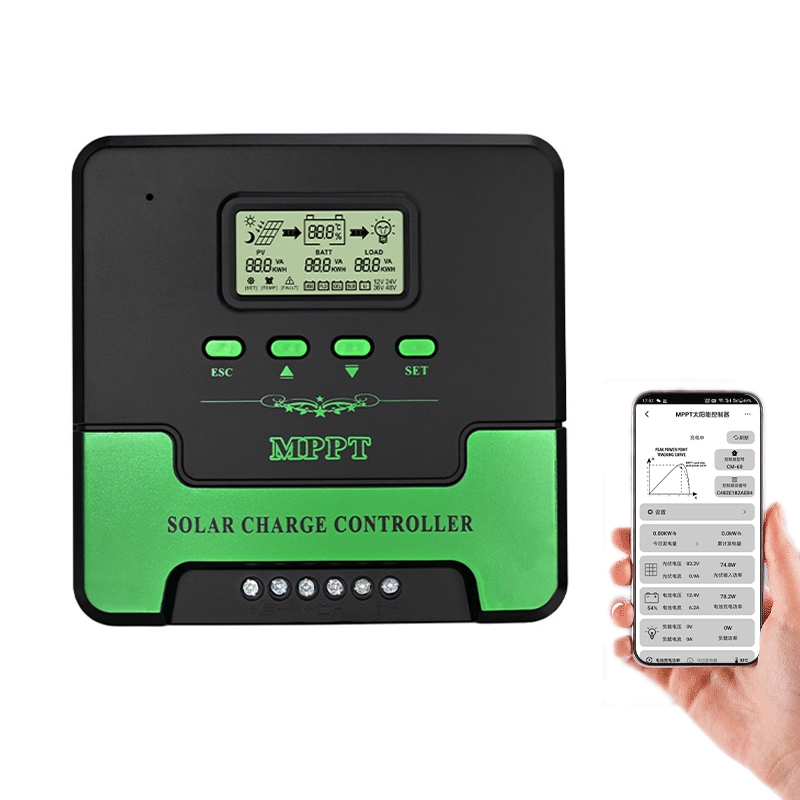

12V-24V 30A WIFI Remote MPPT Home Energy Storage Control System Solar Controller, Model: CM-D30

Product Description

1. Material: ABS+metal 2. System voltage: 12V/24V self-identification 3. No-load loss: less than 0.4W 4. Solar input voltage: 100V VOC (MAX) 5. Battery voltage: 9-32V 6. Voltage range: battery voltage +2V~100V (MAX) 7. Rated charging current: 30A 8. Rated load current: 20A 9. USB output: 5V/3A 10. Panel input power (MAX): 360W/12V; 720W/24V 11. Temperature compensation coefficient: -2mv/degree Celsius/2V (default value) 12. Working temperature: -10~+65 degrees Celsius 13. Protection level: IP21 14. Electromagnetic compatibility: in accordance with EN61000, EN55022, EN55024 15. Solar controller application scope: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards, etc. 16. System operation HD LCD LCD display, the display timing setting corresponds to the LCD display, clearly observe the operating status of the equipment and conveniently modify the operating parameters 17. The large-section and large-pitch wiring ports increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption 18. Multiple USB charging ports support most USB port devices on the market, mobile phones, tablets, game consoles, etc. 19. Solar controller WiFi remote control, more convenient to use 20. Size: 18.6x18.6x6.7 cm 21. Weight: 946 g

Specifications

SKU

TBD0605442303

Category

Consumer Electronics › Solar Power › Others

Weight

1.152 kg

Delivery

Standard delivery
