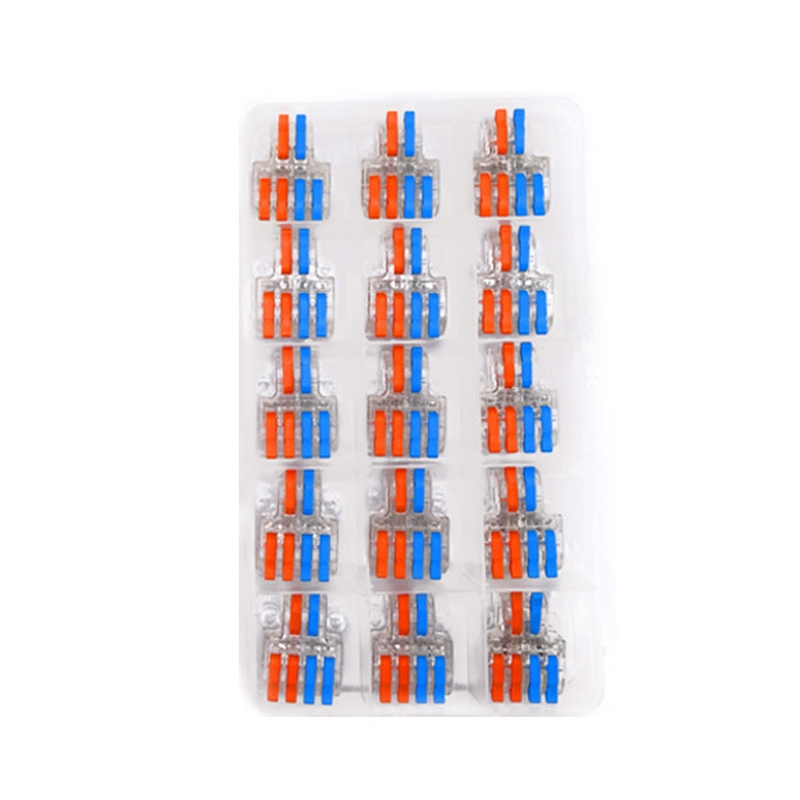

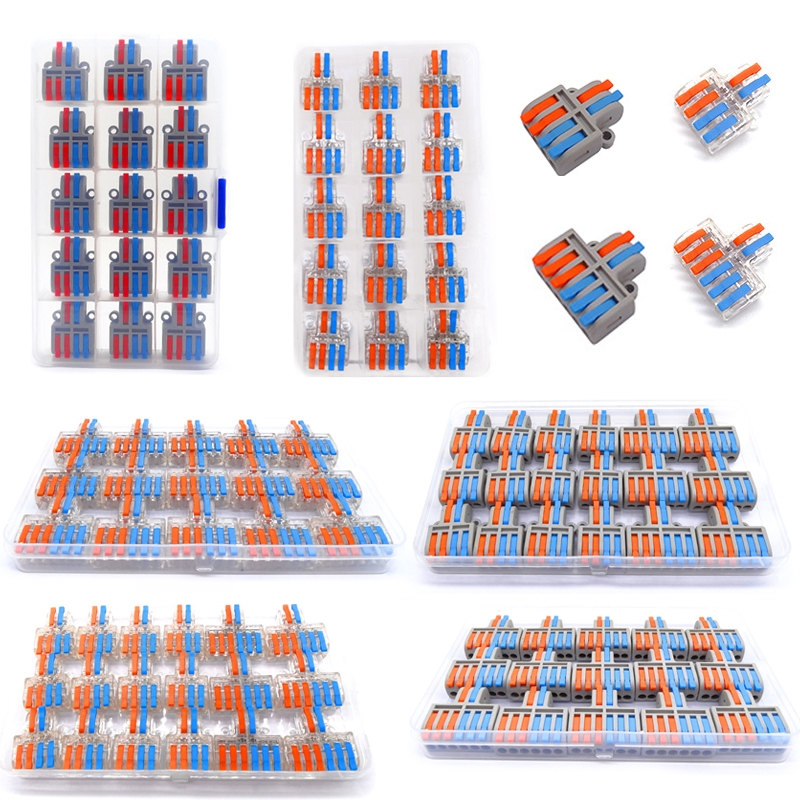

15 PCS / Box DF-42 Transparent Terminal Block Set Multi-function Splitter

Product Description

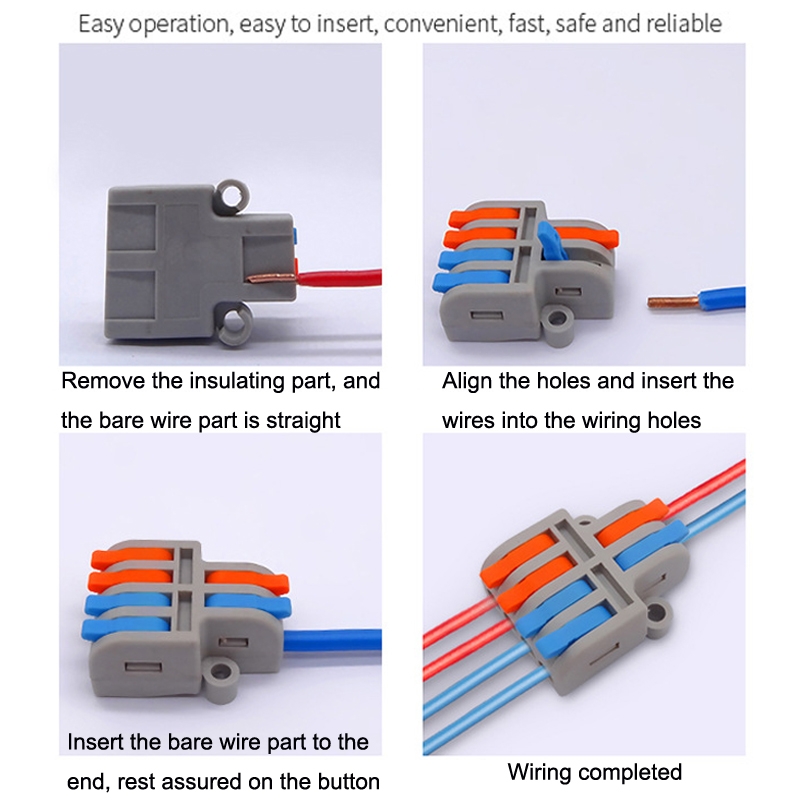

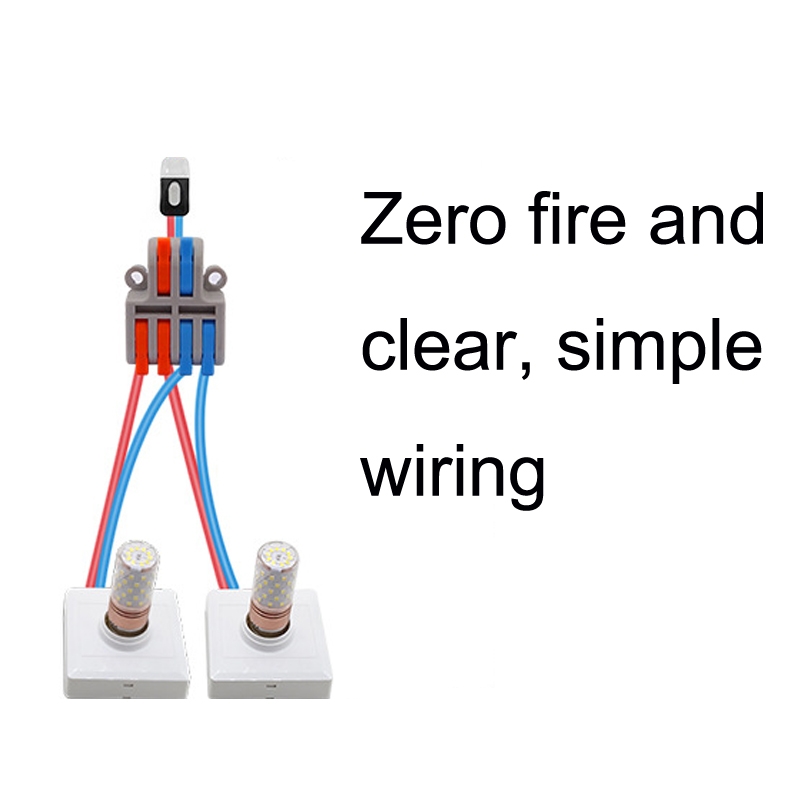

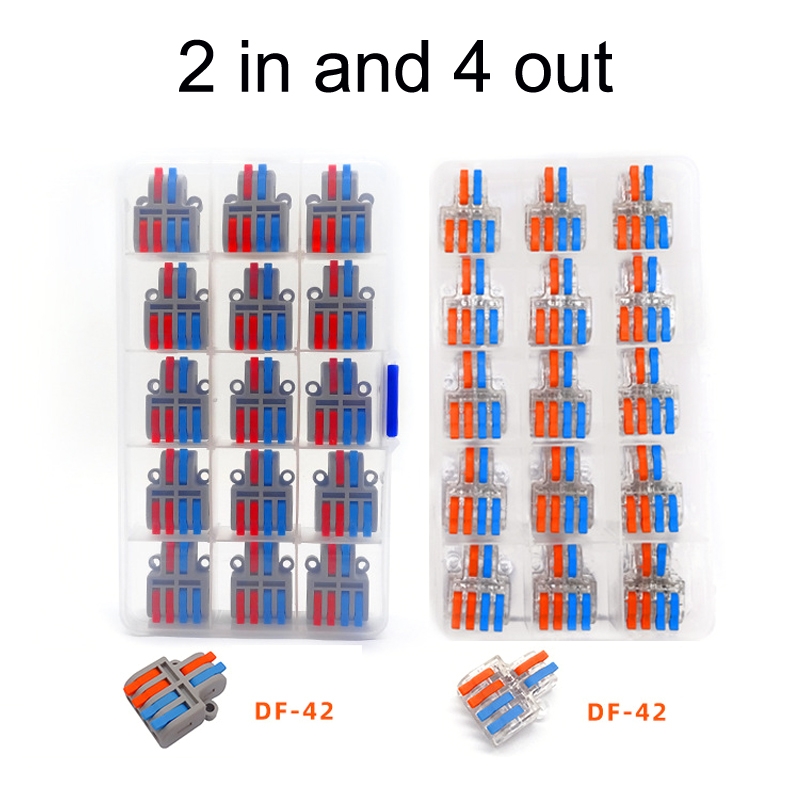

1. Easy to operate, just plug it in, convenient, fast, safe and reliable 2. Zero fire and clear, simple wiring 3. Wire length: 10-12mm 4. Production process: injection molding 5. Contact material: brass tinned 6. Insulator Material: Nylon / PC 7. Number of cores: 2 / 3 / 5 8. 15 packs: DF-42: 2 in and 4 out; DF-62: 2 in and 6 out 9. Scope of application: used for lighting, motor, electrical control, power supply, home appliances, machinery, home improvement, etc. 20. Specifications: 18 Packs: 12 x DF-42 + 6 x DF-62 21. Voltage: 250v 22. Current: 32A 23. Dimensions: 17 x 10 x 2cm 24. Weight: 15 pieces: about 180g, 18 pieces: about 190g Wiring: 1. Remove the insulating part, and the bare wire part is straight 2. Align the holes and insert the wires into the wiring holes 3. Insert the bare wire part to the end, rest assured on the button 4. Wiring completed

Specifications

SKU

TBD0602580102

Category

Consumer Electronics › DIY Parts & Components › Connectors & Terminals

Weight

0.204 kg

Delivery

Standard delivery
