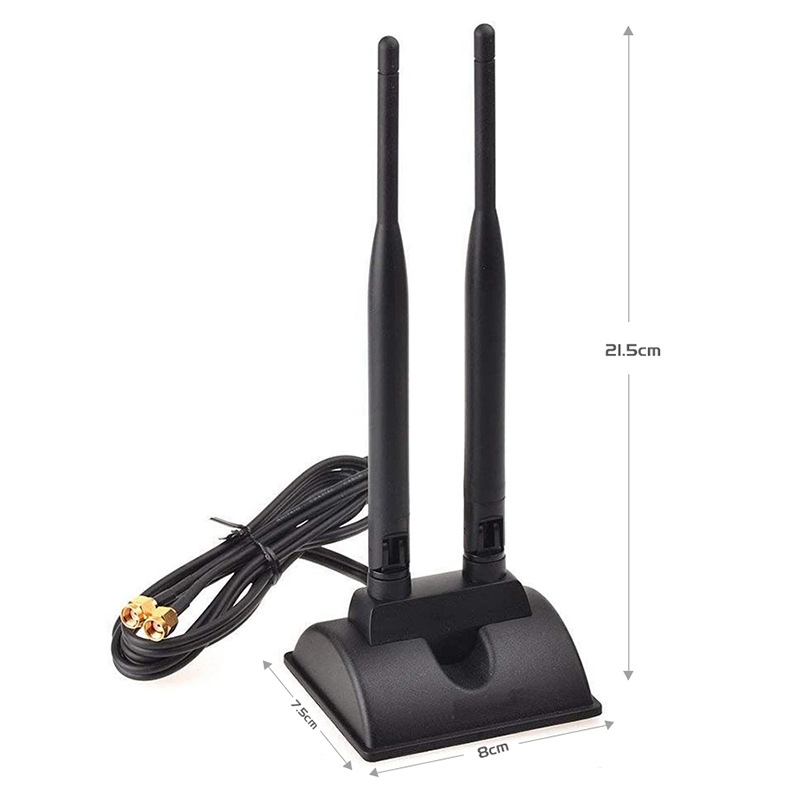

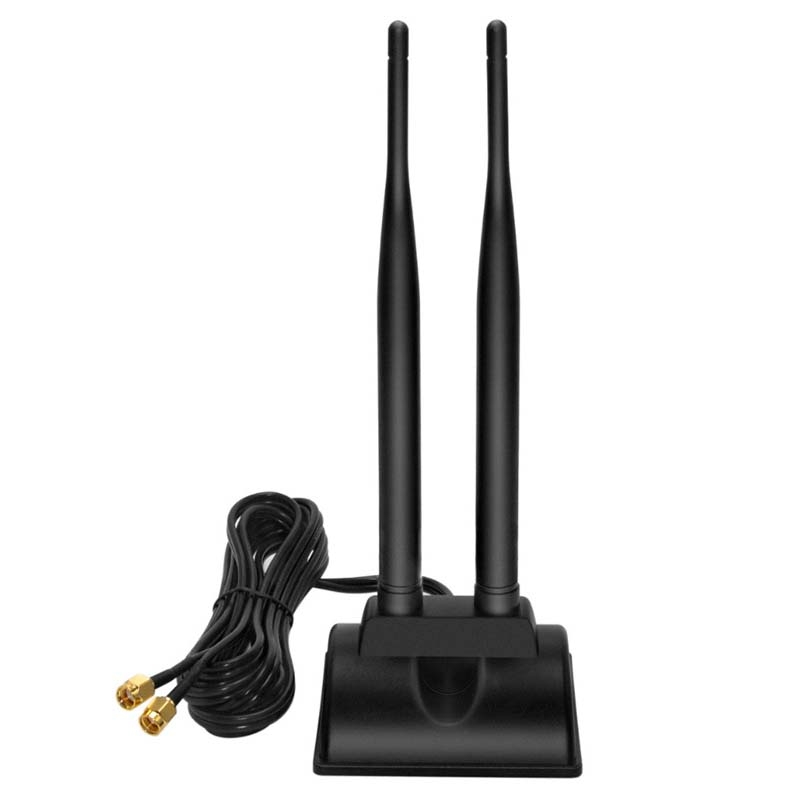

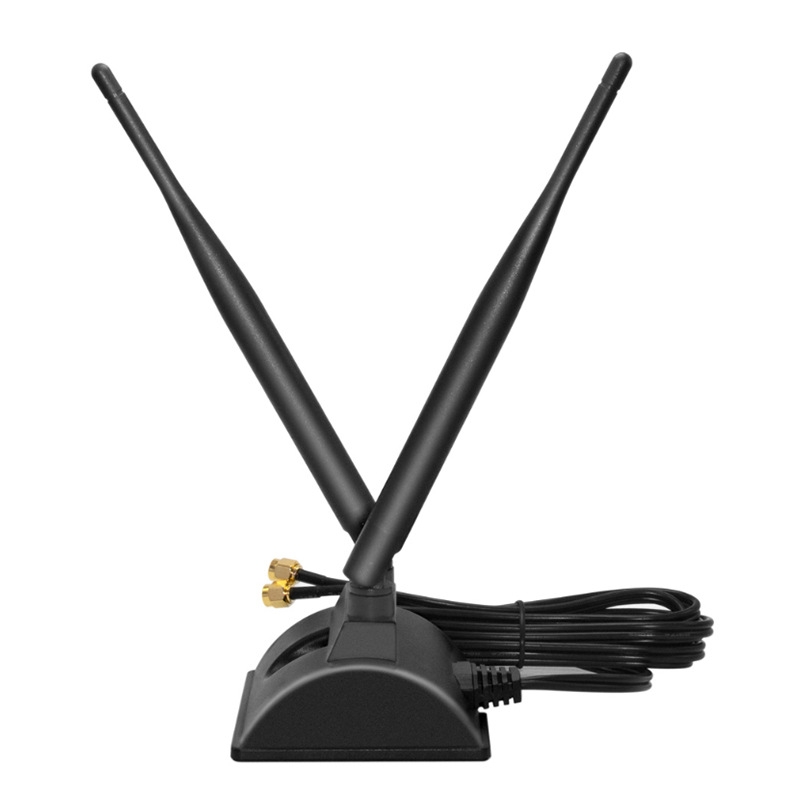

2.4GHz 5GHz 6DBI Magnetic Suction WiFi Antenna PCI-E WiFi Network Card

Product Description

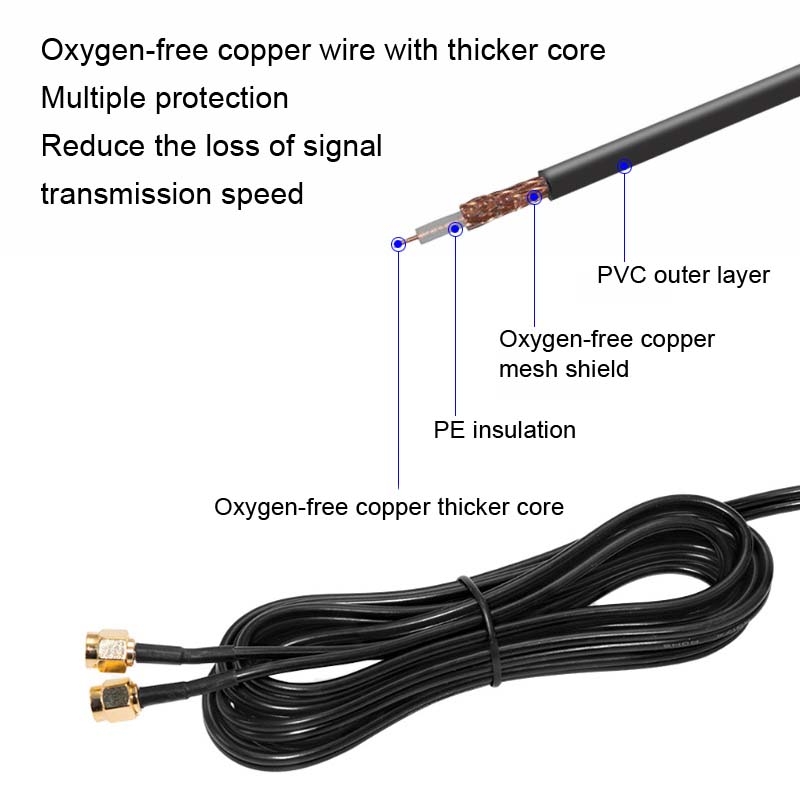

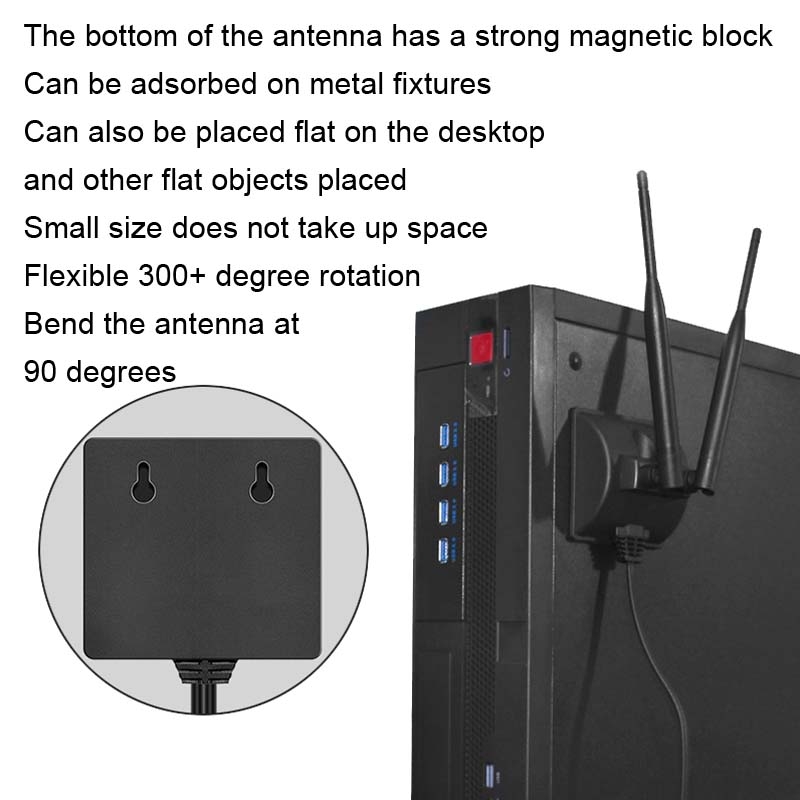

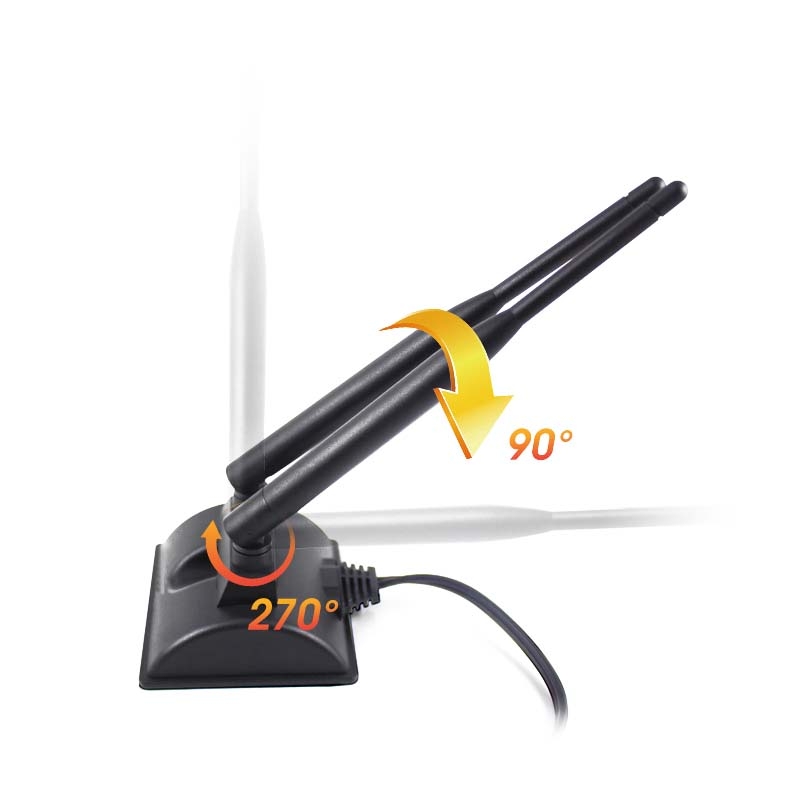

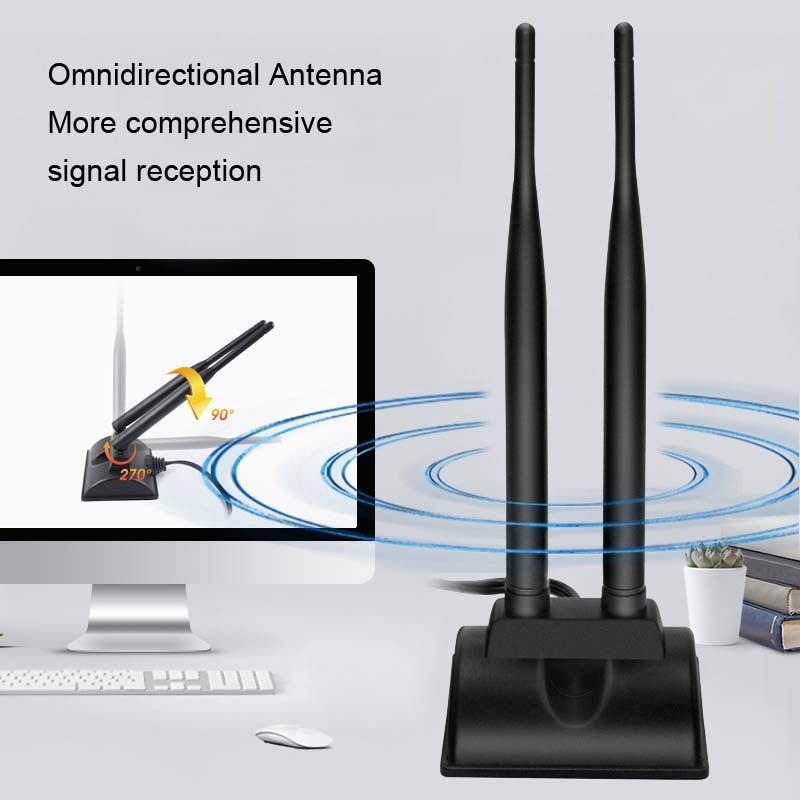

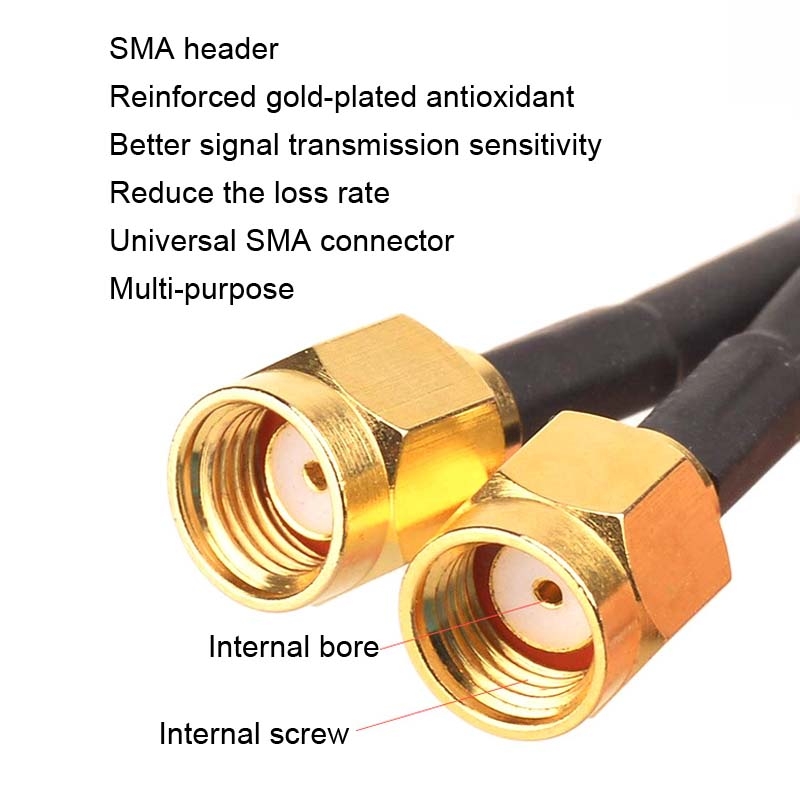

1. Gain: 6dBi 2. Frequency range: 2.4GHz, 5GHz, 5.8GHz 3. Output impedance: 50 ohms 4. VSWR: within 1.5dB 5. Operating voltage: 5-12V 6. Internal material: printed circuit board 7. Connector type: SMA / RP-SMA 8. Mounting method: SMA connector 9. Operating Temperature: -40 - 80 degree Celsius 10. Storage temperature: -40 - 85 degrees Celsius Features: 1. SMA header, reinforced with gold plating and anti-oxidation, better signal transmission sensitivity and reduced loss rate 2. Universal SMA connector, multi-purpose 3. Omni-directional antenna, more comprehensive signal reception 4. Strong magnetic block at the bottom, can be adsorbed on metal fixtures, can also be placed on the desktop and other flat objects, small size does not take up space 5. Flexible 300-degree rotation, 90-degree angle bending antenna 6. Oxygen-free copper wire with thicker core, multiple protection, reduce the loss of signal transmission speed

Specifications

SKU

TBD06038934

Category

Computer & Networking › Wifi Antenna › SMA/RP-SMA Antenna

Weight

0.231 kg

Delivery

Standard delivery
